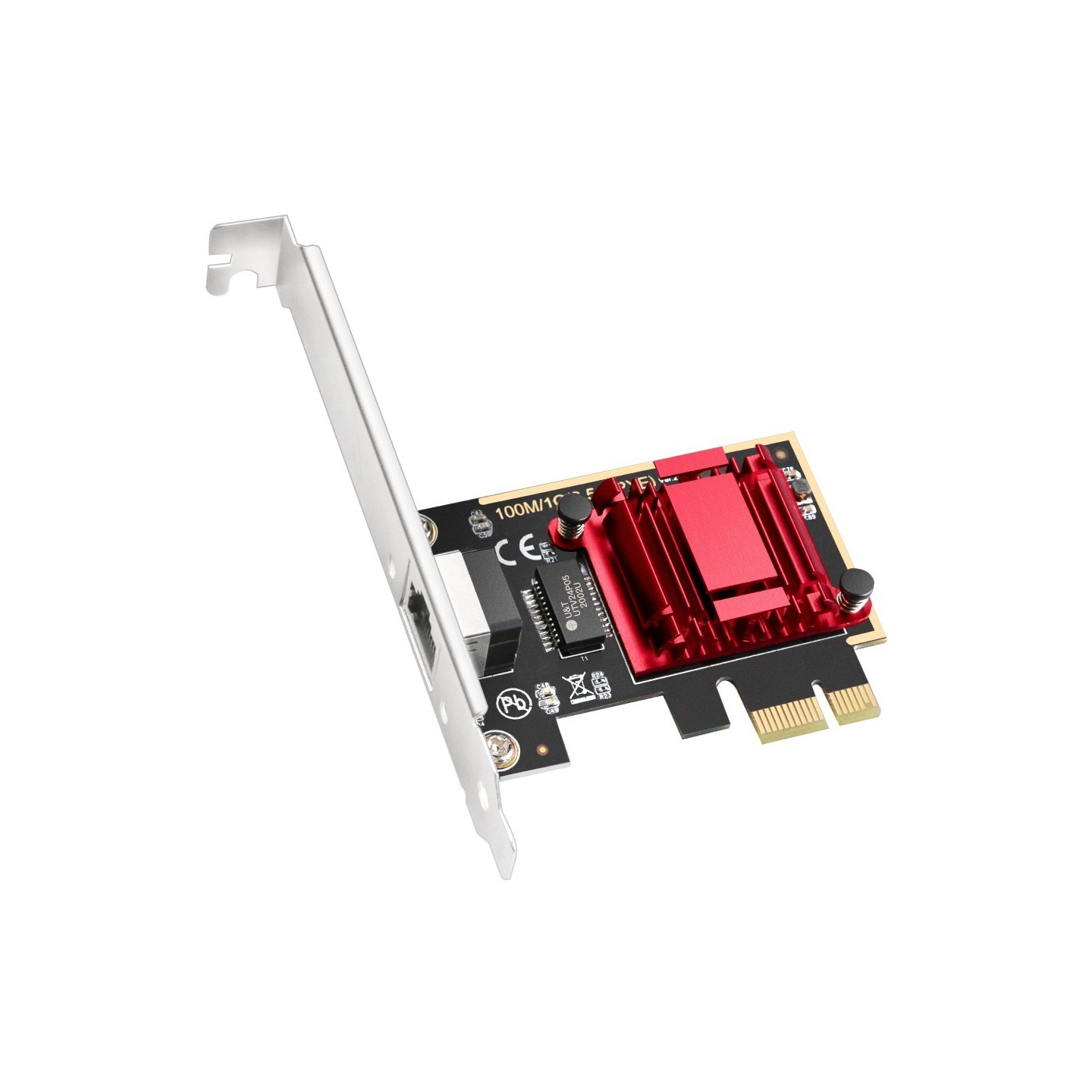

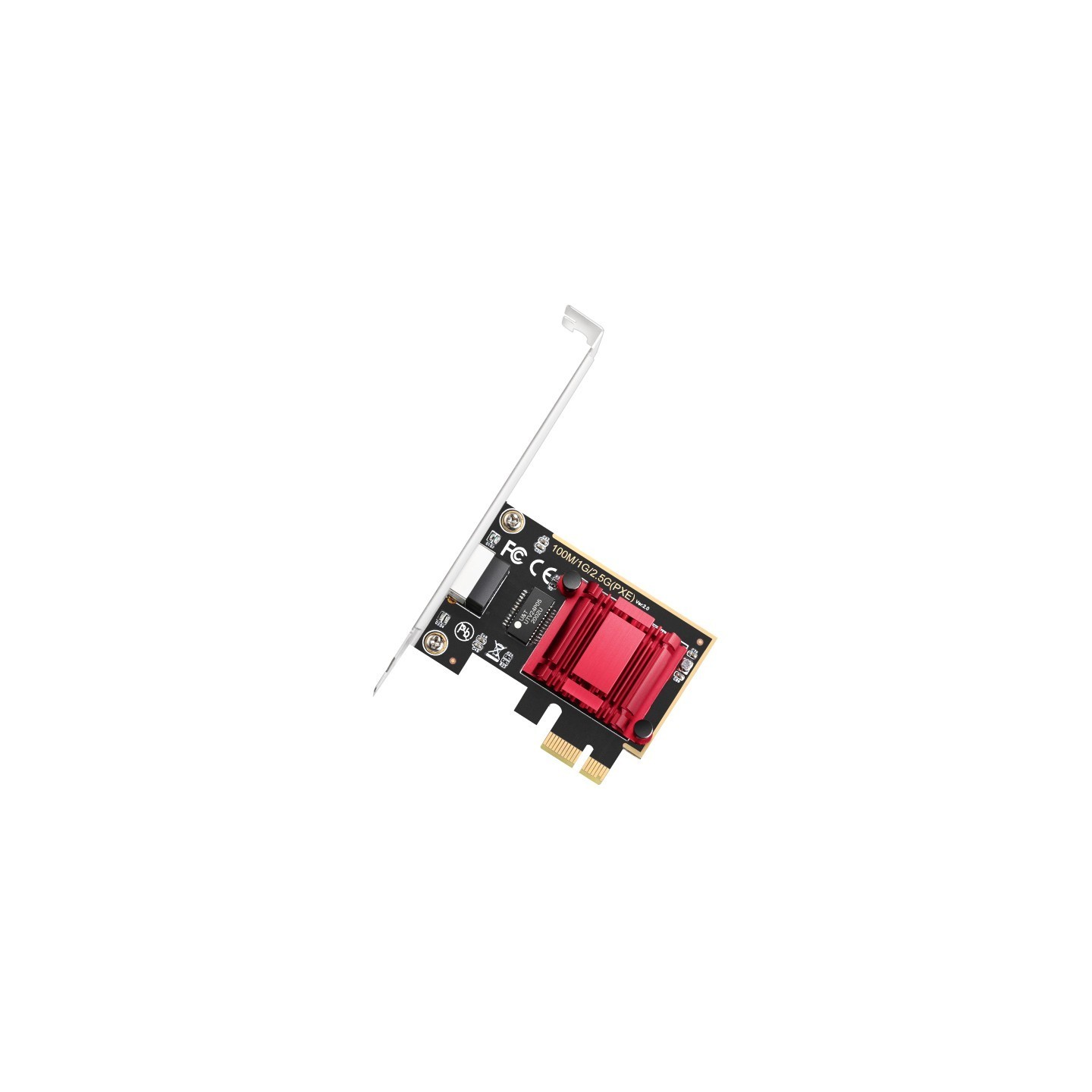

INTG Cudy 2.5G PCI Express Adapter - 2.5G PCI Express
INTG Cudy 2.5G PCI Express Ethernet adapter with RTL8125; 1x RJ-45, full-height (low-profile) PCIe card; 10/100/1000/2500 Mbps, flow control; Windows and Windows Server compatible.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PCIe Network Cards - Port Speed | 2.5GbE |
|---|---|
| PCIe Network Cards - Ports | 1xRJ45 |
| PCIe Network Cards - PCIe Lanes | x1 |
| PCIe Network Cards - Low-Profile Bracket | Included |
| PCIe Network Cards - OS Compatibility | Windows |
Cudy PE25. Internal. Connectivity technology: Wired. Host interface: PCI Express. Interface: Ethernet
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI Card form factor | Full-height (low-profile) |
| Networking standards | IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3bz. IEEE 802.3u |
| Feature | Flow control support |
| Ethernet interface type | 2.5 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet |
| Ethernet LAN data rates | 10.100.1000.2500 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Copper ethernet cabling technology | 10BASE-T. 1000BASE-TX |
| LAN controller | Realtek RTL8125 |
| Component for | PC/Server |
| LED indicators | Activity. Link. Speed |
| Mean time between failures (MTBF) | 376212 h |
| Windows operating systems supported | Windows 10. Windows 7. Windows 8. Windows 8.1 |
| Server operating systems supported | Windows Server 2008. Windows Server 2012 |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 71.5 mm |
| Depth | 50 mm |
| Height | 1.6 mm |
| Package type | Box |
