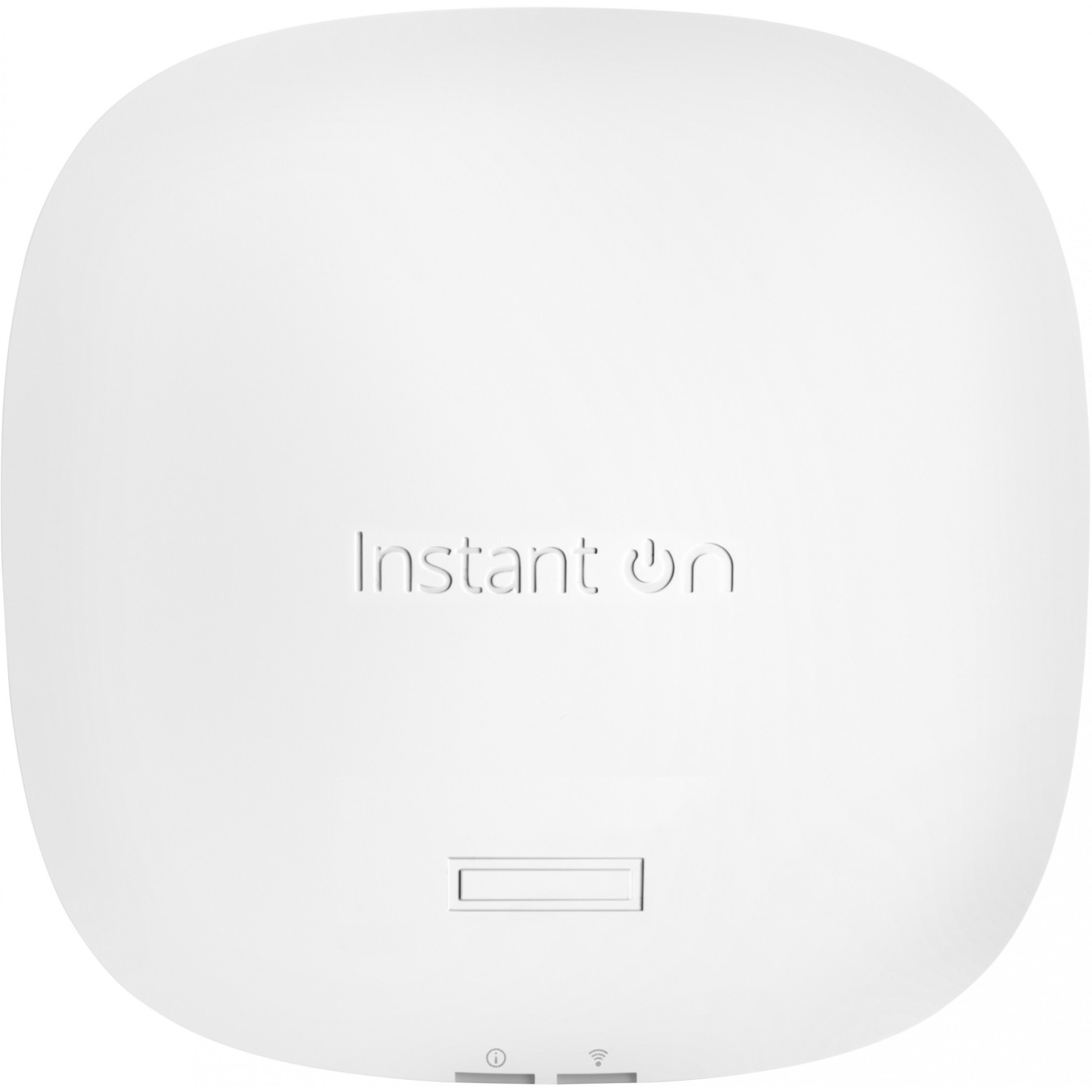

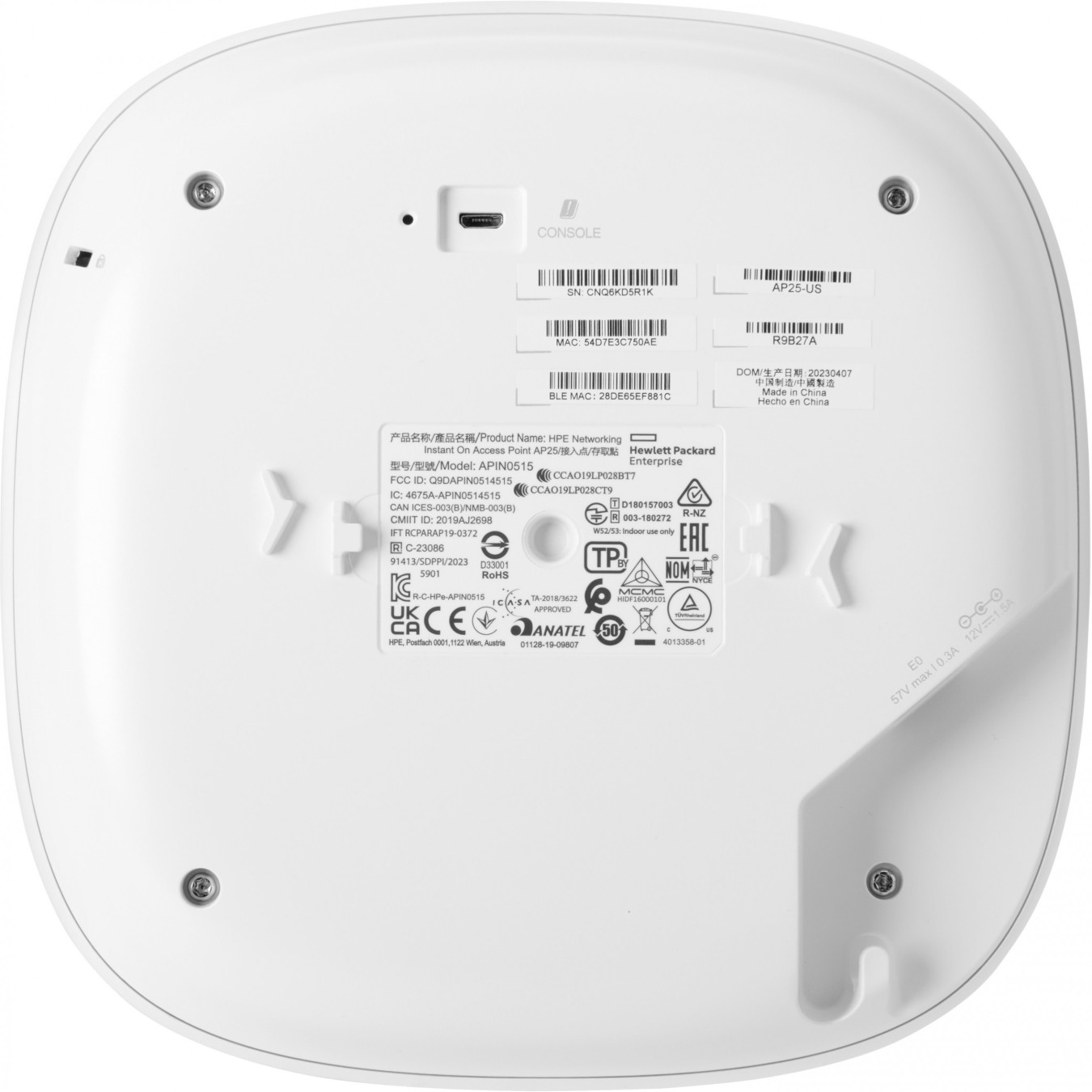

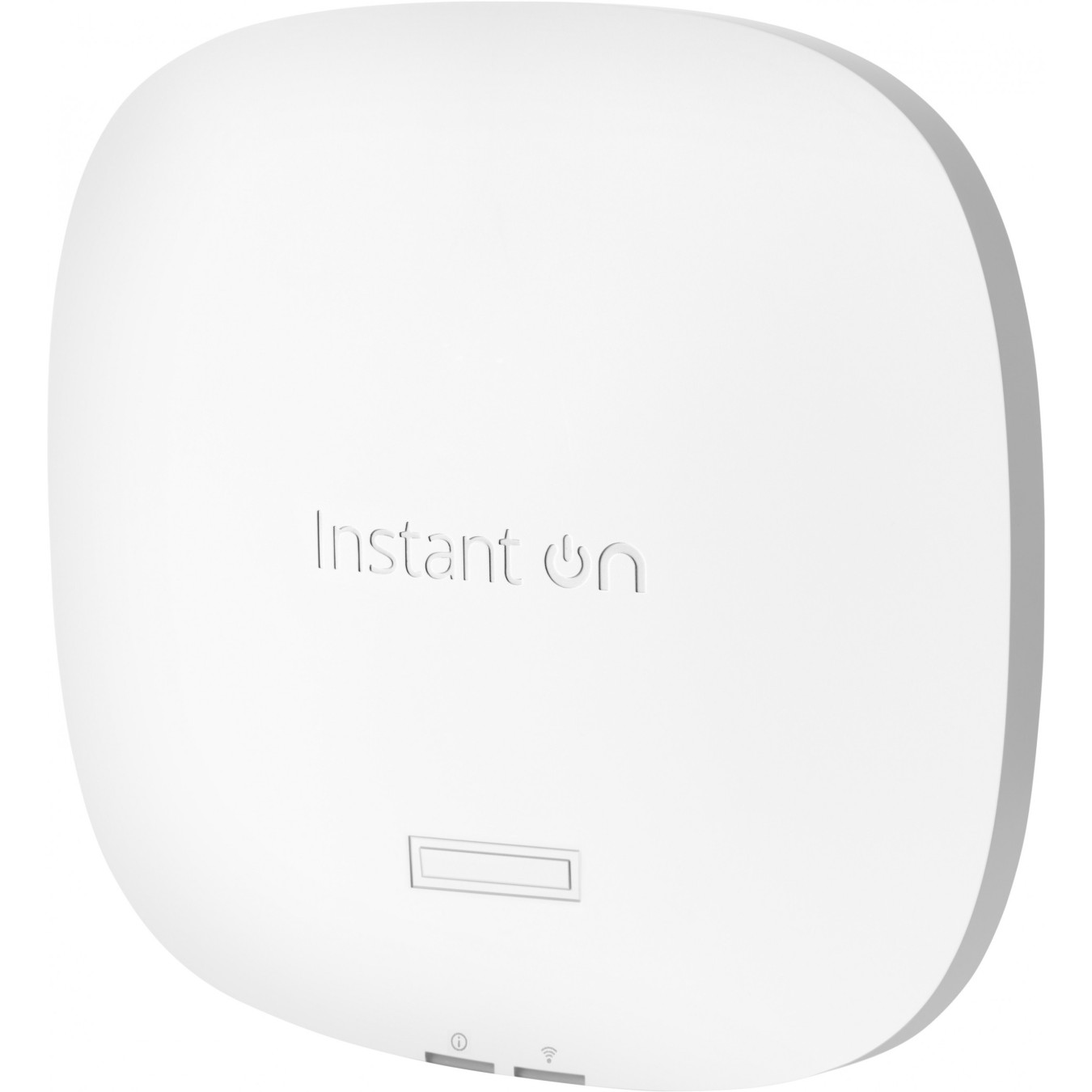

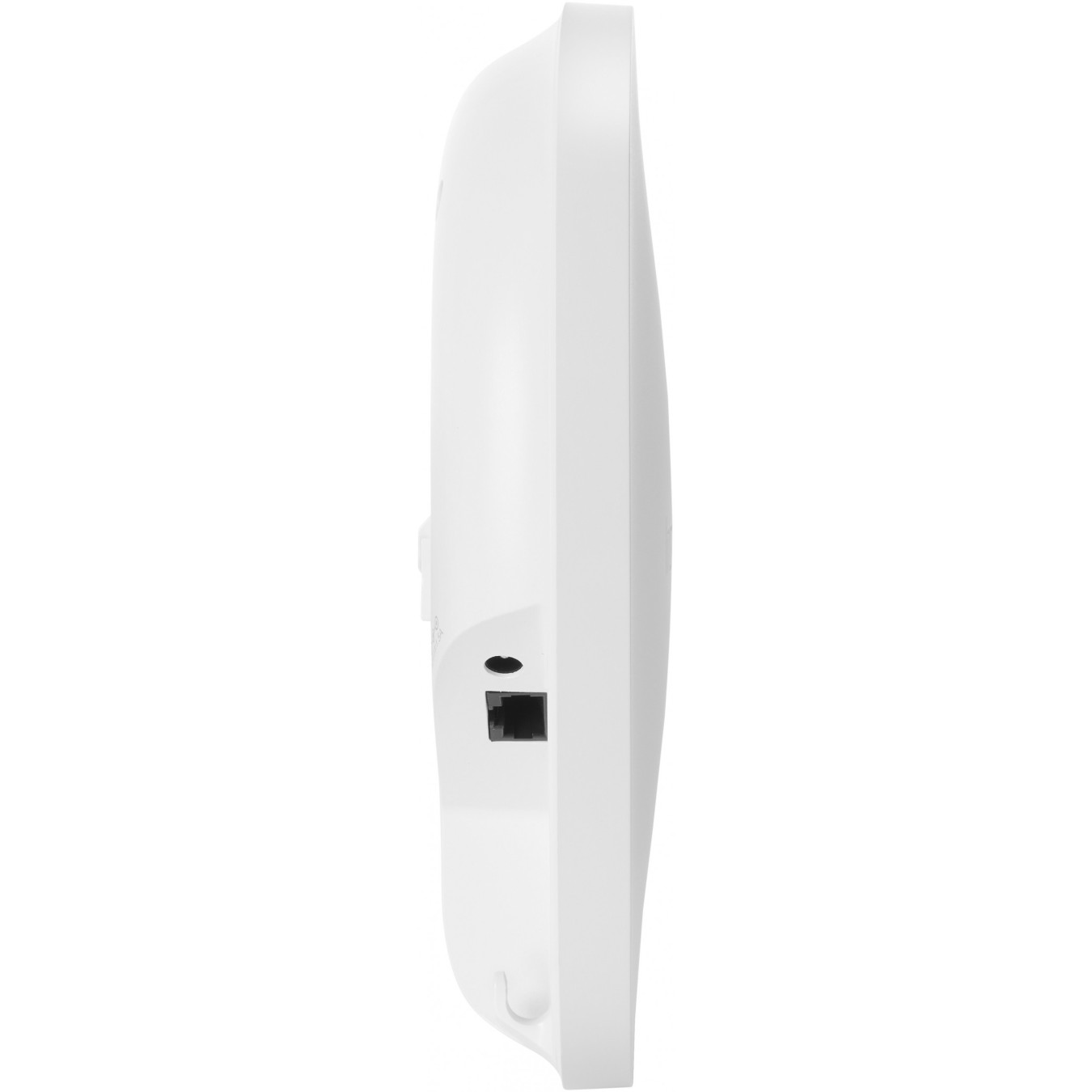

HPE Aruba Instant On - AP25 (RW) - Wireless base station
Indoor Wi-Fi 6 4x4 AP, AP25 (RW), 2.4/5 GHz, 4800 Mbps total, 2500 Mbps Ethernet, OWE, WPA2, WPA3.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
HPE Aruba Networking Networking Instant On Indoor Access Point Wi-Fi 6 4x4 (RW) AP25. 2.4 GHz. 5 GHz. Maximum data transfer rate: 4800 Mbit/s. Security algorithms: OWE. WPA2. WPA3. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 20.1 W
| Feature | Reset button |
| Maximum data transfer rate | 4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Ethernet LAN data rates | 2500 Mbit/s |
| Networking standards | IEEE 802.11ax |
| Number of users | 100 user(s) |
| MIMO type | Multi User MIMO |
| Security algorithms | OWE. WPA2. WPA3 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| DC voltage range | 12 V |
| Power consumption (max) | 20.1 W |
| Placement | Ceiling. Wall |
| Product colour | White |
| Cable lock slot type | Kensington |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 4.5 dBi |
| Certification | None |
| Width | 200 mm |
| Depth | 45 mm |
| Height | 200 mm |
| Weight | 775 g |
| Operating temperature (T-T) | 0 - 40 °C |
| Harmonized System (HS) code | 85176990 |
