DeepCool CH270 DIGITAL White M-ATX Case - R-CH270-WHNDN (Boxed)
DeepCool CH270 DIGITAL White mini-tower PC case with vertical GPU mount, built-in digital display for system vitals. Supports Micro-ATX/Mini-ITX, 360mm side radiator, up to 41.3cm GPU, 17.4cm CPU cooler. Mesh airflow design, compact 296x225x486mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 240 mm 360 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Combo Jack USB A USB C Gen2 |
| PC Cases - GPU Orientation | Vertical Supported |
| PC Cases - Form Factor | Mini Tower |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | White |
| PC Cases - CPU Cooler Clearance | 170+ mm |

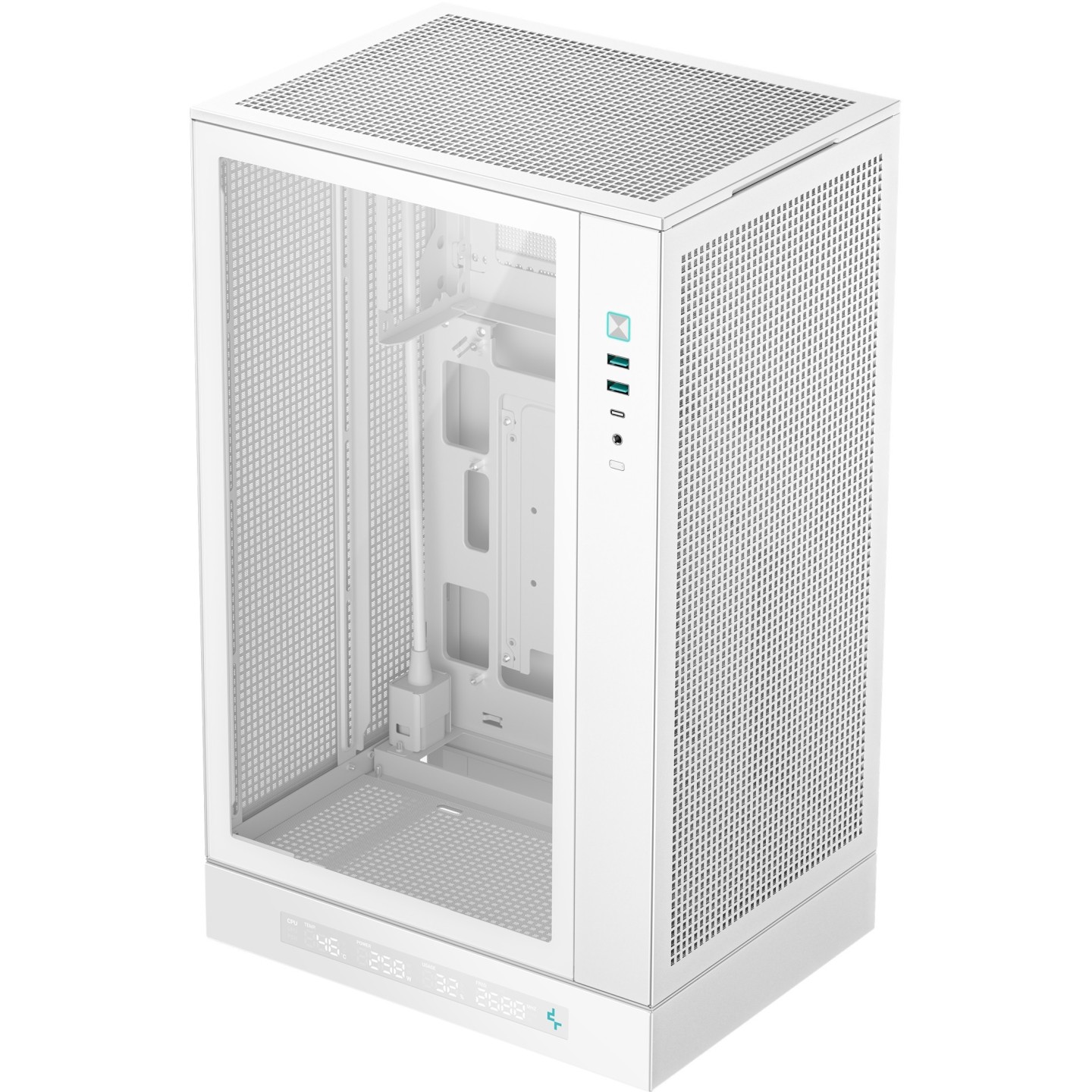

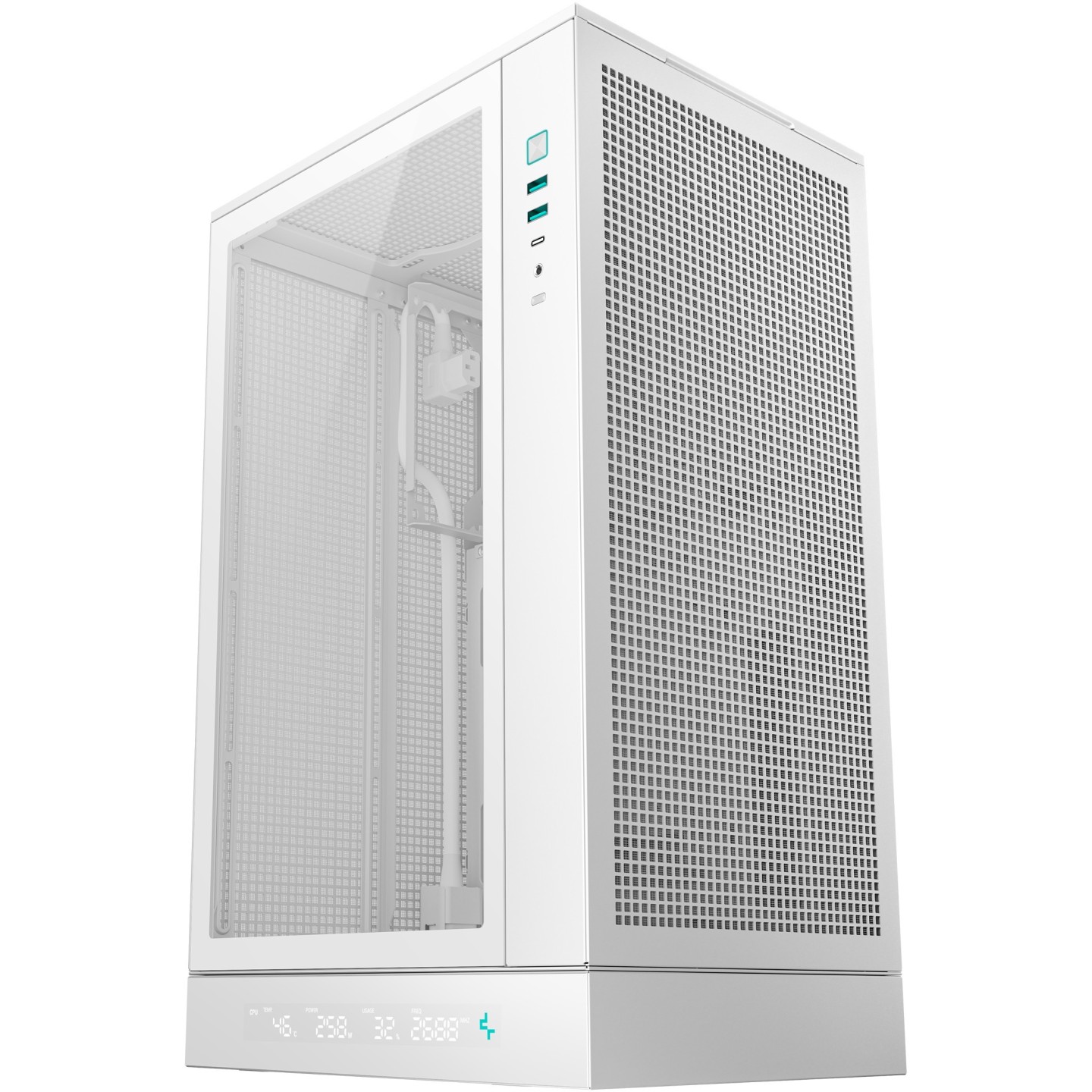

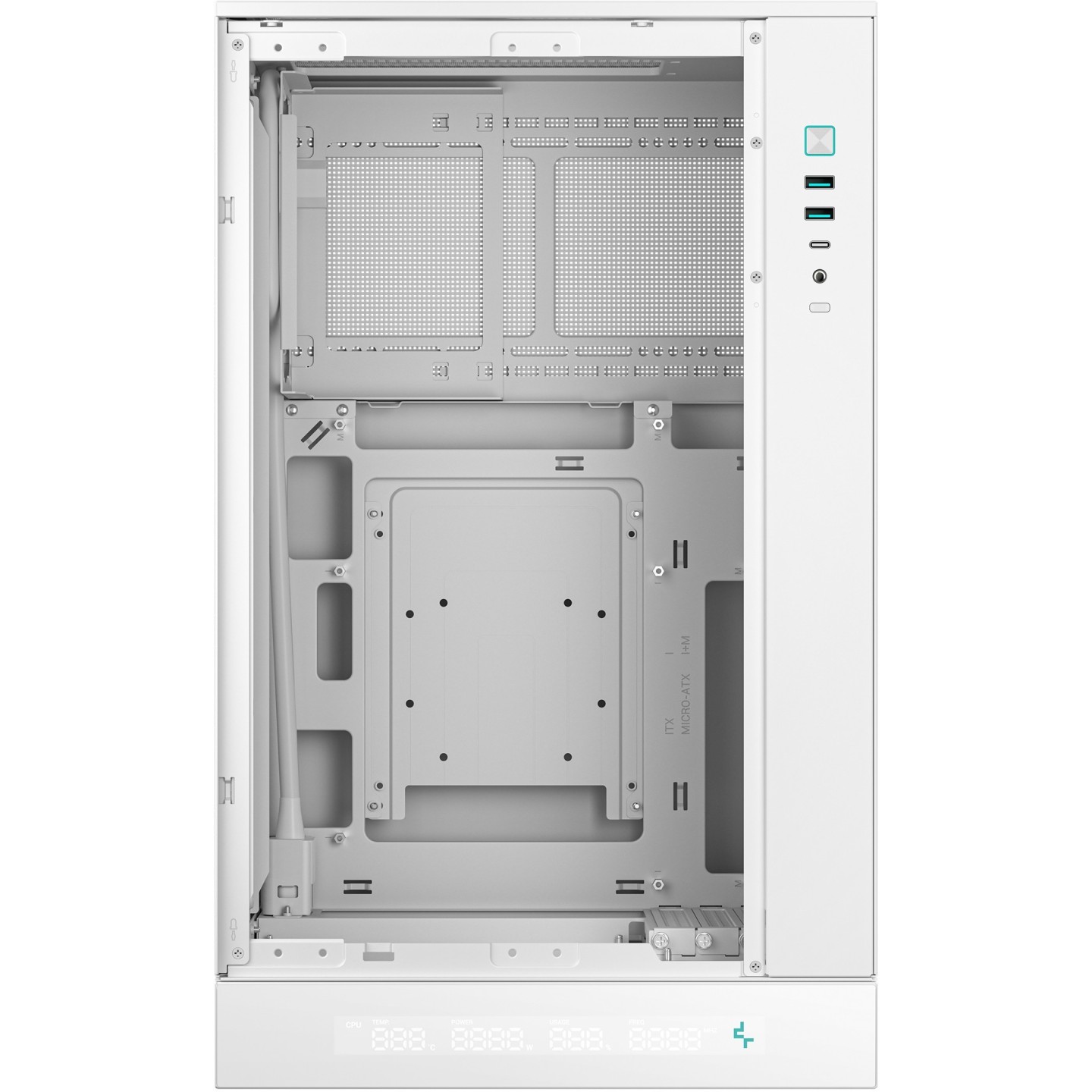

The DeepCool CH270 DIGITAL White is a compact vertical mini-tower PC case designed for Micro-ATX and Mini-ITX motherboards, featuring a built-in digital display at the base to monitor CPU/GPU temps, loads, and frequencies in real-time.

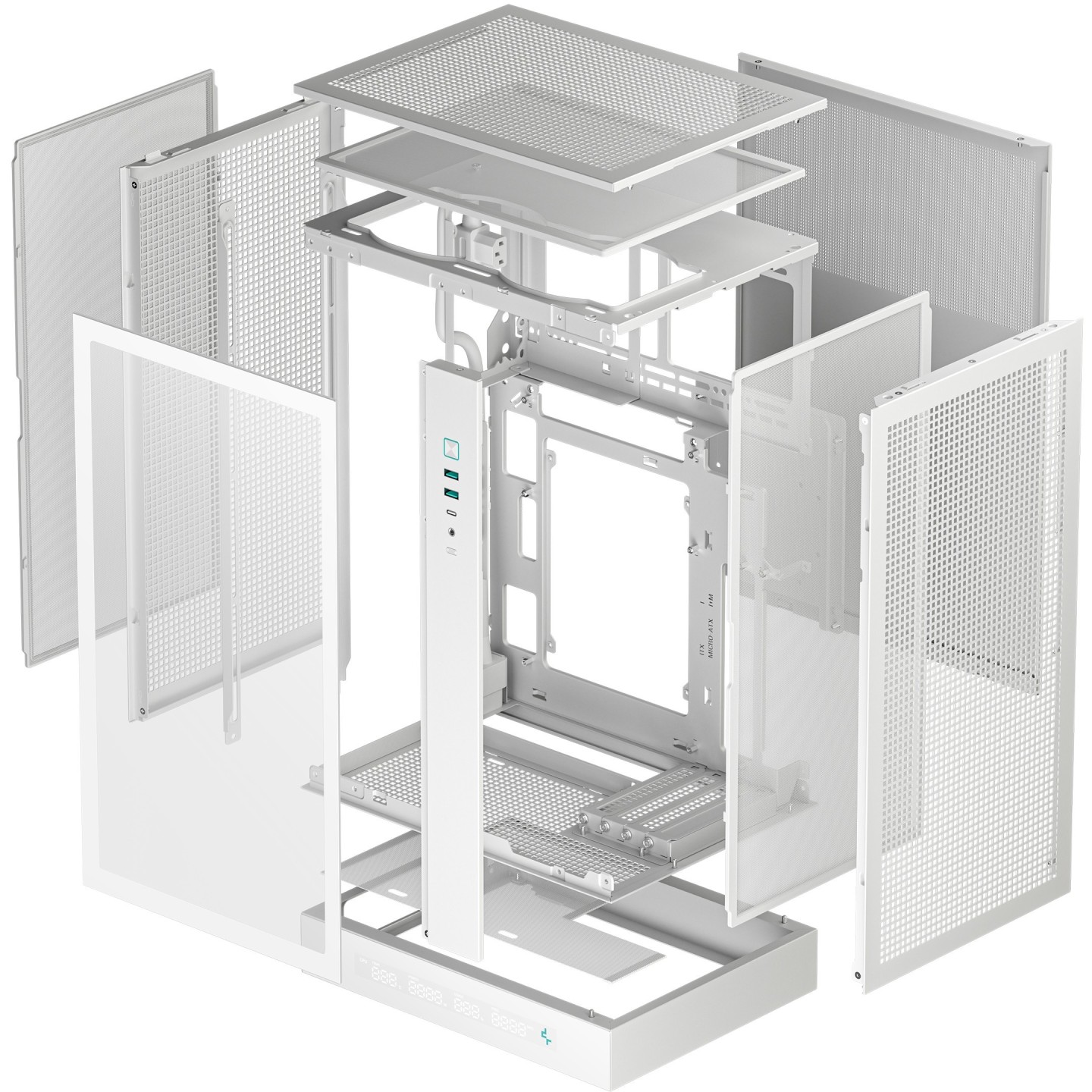

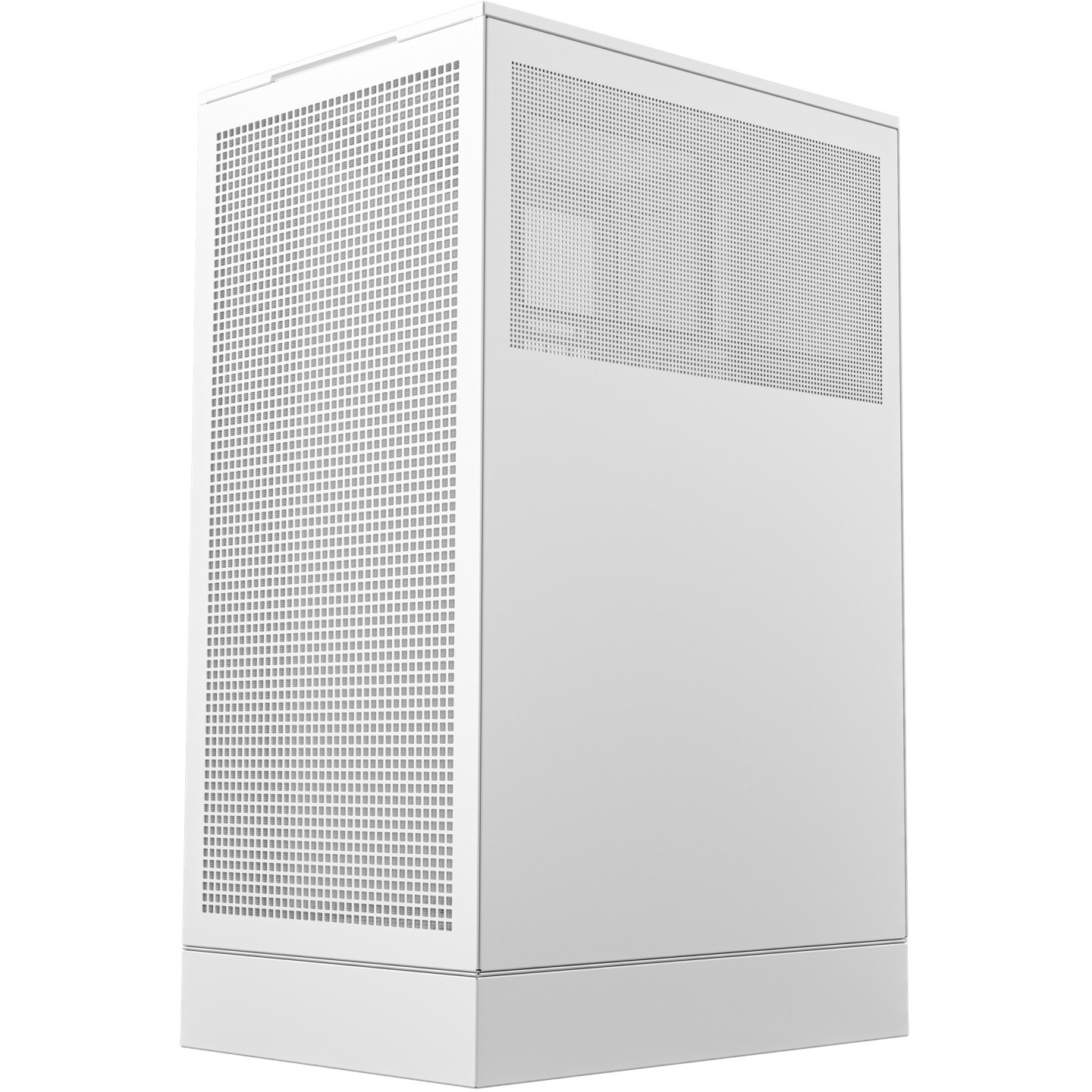

Its high-airflow design includes wrap-around mesh panels on top, sides, and bottom, supporting up to 6x 120mm fans (3 side, 2 top, 1 bottom) and radiators up to 360mm on the side. Vertical GPU mounting accommodates cards up to 41.3cm long, with ATX PSU support (max 15cm) and excellent cable management space.
Front I/O offers 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-C, and combo audio jack. Made from SPCC steel, ABS plastic, and tempered glass side panel. Dimensions: 225x296x486mm, net weight 5.8kg.
- Motherboard: Micro-ATX, Mini-ITX
- Max GPU Length: 41.3 cm
- Max CPU Cooler: 17.4 cm
- Radiator Support: Side 360mm
- Included Fans: None
- Dust Filters: Side, bottom
| Material | Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass |
| Form factor | Mini Tower |
| Type | PC |
| Product colour | White |
| Supported motherboard form factors | Micro ATX, Mini-ITX |
| Number of 3.5 | 1 |
| Number of 2.5 | 1 |
| Number of expansion slots | 4 |
| Maximum CPU cooler height | 17.4 cm |
| Maximum graphics card length | 41.3 cm |
| Maximum PSU length | 15 cm |
| Supported power supply form factors | ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio | Combo headphone/mic port |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120 mm, 240 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120 mm |
| Side radiator sizes supported | 120 mm, 240 mm, 360 mm |
| Bottom radiator sizes supported | 120 mm |
| Supported HDD sizes | 2.5 |
| Width | 225 mm |
| Depth | 296 mm |
| Height | 486 mm |
| Weight | 5.8 kg |
| Digital Display | Yes (system vitals monitoring) |
| GPU Orientation | Vertical |
| Dust Filters | Yes (side, bottom) |
