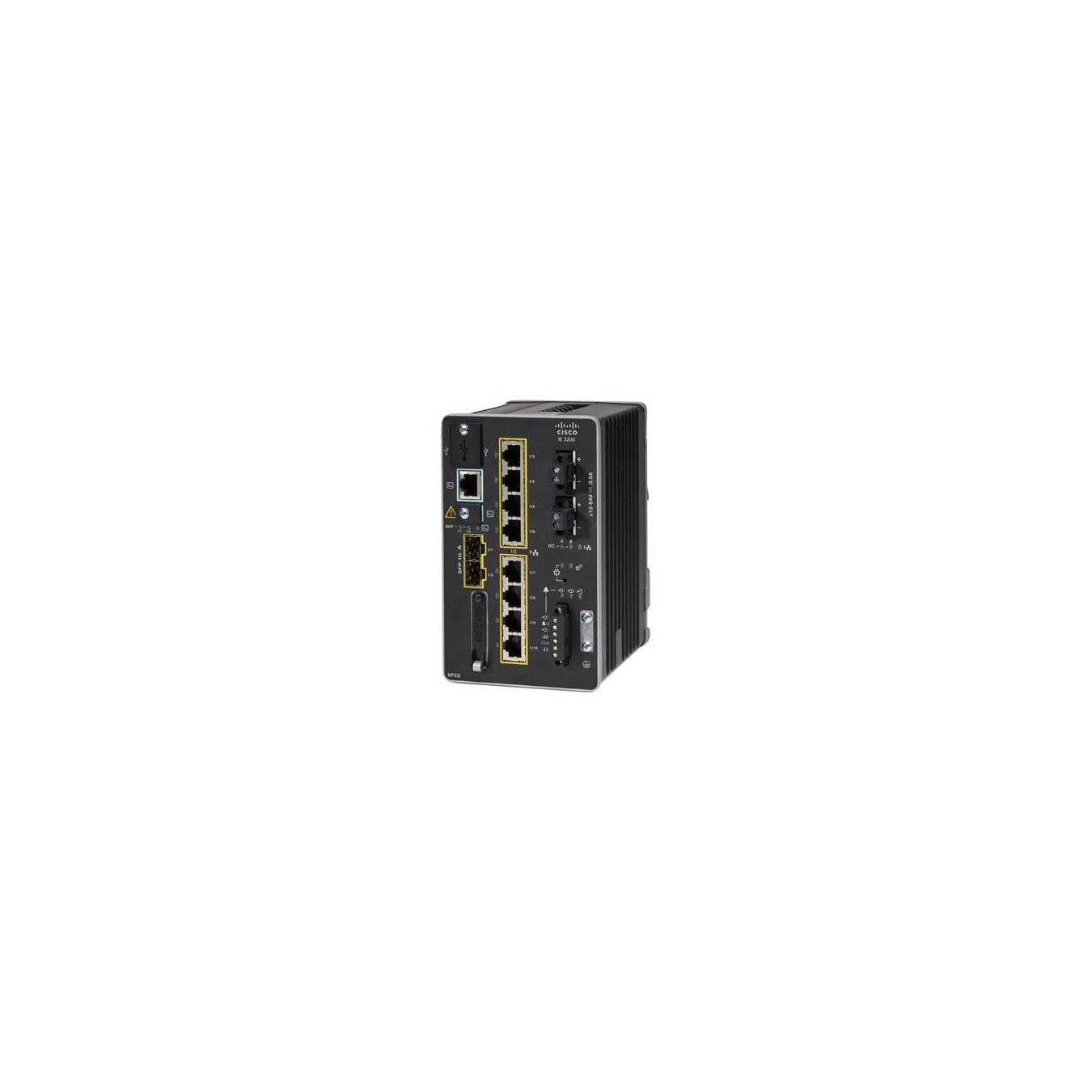

Cisco Catalyst IE3200 Rugged Series
IE-3200-8P2S-E, managed L2 switch with 10/100 Fast Ethernet ports and PoE.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco IE-3200-8P2S-E. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100). Basic switching RJ-45 Ethernet ports quantity: 10. Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 802.1x. IEEE 802.3. DC input voltage: 9.6 - 60 V. Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Compatible memory cards | SD |
| Networking standards | IEEE 802.1x. IEEE 802.3 |
| Virtual LAN features | VLAN Identifier ( VLAN ID) |
| Number of VLANs | 256 |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| DHCP features | DHCP server. DHCP snooping |
| Access Control List (ACL) rules | 1500 |
| IGMP entries | 1000 |
| Security algorithms | SNMP. SNMPv3. SSH |
| Authentication | Guest VLAN. MAC-based authentication |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| Electromagnetic compatibility | FCC 47 CFR 15 B A. EN 55032/CISPR 32 A. VCCI A. AS/NZS CISPR 32 A. CISPR 11 A. ICES 003 A. CNS 13438 A. KN 32 A. EN 300 386 |
| Memory type | DRAM |
| Internal memory | 2048 MB |
| Flash memory | 1500 MB |
| Mean time between failures (MTBF) | 613125 h |
| DC input voltage | 9.6 - 60 V |
| Input current | 5.5 A |
| Power consumption (typical) | 35 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 91.4 mm |
| Depth | 134.6 mm |
| Height | 152.4 mm |
| Weight | 1.7 kg |
| Harmonized System (HS) code | 85176990 |
