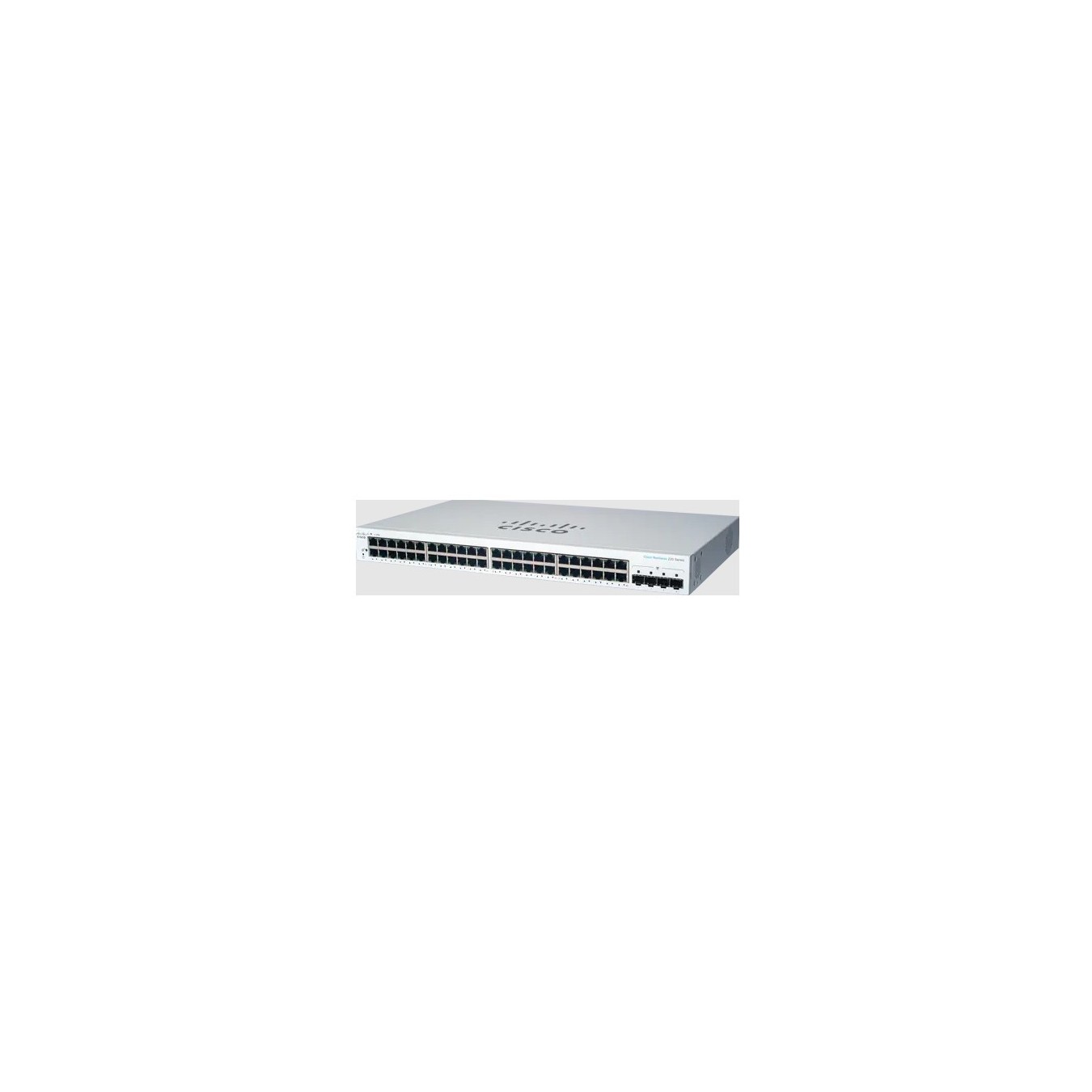

Cisco SMART 48-PORT GE - CBS220 - 4X1G
Cisco CBS220 SMART L2 managed switch with 48 Gigabit RJ-45 ports and 4x1G SFP slots; rack-mountable 1U.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco CBS220-48T-4G. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8192 entries. Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE.... Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Firmware upgradeable |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Number of VLANs | 256 |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 74.38 Mpps |
| MAC address table | 8192 entries |
| Number of queues | 8 |
| Jumbo frames | 9216 |
| Packet buffer memory | 12 MB |
| DHCP features | DHCP client |
| Security algorithms | SNMP. SNMPv2. SNMPv3 |
| Authentication type | IEEE 802.1x. RADIUS |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Multicast MAC address table | 8192 entries |
| Management protocols | SNMP v1/2c/3. Telnet. TFTP. HTTP/HTTPS. SNTP |
| Form factor | 1U |
| Product colour | White |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 124.54 BTU/h |
| Width | 440 mm |
| Depth | 257 mm |
| Height | 44 mm |
| Weight | 3.18 kg |
| Harmonized System (HS) code | 85176990 |
