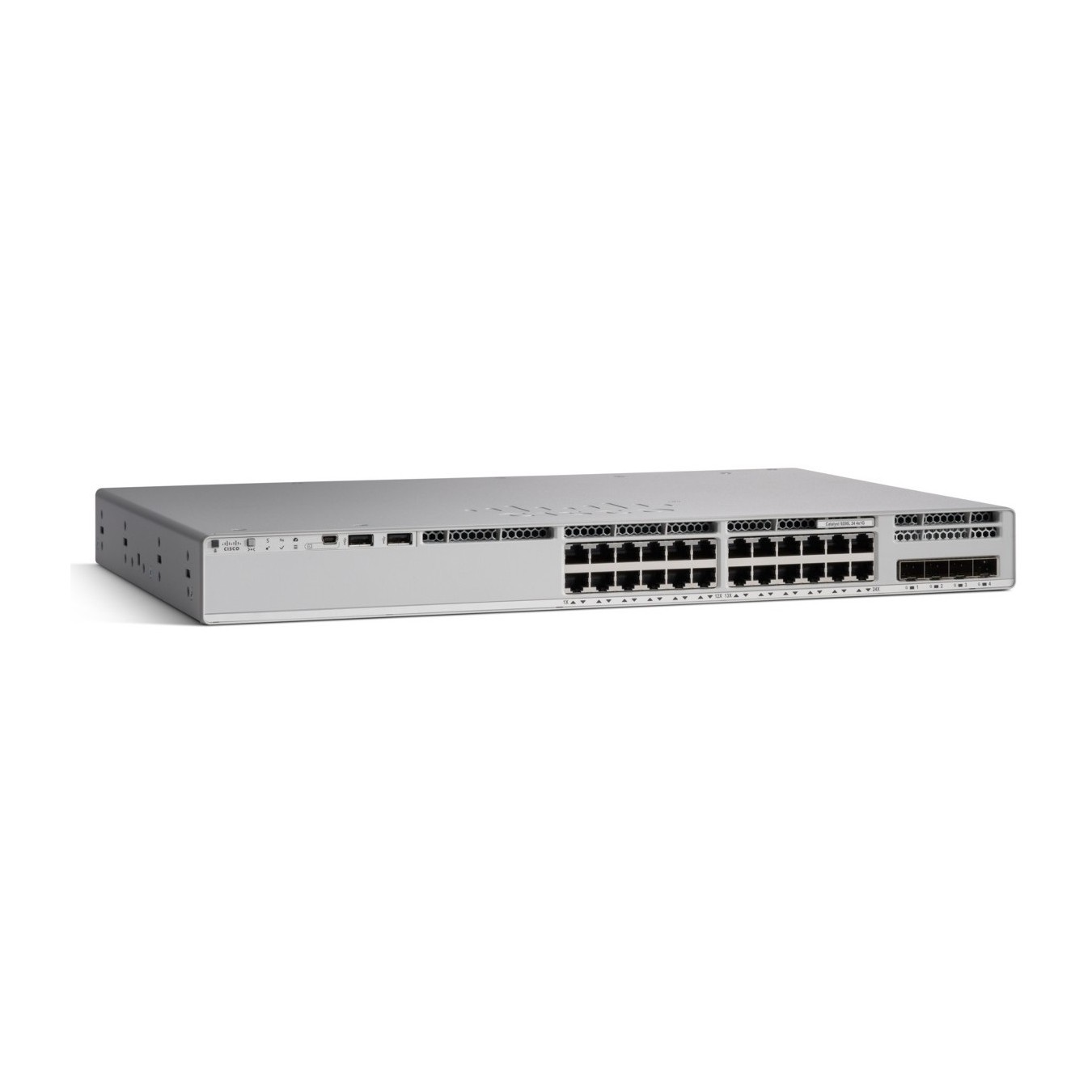

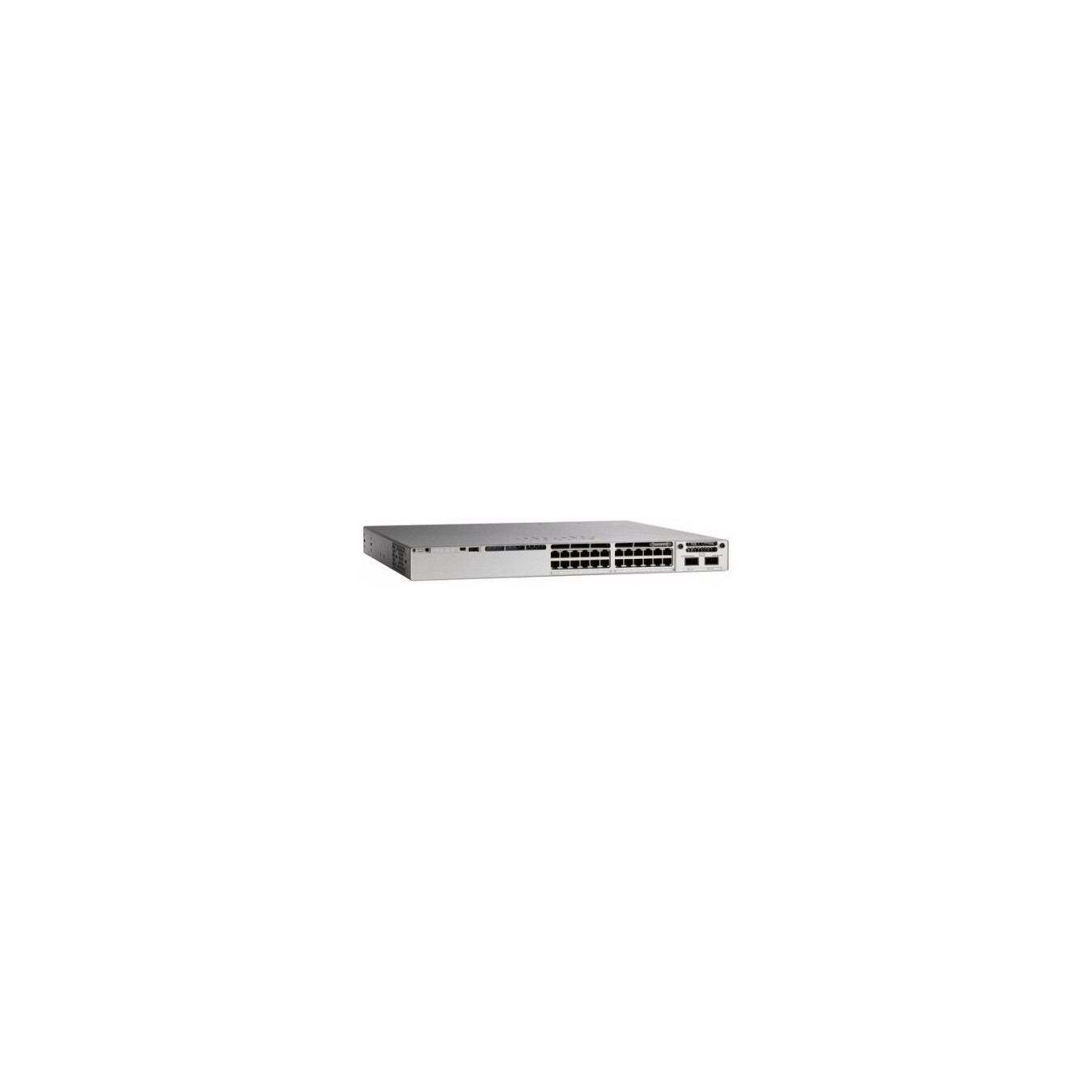

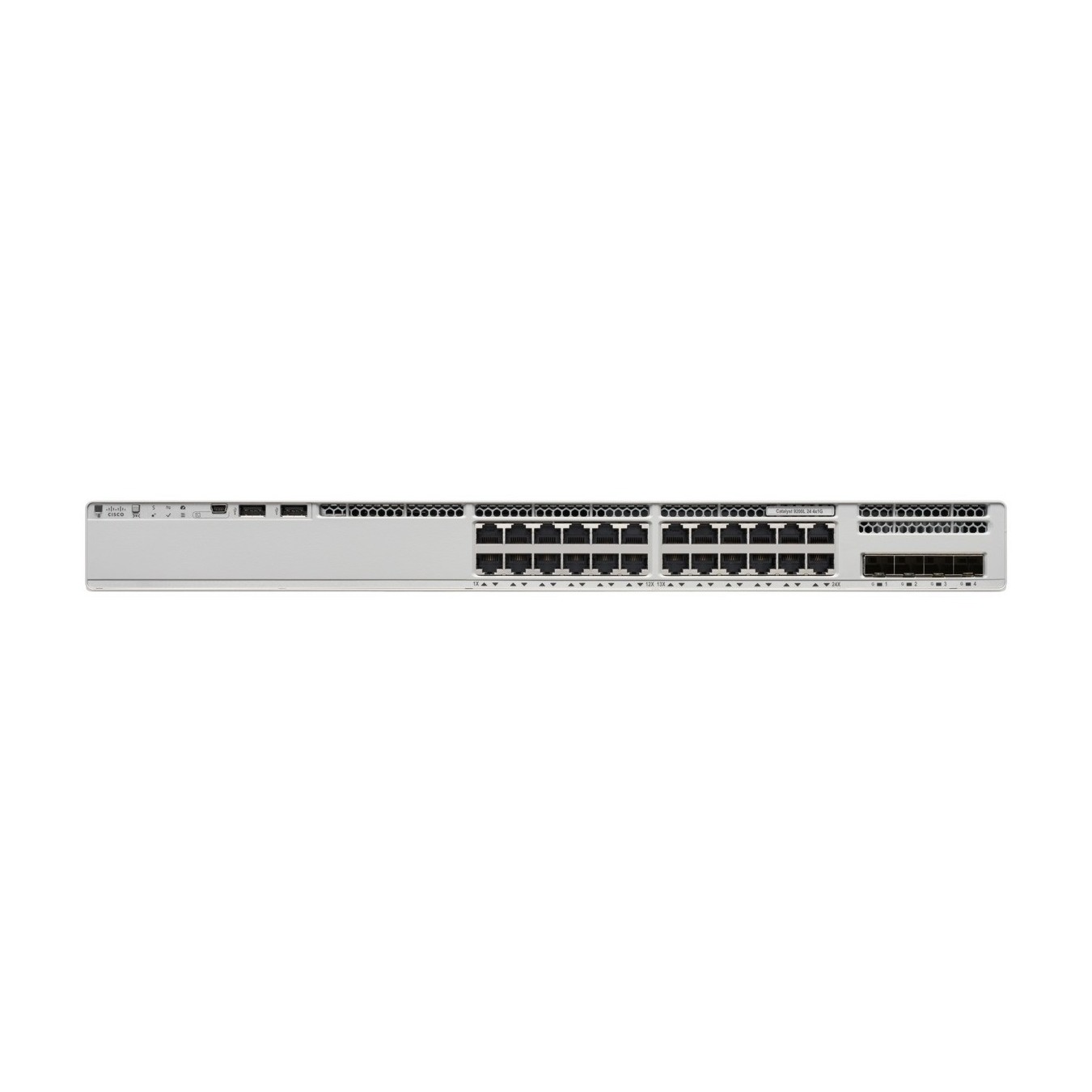

Cisco CATALYST 24-PORT DATA - 9200L - 24-PORT DATA
Cisco Catalyst 9200L switch, 24-port Gigabit Ethernet, managed, L3, full duplex.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco Catalyst 9200L. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries. Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE.... Power connector: AC-in jack
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Redundant power supply (RPS) support |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 20 |
| Power connector | AC-in jack |
| Copper ethernet cabling technology | 10BASE-T. 10GBASE-T. 100BASE-TX. 1000BASE-T |
| Routing entries | 3000 |
| Number of VLANs | 4096 |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.23 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 9198 |
| Packet buffer memory | 6 MB |
| Security algorithms | 128-bit AES |
| Multicast MAC address table | 1000 entries |
| IPv4 multicast entries | 3000 |
| IPv6 multicast entries | 1500 |
| Management protocols | SNMPv1/v2c/v3 |
| Routing protocols | CDP. EIGRP. OSPF. RIP. VRRP |
| Product colour | Grey |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 4000 MB |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.6 - 0.7 A |
| Power consumption (typical) | 125 W |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Width | 445 mm |
| Depth | 288 mm |
| Height | 44 mm |
| Package type | Box |
| Certification | RoHS. IEC 60950-1. UL 60950-1. CAN/CSA C22.2 No. 60950-1. EN 60950-1. AS/NZS 60950.1 |
| Harmonized System (HS) code | 85176990 |
