DeepCool PF600 600W 80 PLUS ATX PSU Non-Modular (Boxed)
DeepCool PF600 600W ATX non-modular PSU for PC/server. 80 PLUS certified, 85% efficiency, active 120mm cooling. Features 20+4pin ATX, 2x PCIe 6+2pin, 4x SATA. Black, flat cables, full protections: OPP/OVP/UVP/SCP. Reliable entry-level power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |

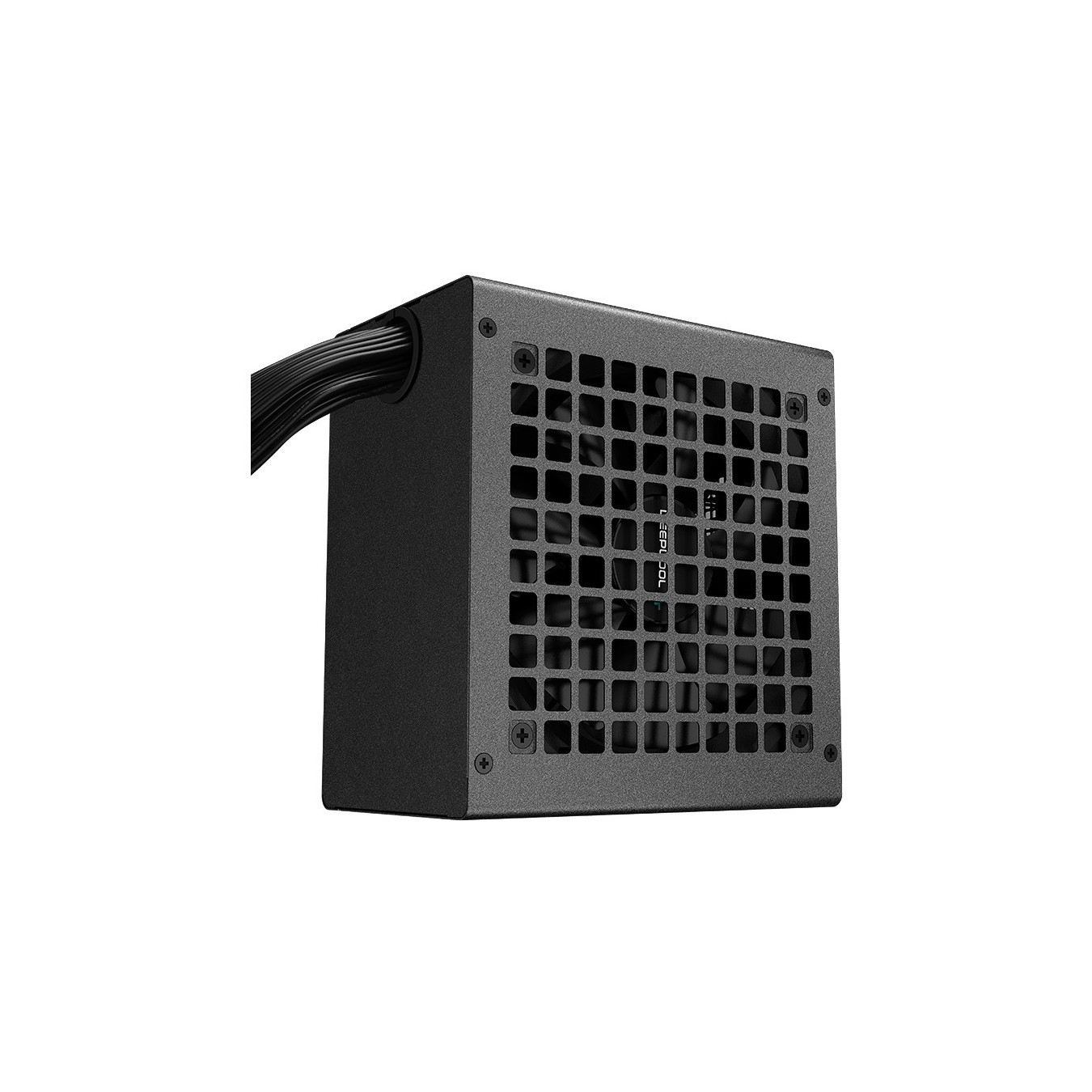

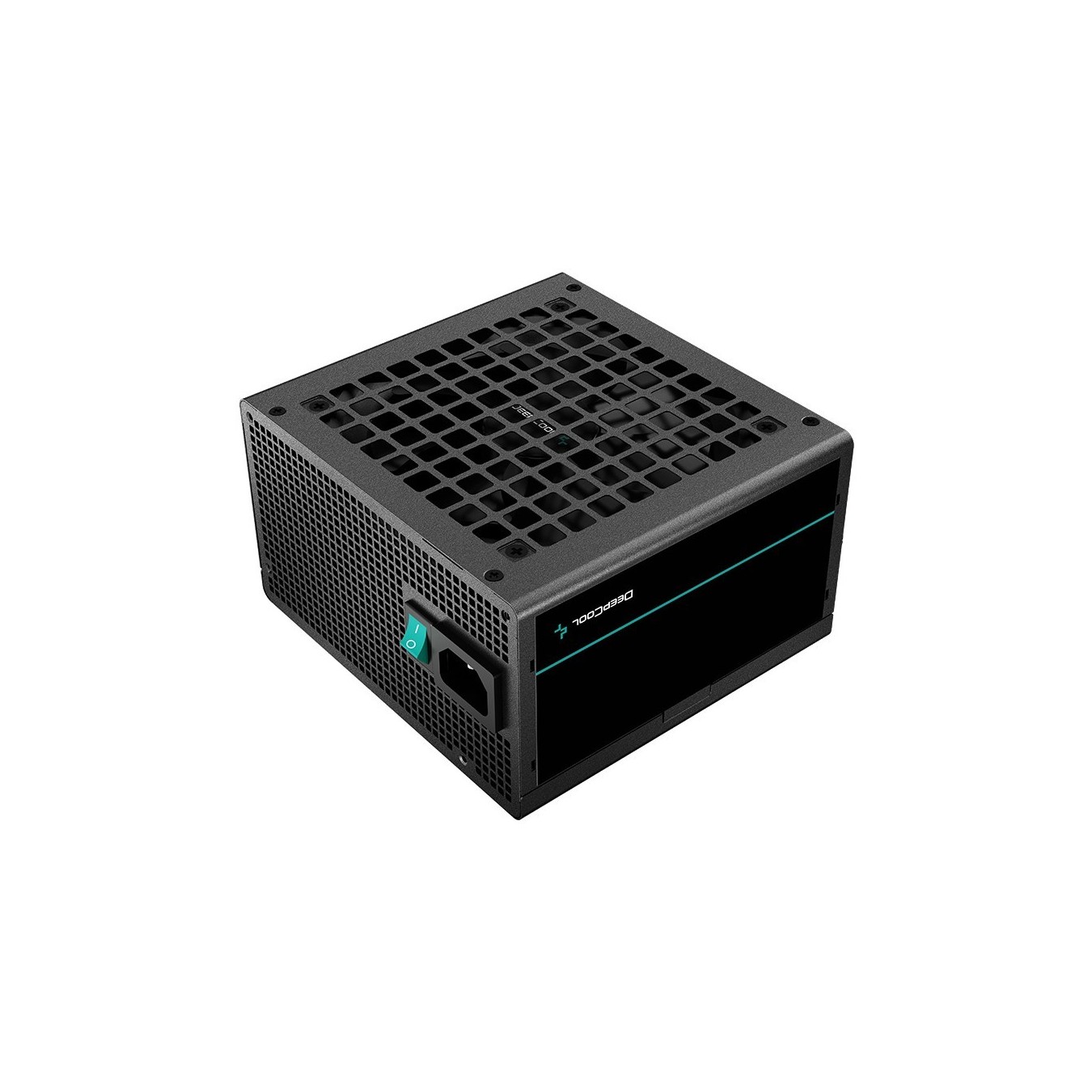

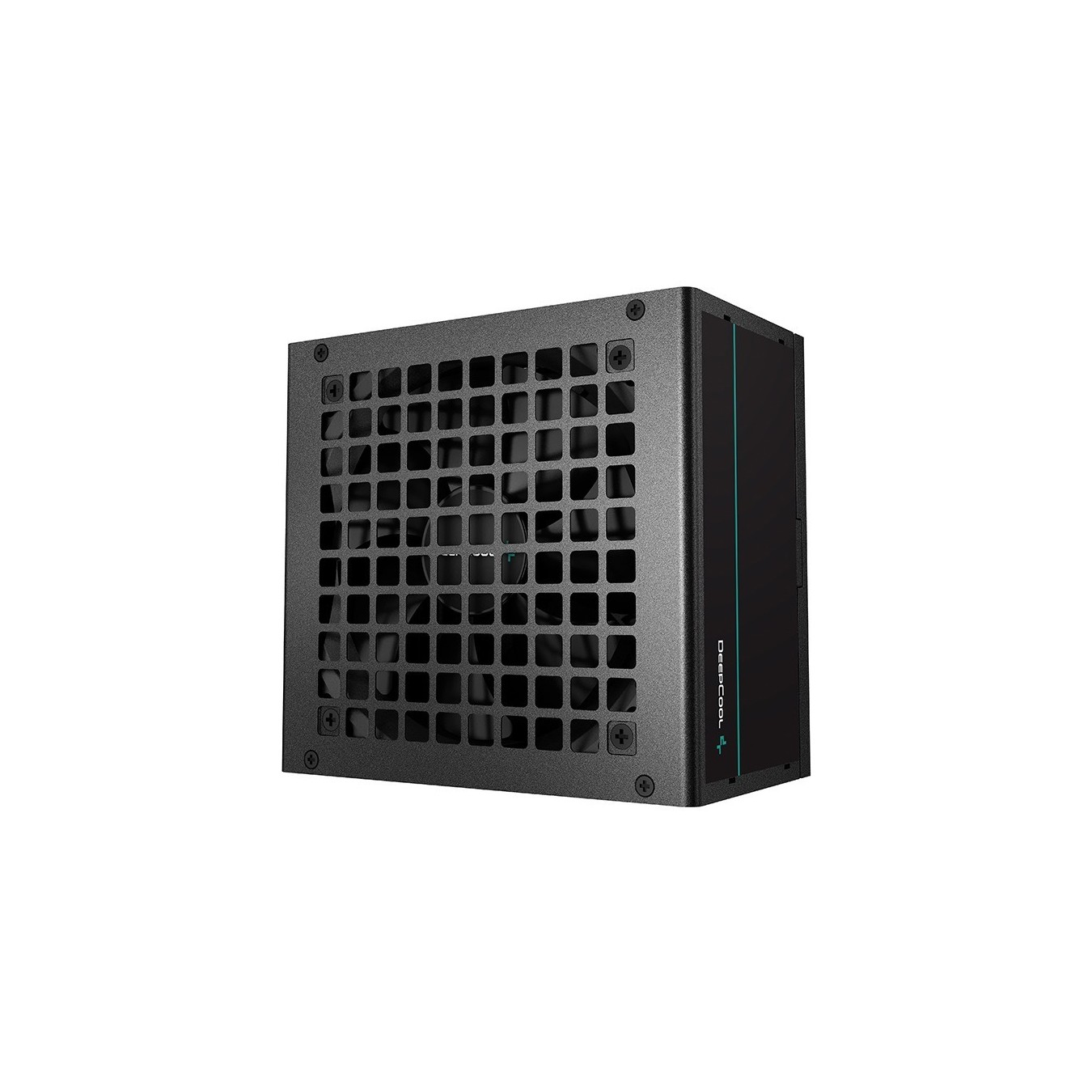

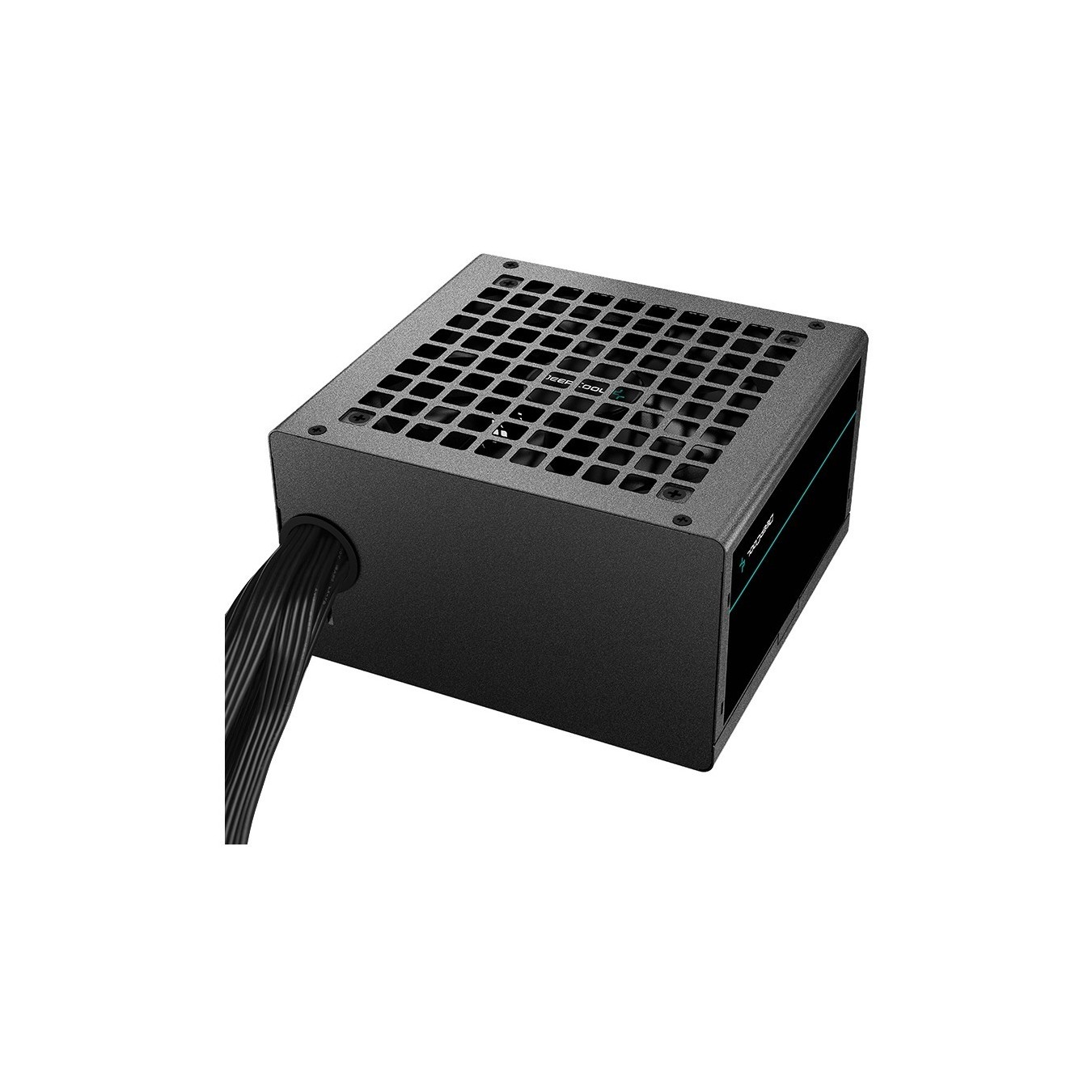

The DeepCool PF600 is a reliable 600W ATX power supply unit designed for PC and server builds, offering essential performance for mid-range systems. It features a non-modular design with fixed flat black cables for straightforward installation and effective cable management in most cases. With 80 PLUS certification and up to 85% efficiency at typical loads, it delivers stable power while minimizing energy waste.
Equipped with a 120mm active fan for cooling, it operates quietly under normal conditions and handles temperatures from 0-30°C. Key connectors include 20+4 pin ATX motherboard (55cm), 4x SATA power (450-900mm lengths), and 2x PCI Express 6+2 pin for GPUs. It also provides standard EPS/ATX12V support for CPUs. Comprehensive protections guard against over power, over voltage, under voltage, short circuit, and more, ensuring system safety.
- Total Power: 600W with +12V rail at 576W (48A)

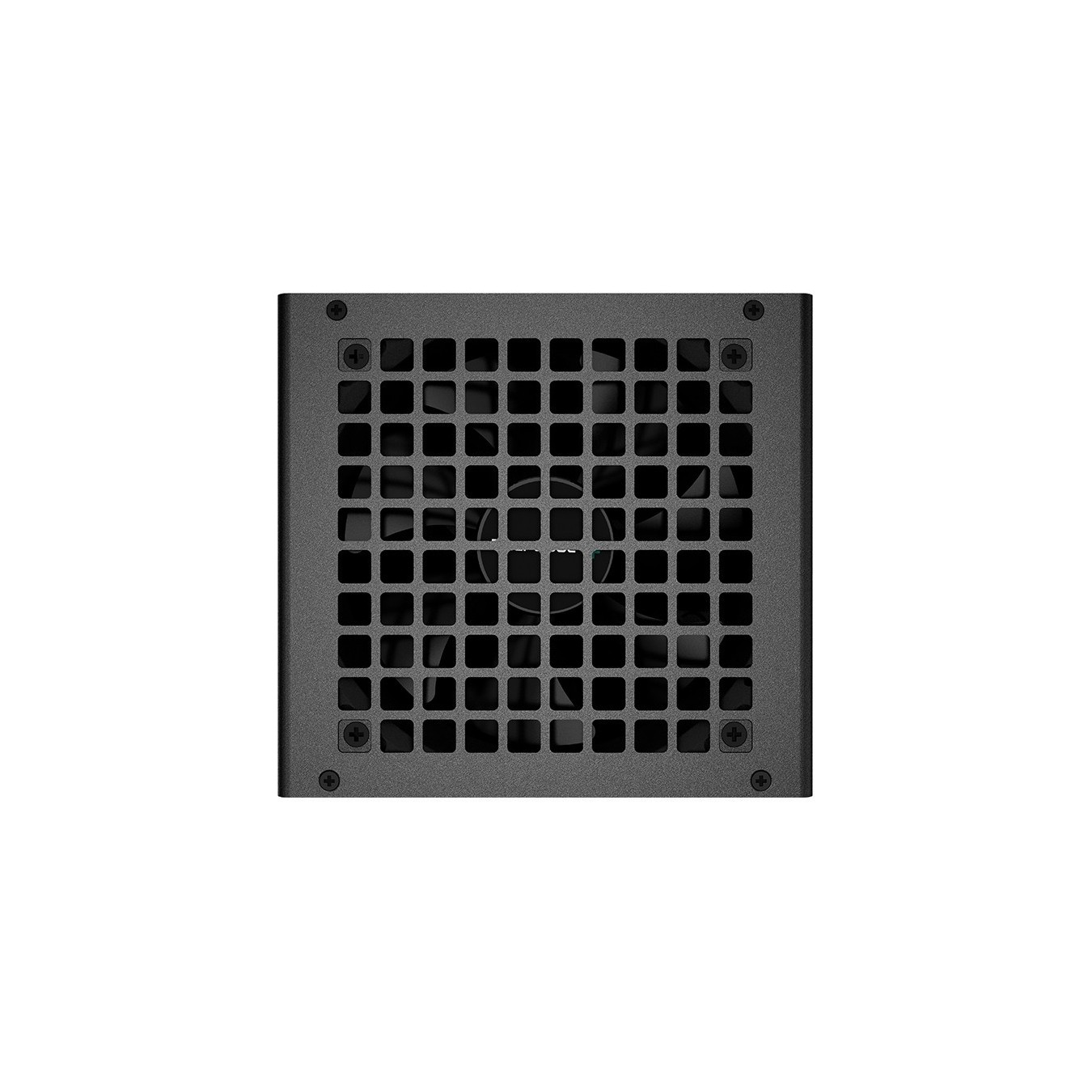

- Cooling: 1x 120mm fan, active cooling
- Certifications: 80 PLUS, ATX 2.4 compliant
- Dimensions: 150 x 140 x 86 mm
- MTBF: 100,000 hours
- Packaging: Box with AC cable included

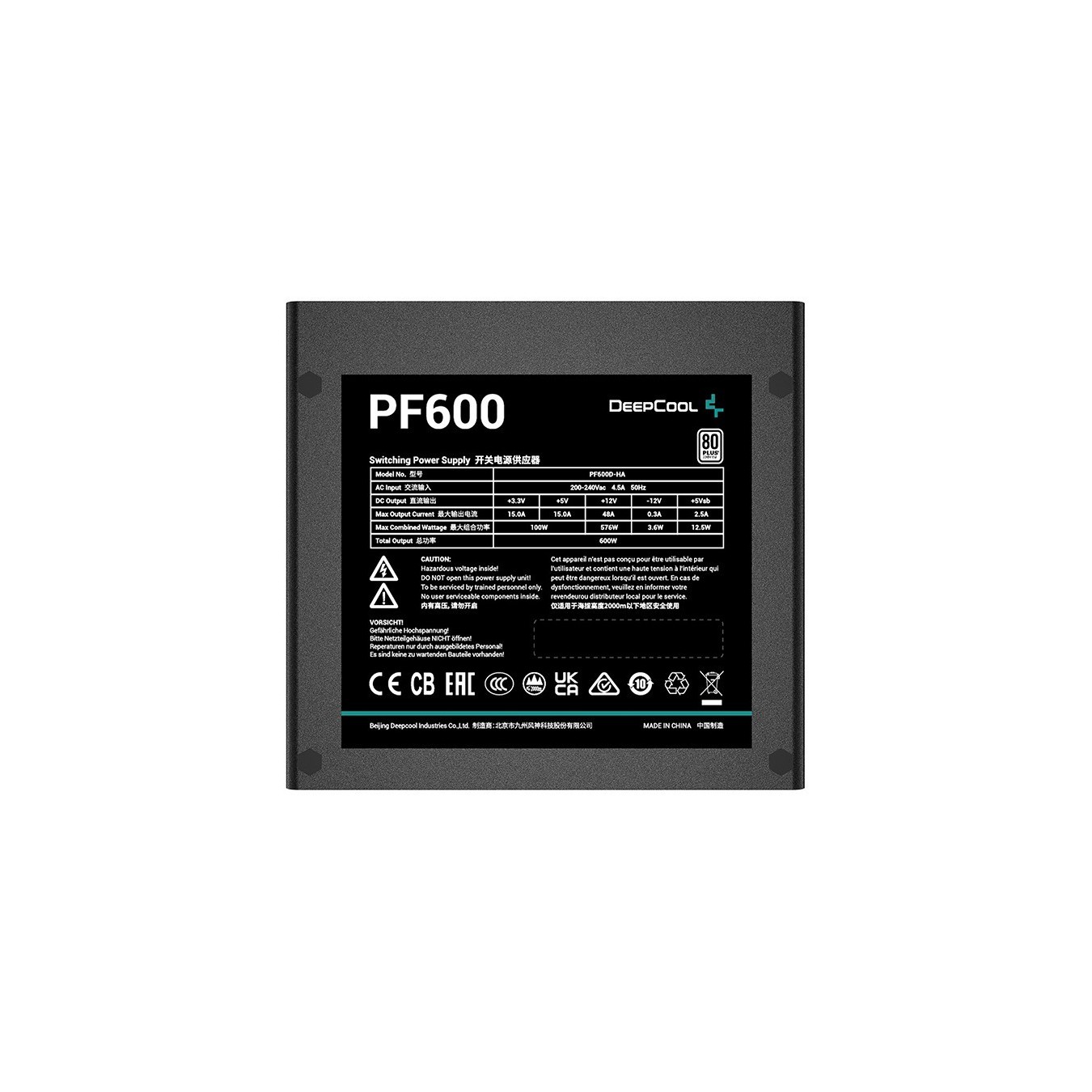

| Total power | 600 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 576 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 48 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 16 ms |
| Efficiency | 85% |
| Power protection features | Over power. Over voltage. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 450.600.750.900 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector | 1x 4+4 pin EPS/ATX12V |
| Feature | On/off switch |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.4 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 0 - 30 °C |
| Cables included | AC |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
