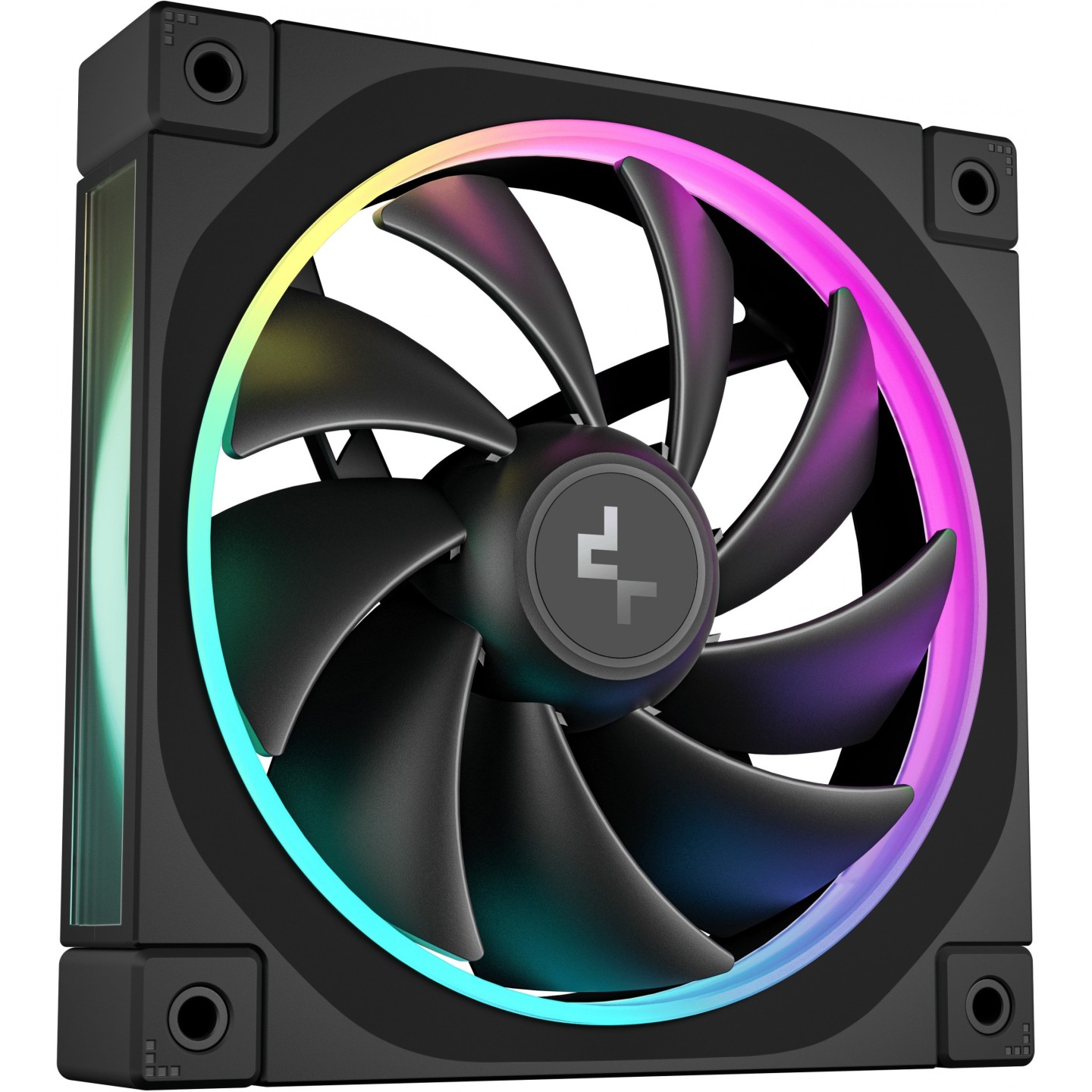

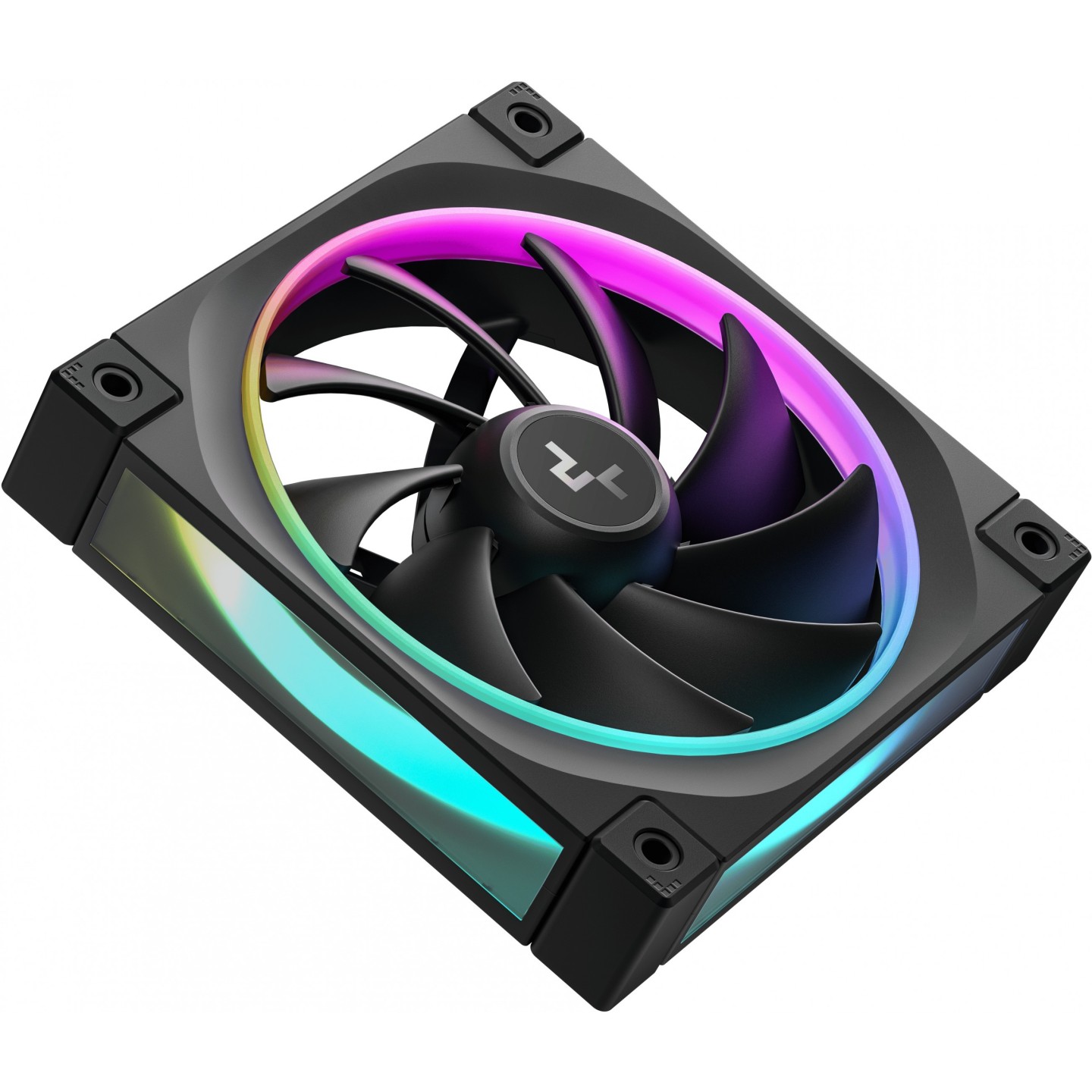

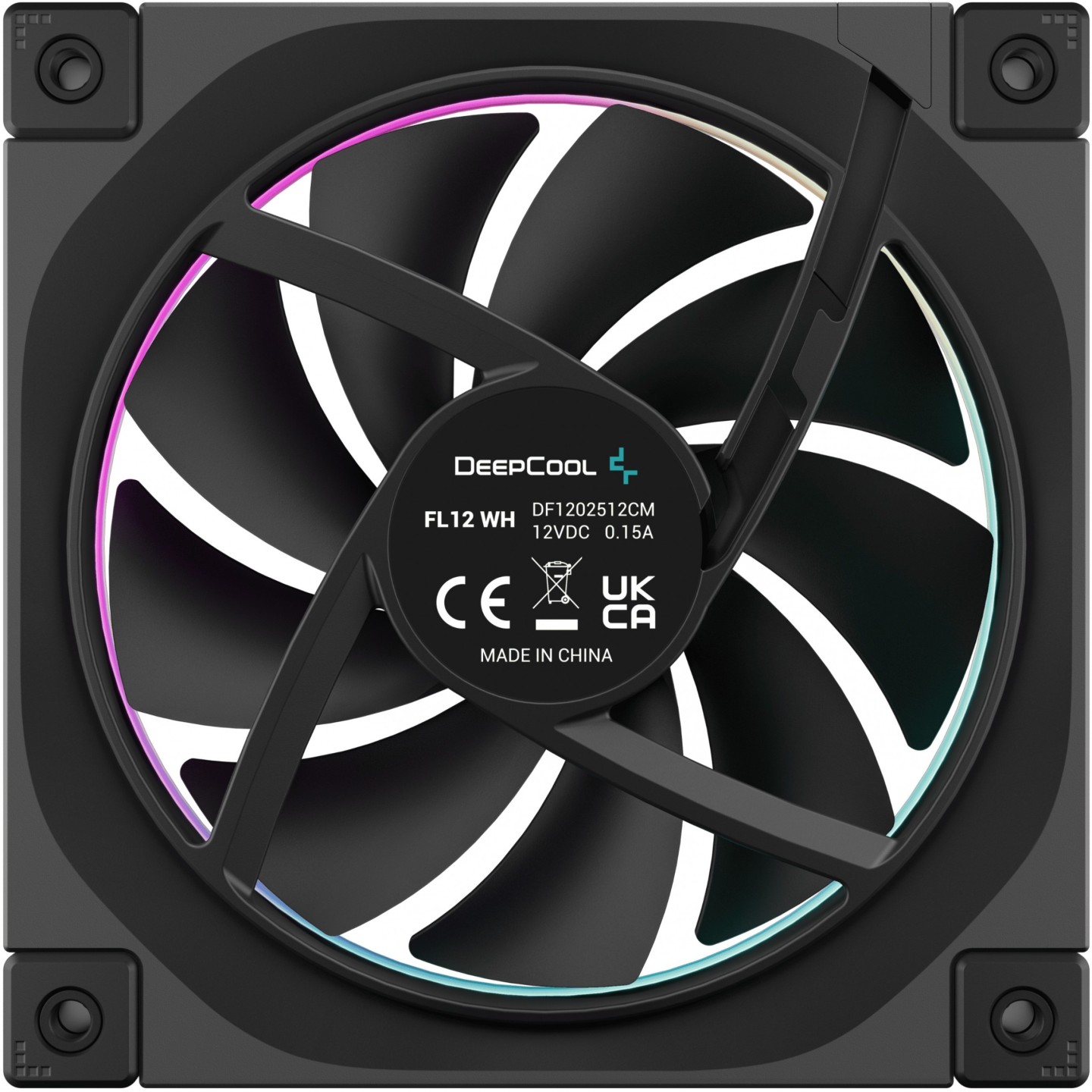

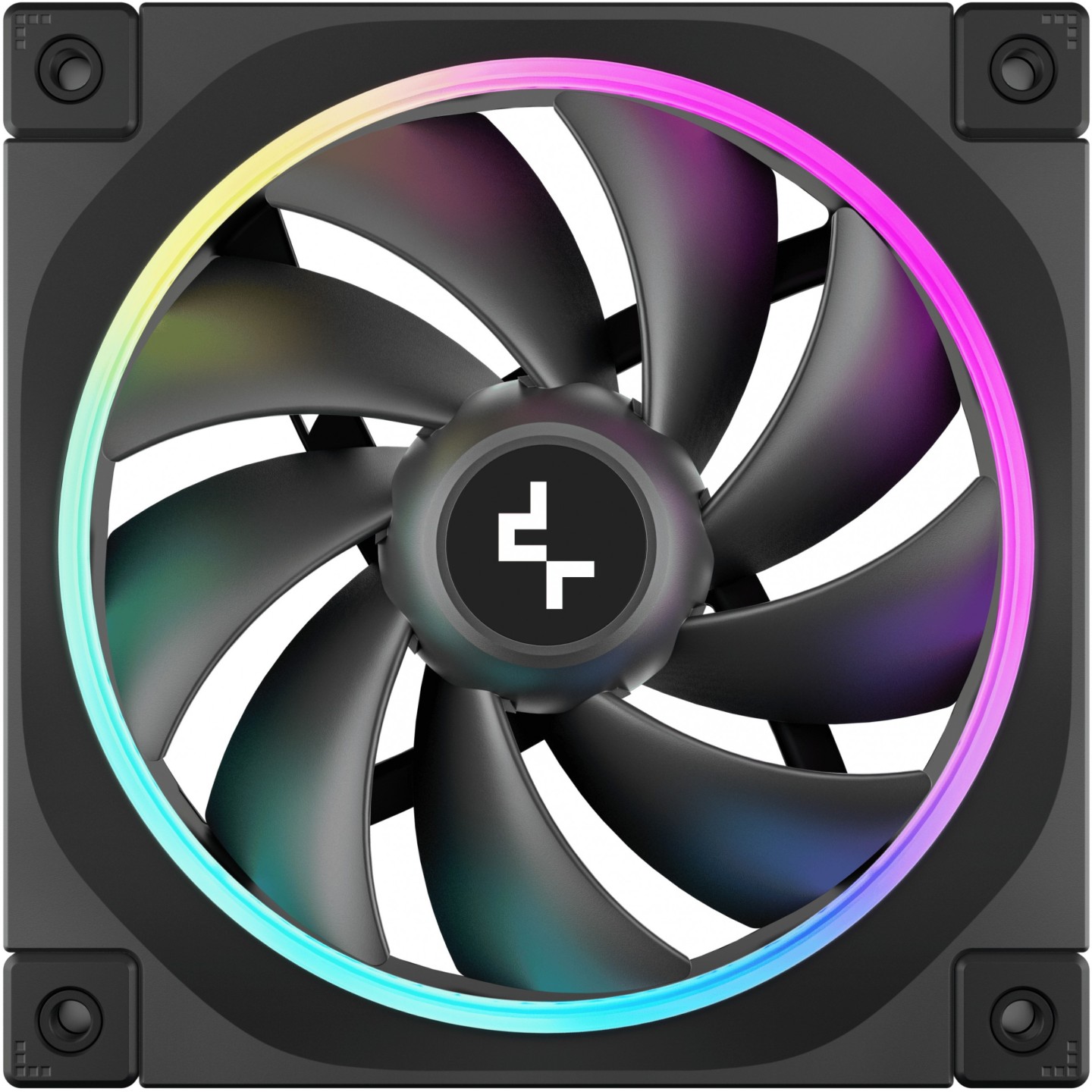

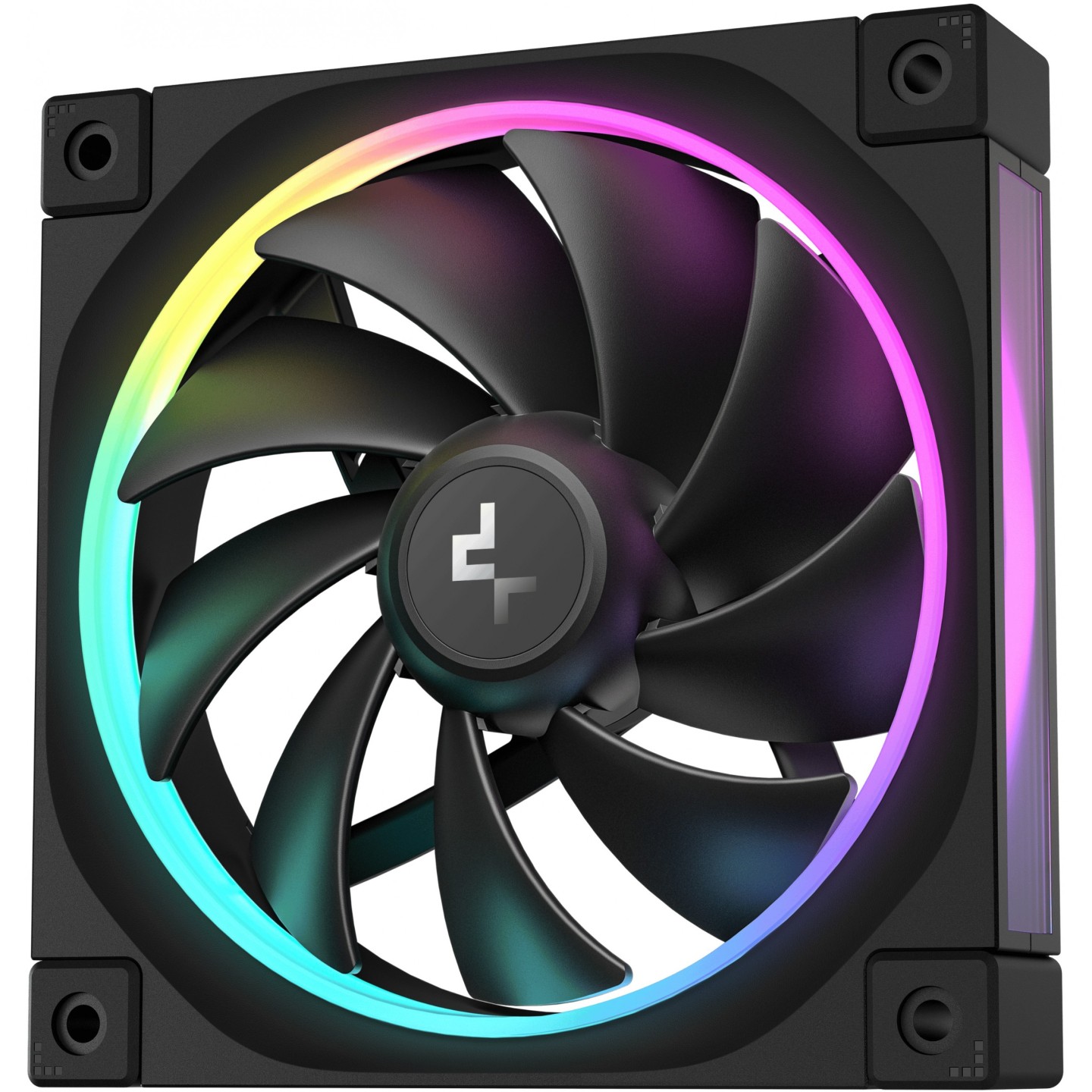

DeepCool FL12 120mm ARGB Case Fan - 4-Pin PWM (Boxed)
DeepCool FL12 120mm case fan with 36 ARGB Gen2 LEDs, 4-pin PWM connector, Fluid Dynamic Bearing, and daisy-chain capability. Delivers 55 CFM airflow at low noise levels (≤32 dB).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Lightning | RGB |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black White |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Low Noise |
The DeepCool FL12 120mm ARGB Case Fan is a high-performance cooling solution designed for PC builds requiring both exceptional airflow and vibrant lighting effects. Featuring 36 addressable ARGB Gen2 LEDs arranged in a gradient wrap-around pattern, this fan creates stunning visual effects while maintaining professional cooling performance. The fan operates at speeds between 500–2150 RPM, delivering 55 CFM of airflow with a static pressure of 2.82 mmAq, making it suitable for both case ventilation and radiator mounting applications.
Built with a true Fluid Dynamic Bearing and a 3-phase, 4-pole, 6-slot motor, the FL12 ensures stable, efficient operation with minimal noise output of ≤32 dB(A). The innovative 8-pin daisy-chain cable design significantly reduces cable clutter, allowing multiple fans to be connected in series for cleaner builds. The fan features a square frame with corner rubber vibration dampeners and is available in both black and white variants. With its 4-pin PWM connector for speed control and 3-pin ARGB connector for lighting synchronization, the FL12 integrates seamlessly with modern motherboards and RGB controllers.
Key Features:
- 36 ARGB Gen2 LEDs with gradient lighting effect
- Fluid Dynamic Bearing for long-term reliability
- 4-pin PWM speed control (500–2150 RPM)
- Daisy-chainable 8-pin connector for multiple fans
- Low noise operation (≤32 dB at full speed)
- Square frame design with zero air leakage
- Available in black and white color options
- Suitable for case and radiator mounting
| Fan Dimensions | 120×120×25 mm (L×W×H) |
| Net Weight (Single Unit) | 166 g |
| Fan Speed | 500–2150 RPM ±10% |
| Fan Airflow | 55 CFM |
| Fan Air Pressure | 2.82 mmAq |
| Fan Noise Level | ≤32 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.15 A |
| Fan Power Consumption | 1.8 W |
| LED Type | Addressable RGB LED (ARGB Gen2) |
| LED Count | 36 LEDs |
| LED Connector | 3-pin (+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.75 W |
| Motor Type | 3-Phase, 4-Pole, 6-Slot |

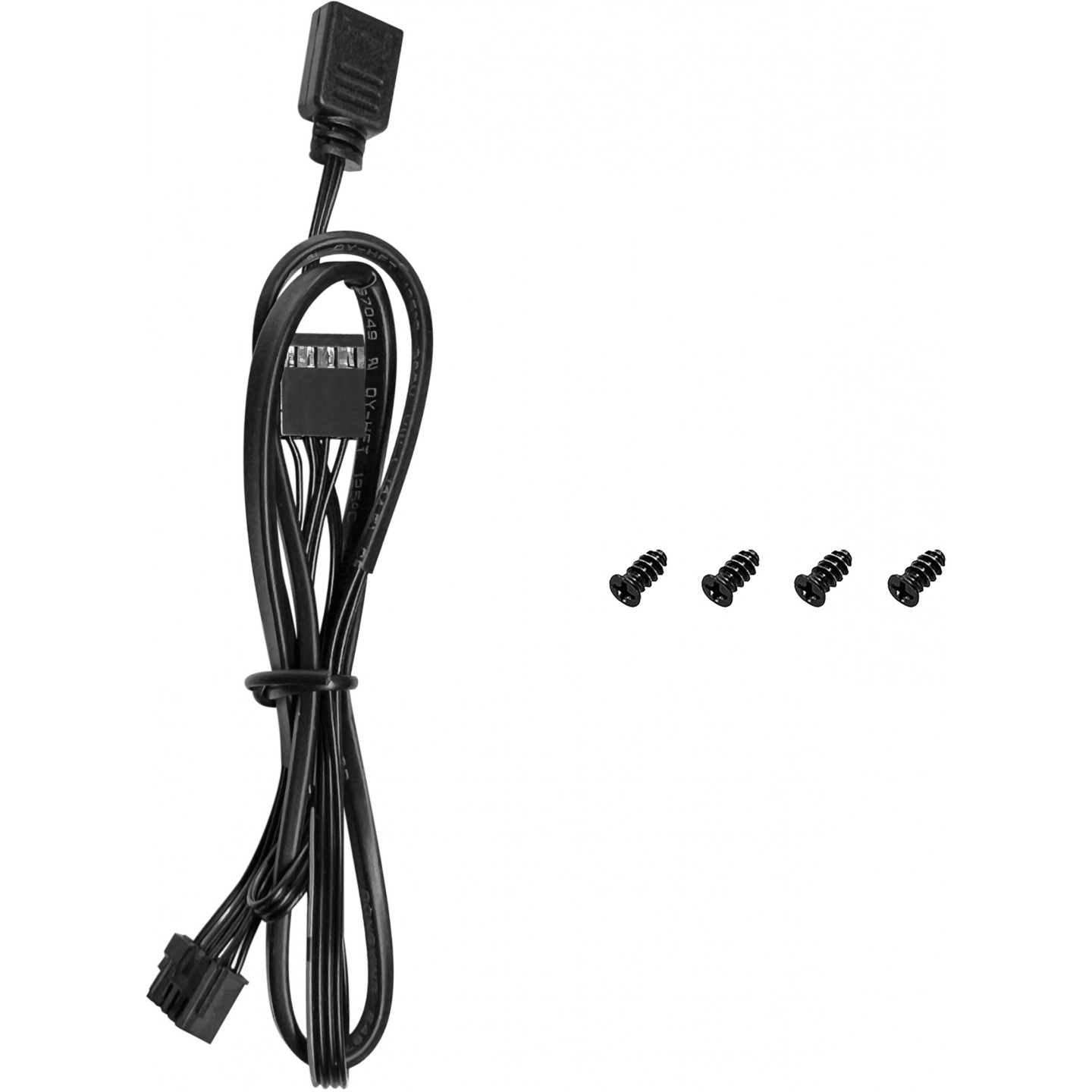

| Daisy-Chain Cable | 8-pin connector |
| Frame Design | Square frame with corner rubber vibration dampeners |
| Available Colors | Black, White |
| EAN Code | 6933412711087 (3-pack variant noted) |
