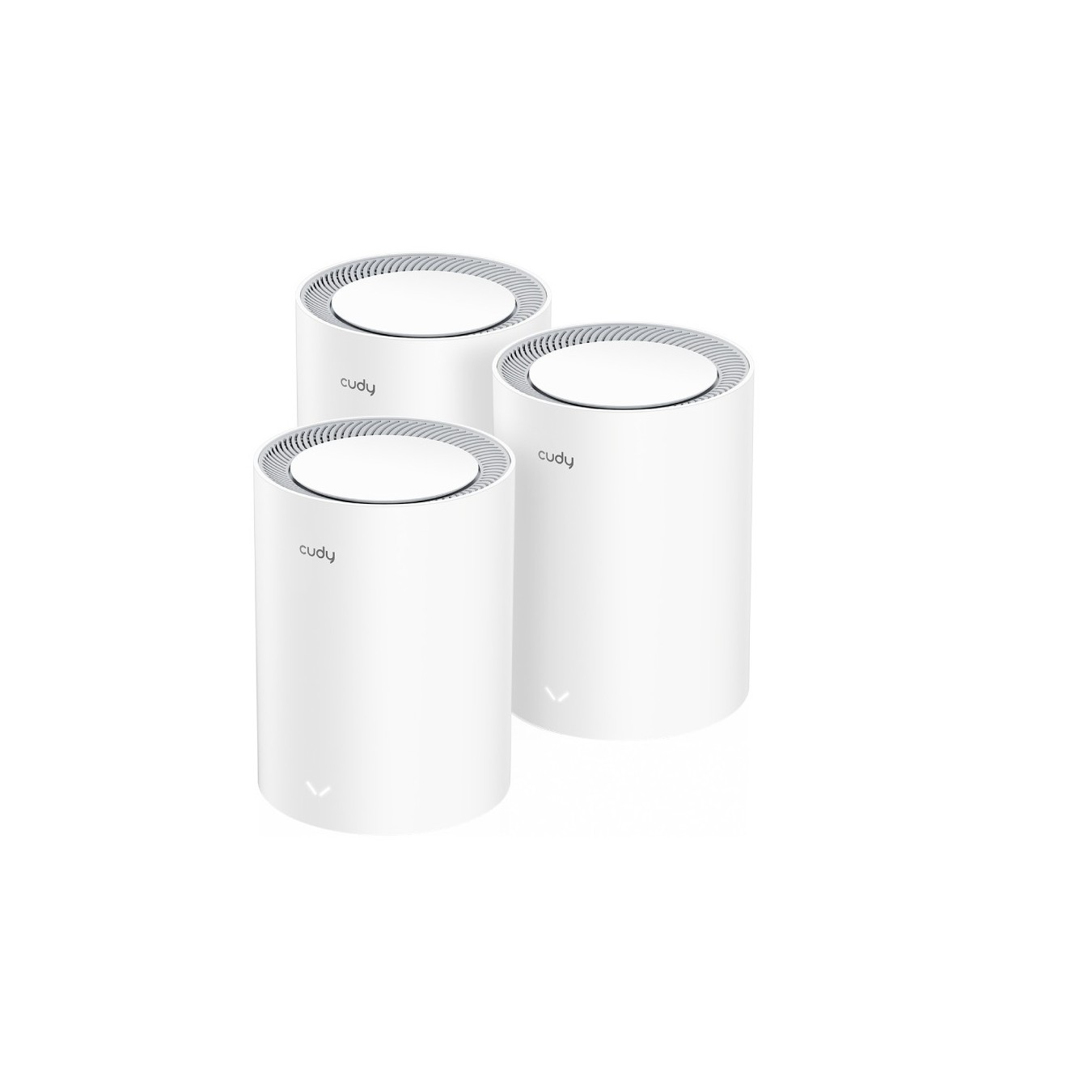

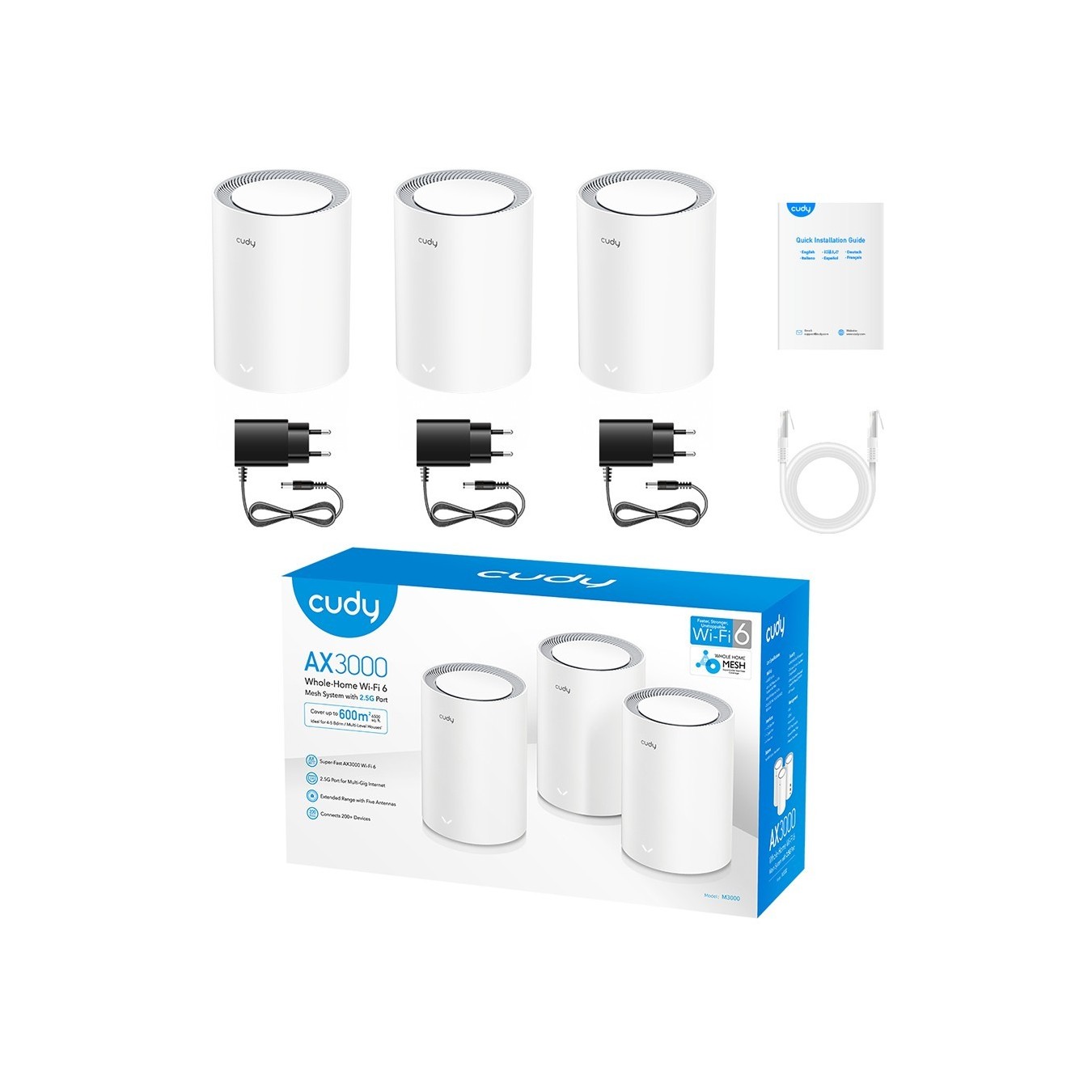

Cudy M3000 AX3000 Wi-Fi 6 Mesh 2.5G 3-Pack (Boxed)
Cudy M3000 AX3000 Wi-Fi 6 3-Pack mesh system. Dual-band 2402+574Mbps, 2.5G WAN, covers 603m². MU-MIMO, OFDMA, Beamforming, VPN, WPA3, app control. 1.3GHz CPU, 256MB RAM.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Mesh System |
|---|---|
| Routers - Special Features | App Control Beamforming Guest Network MU-MIMO OFDMA Parental Control QoS VPN Support WPA3 Security |
| Routers - LAN Ports | 1 |
| Routers - Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Routers - Bands | Dual-band (2.4+5 GHz) |
The Cudy M3000 3-Pack is a high-performance Wi-Fi 6 mesh system designed for large homes, delivering AX3000 speeds (2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) with 2.5G WAN port support for multi-gig internet. Featuring a 1.3 GHz dual-core processor, 256 MB RAM, and 128 MB flash, it handles up to 200 devices with low latency thanks to MU-MIMO, OFDMA, and Beamforming technologies.
Each unit has 5 internal omni-directional antennas (5.1 dBi 5 GHz, 4.2 dBi 2.4 GHz), 2x2 MIMO streams, and 160 MHz channel width for seamless 4K streaming and gaming. Advanced features include Cudy Mesh for easy expansion, multi-band backhaul, fast roaming, guest networks, parental controls, and VPN server/client (PPTP/L2TP/OpenVPN/WireGuard/IPsec). Secure with WPA3 encryption and easy management via Cudy App or cloud.
- 2.5G WAN + 1x Gigabit Ethernet LAN per node
- Coverage up to 603.8 m² (6500 sq ft)
- Supports IPv6, DDNS, QoS, and diagnostics
- Quick setup with internal antennas, grey/white design
| Product type | Mesh system |
| Product colour | Grey/White |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 5 |
| Antenna direction type | Omni-directional |
| Maximum coverage | 603.8 m² |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a/b/g/n/ac/ax |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Security algorithms | WPA/WPA2/WPA3 |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| VPN support | PPTP/L2TP/OpenVPN/WireGuard/IPsec |
| Processor cores | 2 |
| Processor frequency | 1.3 GHz |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Ethernet LAN (RJ-45) ports | 1 (2.5G WAN + 1 GE LAN per unit) |
| AC input voltage | 12 V |
| AC adapter input current | 1 A |
| Number of products included | 3 pc(s) |
| Chipset | MT7981BA + MT7976CN + RTL8221B |
| Wi-Fi streams | 2x2 MIMO (both bands) |
| Max Wi-Fi channel width | 160 MHz |
| Beamforming | Yes |
| MU-MIMO | Yes |
| OFDMA | Yes |
| Max connected devices | 200 |
