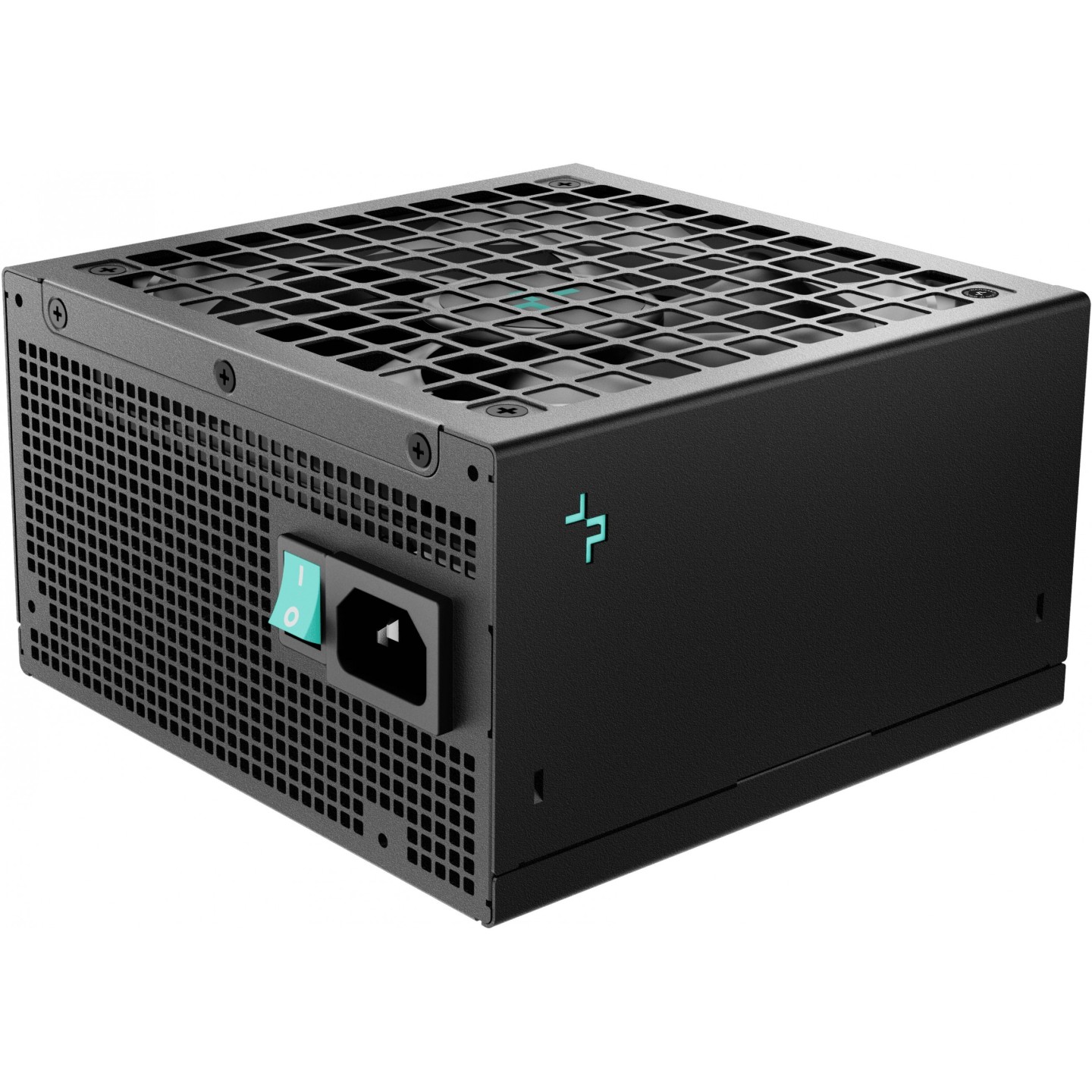

DeepCool PN1000M 1000W 80+ Gold Fully Modular ATX 3.1 PSU (Boxed)
DeepCool PN1000M: 1000W ATX 3.1 PSU, 80+ Gold & Cybenetics Gold certified, fully modular with 1x 16-pin PCIe (600W), 3x 6+2 pin, 135mm FDB fan. Active PFC, 16ms hold-up, full protections. Ideal for high-end gaming PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12VHPWR 16-pin 3x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

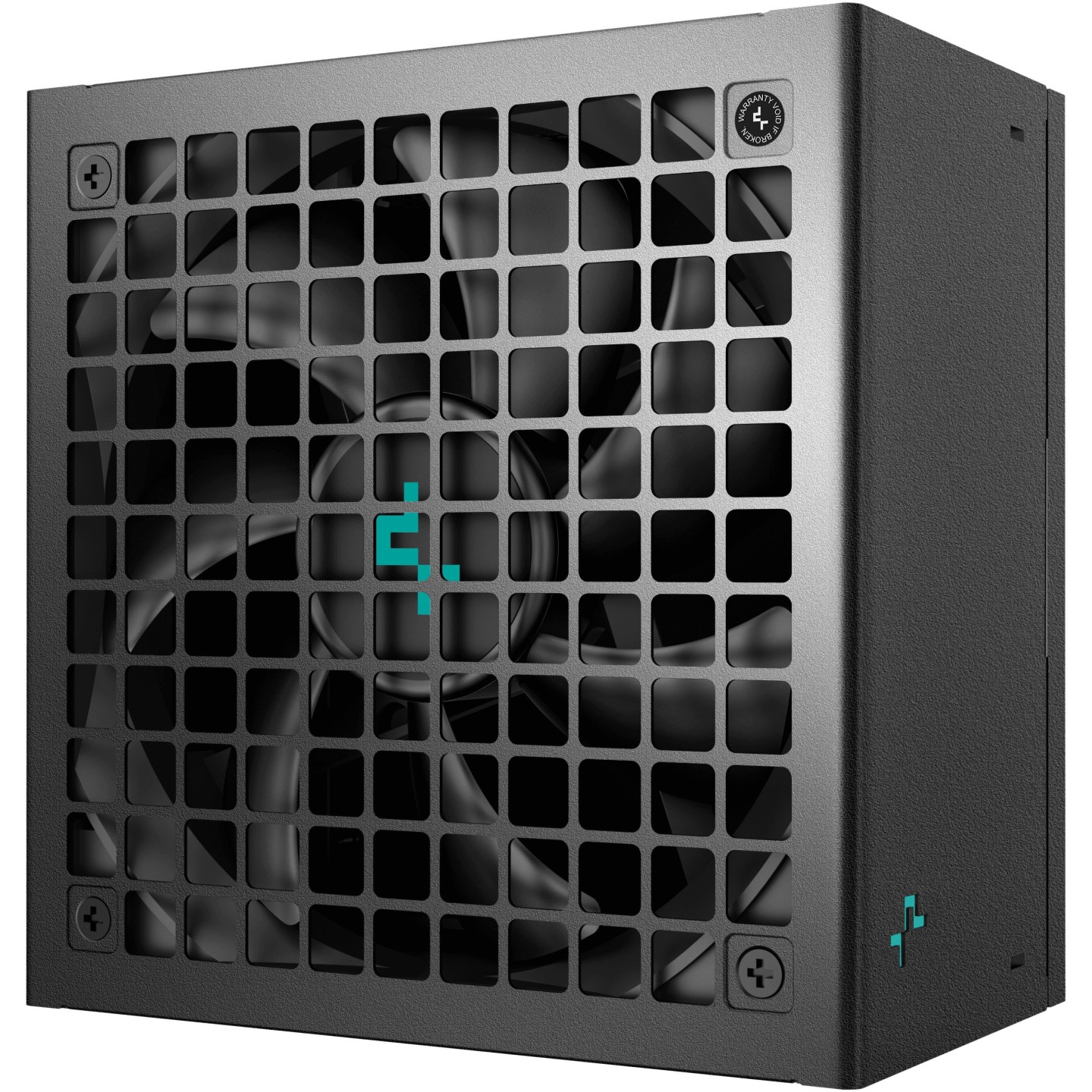

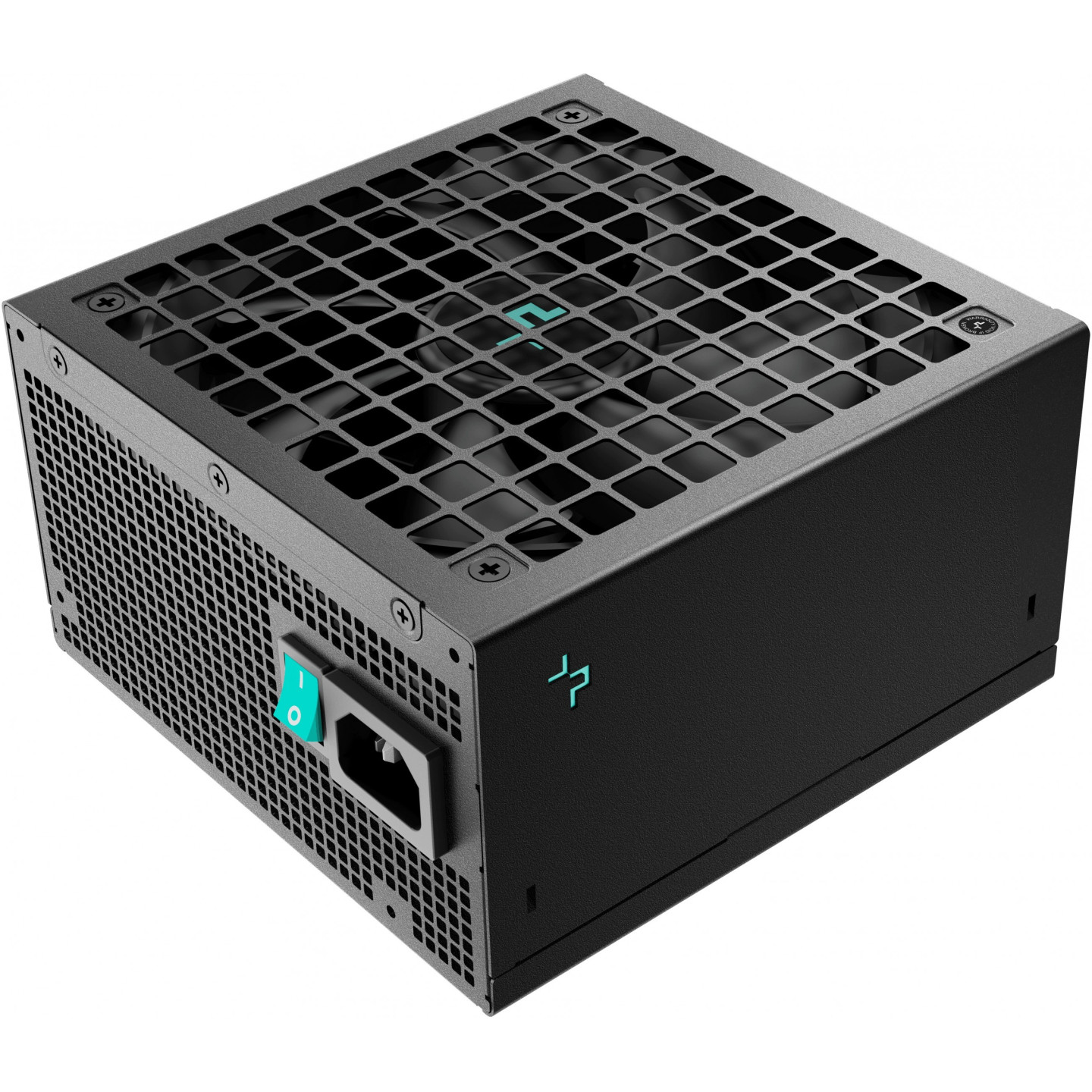

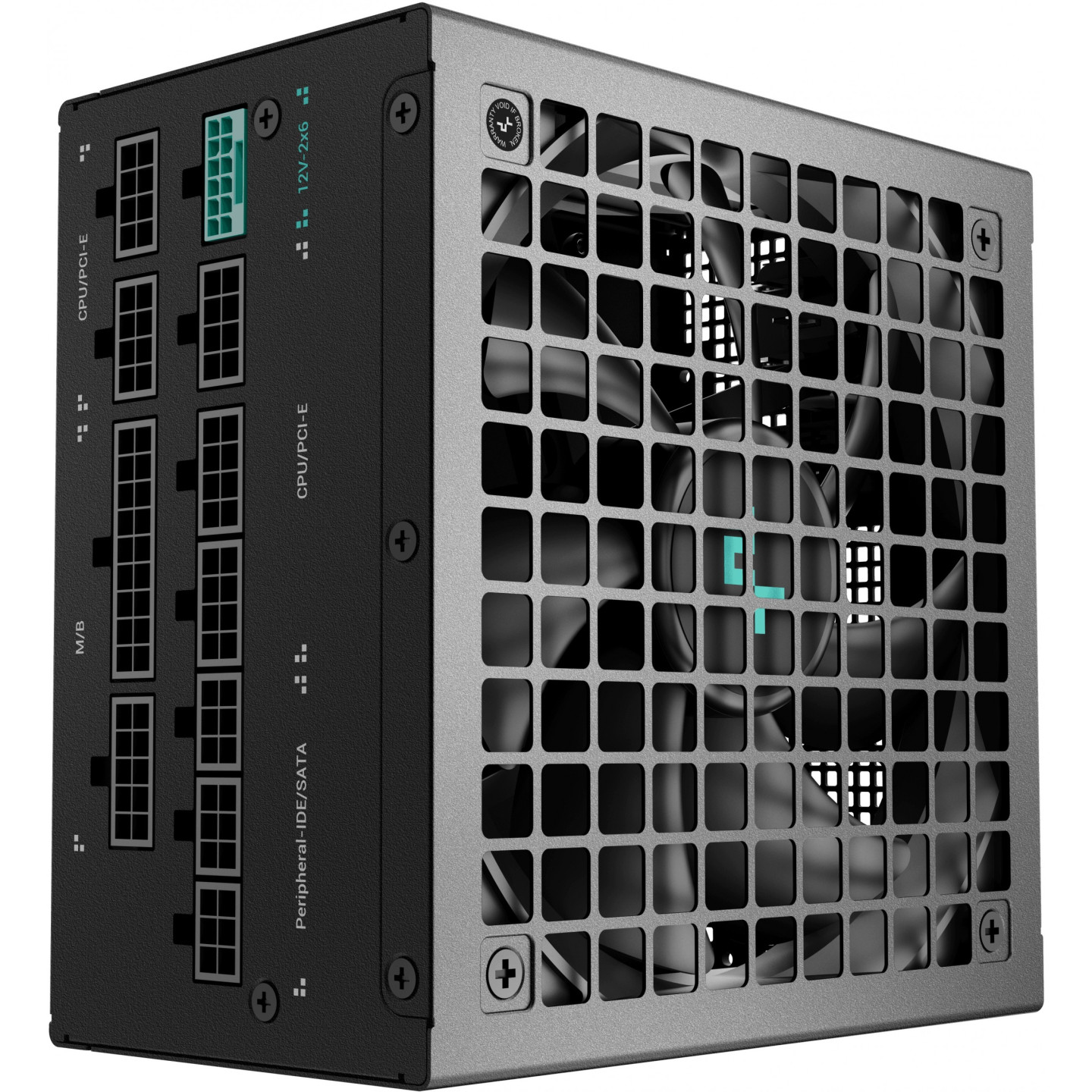

The DeepCool PN1000M is a high-performance 1000W power supply unit compliant with the latest ATX 3.1 standard, featuring full modularity for clean cable management and superior airflow in modern PC builds. Certified 80 PLUS Gold and Cybenetics Gold for efficiency (up to 91% at 230V), it delivers 999.6W on the single +12V rail, supporting demanding GPUs via a dedicated 16-pin PCIe (12+4 pin, 600W) connector and three 6+2 pin PCIe cables.

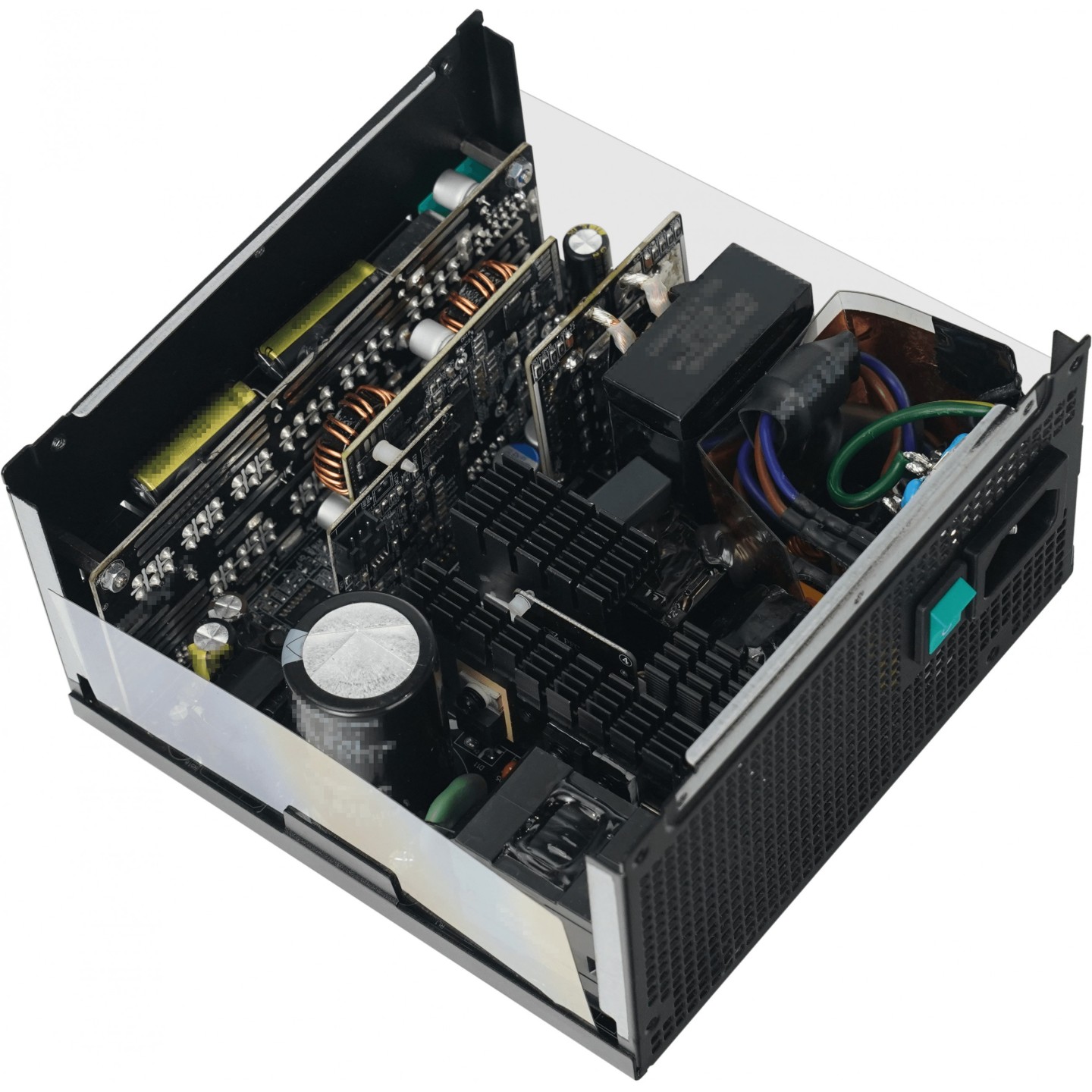

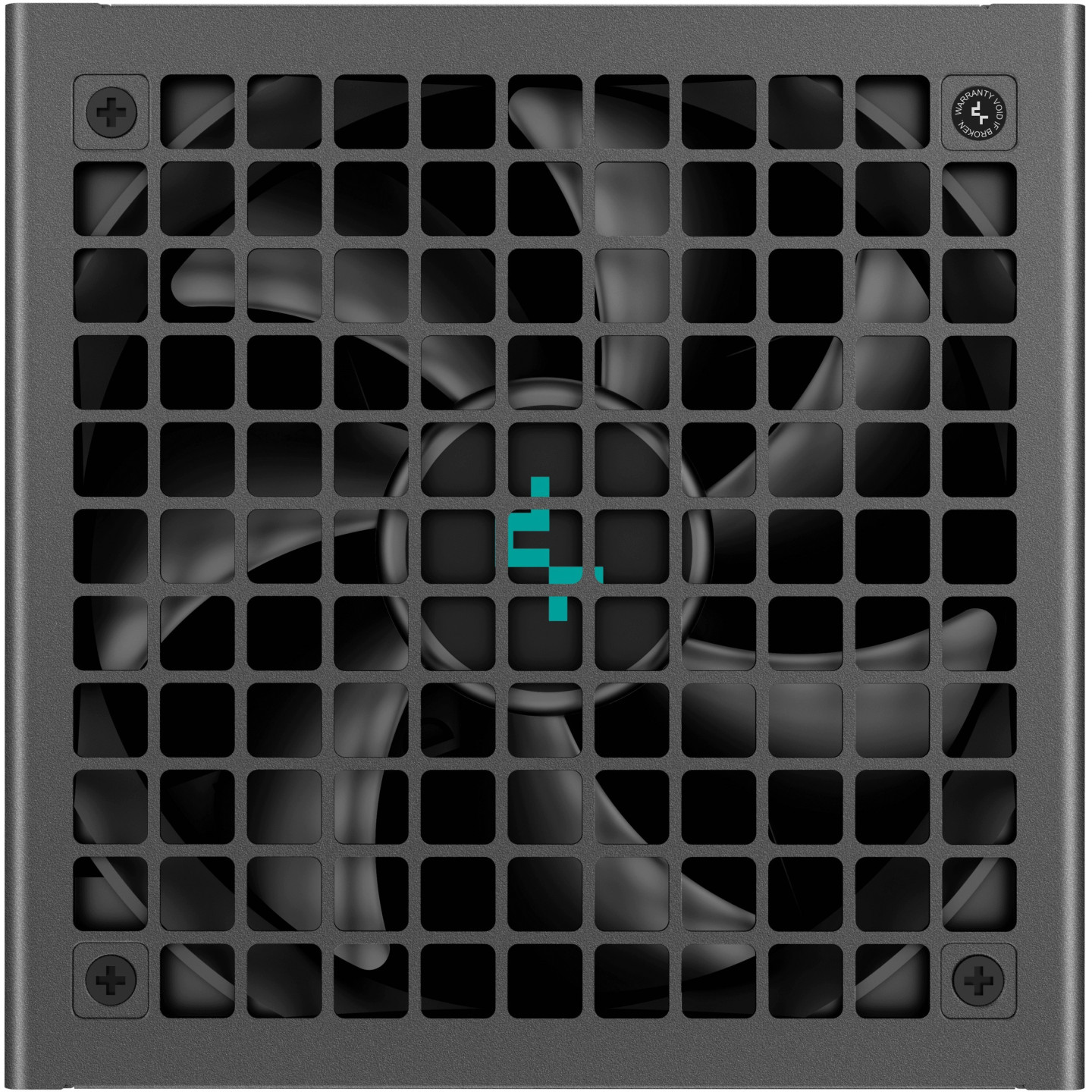

Equipped with a quiet 135mm FDB (Fluid Dynamic Bearing) fan (HA13525H12SF-Z), it maintains low noise levels (Cybenetics A-rated, 20-25 dB[A]) even under heavy loads. Robust protections include OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO. Japanese 105°C capacitors ensure longevity with a 100,000-hour MTBF and 10-year warranty. Dimensions: 150x150x86mm, operates 0-40°C.

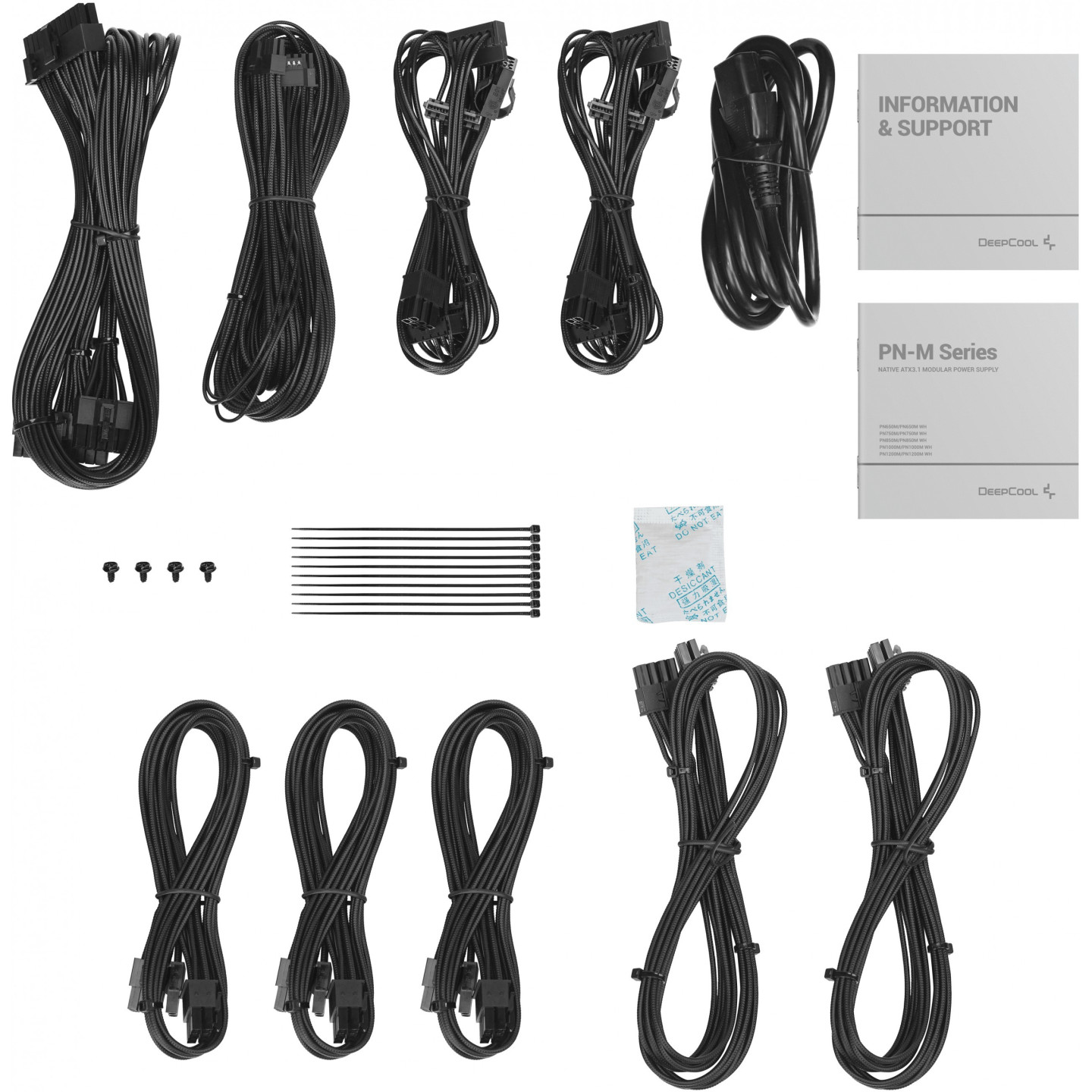

- ✅ Fully modular black cables with flat design
- ✅ 2x EPS/ATX12V (700mm), 8x SATA, 2x Molex
- ✅ Low ripple: 12V <32mV, hold-up ≥16ms
- ✅ ErP compliant, RoHS/WEEE certified
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Hold time | ≥16 ms |
| Efficiency | ≥90% |
| Power Good signal delay range | 100 - 150 ms |
| 80 PLUS certification | 80 PLUS Gold |
| Cybenetics Efficiency | Gold (87-91%) |
| Cybenetics Noise | A (20-25 dB[A]) |
| Cabling type | Fully-Modular |

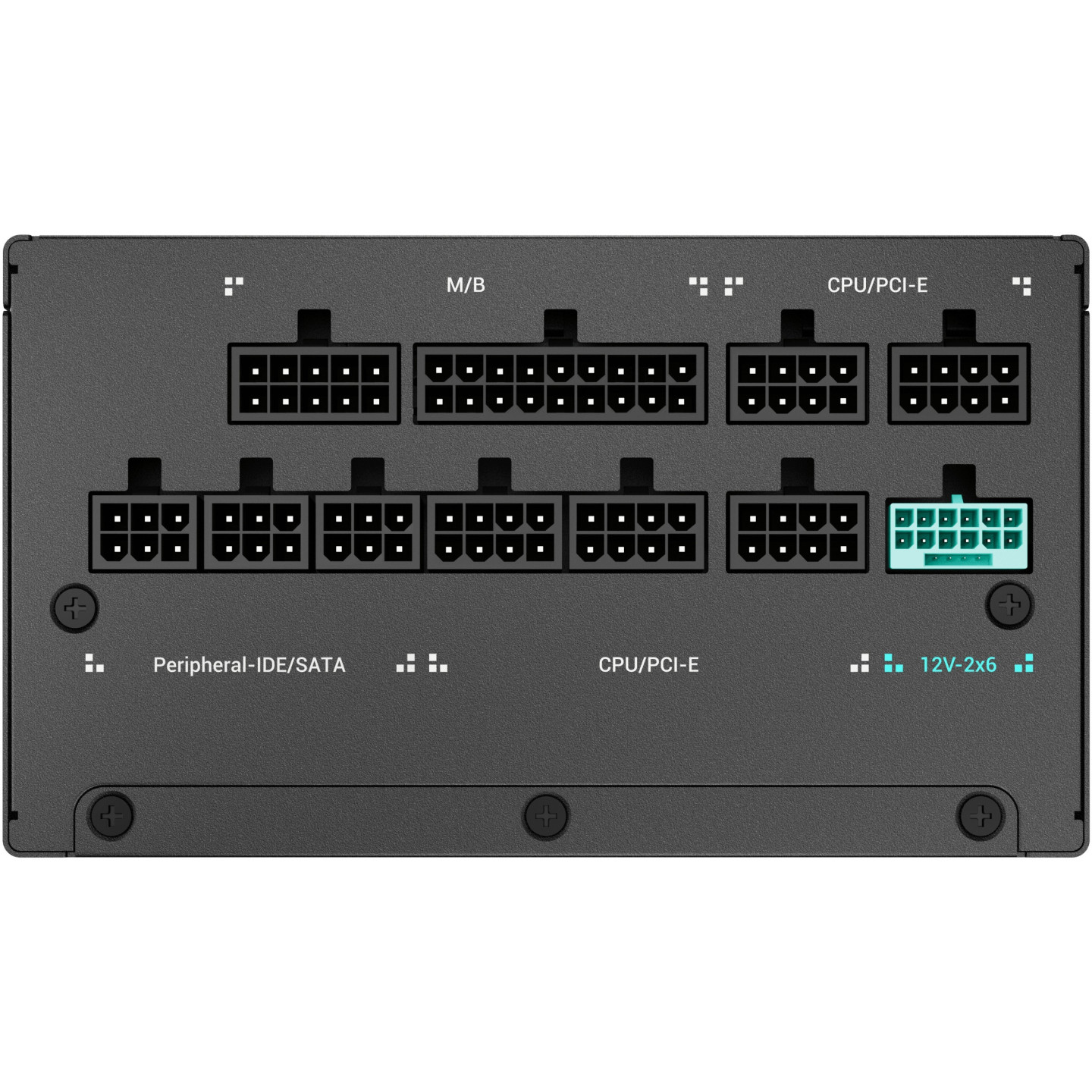

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 54 cm |
| CPU power connector | 2x 4+4 pin EPS/ATX12V |
| CPU power cable length | 70 cm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 (12+4 pin, 600W) |
| Number of SATA power connectors | 8 |
| SATA power cable length | 450,570,690,810 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 930 mm |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Operating temperature (T-T) | 0 - 40 °C |
| Power protection features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| Compliance certificates | RoHS, WEEE, ErP, Triman |
| Certification | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Warranty | 10 years |
