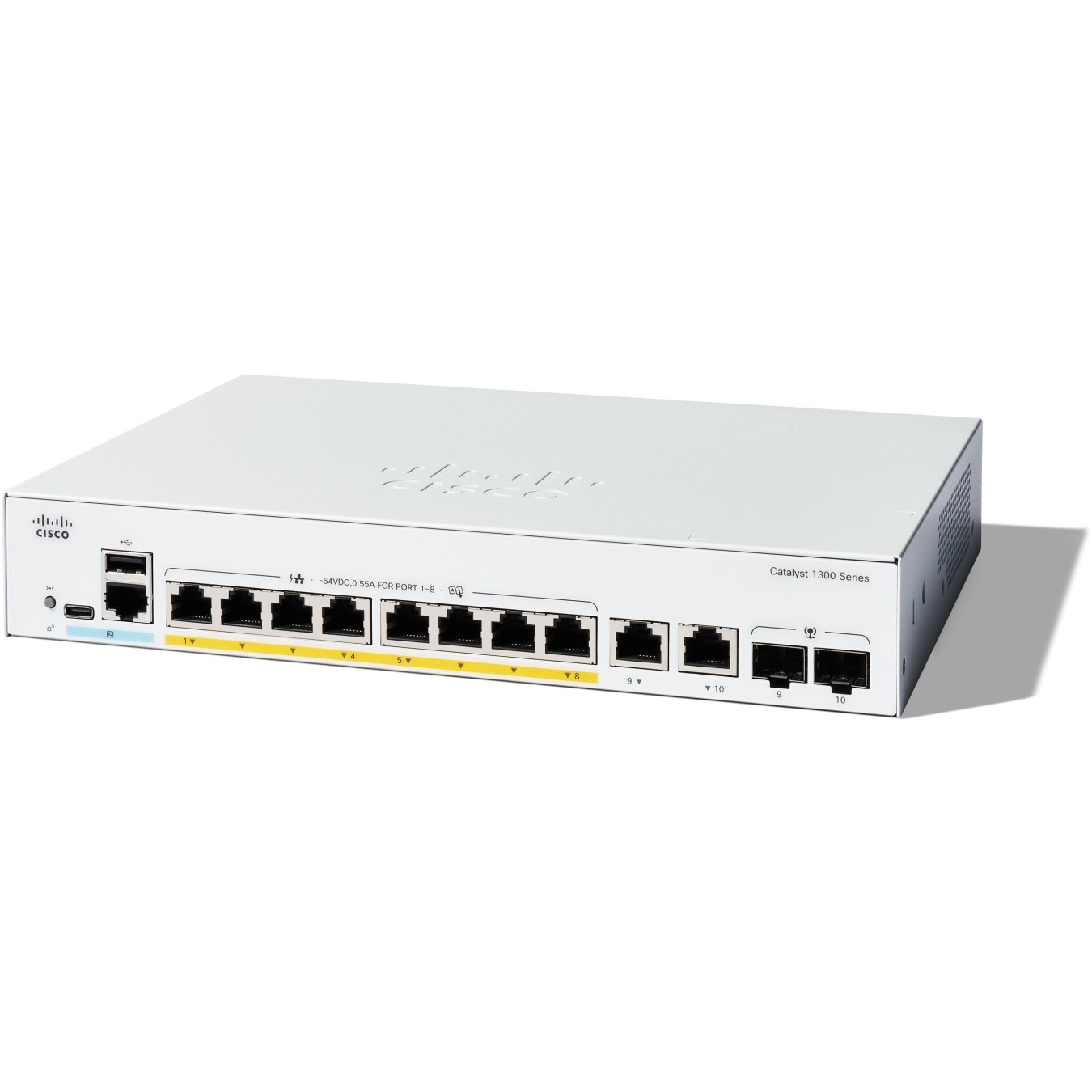

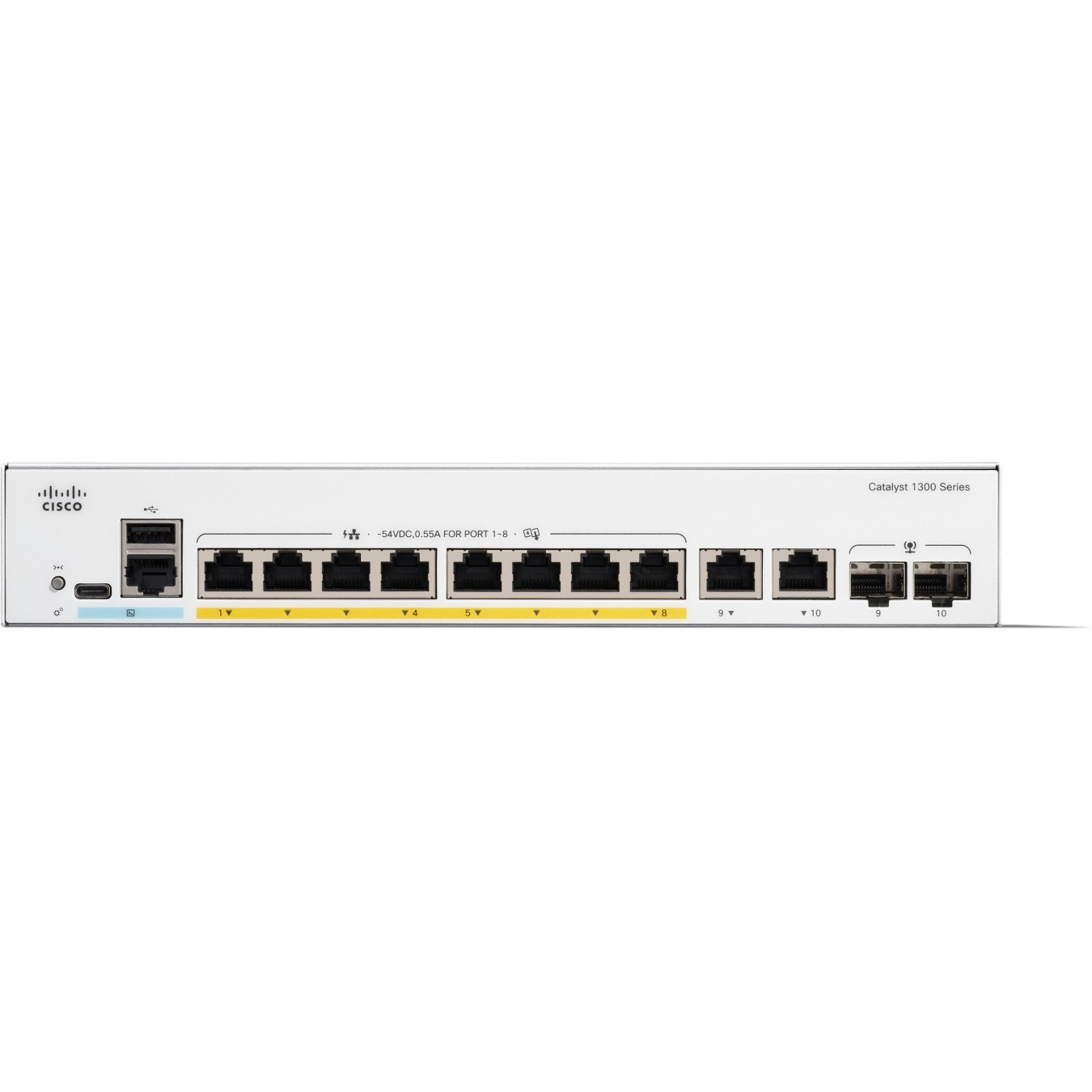

Cisco Catalyst - CATALYST 1300 - 8-Port GE POE EXT
Cisco Catalyst 1300-8P-E-2G Managed Switch. 8x GE PoE ports, Ext PS, 2x1GE Combo, L2, rack-mount.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco Catalyst 1300-8P-E-2G Managed Switch. 8 Port GE. PoE. Ext PS. 2x1GE Combo. Limited Lifetime Protection (C1300-8P-E-2G). Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Console port: RJ-45/USB Type-C. MAC address table: 16000 entries. Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ab. IEEE.... Power over Ethernet (PoE). Rack mounting
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45/USB Type-C |
| Networking standards | IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Number of VLANs | 4093 |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 16000 entries |
| Number of static routes | 990 |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP Option 82. DHCP client. DHCP server |
| IGMP entries | 2000 |
| Authentication | MAC-based authentication. Web-based authentication |
| Authentication type | RADIUS |
| Product colour | Grey |
| Mean time between failures (MTBF) | 1706649 h |
| Power source | AC |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 80.86 W |
| Power plug type | Type C |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 60 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 275.91 BTU/h |
| Width | 184.9 mm |
| Depth | 268.2 mm |
| Height | 43.9 mm |
| Weight | 1.53 kg |
| Package width | 299 mm |
| Package depth | 544.8 mm |
| Package height | 103.9 mm |
| Package weight | 3.07 kg |
| Country of origin | China |
