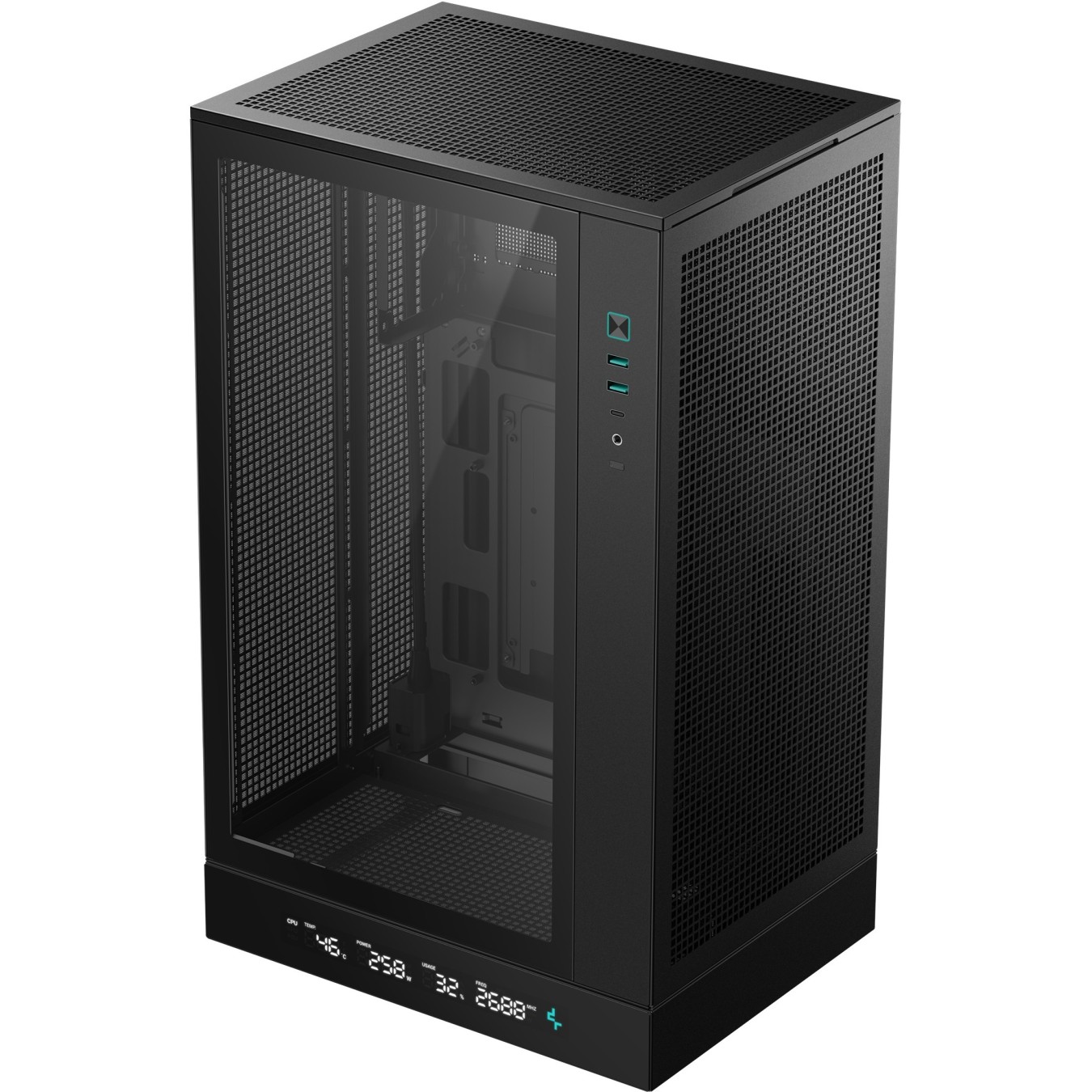

DeepCool CH270 Digital Mini Tower mATX Case Black (Boxed)
DeepCool CH270 Digital Mini Tower PC case, Black. Supports Micro ATX/Mini-ITX motherboards. ABS/SPCC/tempered glass build. Max CPU cooler 174mm, GPU 413mm. Vertical airflow design with side 360mm radiator support, USB-C front I/O.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 240 mm 360 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Combo Jack USB A USB C Gen2 |
| PC Cases - GPU Orientation | Vertical Supported |
| PC Cases - Form Factor | Mini Tower |
| PC Cases - Max GPU Length | 450+ mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |
The DeepCool CH270 Digital is a compact mini-tower PC case designed for Micro ATX and Mini-ITX motherboards, offering a small footprint (296x225x486mm) ideal for space-constrained setups while supporting mainstream ATX components like GPUs up to 413mm and CPU coolers up to 174mm.
Featuring a tempered glass side panel and modern front I/O with 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-C, and combo audio jack, it emphasizes excellent airflow with support for up to 3x 120/240mm side fans or 360mm radiator (vertical mount), 2x 120mm top fans, and 1x 120mm bottom fan. Materials include durable ABS plastic, SPCC steel, and tempered glass for premium aesthetics and build quality.
This vertical-oriented case (model R-CH270-BKNDM0-G-1) excels in high-airflow compact builds, with 4 expansion slots, 1x 3.5"/2.5" drive bay, and ATX PSU compatibility (max 150mm). Net weight 5.8kg.
- Motherboard: Micro ATX, Mini-ITX
- Max GPU Length: 413mm
- CPU Cooler Height: 174mm
- Radiator Support: Side 360mm, Bottom 120mm
- Included Fans: None
- Front I/O: 2x USB-A, 1x USB-C Gen2, Audio Combo
| Model Number | R-CH270-BKNDM0-G-1 |
| Material | Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass |
| Form factor | Mini Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | Micro ATX, Mini-ITX |
| Number of 3.5 | 1 |
| Number of 2.5 | 1 |
| Number of expansion slots | 4 |
| Maximum CPU cooler height | 17.4 cm |
| Maximum graphics card length | 41.3 cm |
| Maximum PSU length | 15 cm |
| Supported power supply form factors | ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Feature | Combo headphone/mic port |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120, 240 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120 mm |
| Side radiator sizes supported | 120, 240, 360 mm |
| Bottom radiator sizes supported | 120 mm |
| Supported HDD sizes | 2.5 |
| Width | 225 mm |
| Depth | 296 mm |
| Height | 486 mm |
| Weight | 5.8 kg |
