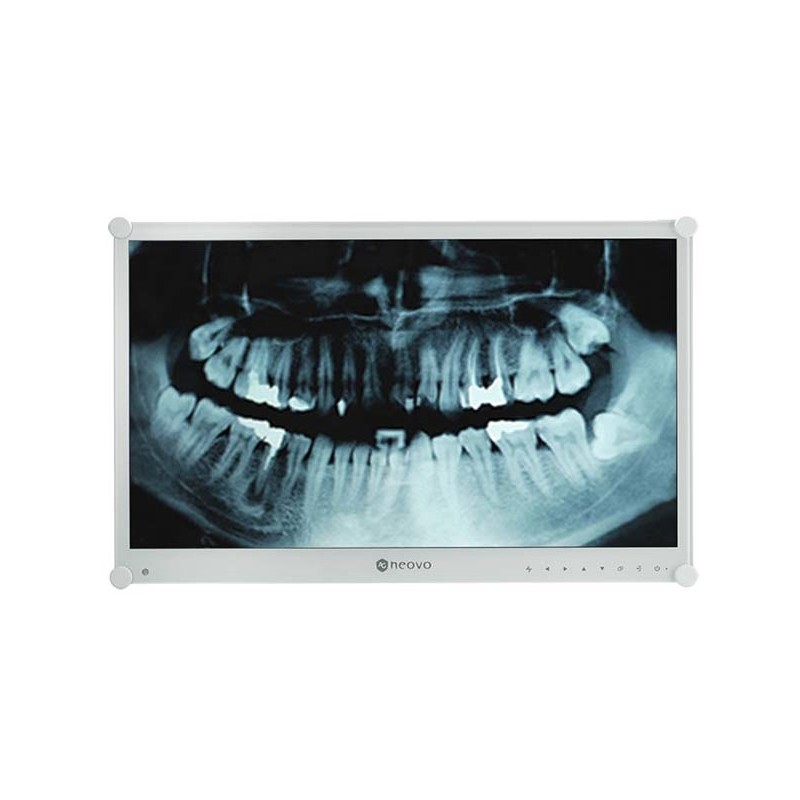

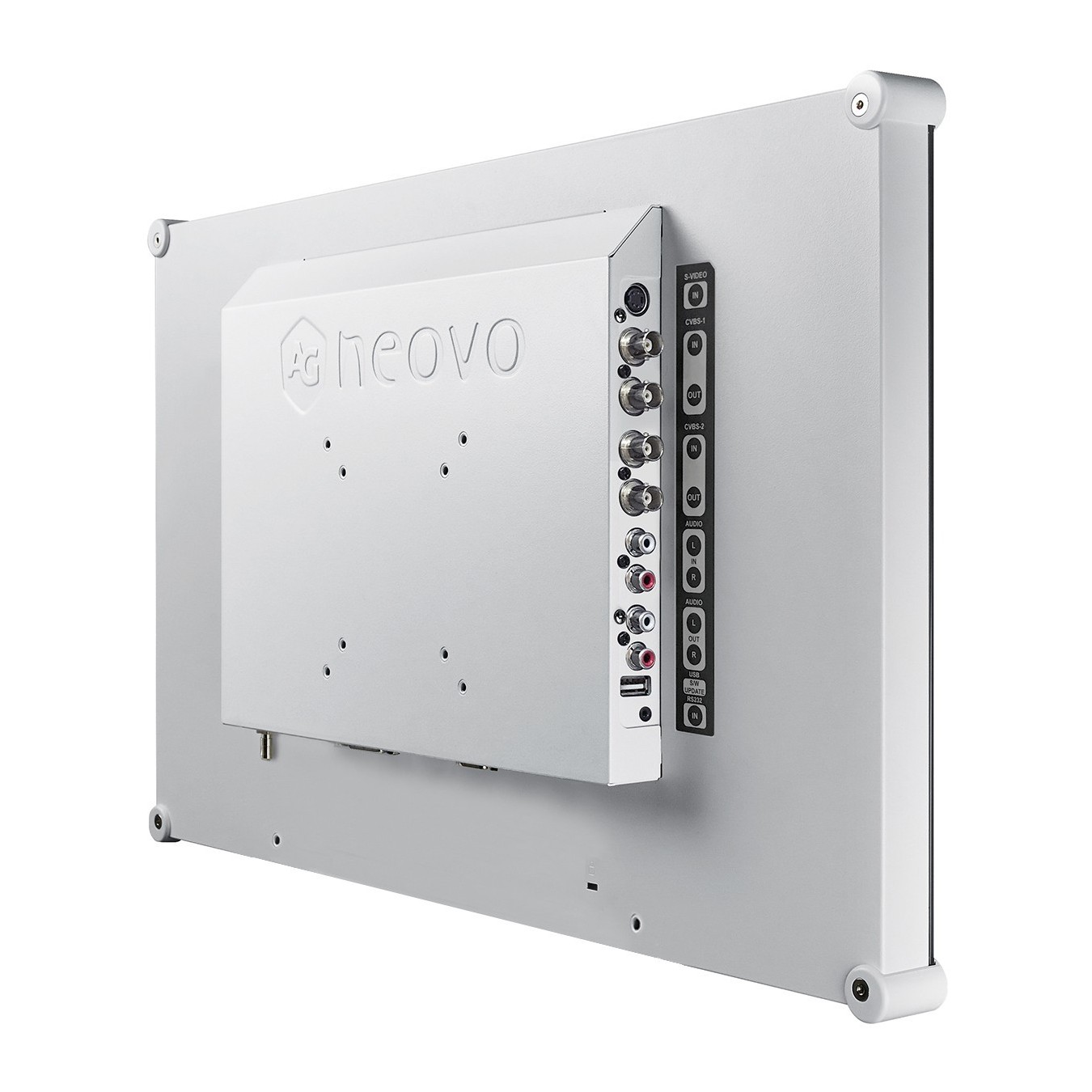

DENTAL MONITOR - DR-24G
AG Neovo DR-24G dental monitor, 23.8" (60.5 cm), 1920x1080 Full HD LCD, 5 ms, white.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
AG Neovo DR-24G. Display diagonal: 60.5 cm (23.8"). Display resolution: 1920 x 1080 pixels. HD type: Full HD. Display technology: LCD. Response time: 5 ms. Native aspect ratio: 16:9. Viewing angle. horizontal: 178°. Viewing angle. vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: White
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | VA |
| Backlight type | LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Feature | Light sensor |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.274 x 0.274 mm |
| Digital horizontal frequency | 24 - 83 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display diagonal (metric) | 60 cm |
| Haze rate | 40% |
| Surface hardness | 3H |
| Colour gamut standard | NTSC |
| NTSC coverage (typical) | 72% |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Market positioning | Medical |
| Product colour | White |
| Housing material | Metal |
| Front bezel colour | White |
| Glass thickness | 3 mm |
| USB Type-A downstream ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Micro HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Composite video in | 2 |
| Composite video out | 2 |
| S-Video inputs quantity | 1 |
| RS-232 ports | 1 |
| Audio RCA outputs | 1 |
| Panel mounting interface | 75 x 75.100 x 100 mm |
| Cable lock slot type | Kensington |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Input current | 2.71 A |
| AC adapter output voltage | 24 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width (without stand) | 562.4 mm |
| Depth (without stand) | 56.2 mm |
| Height (without stand) | 352.6 mm |
| Weight (without stand) | 7.4 kg |
| Package width | 672 mm |
| Package depth | 249 mm |
| Package height | 517 mm |
| Package weight | 10.6 kg |
| Package type | Box |
| Cables included | AC. Audio (3.5mm). VGA |
| Power cable length | 5 m |
| Protection features | Dust resistant. Waterproof |
| Display surface reflectivity (typical) | 1% |
| Glass screen | NeoV Optical |
| Transmission rate | > 97% |
| Compliance certificates | CE. Low Voltage Directive (LVD). REACH. RoHS. WEEE |
