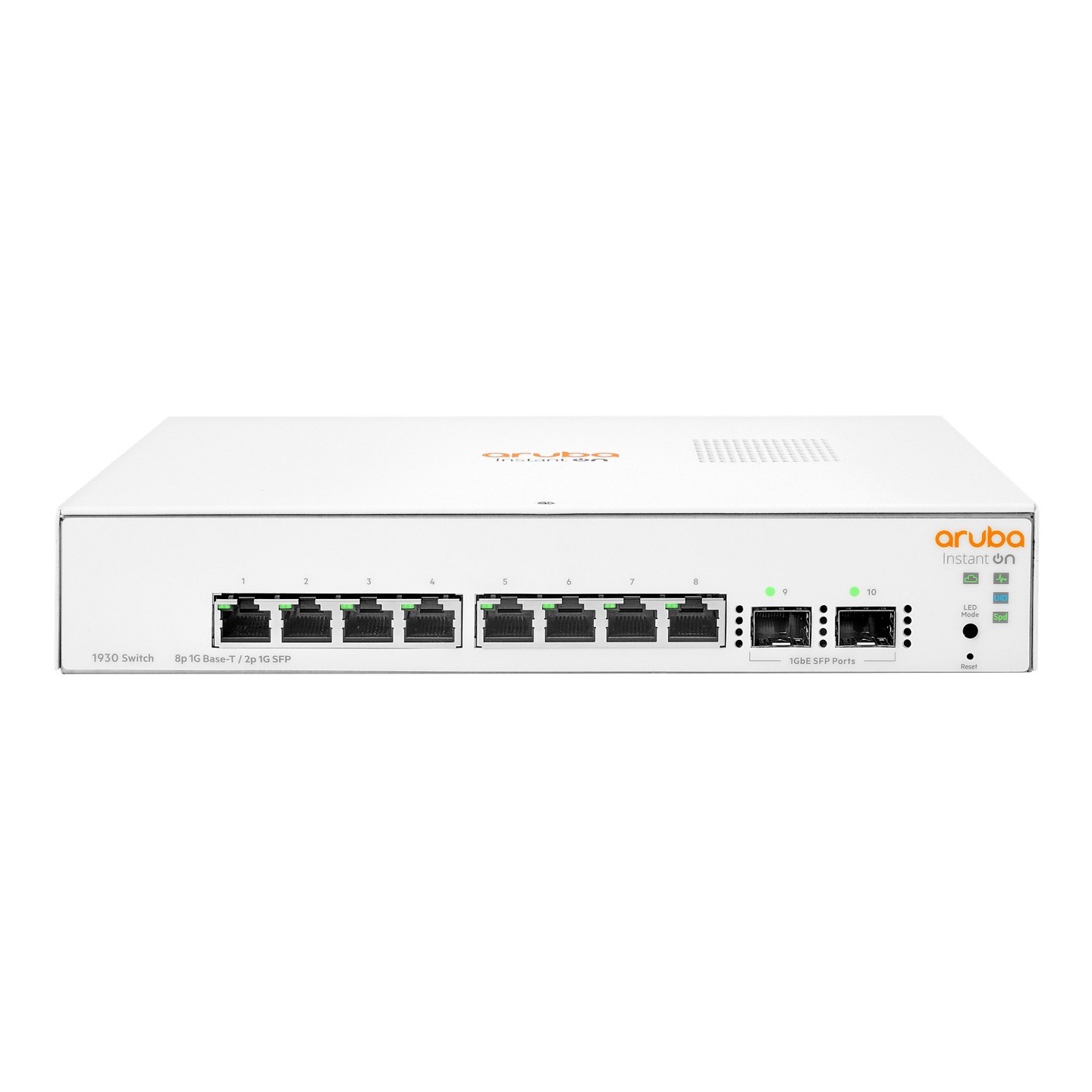

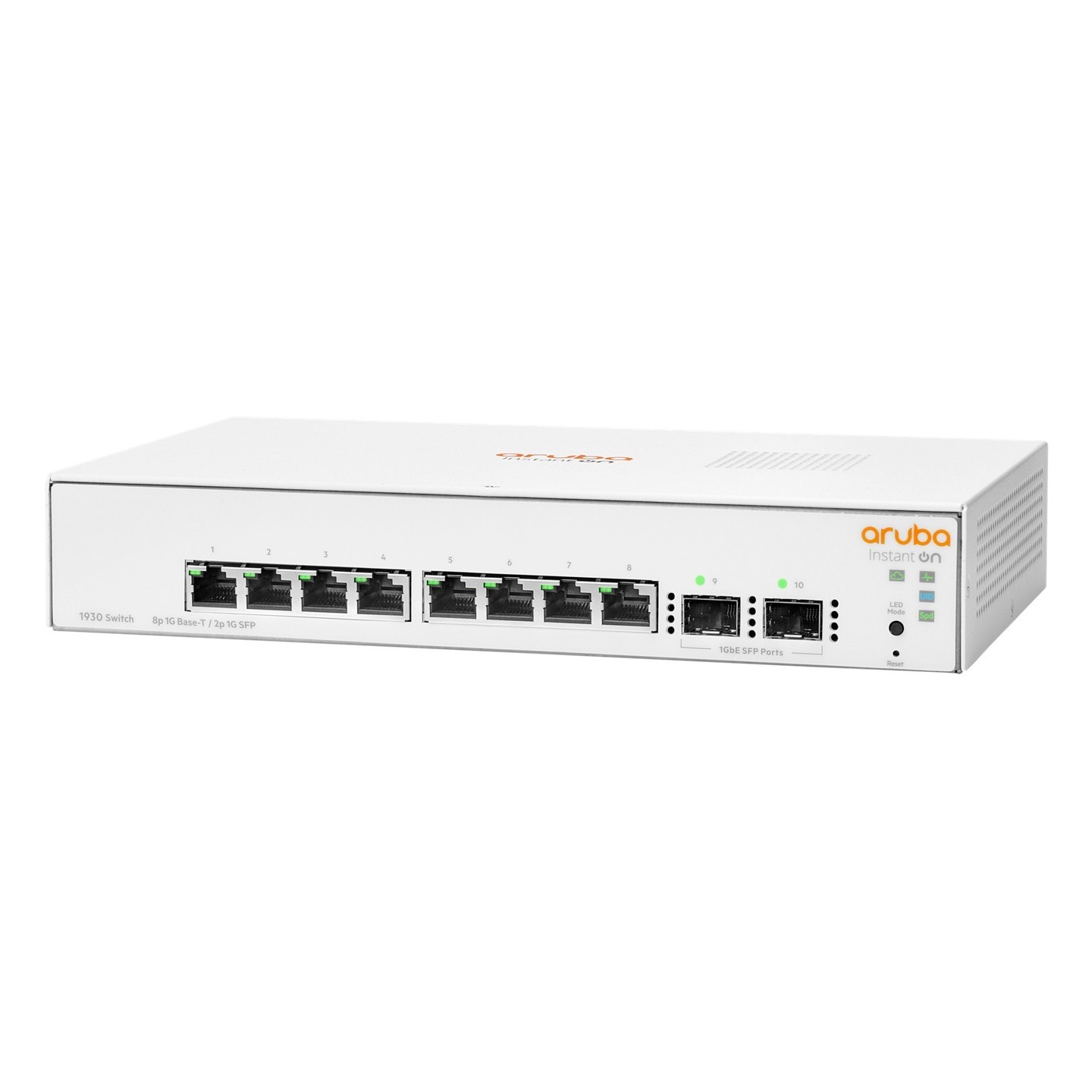

HP Enterprise Instant On - 1930 M RM - 8+2P, 2SFP
HP Enterprise Aruba Instant On 1930 switch. Managed, L2+, 8x Gigabit Ethernet RJ-45 ports, 2 SFP slots, 1U.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Ports | 8 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | Yes |
HPE Aruba Networking Aruba Instant On 1930. Switch type: Managed. Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2+ |
| Feature | Power supply included |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Number of VLANs | 256 |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.8 Mpps |
| MAC address table | 8000 entries |
| Latency (10-100 Mbps) | 5.2 µs |
| Latency (1 Gbps) | 3 µs |
| Packet buffer memory | 1.5 MB |
| Form factor | 1U |
| Product colour | White |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 800 MHz |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 11 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Width | 254 mm |
| Depth | 159.5 mm |
| Height | 43.9 mm |
| Weight | 820 g |
| Harmonized System (HS) code | 85176990 |
