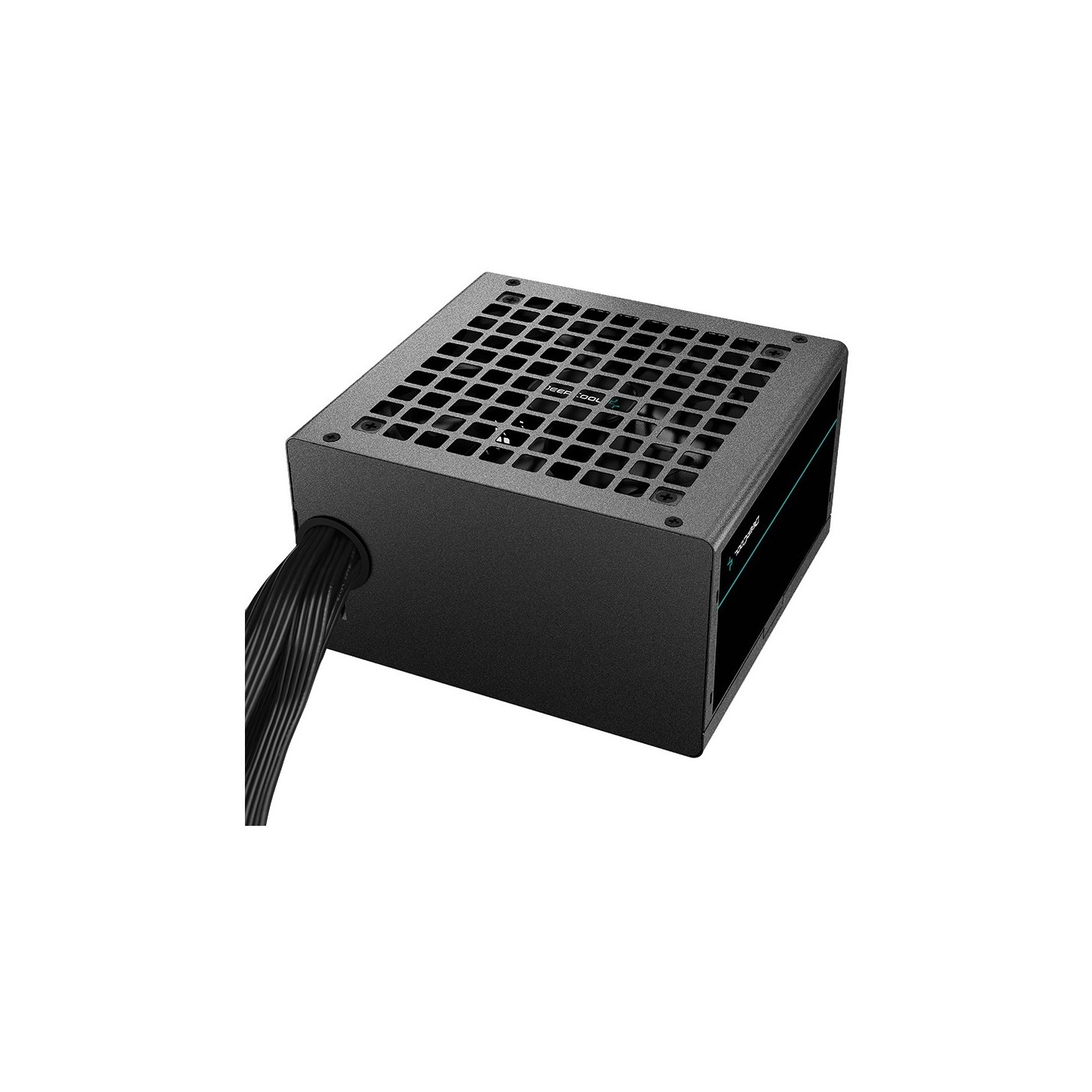

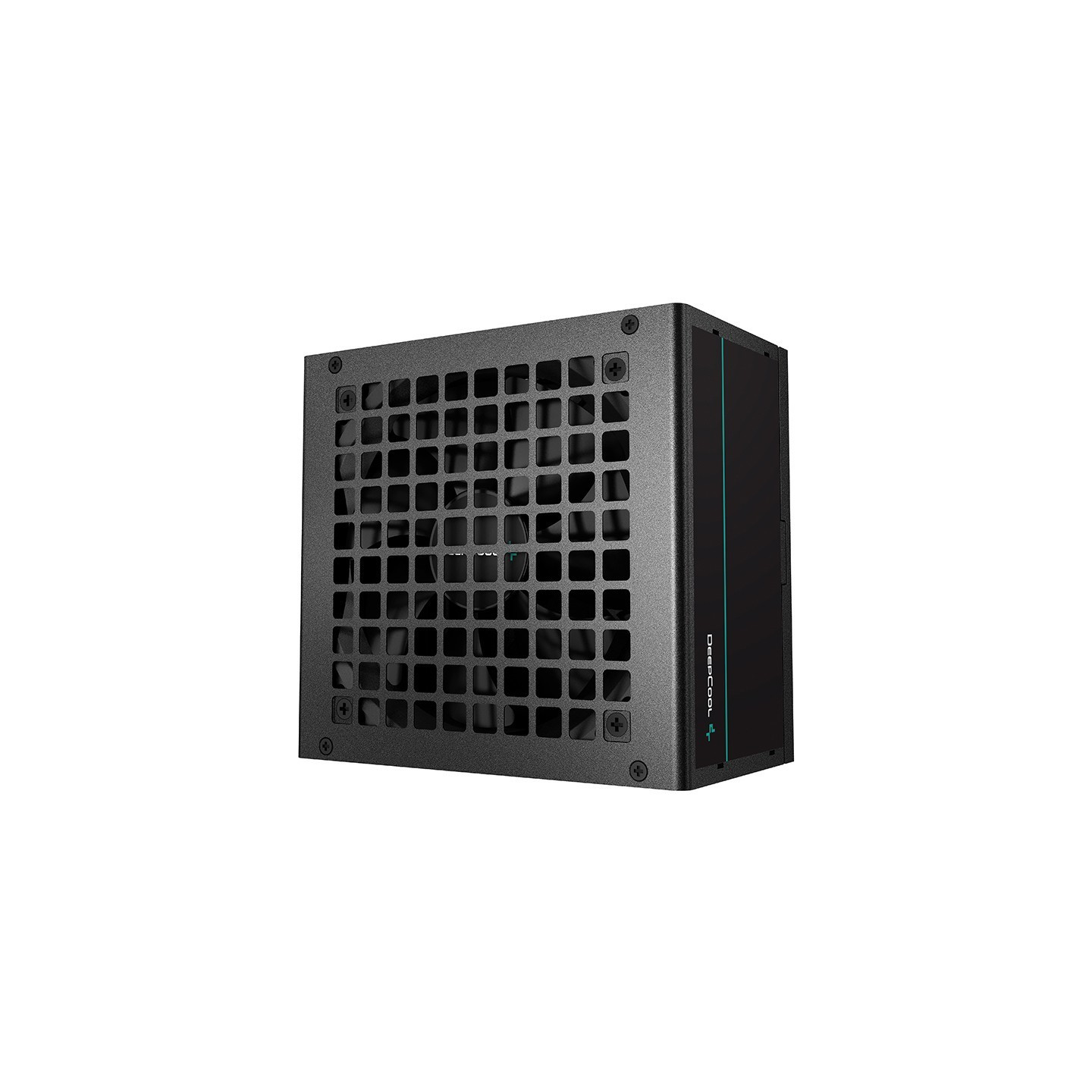

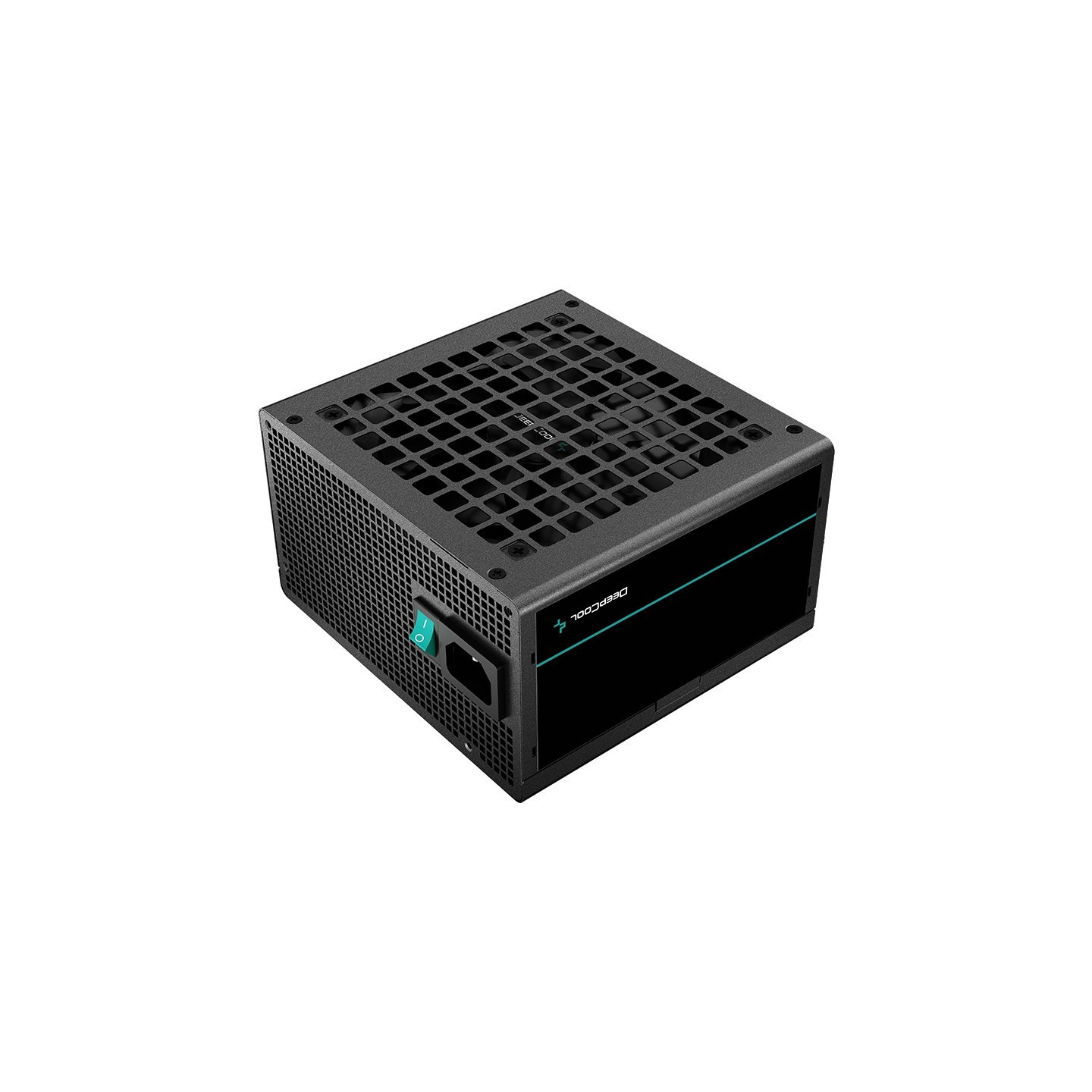

Deepcool PF700 700W 80+ White ATX PSU (Boxed)
Deepcool PF700 700W 80 PLUS White PSU delivers reliable power for gaming PCs with 85%+ efficiency, 120mm quiet fan, 4x PCIe 6+2-pin connectors, and full protections. Non-modular ATX design with 2x EPS for high-end builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus White |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The Deepcool PF700 700W 80 PLUS White is a reliable ATX power supply unit designed for mid-to-high-end gaming PCs, workstations, and home systems. Certified 80 PLUS White for over 85% efficiency at typical loads, it ensures stable power delivery while minimizing energy waste and heat. Featuring a quiet 120mm Hypro bearing fan with variable speed control, it maintains optimal cooling with minimal noise.
Equipped with essential connectors including 1x 24-pin ATX, 2x 4+4-pin EPS for CPUs, 4x 6+2-pin PCIe for GPUs, 6x SATA, and 2x Molex peripherals. Comprehensive protections (OVP, UVP, OCP, SCP, OPP, OTP) safeguard your components. Non-modular flat black cables simplify installation in most cases. Dimensions: 150x140x86mm.
- Power Output: 700W total, single +12V rail 58A
- Efficiency: ≥85% @ 50% load

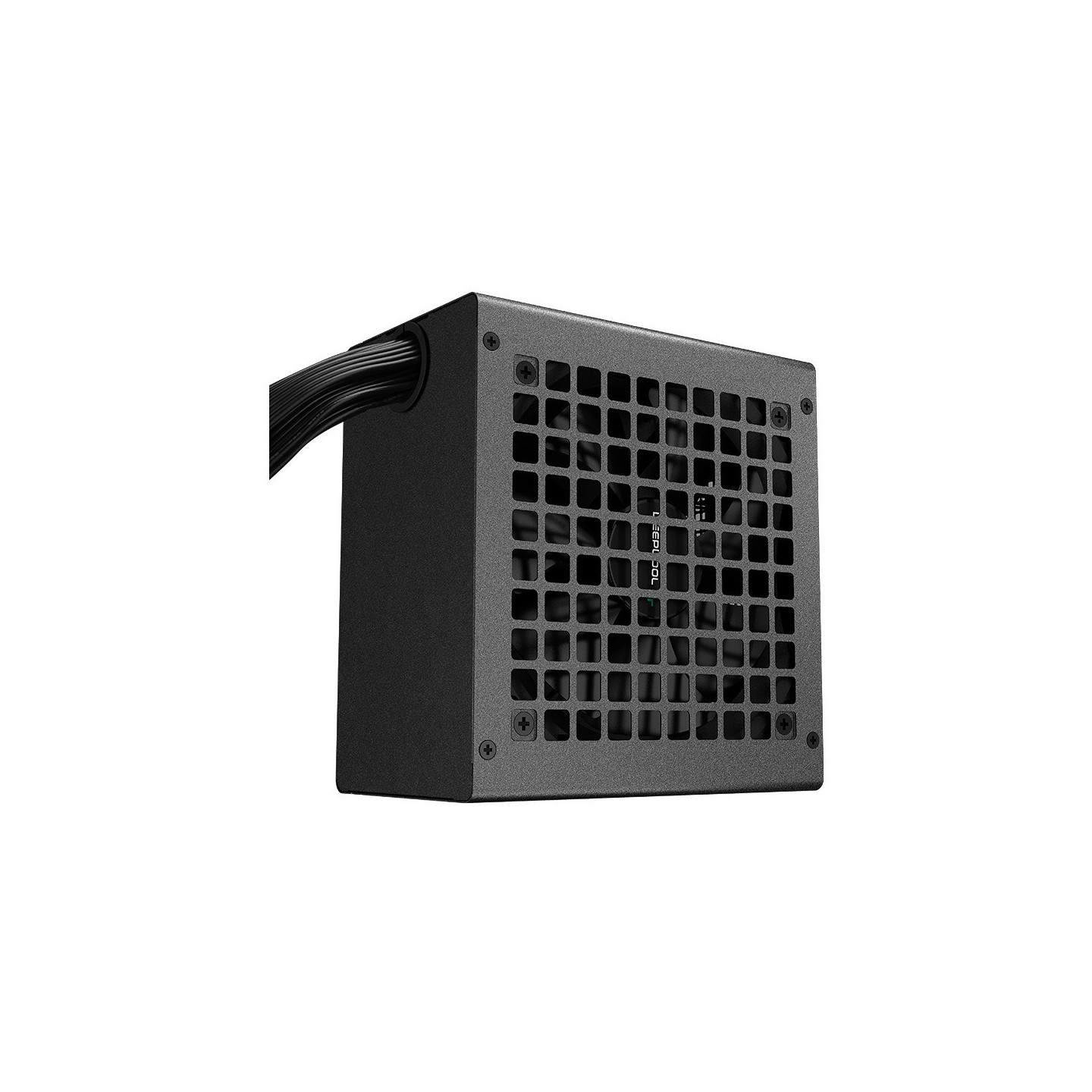

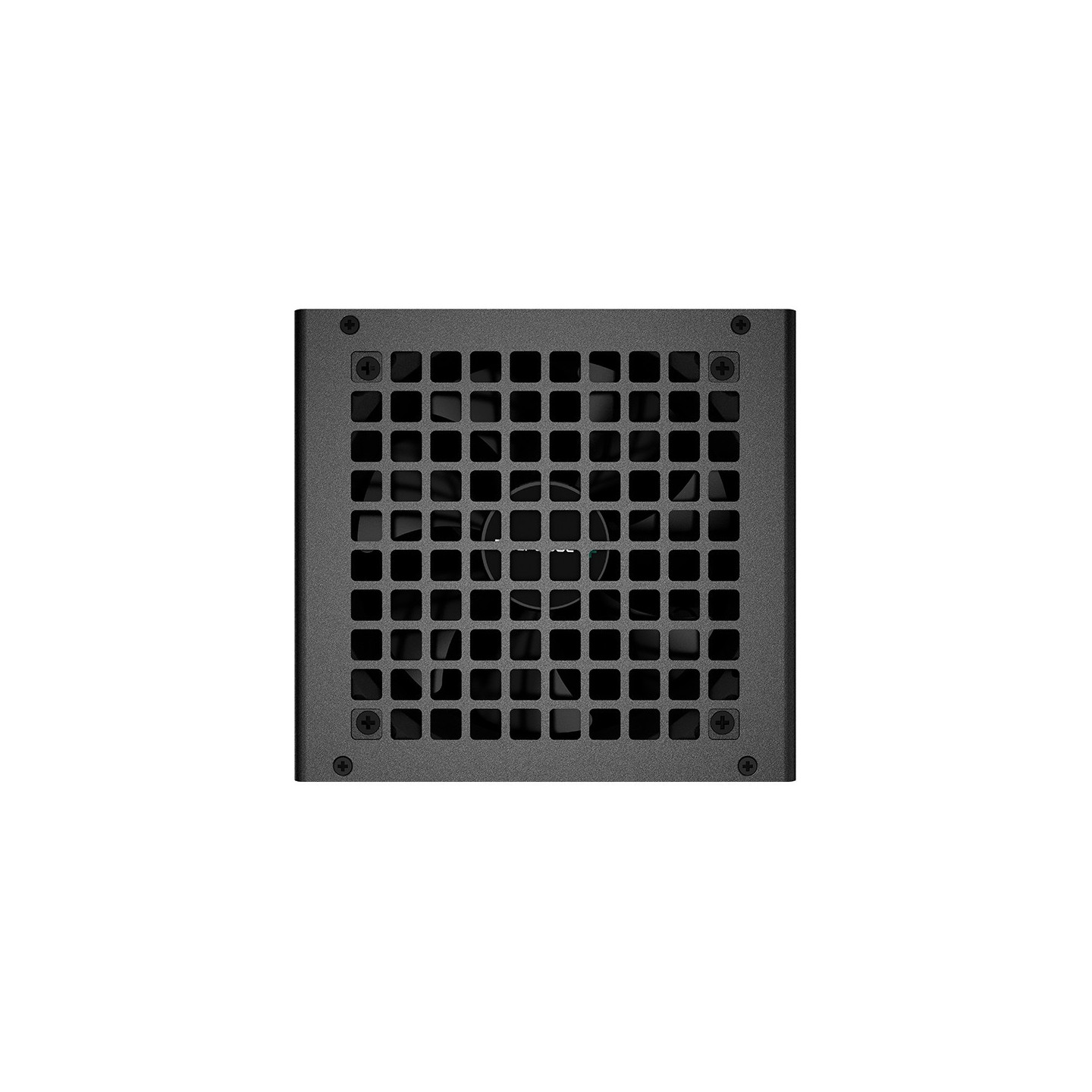

- Fan: 120mm Hypro Bearing, silent operation
- Protections: OVP/UVP/OCP/SCP/OPP/OTP
- Warranty: 3 years
| Model | PF700 / R-PF700D-HA0B |
| Total Power | 700W |
| Form Factor | ATX 12V V2.4 |
| Efficiency Certification | 80 PLUS White / ≥85% |
| Dimensions (WxDxH) | 150 × 140 × 86 mm |
| Fan Size | 120mm Hypro Bearing |
| Topology | Active PFC + Double Tube Forward |
| Capacitors | Taiwan Bulk |
| +12V Rail | 58A (696W) |
| Connectors | 1x 24-pin ATX (20+4), 2x 4+4-pin EPS, 4x 6+2-pin PCIe, 6x SATA, 2x Molex |
| Protections | OVP, UVP, OCP, SCP, OPP, OTP |
| MTBF | 100,000 Hours |
| Warranty | 3 Years |
| Input Voltage | 200-240Vac |
