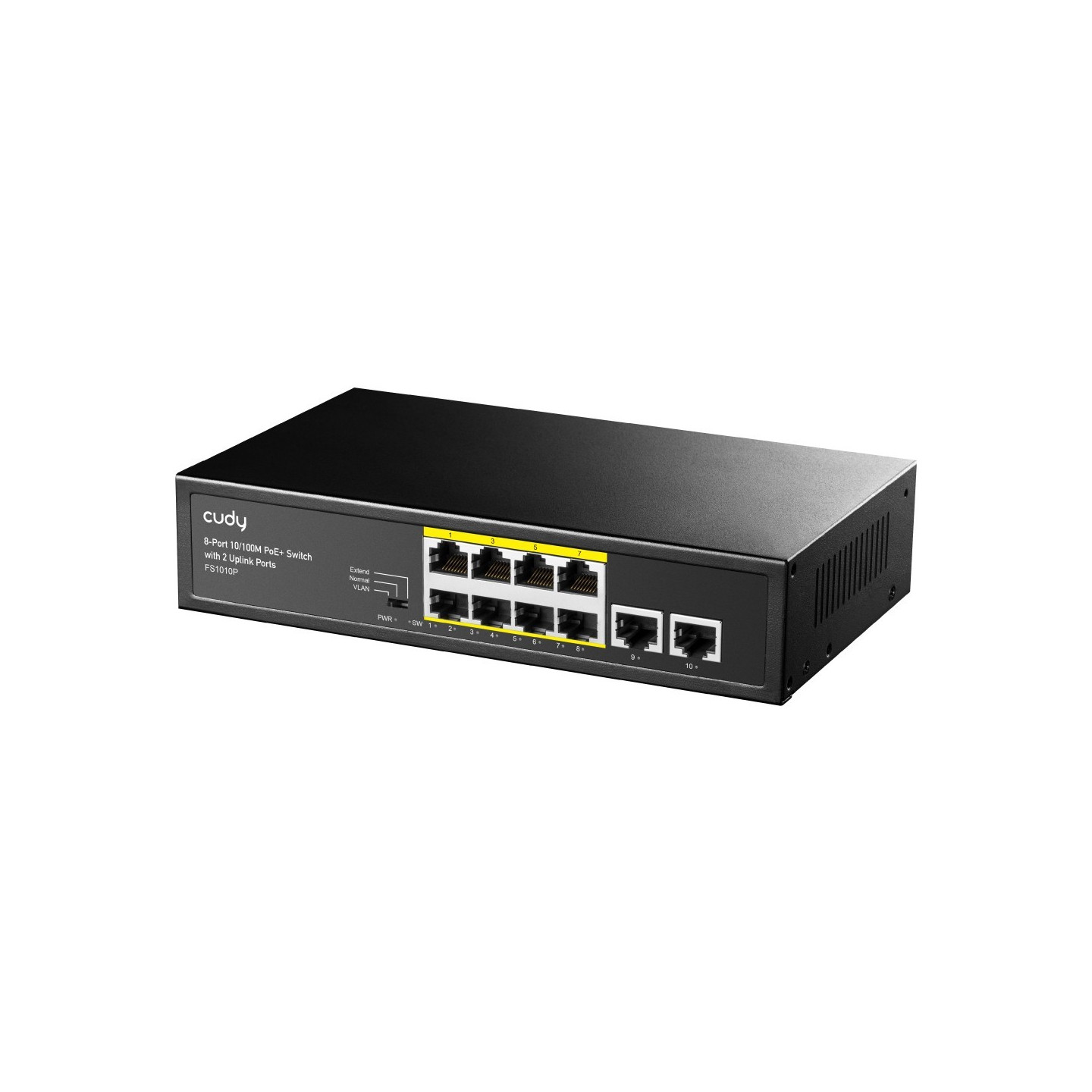

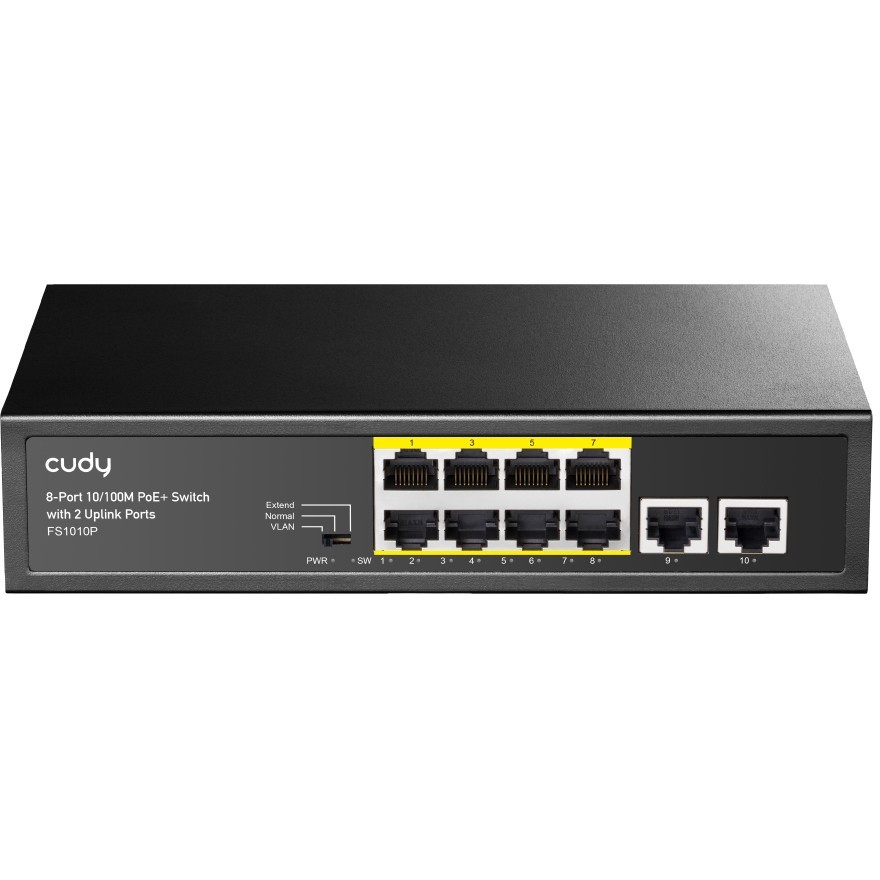

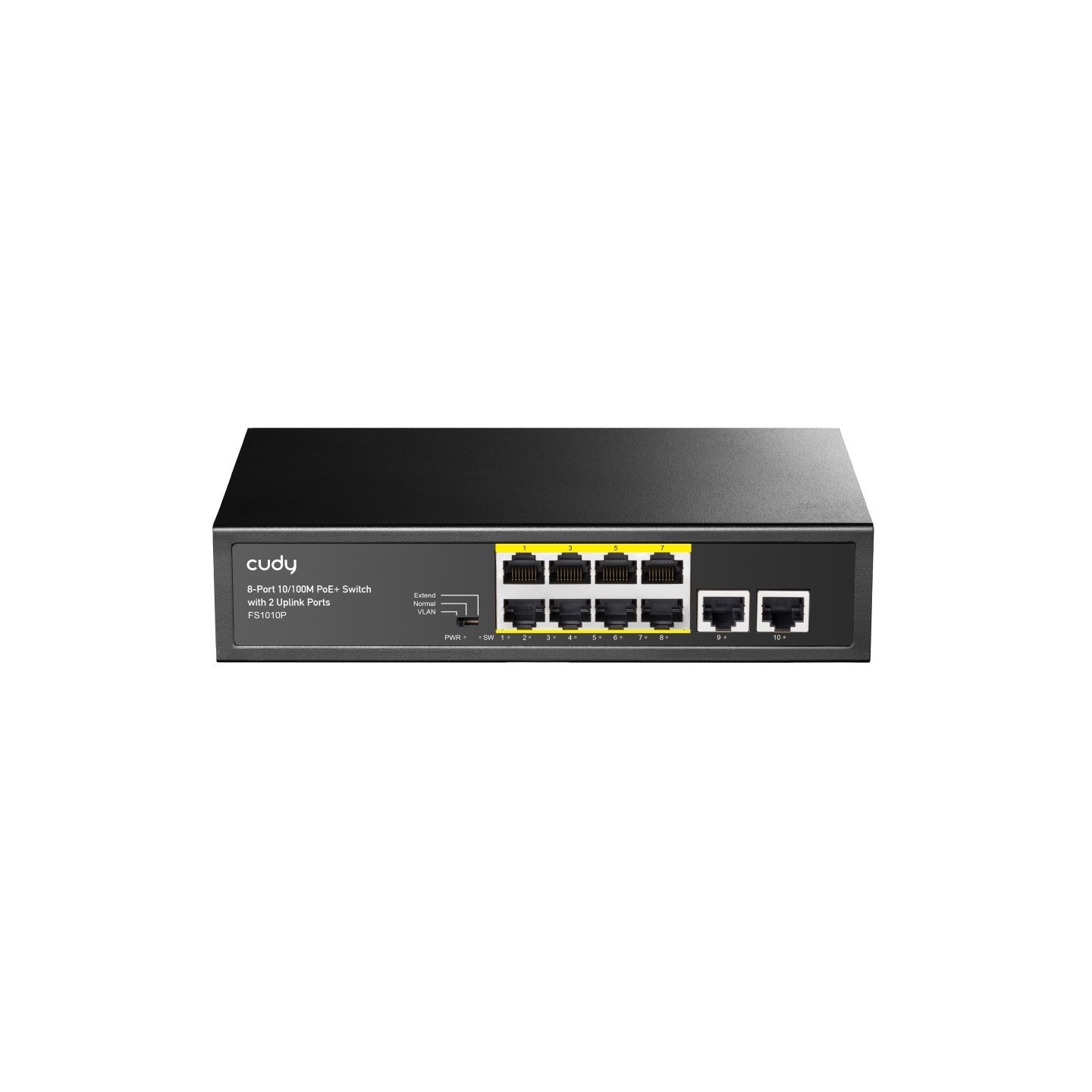

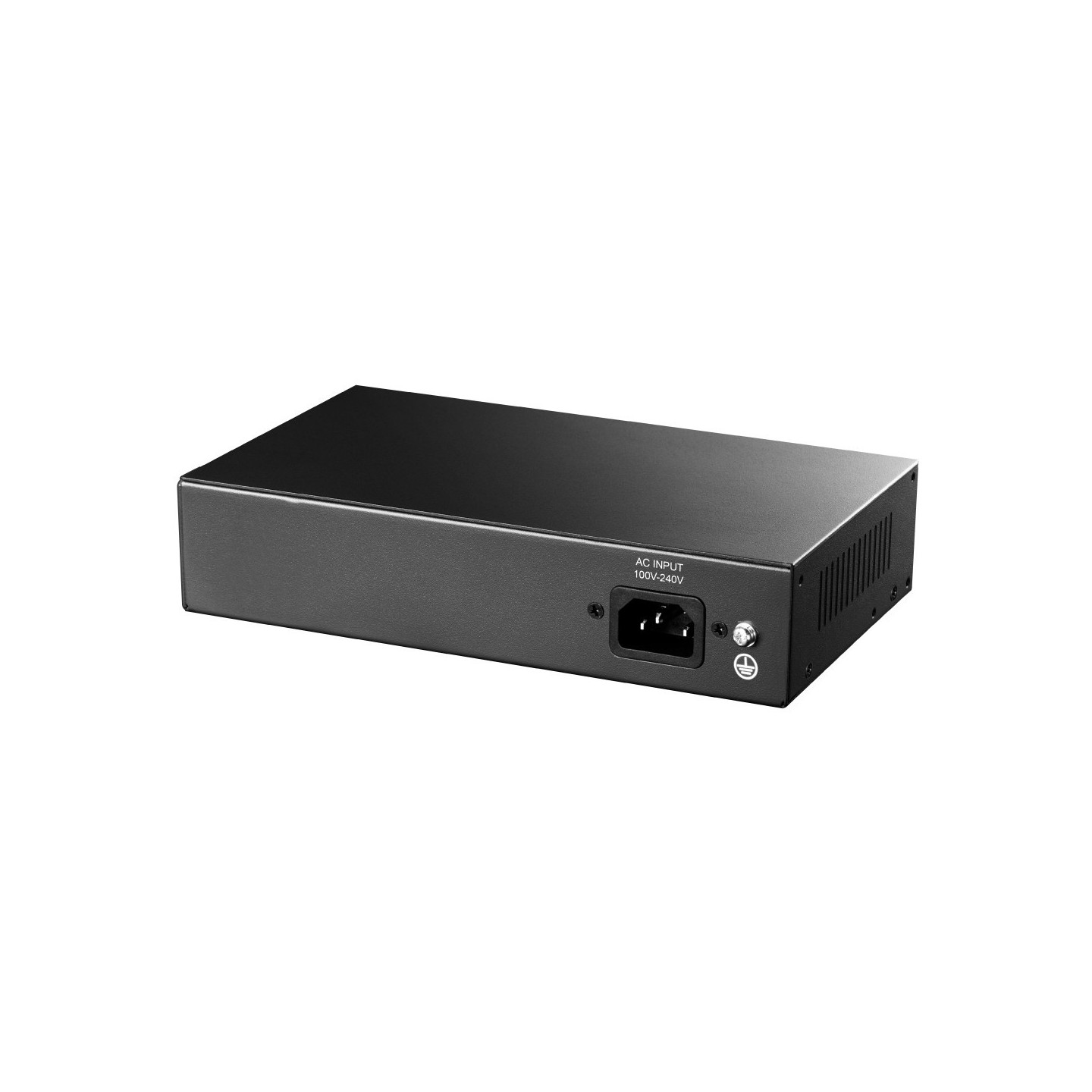

Cudy PoE+ - FS1010P - 8P
8-port Fast Ethernet PoE+ switch by Cudy with 2 uplink ports; 120 W total PoE budget; 10/100 Mbps, metal housing.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 8 |
| Network Switches - Port Speed | 10/100 (Fast Ethernet) |
| Network Switches - PoE Budget | 61-130 W |
| Network Switches - Rackmount | No |
Cudy FS1010P. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100). Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE)
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Uplink ports quantity | 2 |

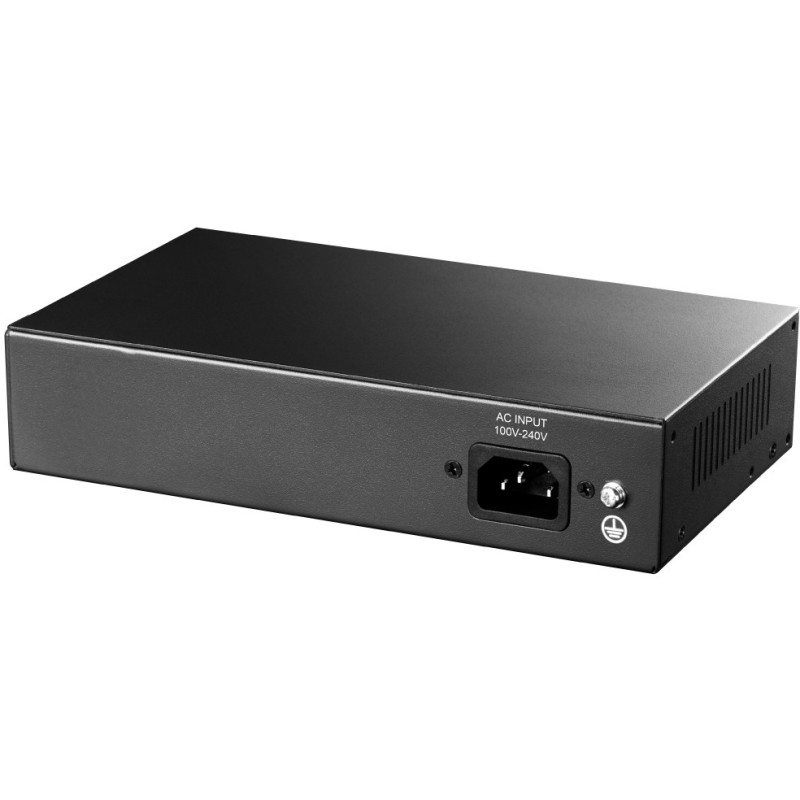

| Power connector | AC-in jack |
| Networking standards | IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e |
| Feature | Quick start guide |
| Ethernet LAN data rates | 10.100 Mbit/s |
| Forwarding rate | 1.48 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 1528 |
| Packet buffer memory | 0.25 MB |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity. Link. PoE. Power |
| Mean time between failures (MTBF) | 50000 h |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Surge protection voltage | 4 kV |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 2 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Bandwidth | 2 Gbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 220 mm |
| Depth | 150 mm |
| Height | 44 mm |

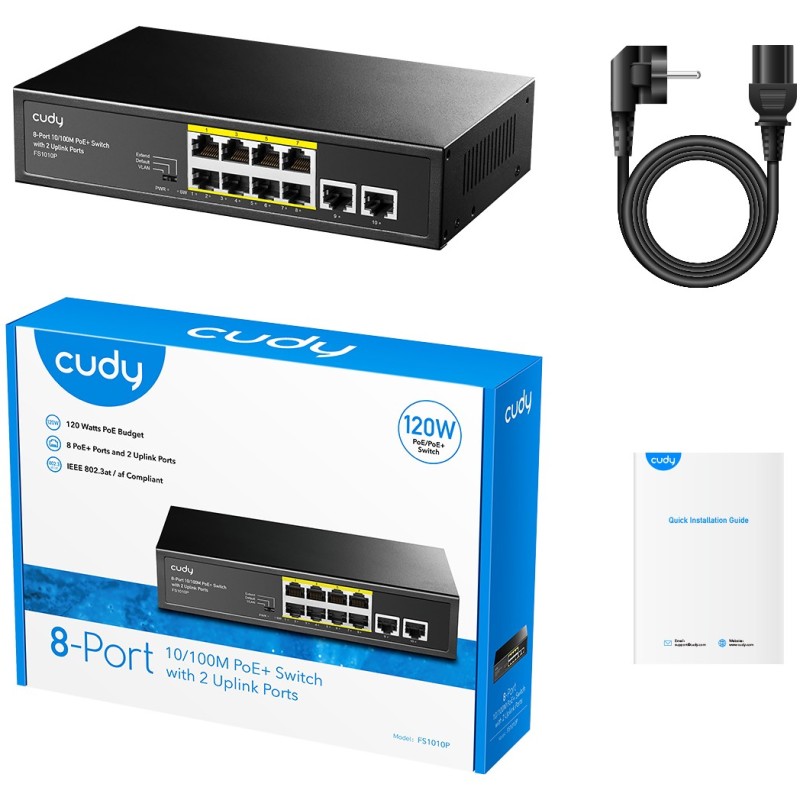

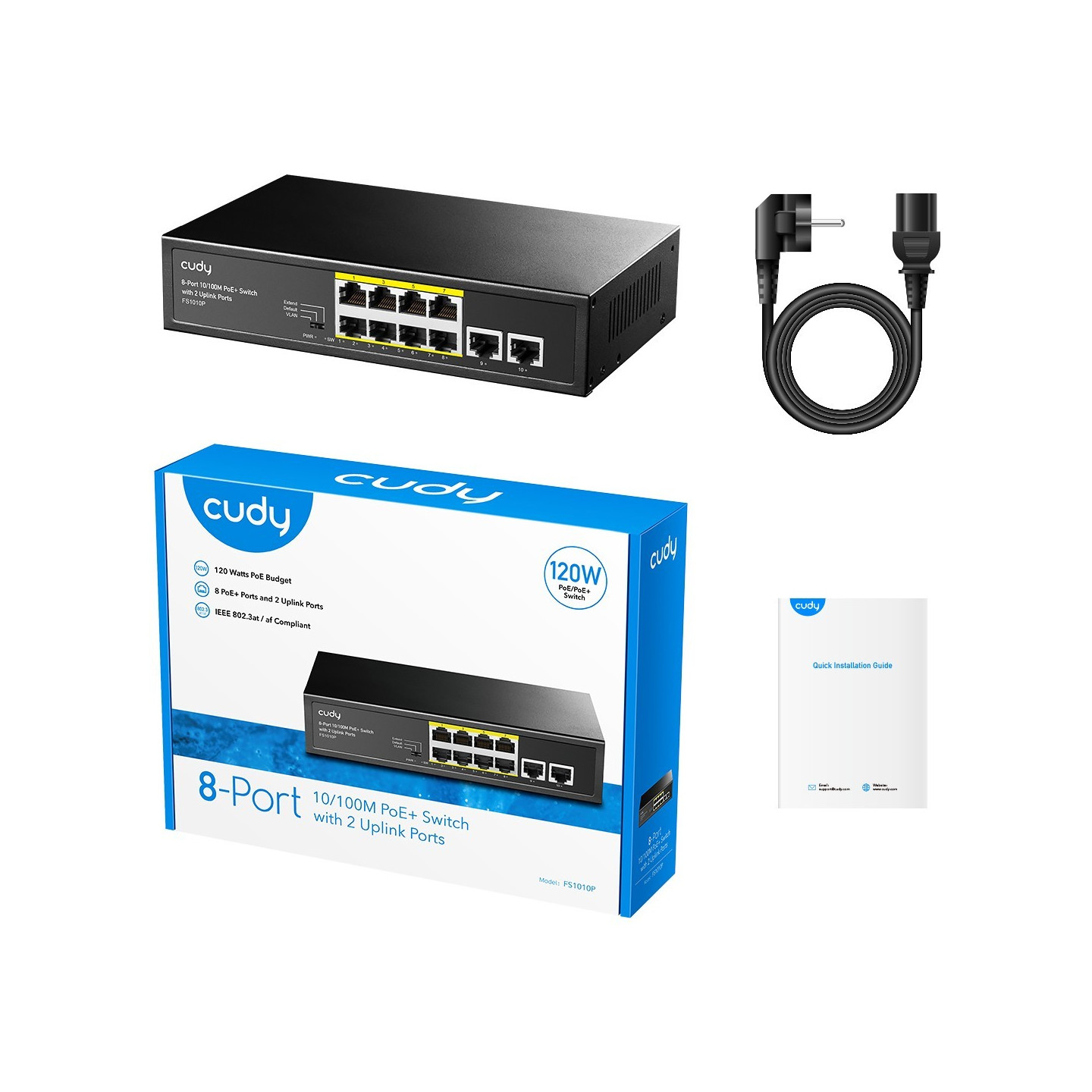

| Cables included | AC |
| Package type | Box |
