DeepCool PL650D 650W 80+ Bronze ATX 3.1 White (Boxed)
DeepCool PL650D 650W white ATX 3.1 PSU, 80 PLUS Bronze certified. Features Active PFC, 12+4 pin PCIe for modern GPUs, 85%+ efficiency, Hydraulic Bearing 120mm fan. Non-modular, full protections, ideal for mid-range gaming PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12VHPWR 16-pin 3x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The DeepCool PL650D is a reliable 650W power supply unit in white finish, compliant with ATX 3.1 and EPS 12V standards. It delivers stable power with a single +12V rail at 648W, Active PFC, and full suite of protections including OPP, OVP, OCP, UVP, SCP, and OTP. Certified 80 PLUS Bronze with Cybenetics Silver efficiency (up to 89%), it's perfect for mid-range gaming builds supporting modern GPUs via native 12+4 pin connector.
Non-modular design with flat black cables for easy installation: 20+4 pin ATX (560mm), 2x 4+4 pin EPS (735mm), 3x 6+2 pin PCIe (580mm), 1x 12+4 pin PCIe (590mm), 8x SATA, 2x Molex. Equipped with a quiet 120mm Hydraulic Bearing fan (HYB technology), operating 0-40°C. All cables are fixed for budget-friendly reliability.
- Key Connectors: 1x 20+4 ATX, 2x 4+4 EPS, 3x 6+2 PCIe, 1x 12+4 PCIe (ATX 3.1), 8x SATA, 2x Molex
- Efficiency: 80 PLUS Bronze / Cybenetics Silver

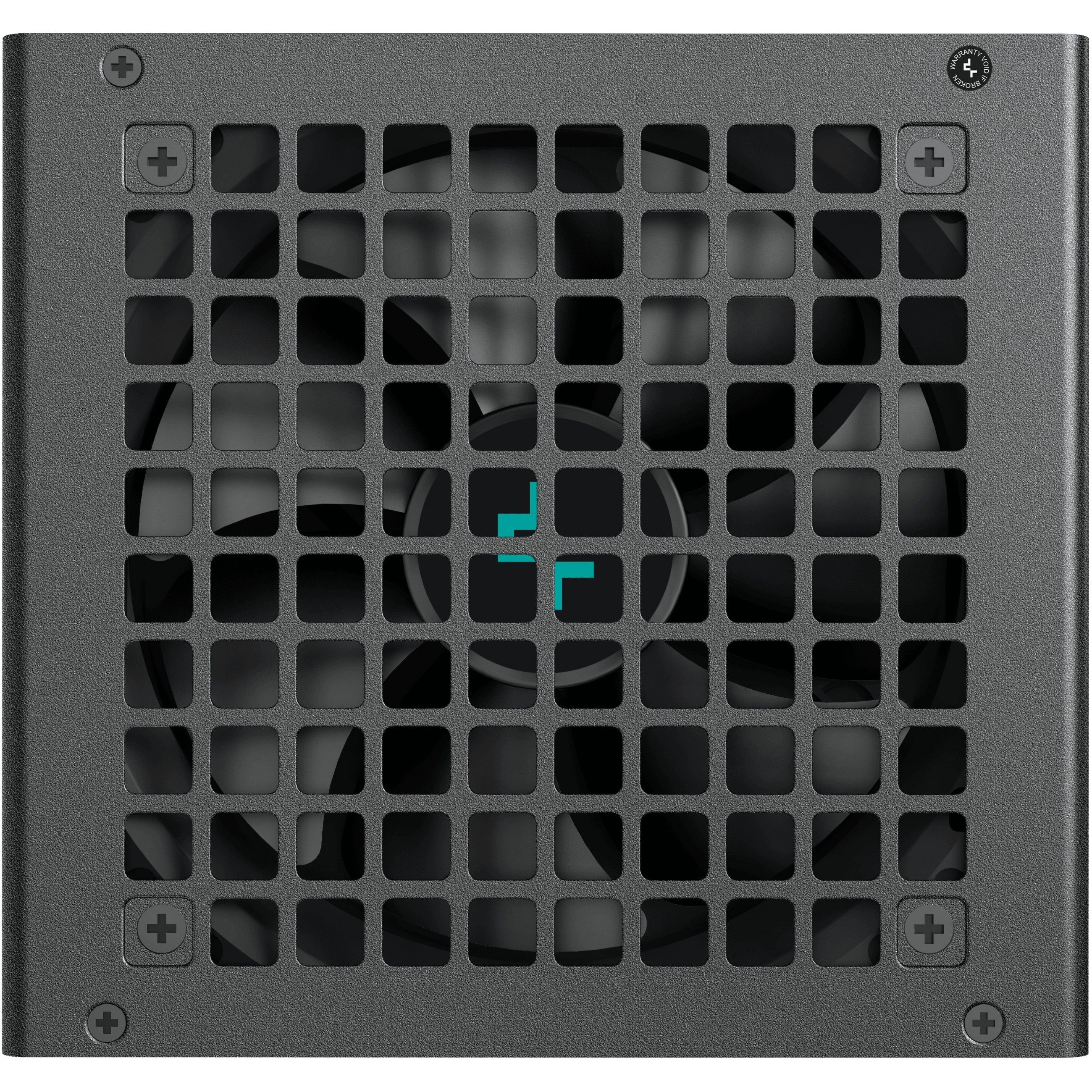

- Cooling: 120mm HYB fan, active cooling
- Protections: OPP/OVP/OCP/UVP/SCP/OTP/SIP
- Certifications: CE/FCC/RoHS/ErP

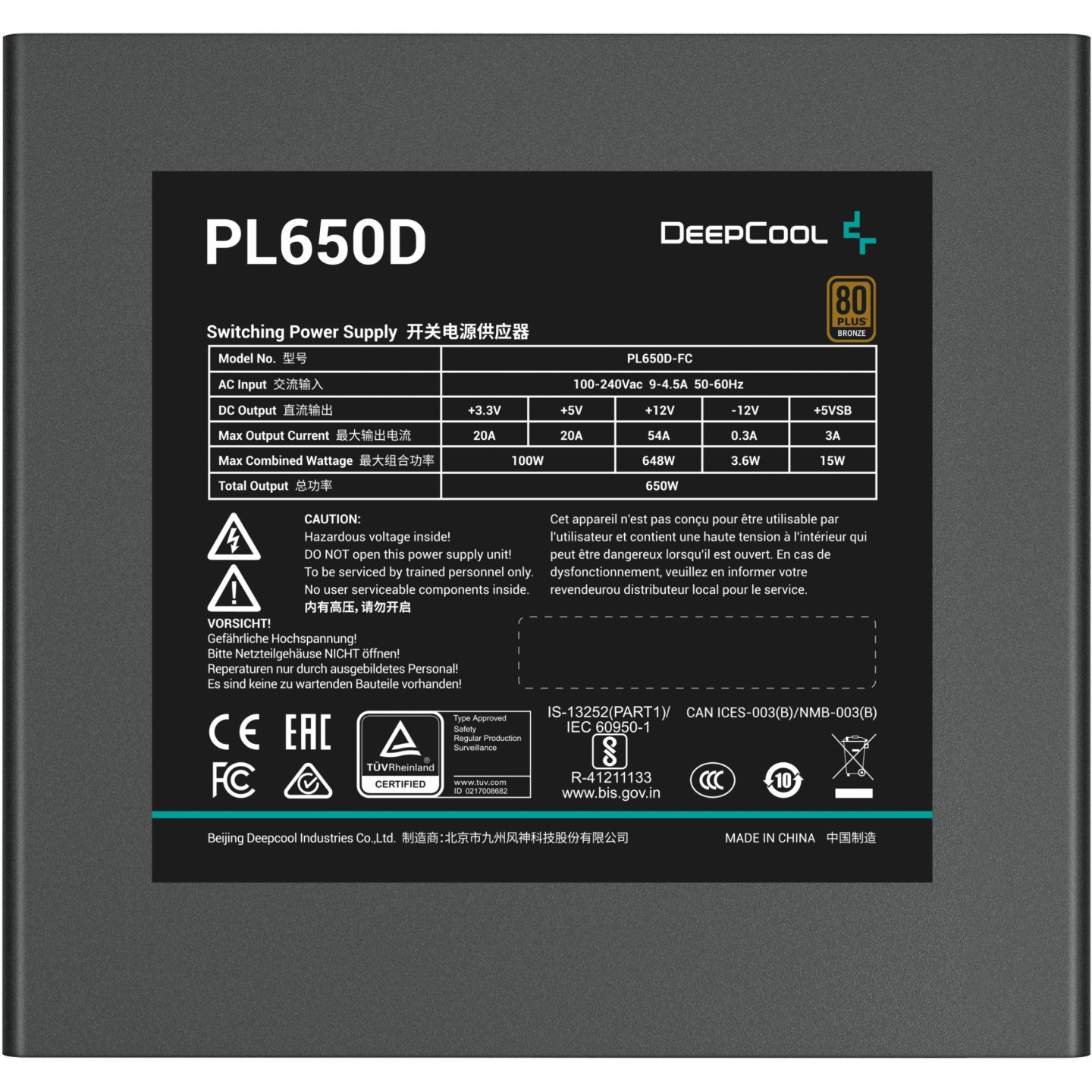

| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 9 - 4.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 85% |
| 80 PLUS certification | 80 PLUS Bronze |
| Cybenetics Efficiency | Silver (85-89%) |
| ATX version | 3.1 |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 (12+4 pin) |
| EPS/ATX12V connectors (4+4 pin) | 2 |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Cabling type | Non-Modular |
| Bearing technology | HYB (Hydraulic) |
| Fan diameter | 12 cm |
| Product colour | White |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Operating temperature (T-T) | 0 - 40 °C |
