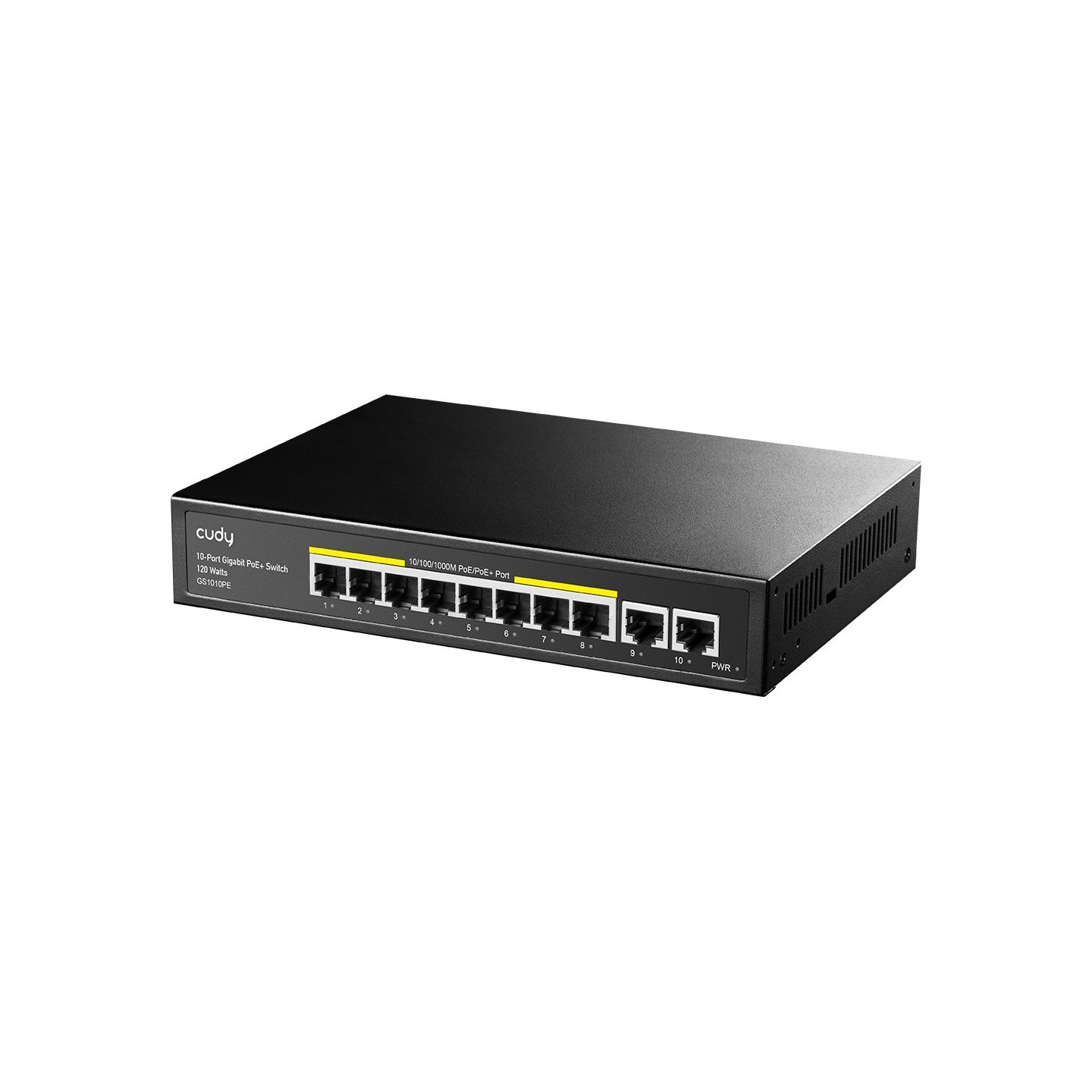

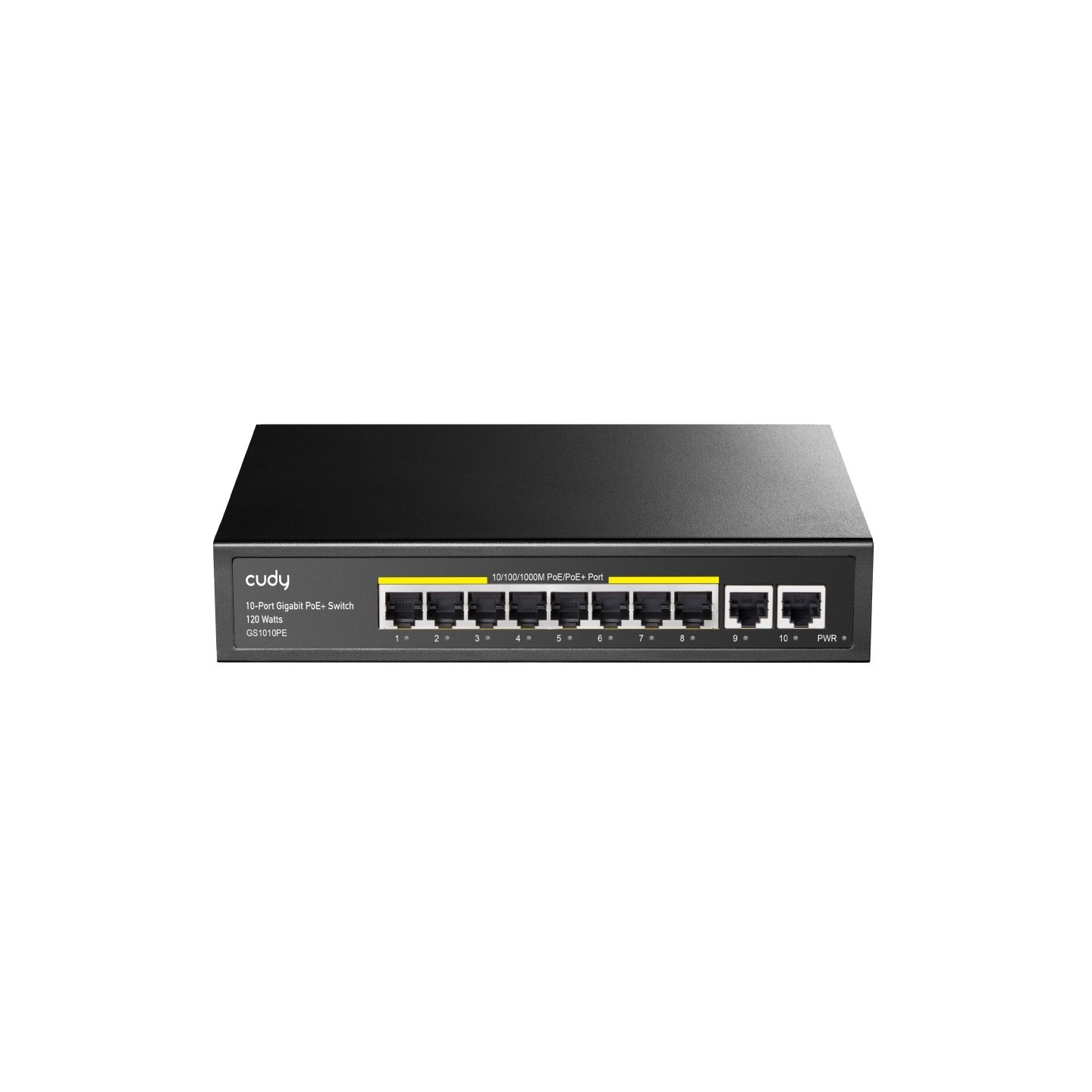

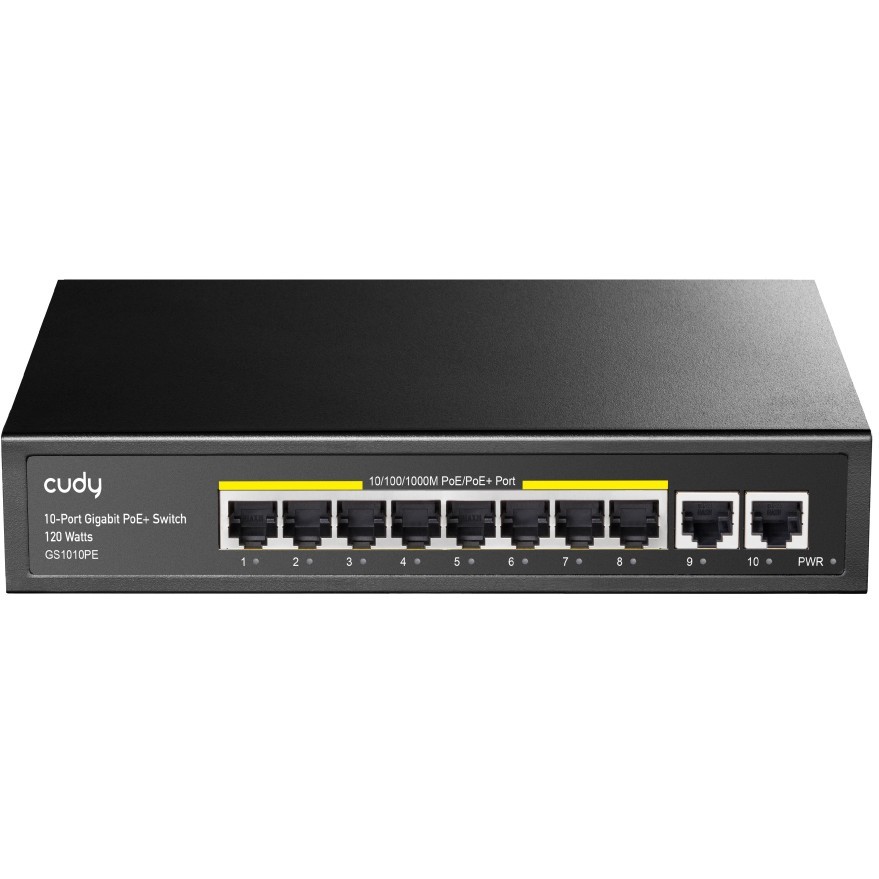

Cudy Network Switch - GS1010PE - 8P PoE+
8-port PoE+ Gigabit Ethernet switch with rack and wall mounting.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Ports | 10 |
|---|---|
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 61-130 W |
| Network Switches - Rackmount | Yes |
Cudy GS1010PE. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 2000 entries. Networking standards: IEEE 802.3. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE). Wall mountable. Rack mounting
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Uplink ports quantity | 2 |

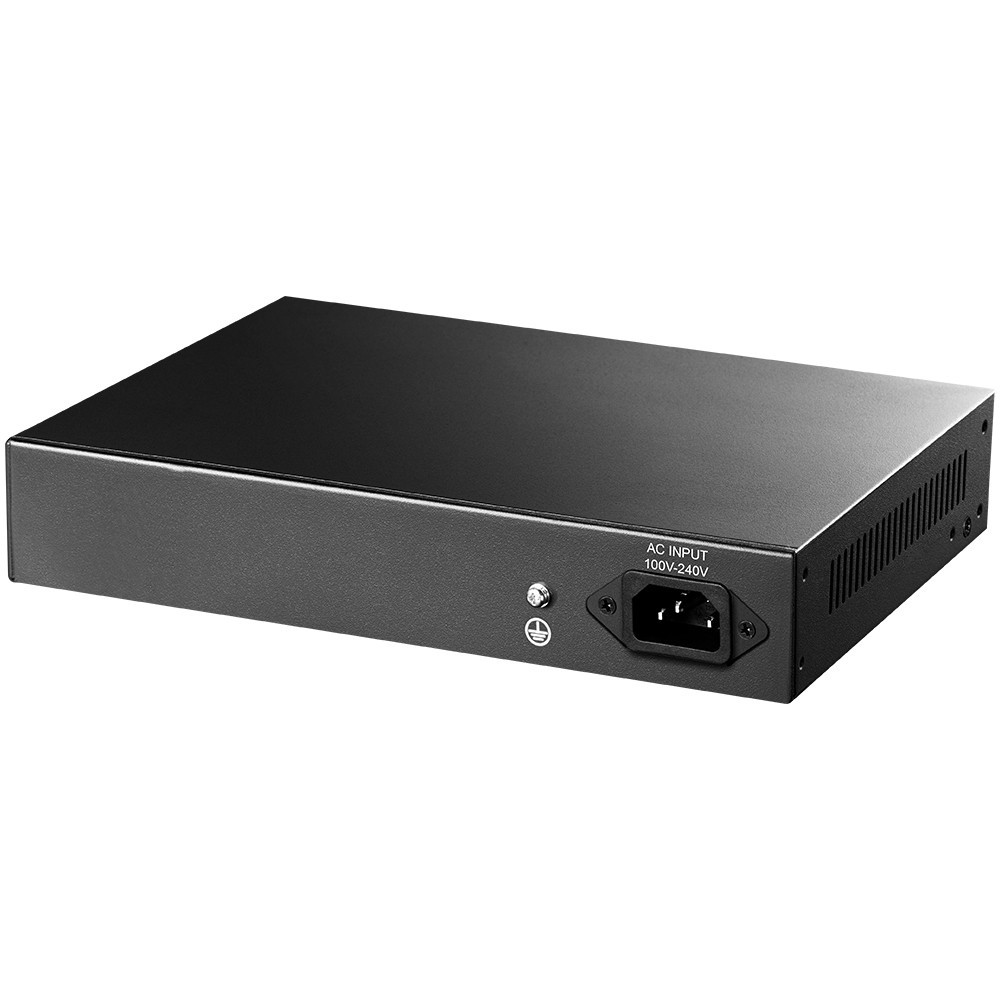

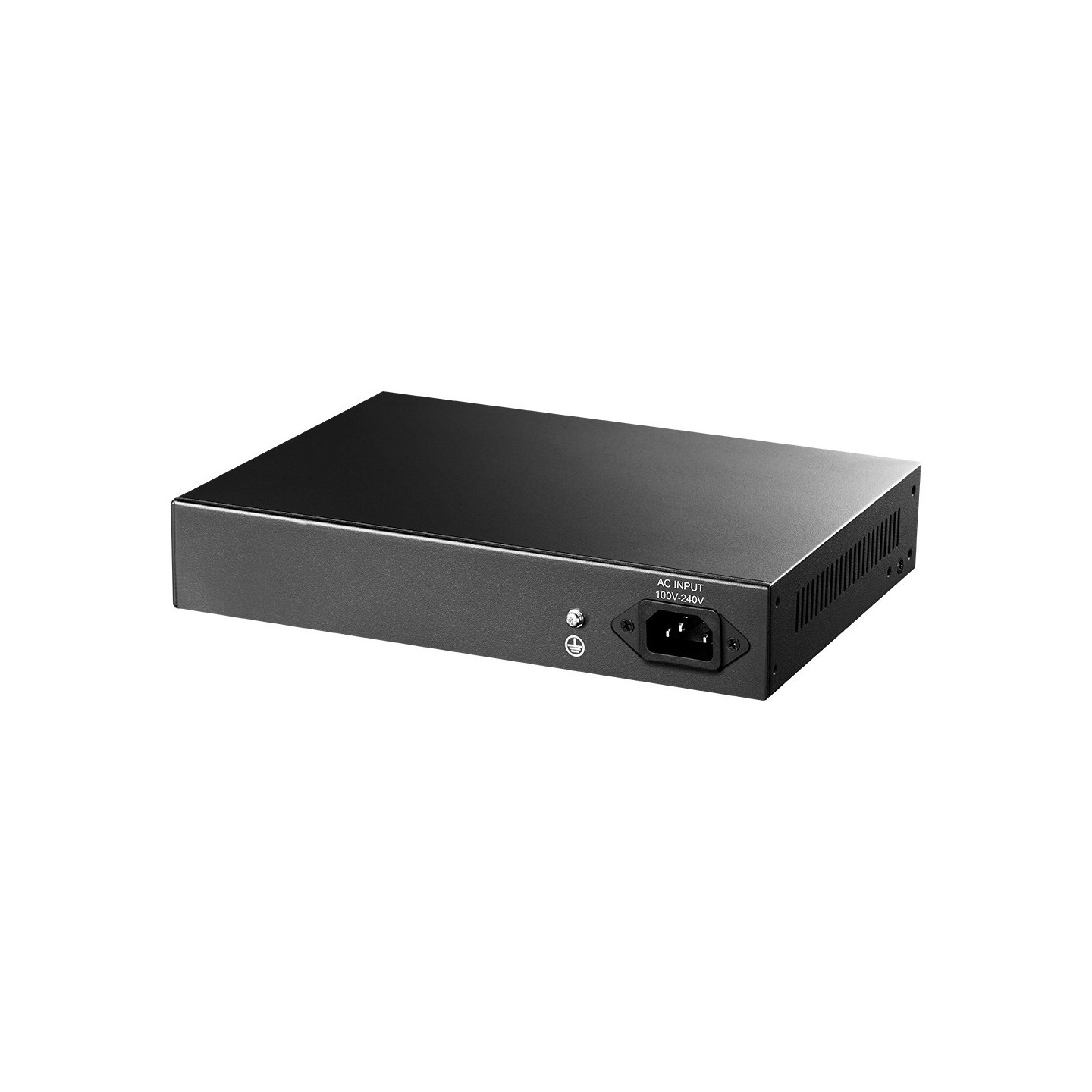

| Power connector | AC-in jack |
| Networking standards | IEEE 802.3. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Feature | Power over Ethernet (PoE) |
| MAC address table | 2000 entries |
| Packet buffer memory | 0.25 MB |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity. Link. Power |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Output voltage | 52 V |
| Output current | 2.3 A |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Bandwidth | 20 Gbit/s |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 222 mm |
| Depth | 163 mm |
| Height | 40 mm |
| Cables included | AC |
