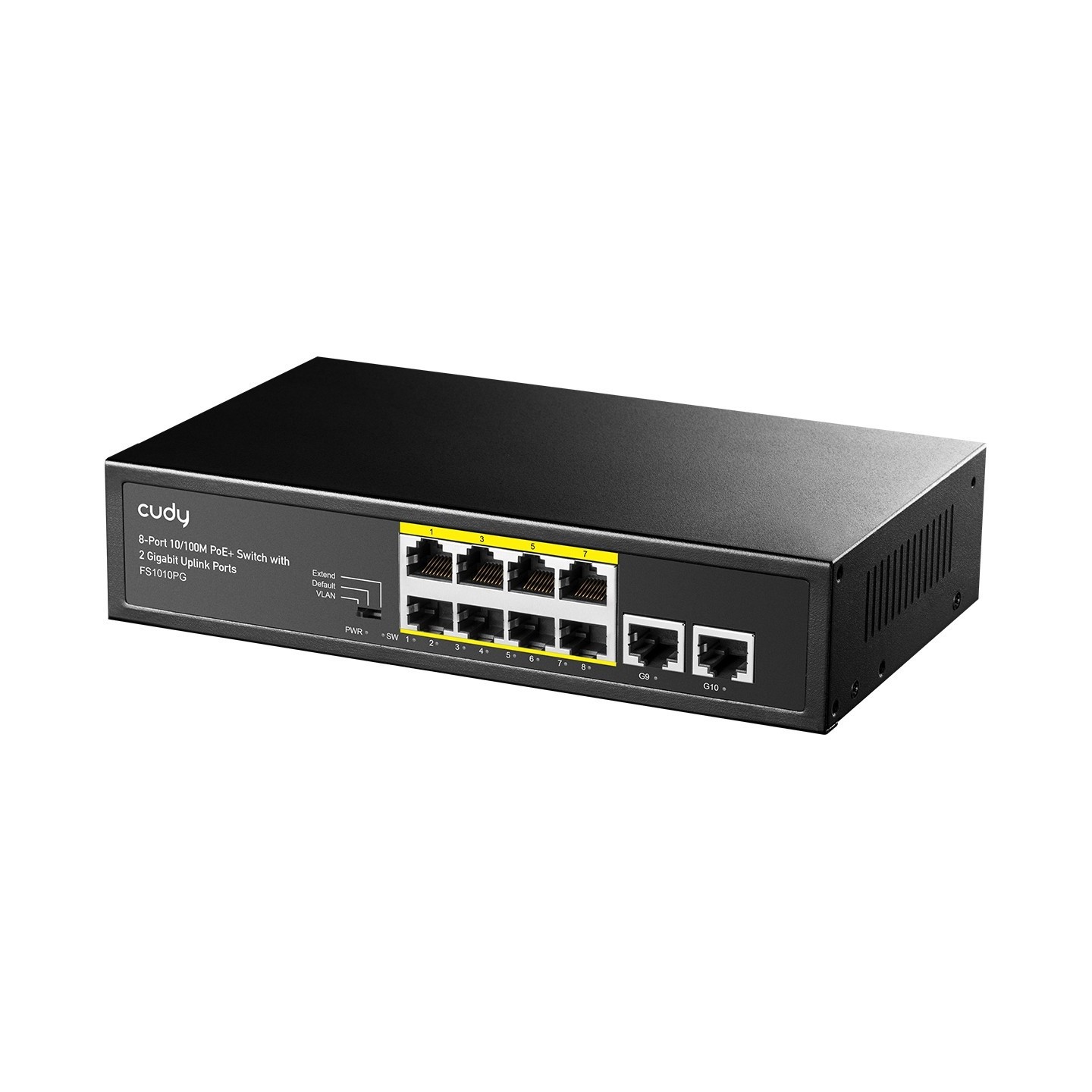

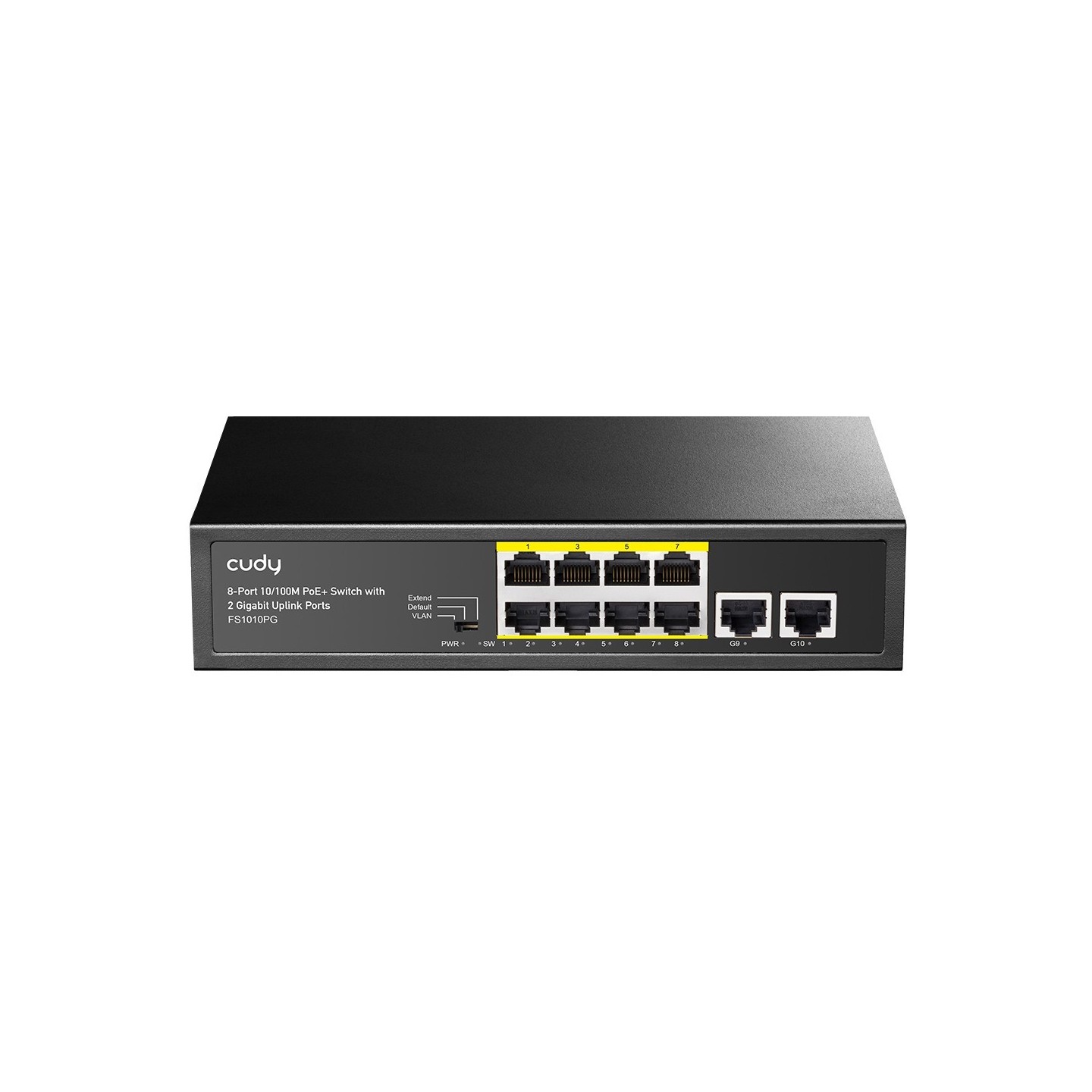

8P Cudy - FS1010PG - PoE+
8-port PoE+ fast Ethernet switch from Cudy (FS1010PG) with 10/100 speeds and full-duplex operation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 8 |
| Network Switches - Port Speed | 10/100 (Fast Ethernet) |
| Network Switches - PoE Budget | 61-130 W |
| Network Switches - Rackmount | No |
Cudy FS1010PG. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100). Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE)
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Uplink ports quantity | 2 |

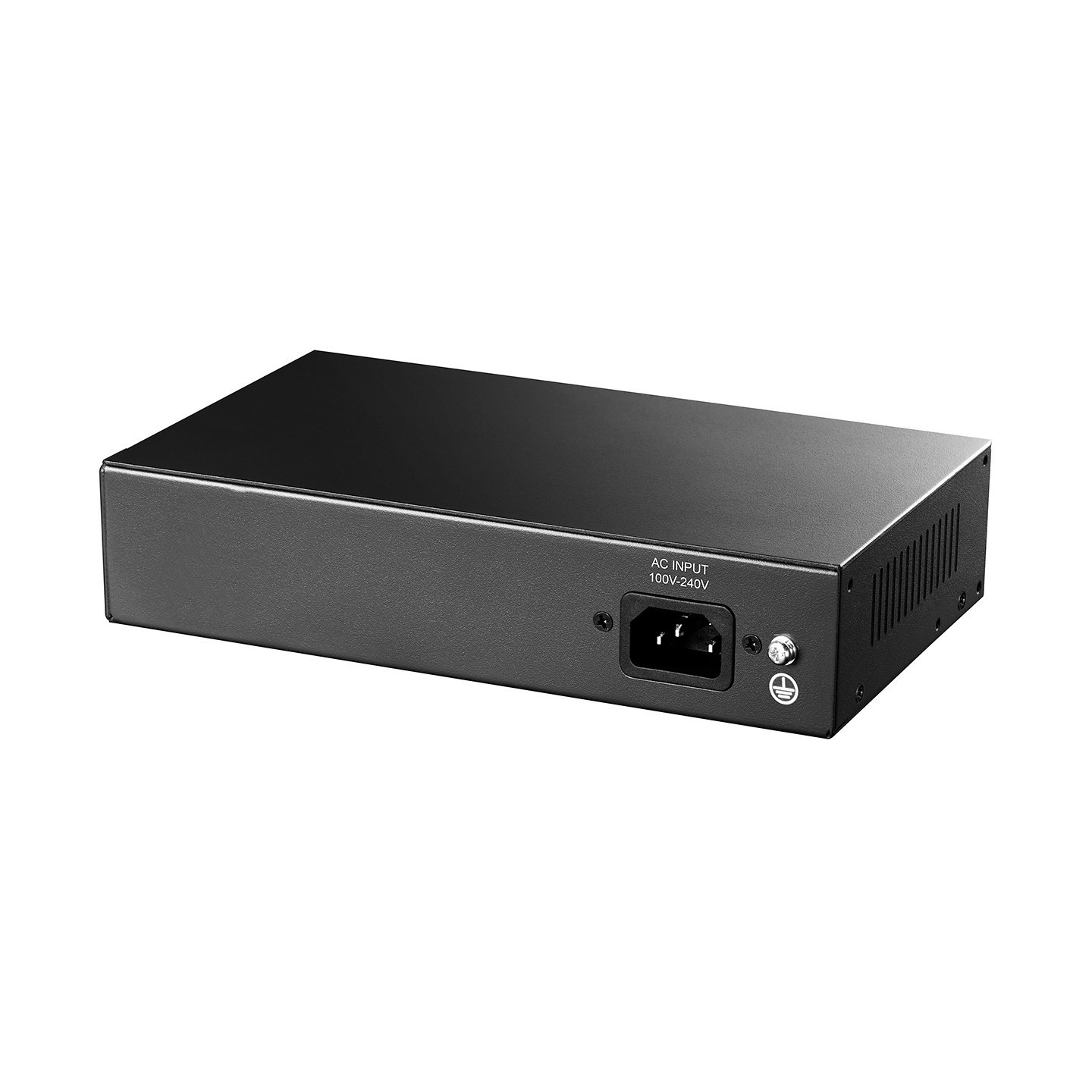

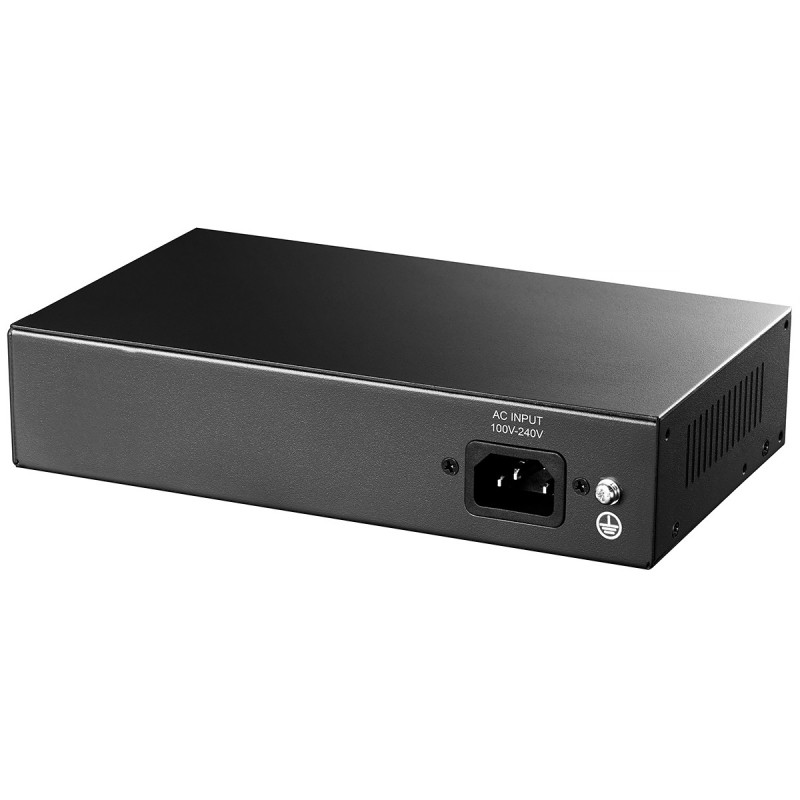

| Power connector | AC-in jack |
| Networking standards | IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e |
| Feature | Power over Ethernet (PoE) |
| Ethernet LAN data rates | 10.100 Mbit/s |
| Forwarding rate | 1.48 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 1528 |
| Packet buffer memory | 0.25 MB |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity. Link. PoE. Power |
| Mean time between failures (MTBF) | 50000 h |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Surge protection voltage | 4 kV |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Bandwidth | 2 Gbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 220 mm |
| Depth | 150 mm |
| Height | 44 mm |
| Cables included | AC |
