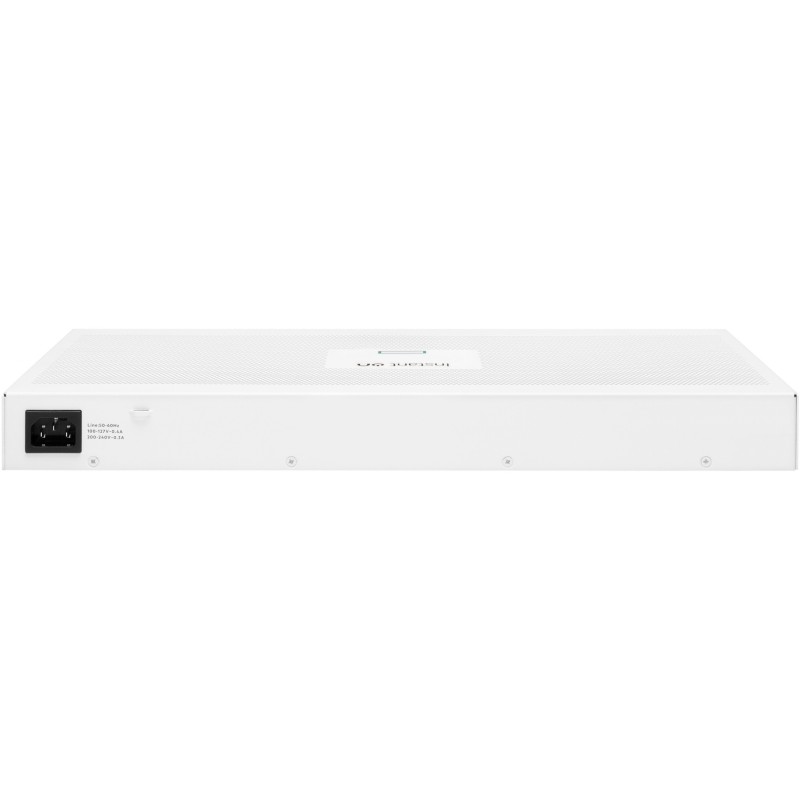

HP Enterprise Aruba Instant On 24G Switch - 1830 - 24+2P
Managed L2 switch with 24 Gigabit RJ-45 ports and 2 SFP slots; PoE-capable, 1U rack-mount, 52 Gbps switching capacity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | Yes |
HPE Aruba Networking Networking Instant On Switch 24p Gigabit 2p SFP 1830. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries. Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE.... Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Switching capacity | 52 Gbit/s |
| Throughput | 38.68 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 5.2 µs |
| Latency (1 Gbps) | 2.8 µs |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP client |
| Form factor | 1U |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 800 MHz |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 7.8 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Width | 215.9 mm |
| Depth | 215.9 mm |
| Height | 43.9 mm |
| Weight | 2.49 kg |
| Harmonized System (HS) code | 85176990 |
