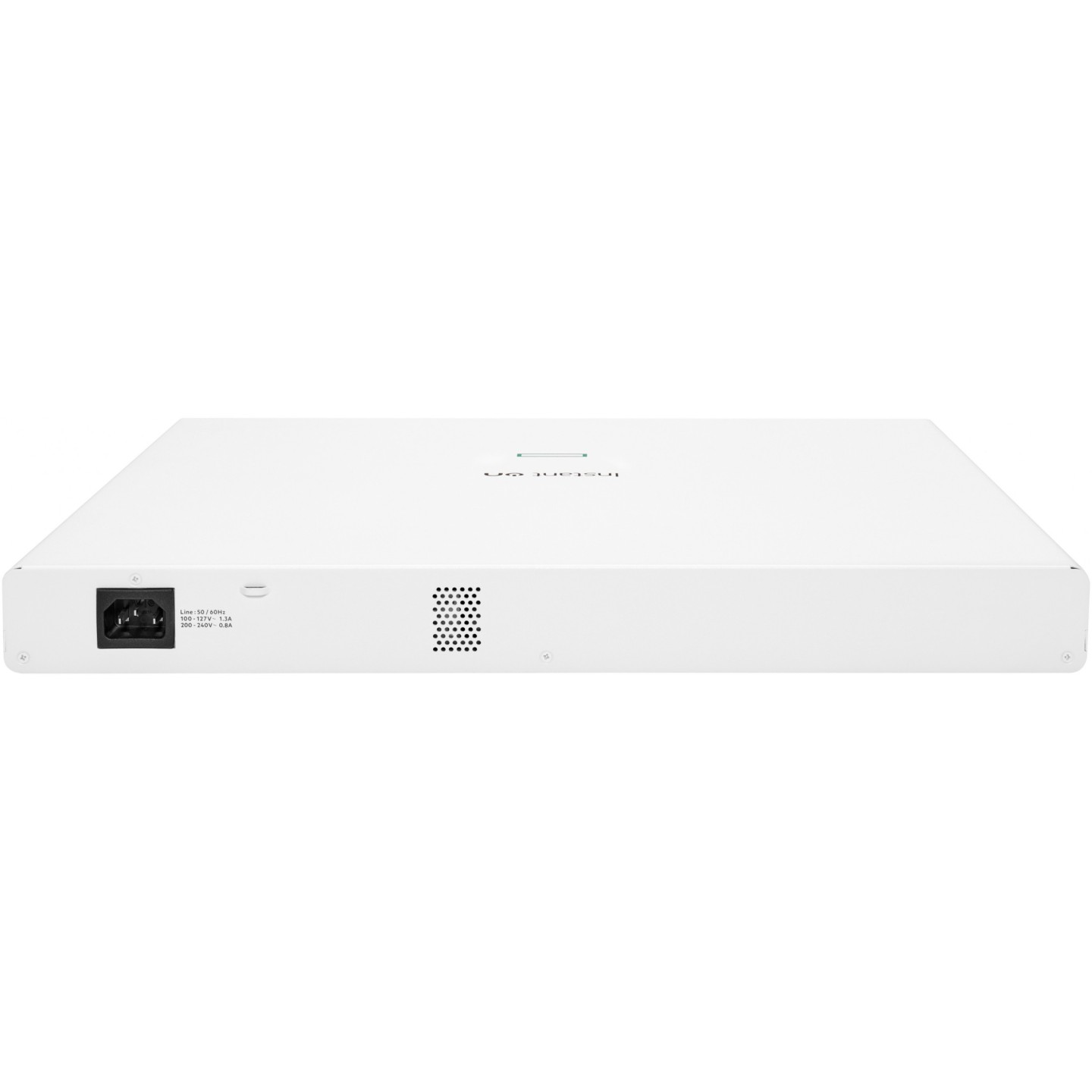

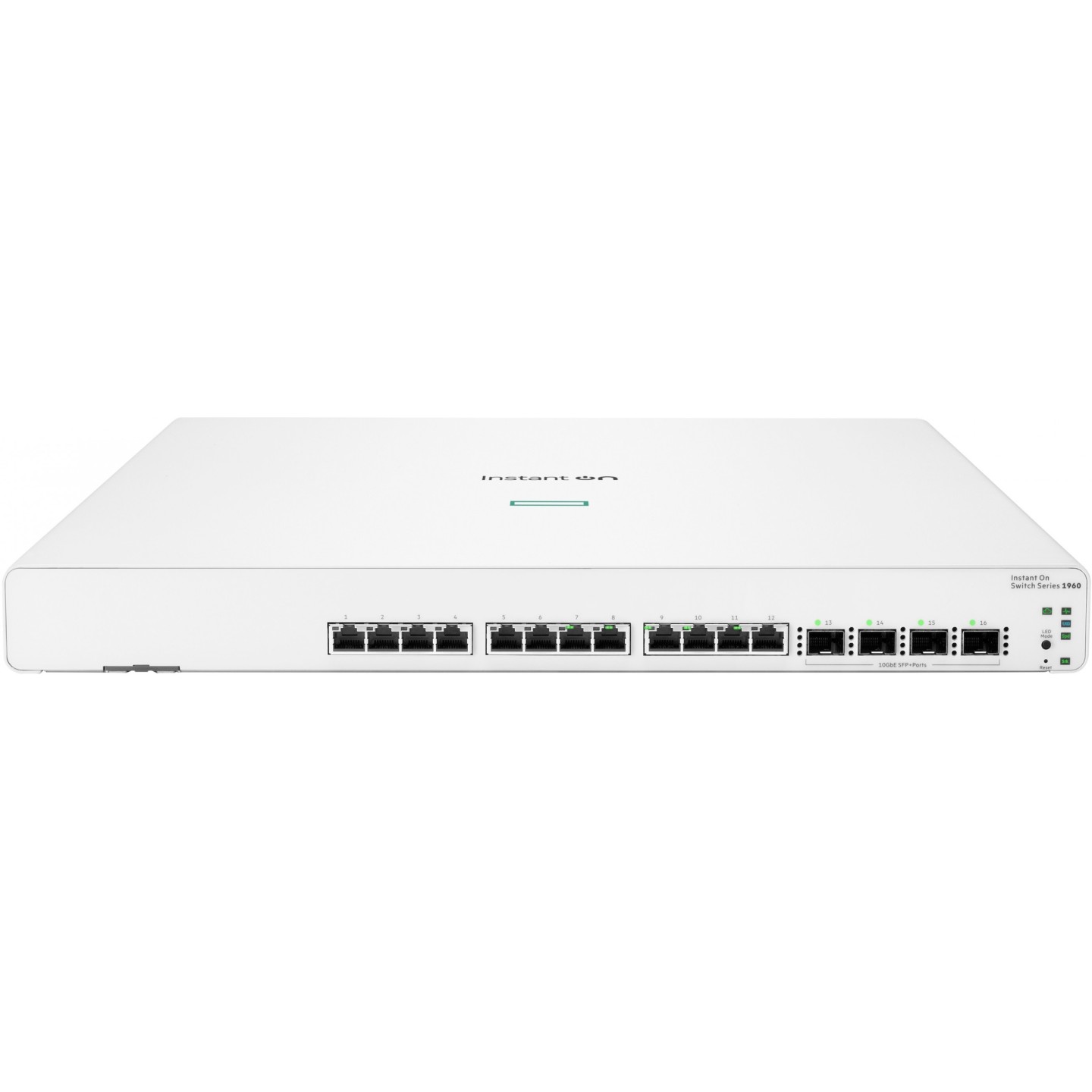

HP Enterprise Aruba Instant On - 1960 RM 12XGT - 12+2P 4SFP+ Switch
HP Aruba Instant On 1960 RM 12XGT 4SFP+ Switch; Managed L2+, 1U rack-mount, 12+2P, 4SFP+.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Rackmount | Yes |
HPE Aruba Networking Networking Instant On Switch 12p 10GBT 4p SFP+ 1960. Switch type: Managed. Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 12. Full duplex. MAC address table: 16000 entries. Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE.... Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2+ |
| Feature | Power supply included |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 4 |
| Switching capacity | 320 Gbit/s |
| Throughput | 238 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 7.4 µs |
| Latency (1 Gbps) | 4.2 µs |
| Latency (10 Gbps) | 1.1 µs |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP snooping |
| Authentication | Port-based authentication |
| Authentication type | RADIUS |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| IPv4 FIB entries | 512 |
| IPv6 FIB entries | 512 |
| Form factor | 1U |
| Product colour | White |
| Physical stacking (units) | 4 |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 2000 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Power source | AC |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 160 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating altitude | 0 - 3000 m |
| Width | 350.5 mm |
| Depth | 442.5 mm |
| Height | 44 mm |
| Weight | 4.3 kg |
| Harmonized System (HS) code | 85176990 |
