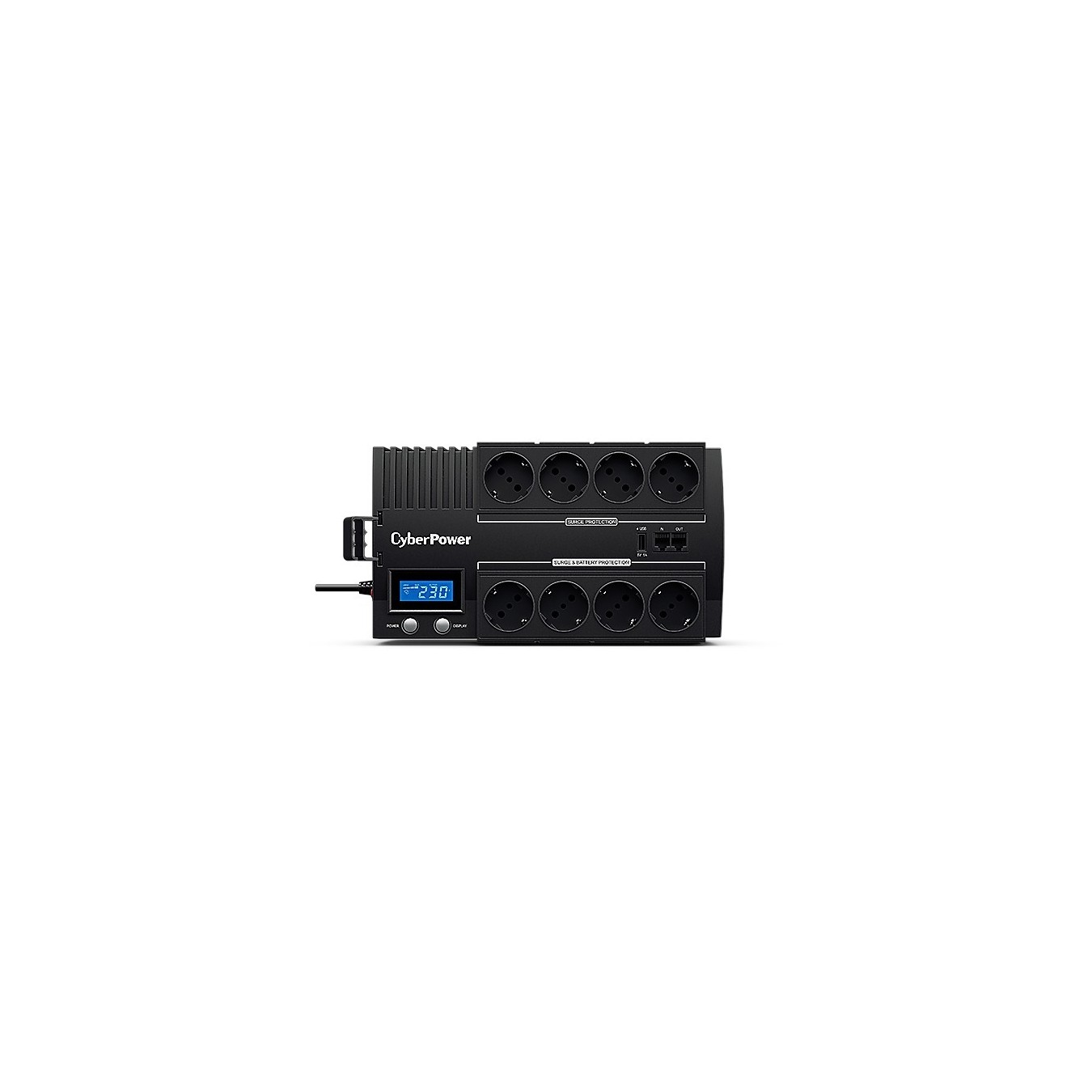

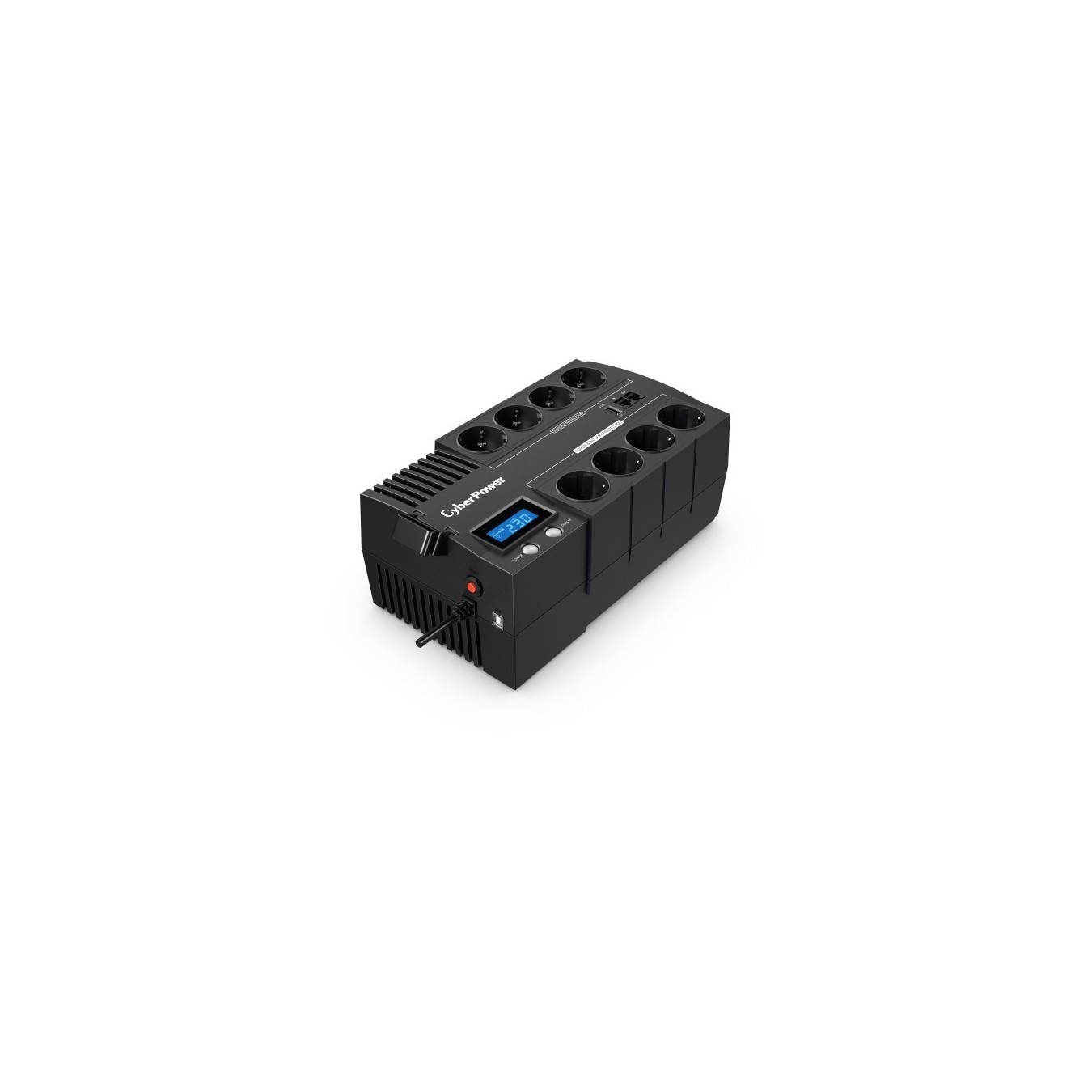

CYBERPOWER - BR1200ELCD - Line-Interactive
CyberPower BR1200ELCD, Line-Interactive UPS, 1.2 kVA / 720 W, sine output, 165–290 V input, 50/60 Hz.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Output Receptacles | Schuko (Type F) |
|---|---|
| UPS & Power Backup - Outlets (Qty) | 8 |
CyberPower BR1200ELCD. UPS topology: Line-Interactive. Output power capacity: 1.2 kVA. Output power: 720 W. AC outlet types: Type F. AC outlets quantity: 8 AC outlet(s). USB port type: USB Type-A. Battery technology: Sealed Lead Acid (VRLA). Battery voltage: 230 V. Typical backup time at full load: 2 min. Form factor: Desktop. Product colour: Black. Housing material: Plastic. Compliance certificates: CE. EAC. RoHS
| UPS topology | Line-Interactive |
| Output power capacity | 1.2 kVA |
| Output power | 720 W |
| Waveform | Sine |
| Input operation voltage (min) | 165 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Feature | Sustainability compliance |
| Surge energy rating | 150 J |
| Response time | 4 ms |
| Heat dissipation | 137 BTU/h |
| Surge protection features | Fax. Modem. Network. Telephone |
| Power protection features | Short circuit |
| Audible alarm modes | Alarm when on battery. Fault. Low battery alarm. Overload alarm |
| AC outlet types | Type F |
| AC outlets quantity | 8 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-A |
| Modem (RJ-11) ports | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 230 V |
| Number of batteries supported | 2 |
| Typical backup time at full load | 2 min |
| Typical backup time at half load | 9 min |
| Battery recharge time | 8 h |
| Replacement battery cartridge | RBP0063 |
| Form factor | Desktop |
| Housing material | Plastic |
| Cable length | 1.5 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Battery level. Power. Status |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Compliance certificates | CE. EAC. RoHS |
| Width | 166 mm |
| Depth | 288 mm |
| Height | 118 mm |
| Weight | 8.2 kg |
| Package width | 158 mm |
| Package depth | 325 mm |
| Package height | 230 mm |
| Package weight | 8.43 kg |
| Harmonized System (HS) code | 8504408590 |
| Number of phases | 1 |
