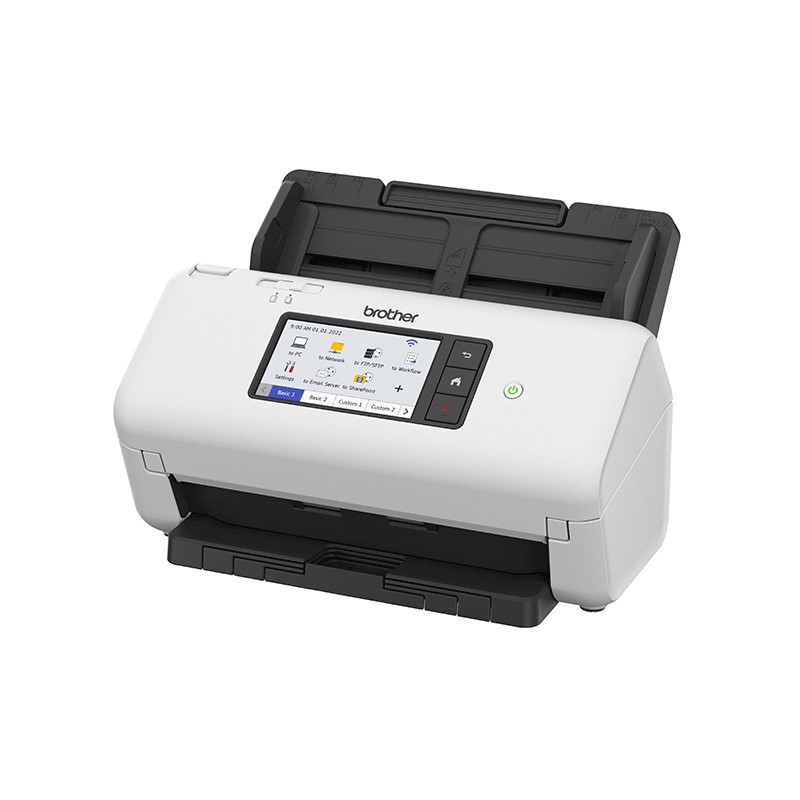

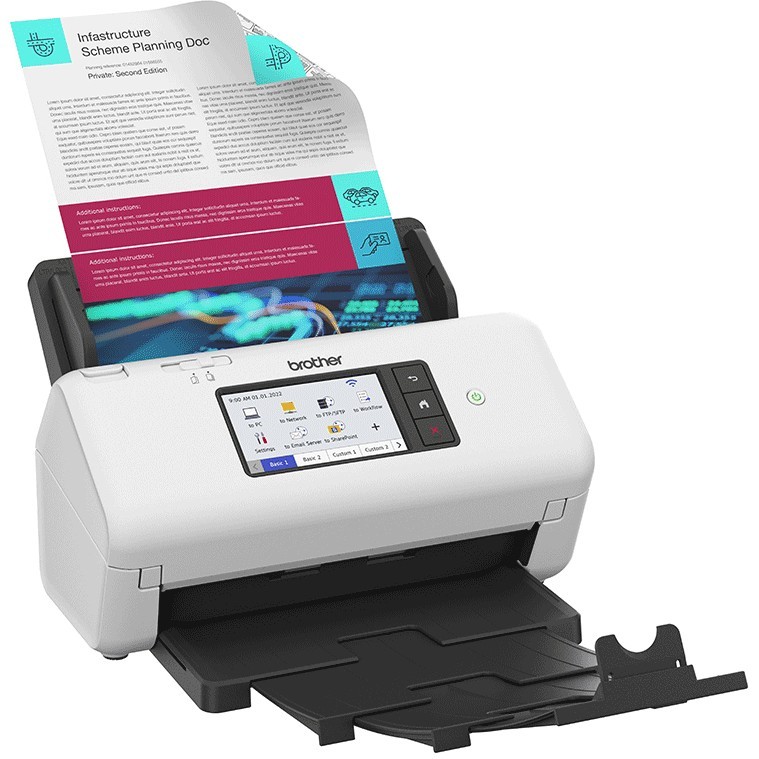

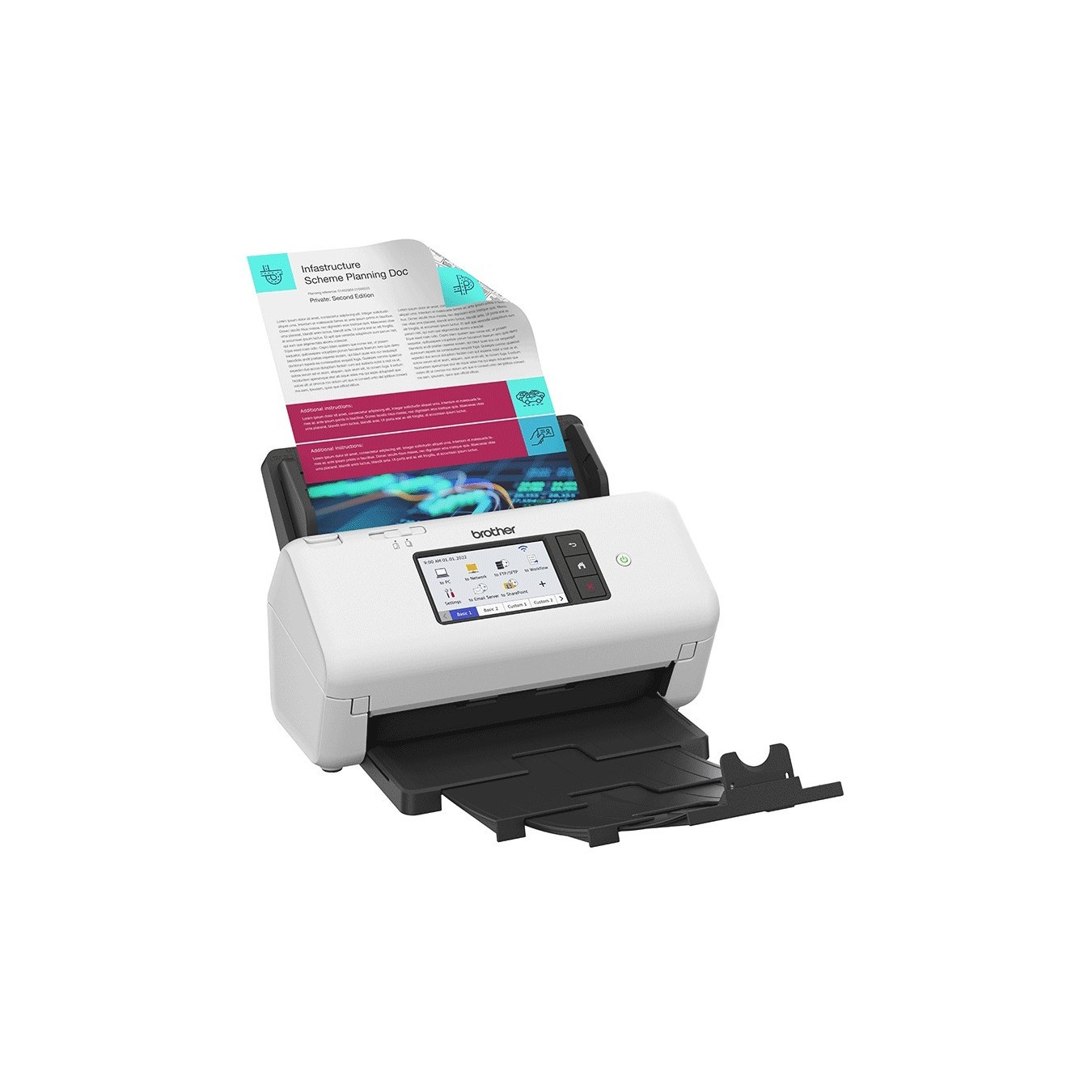

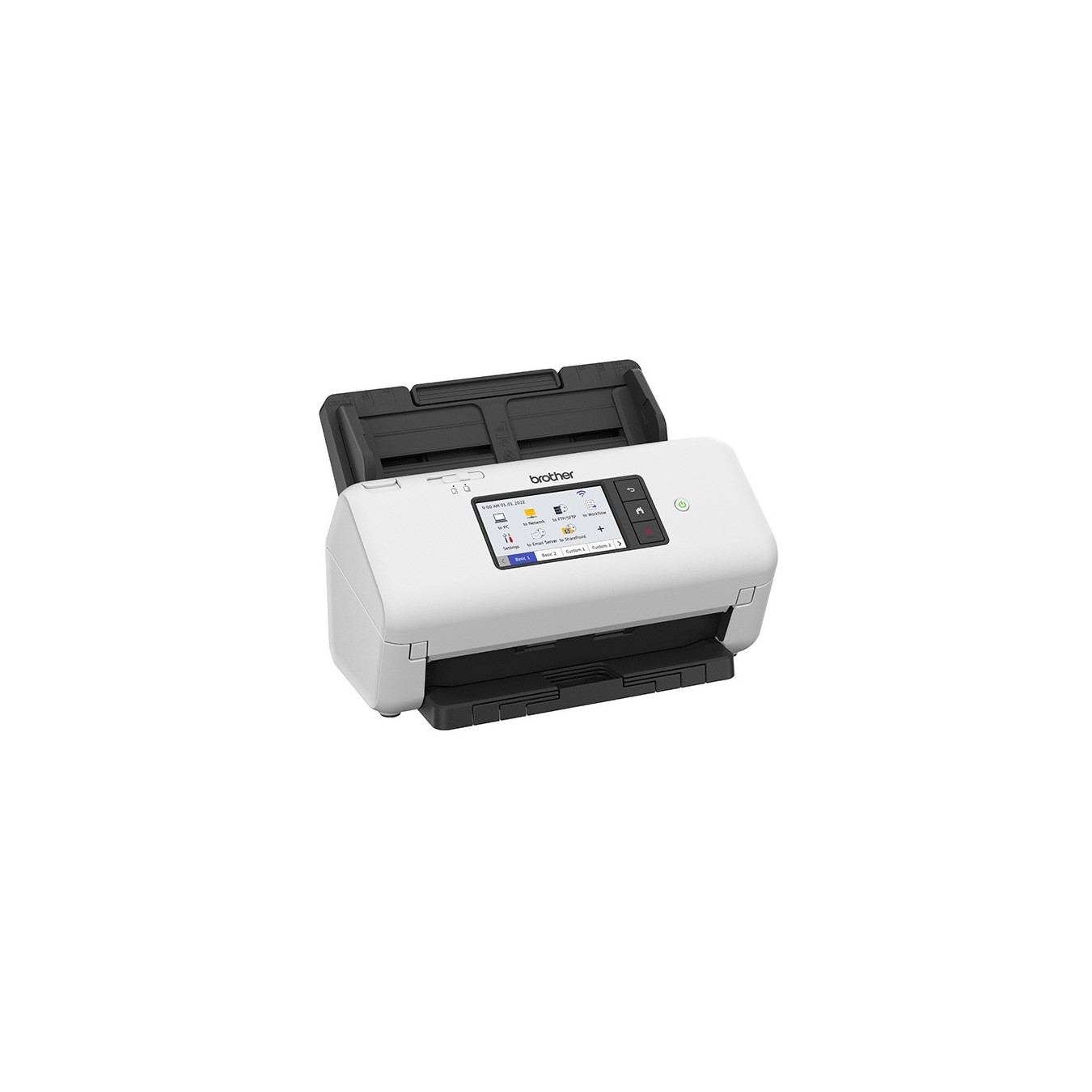

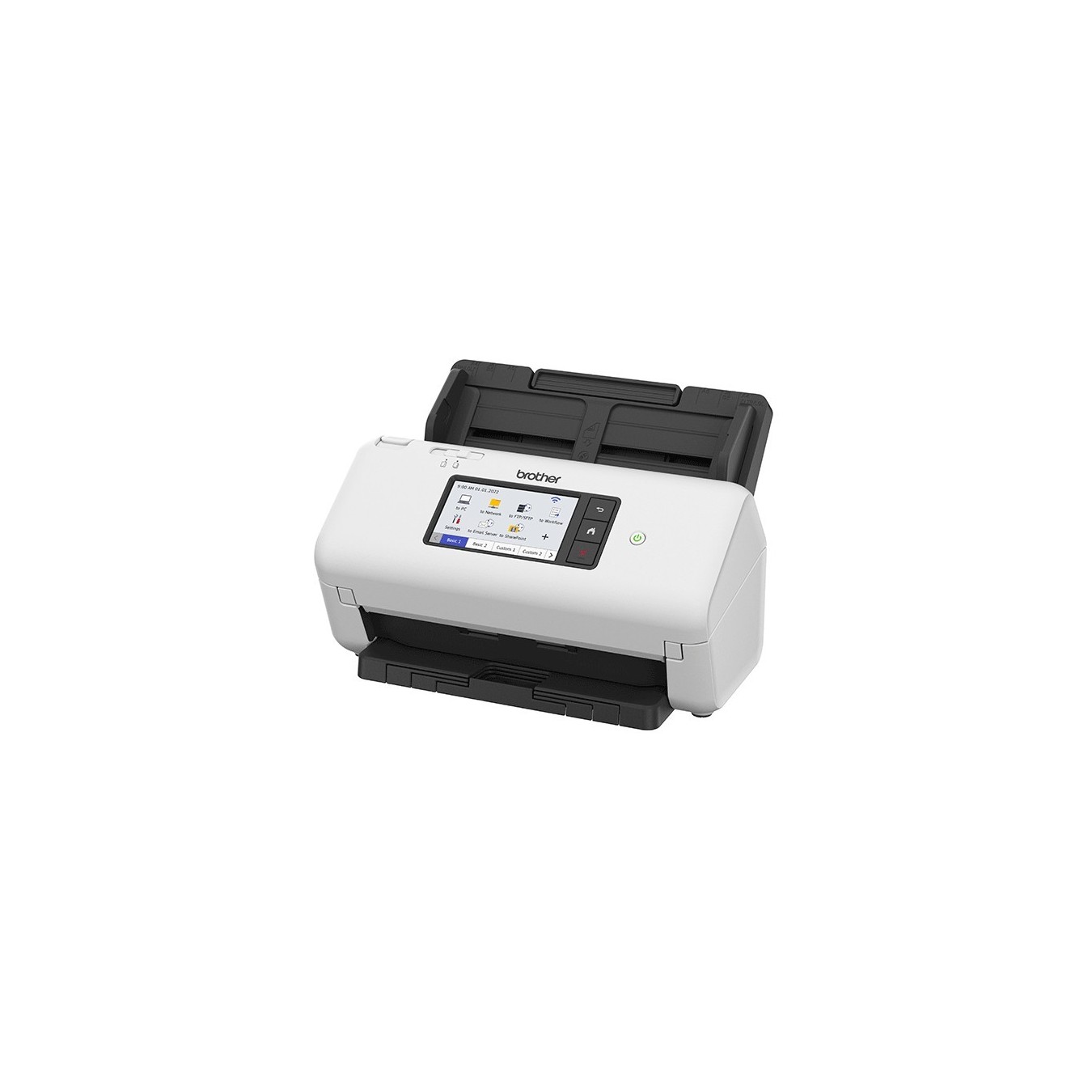

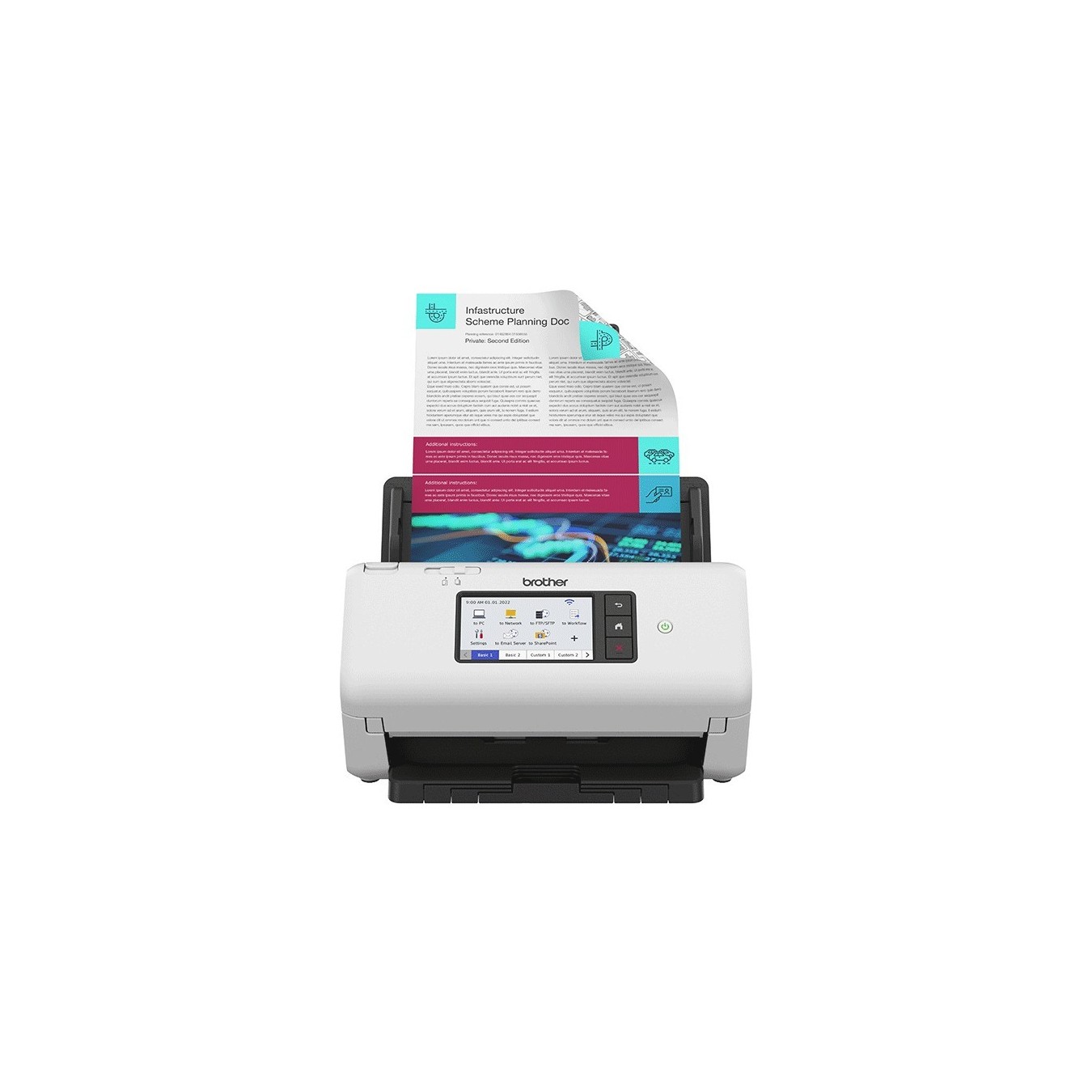

Brother Document Scanner - ADS-4700W - LAN, WLAN, Duplex
ADS-4700W document scanner with LAN and WLAN connectivity supporting duplex scanning.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Scanners - Type | Sheet-fed |
|---|---|
| Scanners - Optical Resolution | 1200 dpi |
| Scanners - Interface | Ethernet |
| Scanners - Scan Size | A4 |
Brother ADS-4700W. Maximum scan size: 355.6 x 215.9 mm. Optical scanning resolution: 600 x 600 DPI. Enhanced scan resolution: 1200 x 1200 DPI. Scanner type: ADF + Sheet-fed scanner. Product colour: Black. White. Display: LCD. Sensor type: Dual CIS. Daily duty cycle (max): 6000 pages. Scan file formats: JPEG. PDF. TIFF. Auto document feeder (ADF) input capacity: 80 sheets. Maximum ISO A-series paper size: A4. Scanning media types supported: Business Card. Plain paper. Plastic Card. Recycled paper. Thick paper. Thin paper. Media thickness (min): 0.08 mm
| Maximum scan size | 355.6 x 215.9 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Feature | Auto power off |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Greyscale levels | 256 |
| ADF scan speed (b/w. A4) | 40 ppm |
| ADF scan speed (colour. A4) | 40 ppm |
| Duplex ADF scan speed (b/w. A4) | 80 ipm |
| Duplex ADF scan speed (colour. A4) | 80 ipm |
| Scanner type | ADF + Sheet-fed scanner |
| Product colour | Black. White |
| Display | LCD |
| Display diagonal | 10.9 cm (4.3") |
| Control type | Buttons |
| Sensor type | Dual CIS |
| Scan file formats | JPEG. PDF. TIFF |
| Daily duty cycle (max) | 6000 pages |
| Maximum duty cycle | 120000 pages per month |
| Scan to | PC |
| Scan drivers | ISIS. TWAIN. WIA |
| Scanning noise level | 59 dB |
| Internal memory | 512 MB |
| Auto document feeder (ADF) input capacity | 80 sheets |
| Scanning media types supported | Business Card. Plain paper. Plastic Card. Recycled paper. Thick paper. Thin paper |
| Maximum ISO A-series paper size | A4 |
| Media thickness (min) | 0.08 mm |
| Card thickness (max) | 1.32 mm |
| Paper tray media weight | 40 - 200 g/m² |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 35.6 cm |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Wi-Fi standards | 802.11b. 802.11g |
| Security algorithms | WEP. WPA-PSK. WPA2-PSK. WPA3 |
| Power supply type | AC |
| Power consumption (typical) | 26 W |
| Power consumption (standby) | 8.6 W |
| Power consumption (off) | 0.1 W |
| Power consumption (PowerSave) | 1.7 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
| Power consumption (sleep) | 1.7 W |
| Output voltage | 24 V |
| Output current | 1.9 A |
| Width | 243 mm |
| Depth | 320 mm |
| Height | 391 mm |
| Weight | 3.23 kg |
| Quantity per pack | 1 pc(s) |
| Package width | 391 mm |
| Package depth | 243 mm |
| Package height | 320 mm |
| Package weight | 3.88 kg |
| Server operating systems supported | Windows Server 2012. Windows Server 2012 R2. Windows Server 2016. Windows Server 2019 |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Spare part retention | 5 year(s) |
| Pallet type | 800 x 1200 mm |
| Products per pallet | 40 pc(s) |
| Country of origin | China |
| Master (outer) cases per pallet | 40 pc(s) |
| Layers per pallet | 5 pc(s) |
| Pallet gross weight | 170.4 kg |
| Pallet gross height | 17.5 cm |
| Master (outer) cases per pallet layer | 8 pc(s) |
| Harmonized System (HS) code | 84716070 |
