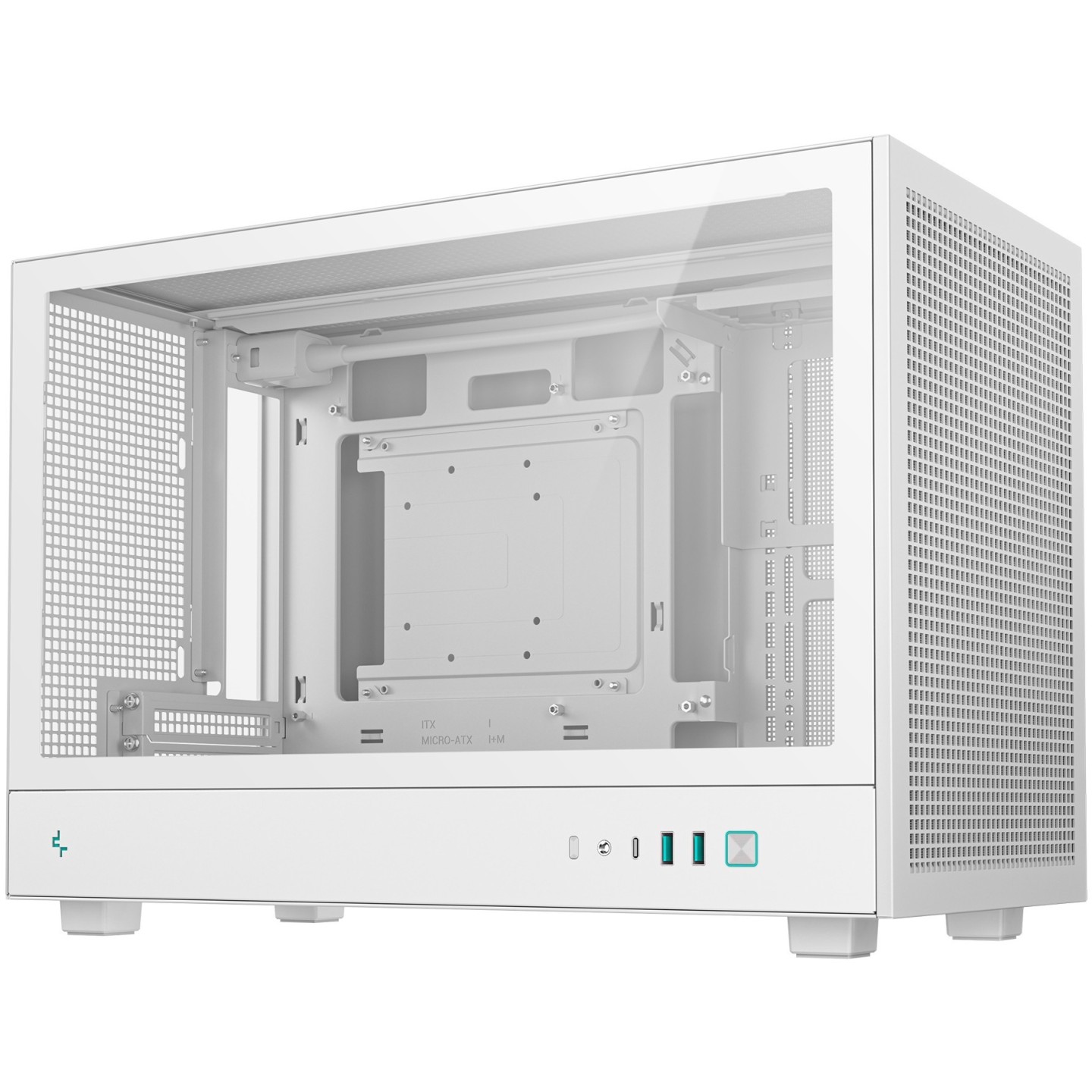

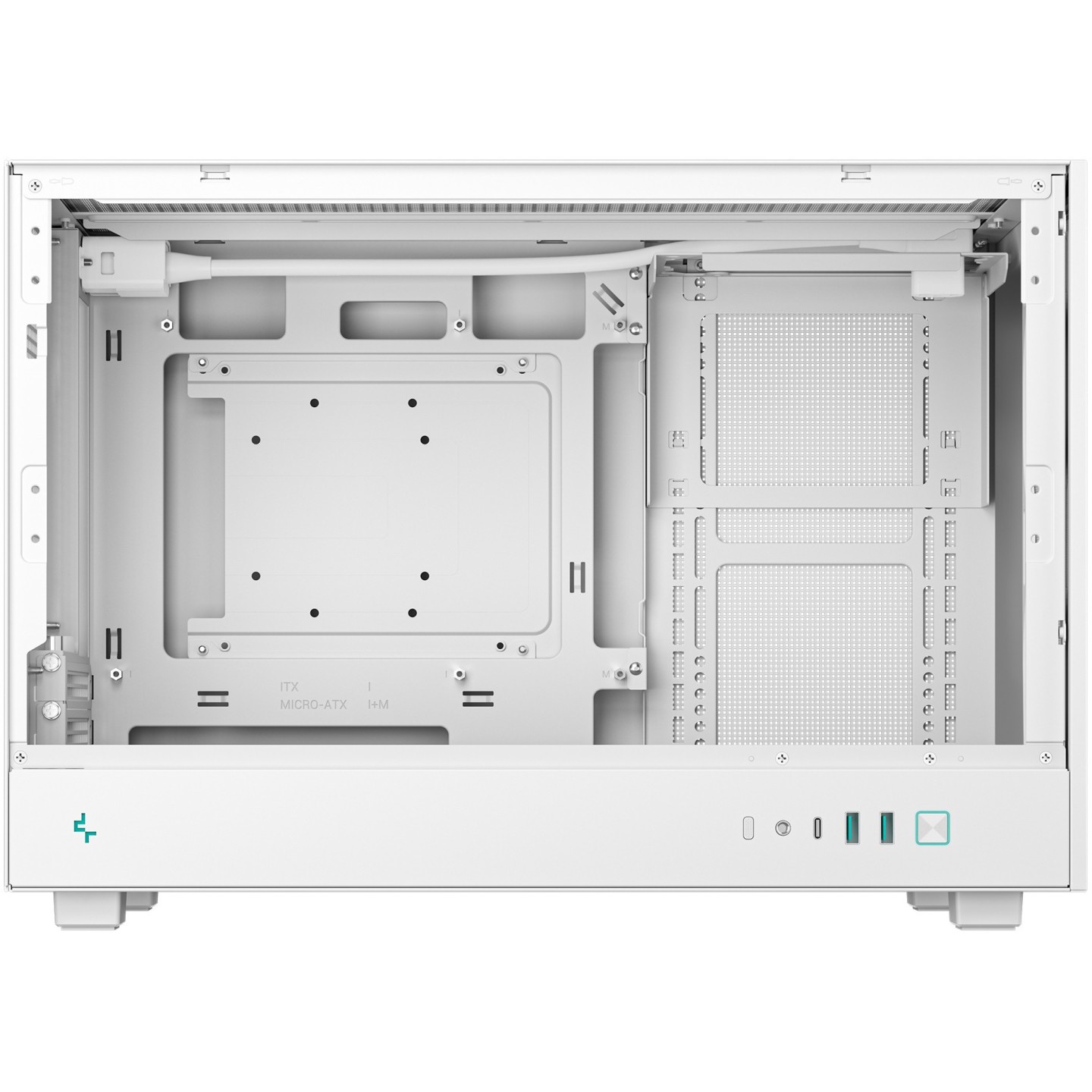

DeepCool CH260 White Micro ATX PC Case (Boxed)
DeepCool CH260 White Micro Tower PC case supports Micro-ATX/Mini-ITX motherboards, up to 388mm GPUs & 174mm CPU coolers. Features mesh panels for airflow, 2x front USB-A, 1x USB-C, dust filters. No fans included. Dimensions: 438x255x313mm. Ideal for compact gaming builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 240 mm 360 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Combo Jack USB A USB C |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mini Tower |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | White |
| PC Cases - CPU Cooler Clearance | 170+ mm |

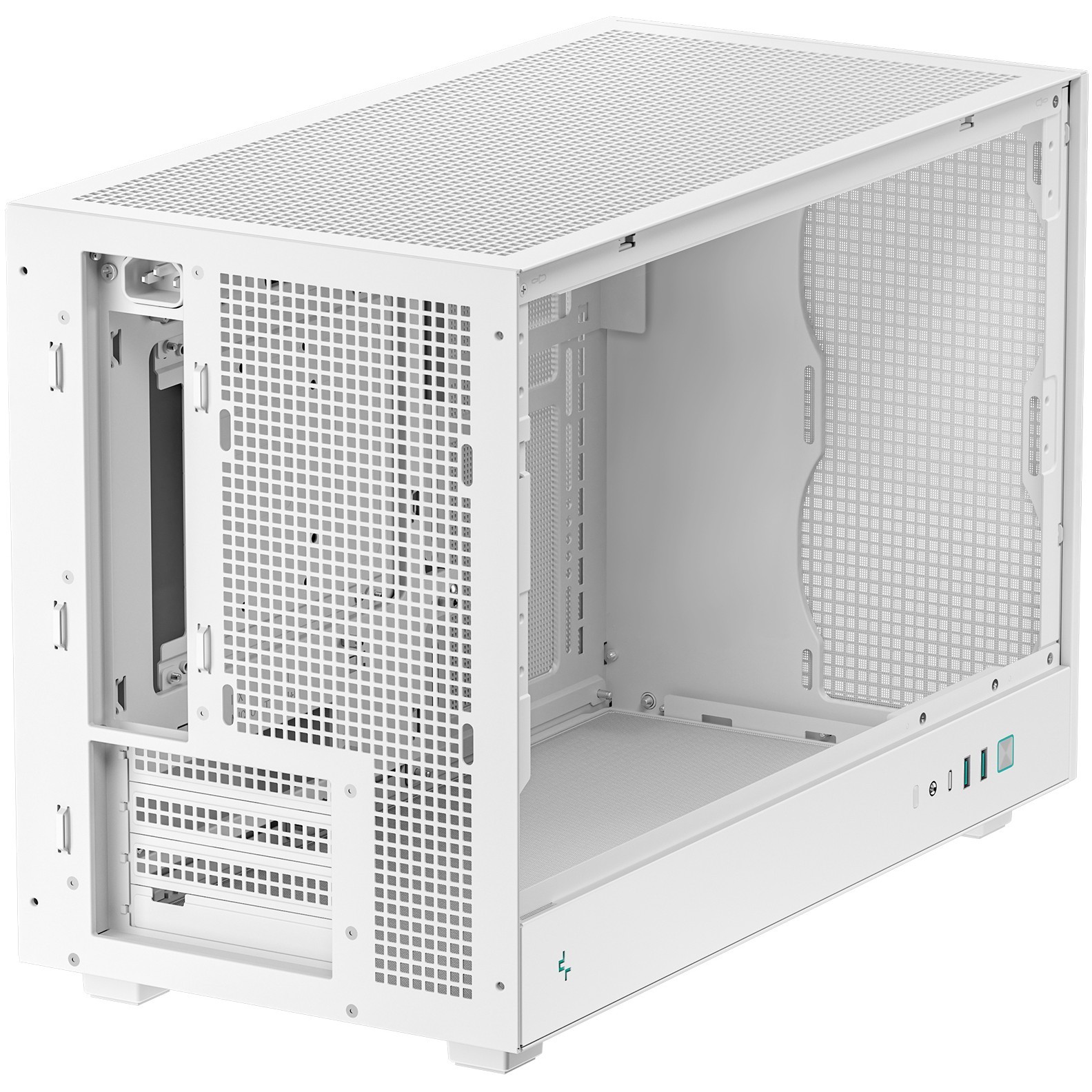

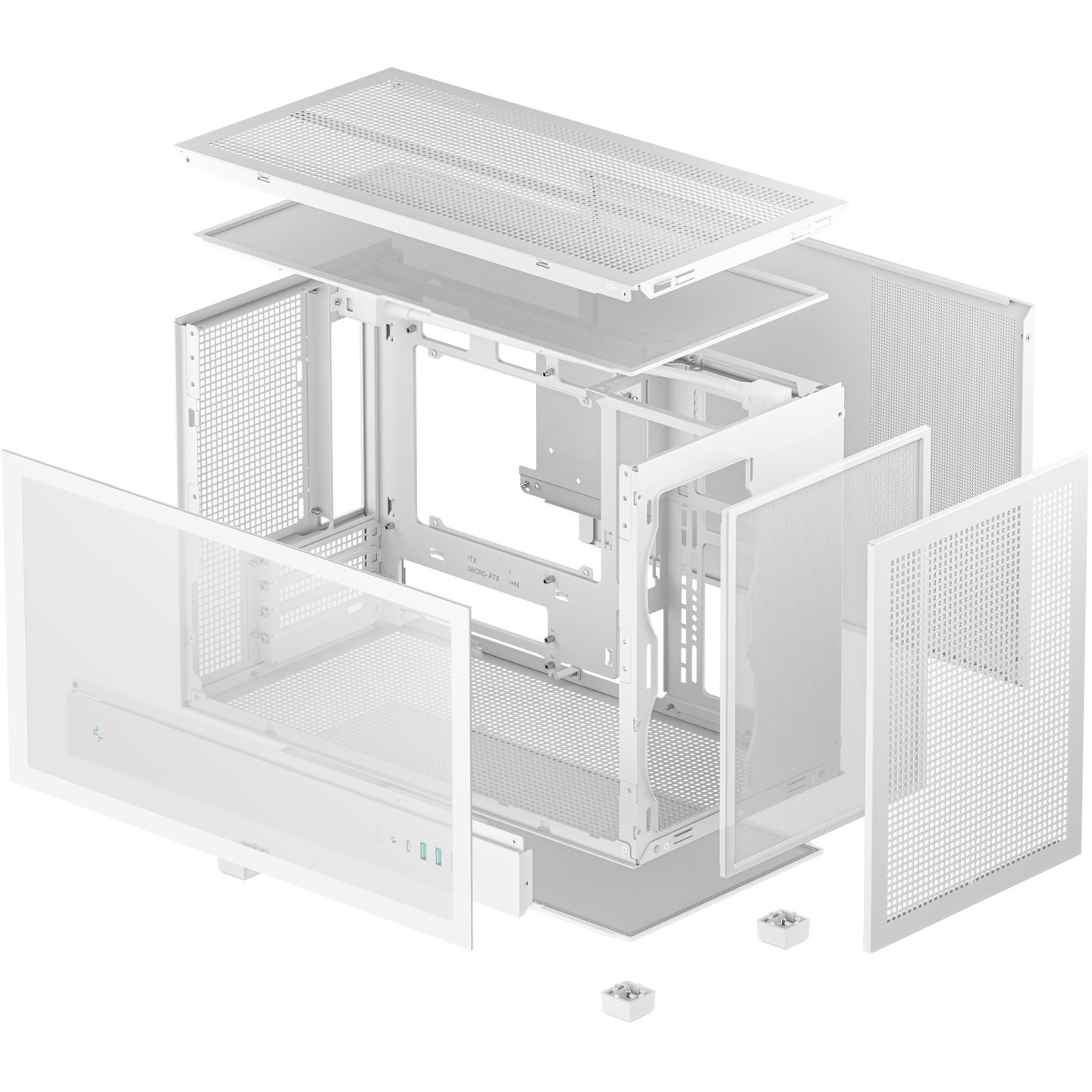

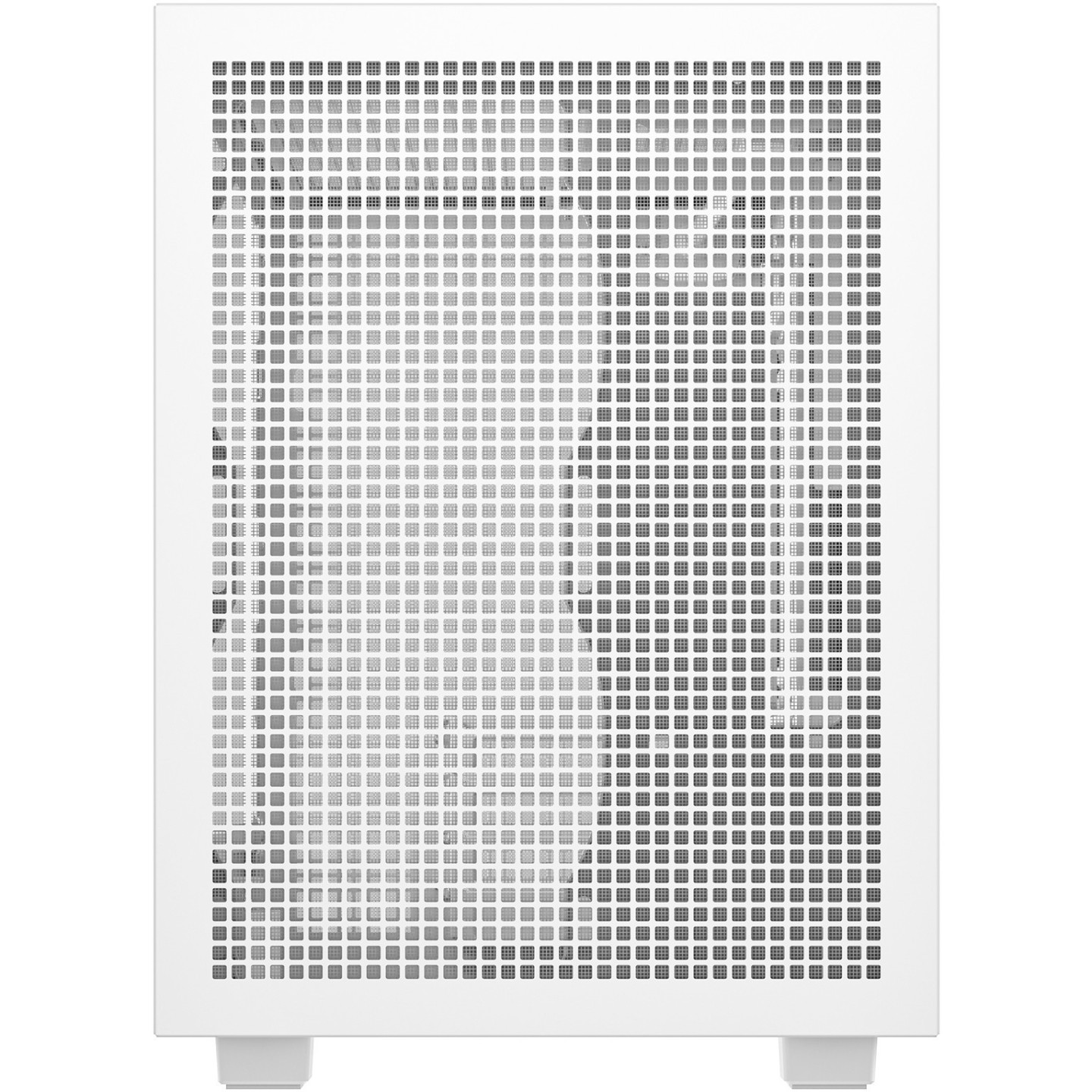

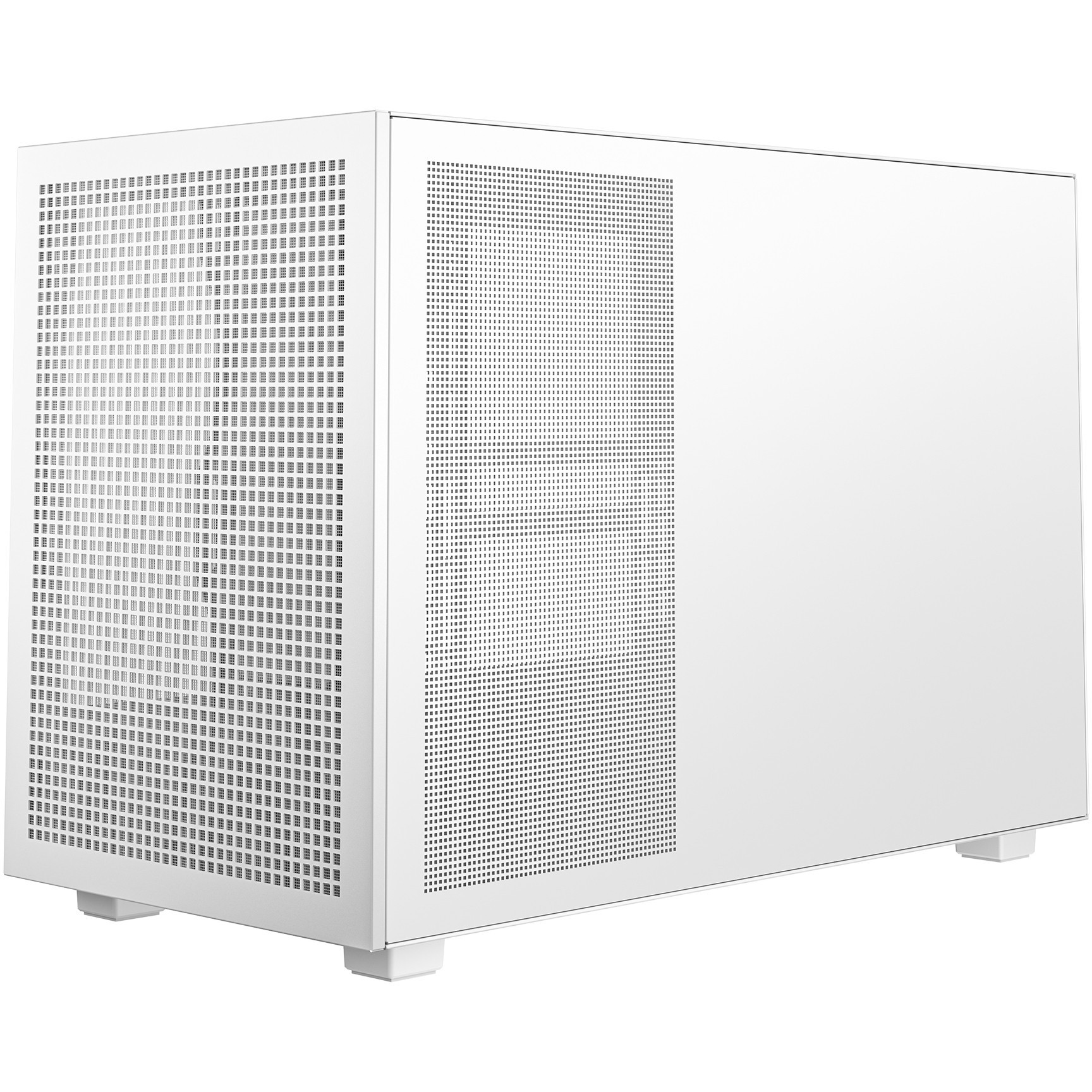

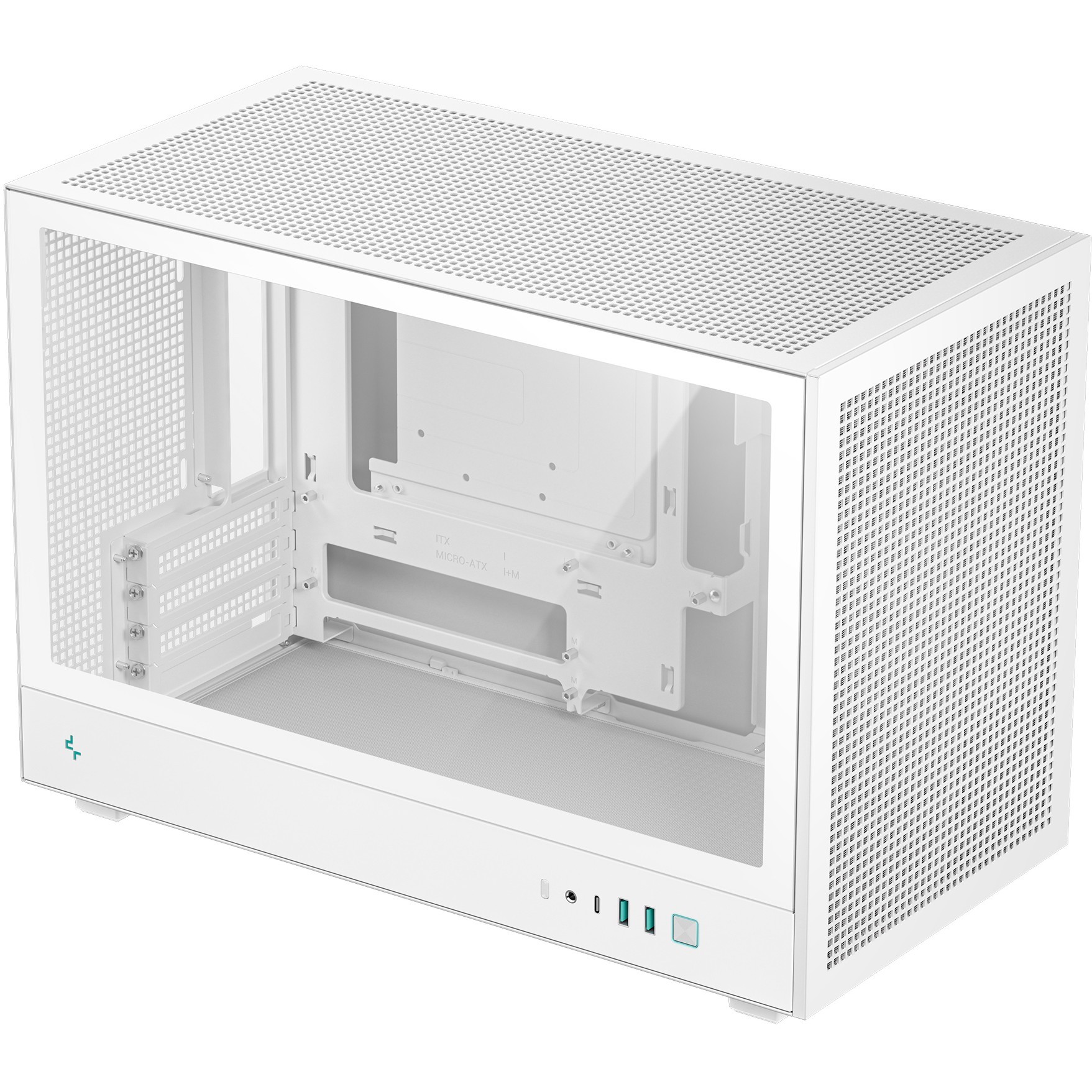

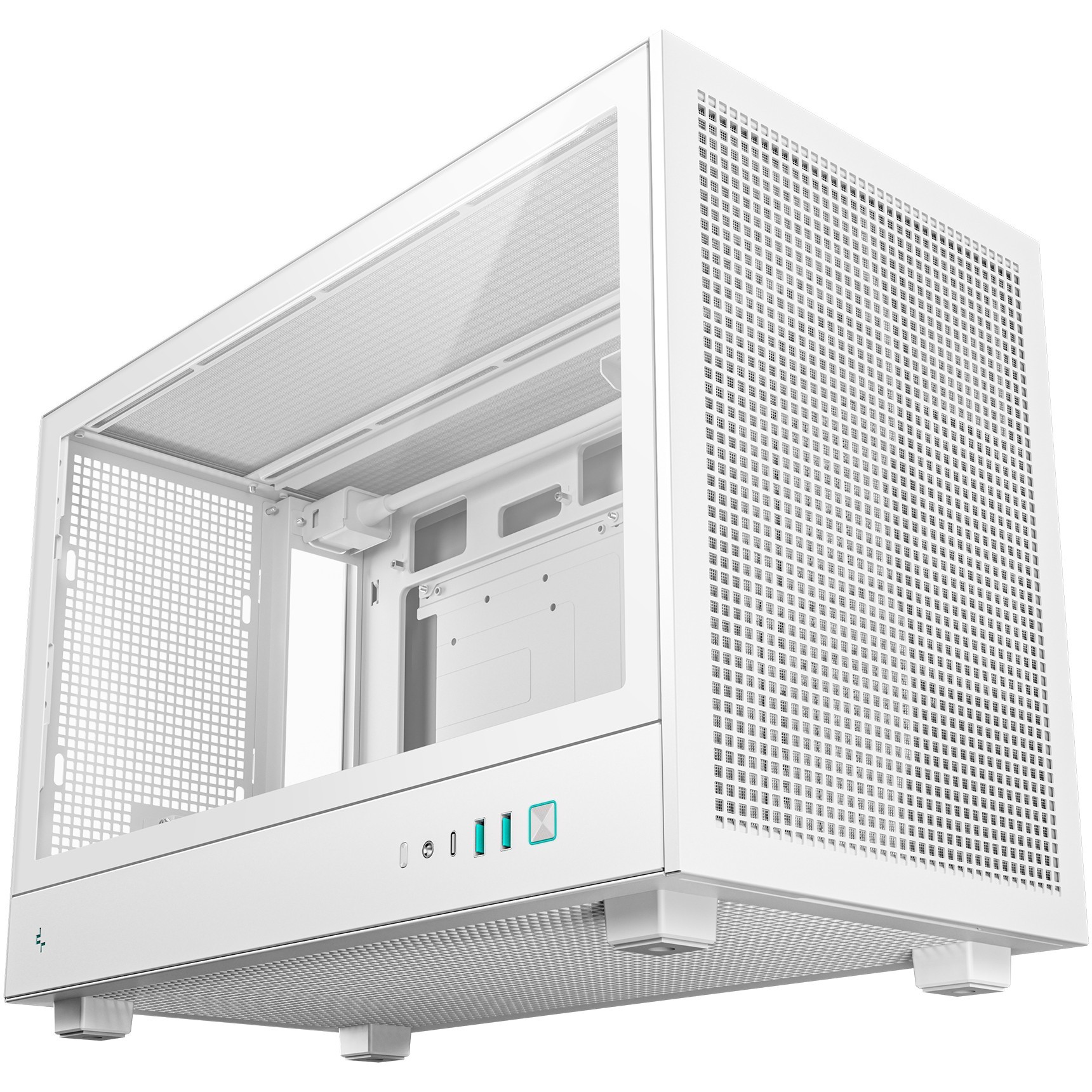

The DeepCool CH260 White is a compact Micro Tower PC case designed for high airflow with full steel mesh panels on front, top, and sides. It supports Micro-ATX and Mini-ITX motherboards, making it perfect for small form factor gaming or workstation builds. The case accommodates GPUs up to 388 mm long and CPU coolers up to 174 mm tall, with space for a 360 mm radiator on top.

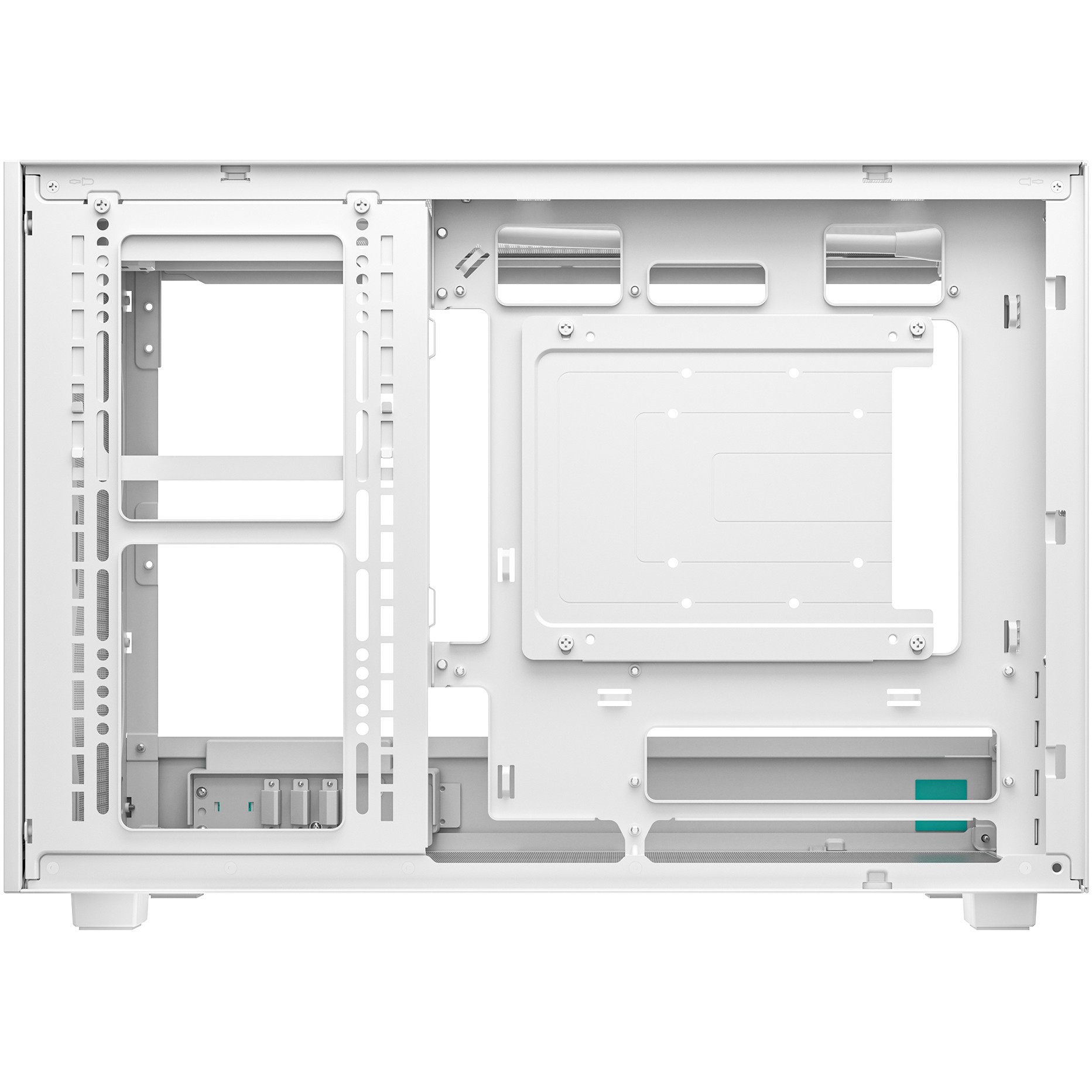

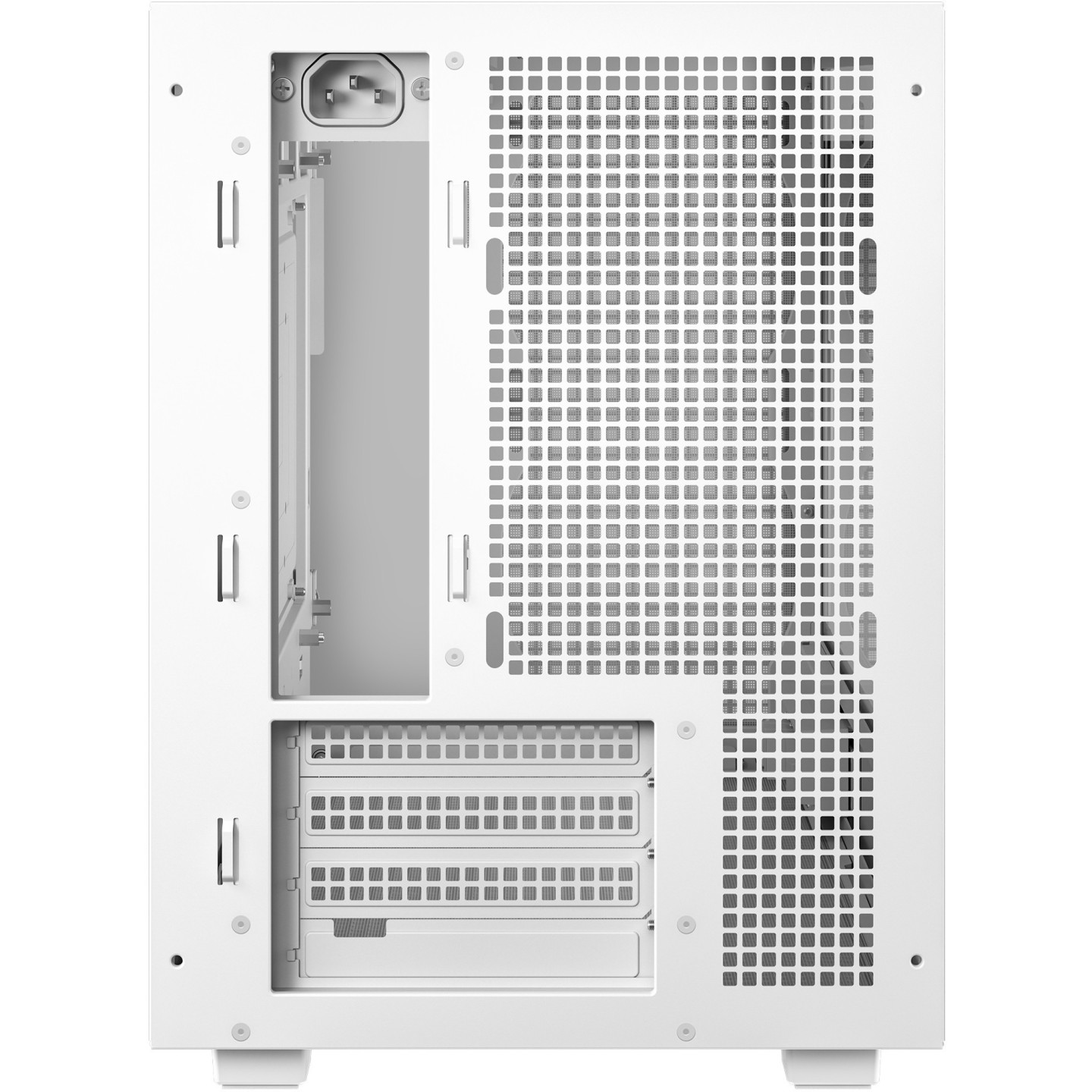

Key features include dual 3.5"/2.5" drive bays, ATX PSU support (PS2 form factor), and extensive dust filtration on bottom, top, front, and PSU area. Front I/O offers 2x USB 3.2 Gen1 Type-A, 1x USB Type-C, HD audio combo jack, and power/reset buttons. Fan mounts support up to 2x 120 mm front, 3x 120/2x 140 mm top, 1x 120 mm rear (fans not included). Excellent cable management space behind the motherboard tray.
- Motherboard: Micro-ATX, Mini-ITX
- Max GPU Length: 388 mm
- Max CPU Cooler: 174 mm
- Radiator Support: Top 360 mm, Rear 120 mm
- Drives: 1x 3.5", 1x 2.5"
- Expansion Slots: 4
- Dimensions (HxWxD): 313.5 x 225 x 438 mm
- Weight: 5.3 kg
| Material | ABS, SPCC Steel, Tempered Glass |
| Form factor | Micro Tower |
| Type | PC |
| Product colour | White |
| Supported motherboard form factors | Micro ATX, Mini-ITX |
| Number of 3.5 | 1 |
| Number of 2.5 | 1 |
| Number of expansion slots | 4 |
| Audio | Combo headphone/mic port |
| Suitable for | Gaming |
| Maximum CPU cooler height | 17.4 cm (174 mm) |
| Maximum graphics card length | 41.3 cm / 388 mm |
| Supported power supply form factors | PS2 (ATX) |
| Front USB 3.2 Gen 1 Type-A ports | 2 |
| Front USB Type-C ports | 1 |
| Front fans supported | 2 x 120 mm |
| Rear fans supported | 1 x 120 mm |
| Top fans supported | 3 x 120 mm / 2 x 140 mm |
| Rear radiator supported | 120 mm |
| Top radiator supported | 120/240/360 mm |
| Supported HDD sizes | 2.5 |
| Width | 225 mm |
| Depth | 438 mm |
| Height | 312.5 mm |
| Weight | 5.3 kg |
| Included fans | 0 |
