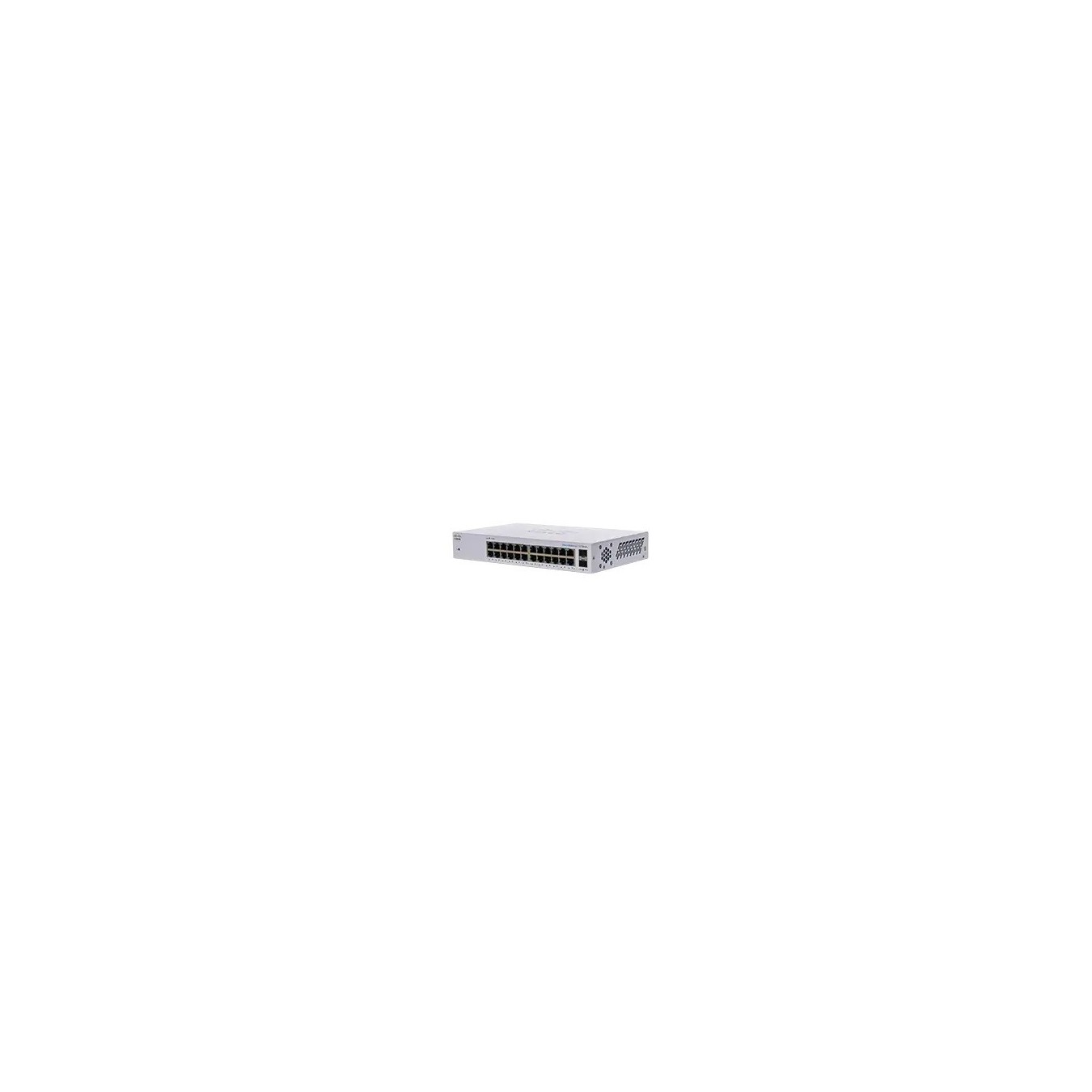

Cisco - CBS110 - Unmanaged 24-Port GE
Cisco CBS110 Unmanaged L2 switch, 24-port Gigabit Ethernet (10/100/1000), full duplex, 1U rack-mount.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco CBS110. Switch type: Unmanaged. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8192 entries. Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. Rack mounting. Form factor: 1U
| Switch type | Unmanaged |
| Switch layer | L2 |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 2 |
| Networking standards | IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| MAC address table | 8192 entries |
| Number of queues | 4 |
| Jumbo frames | 9216 |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Form factor | 1U |
| Product colour | Grey |
| Processor frequency | 400 MHz |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Mean time between failures (MTBF) | 524296 h |
| Number of power supply units | 1 |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 55.75 BTU/h |
| Width | 279 mm |
| Depth | 170 mm |
| Height | 44 mm |
| Weight | 1.56 kg |
| Compliance certificates | CE |
| Certification | UL (UL 60950). CSA (CSA 22.2). CE mark. FCC Part 15 (CFR 47) Class A. FCC Class B |
| Harmonized System (HS) code | 85176990 |
