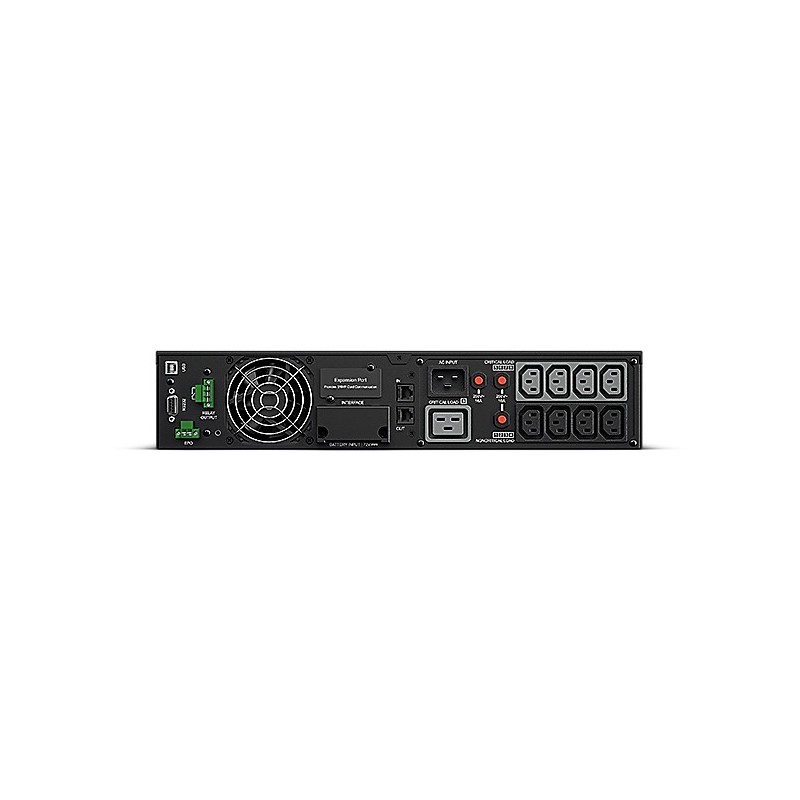

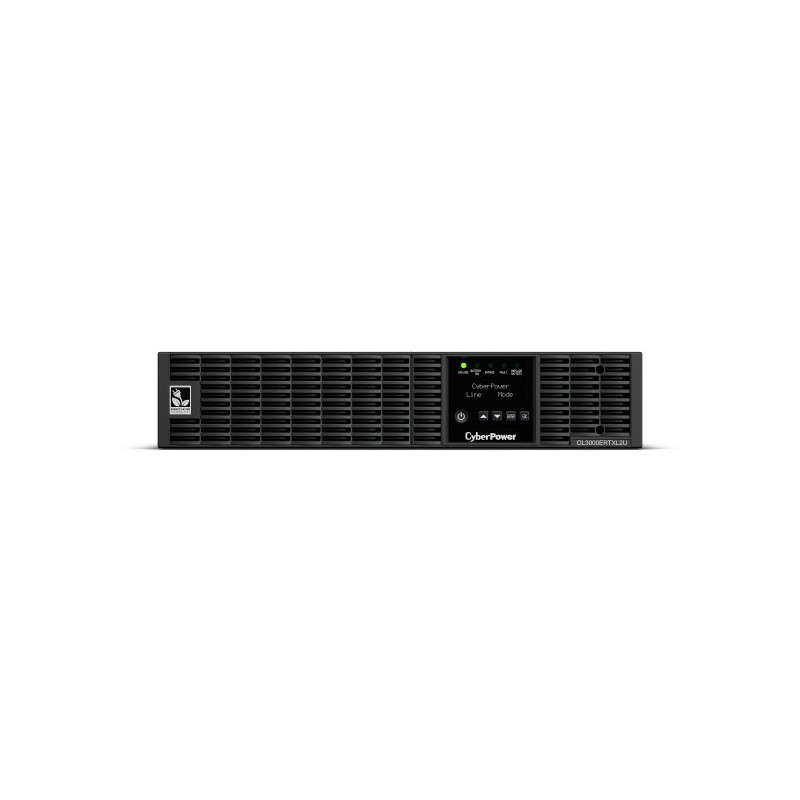

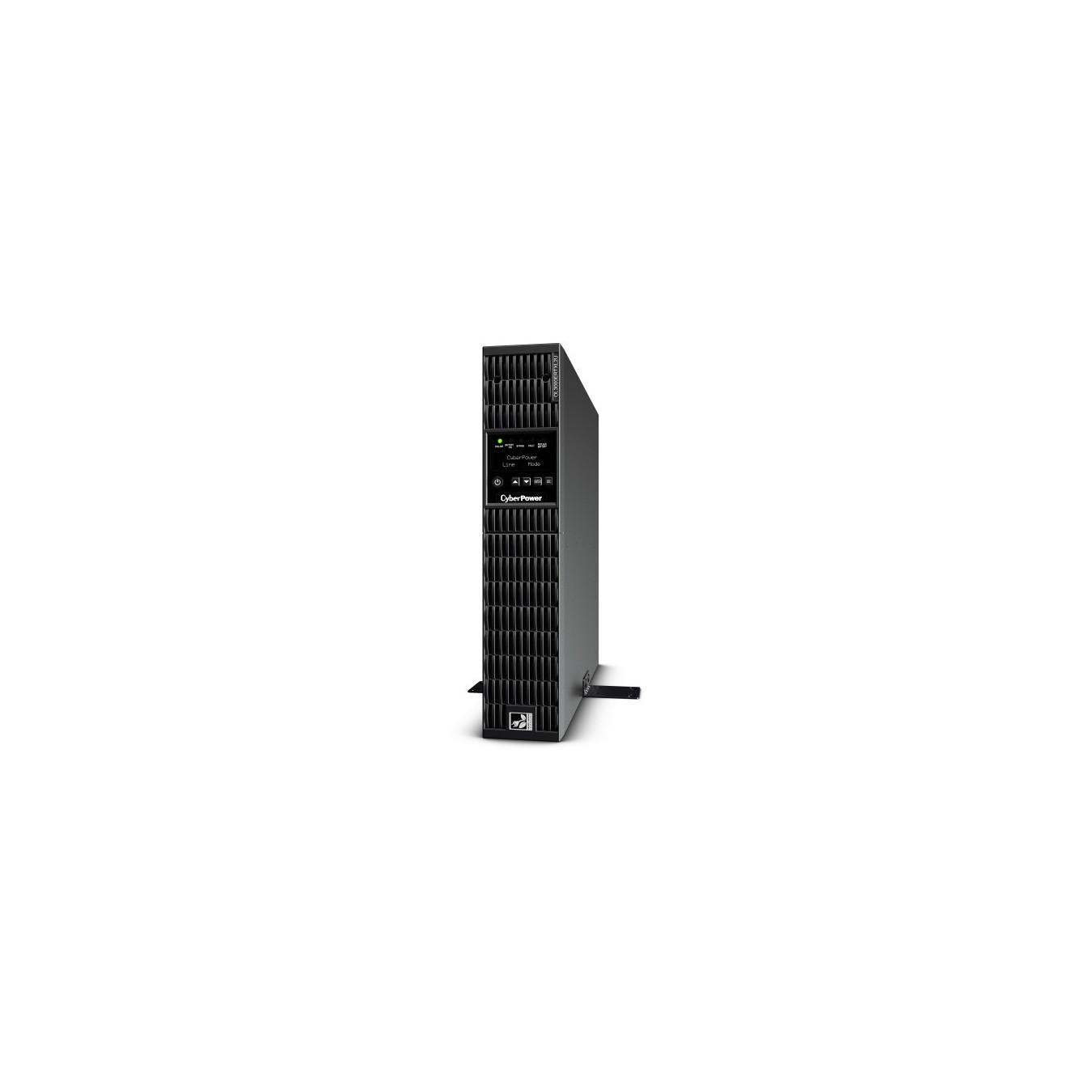

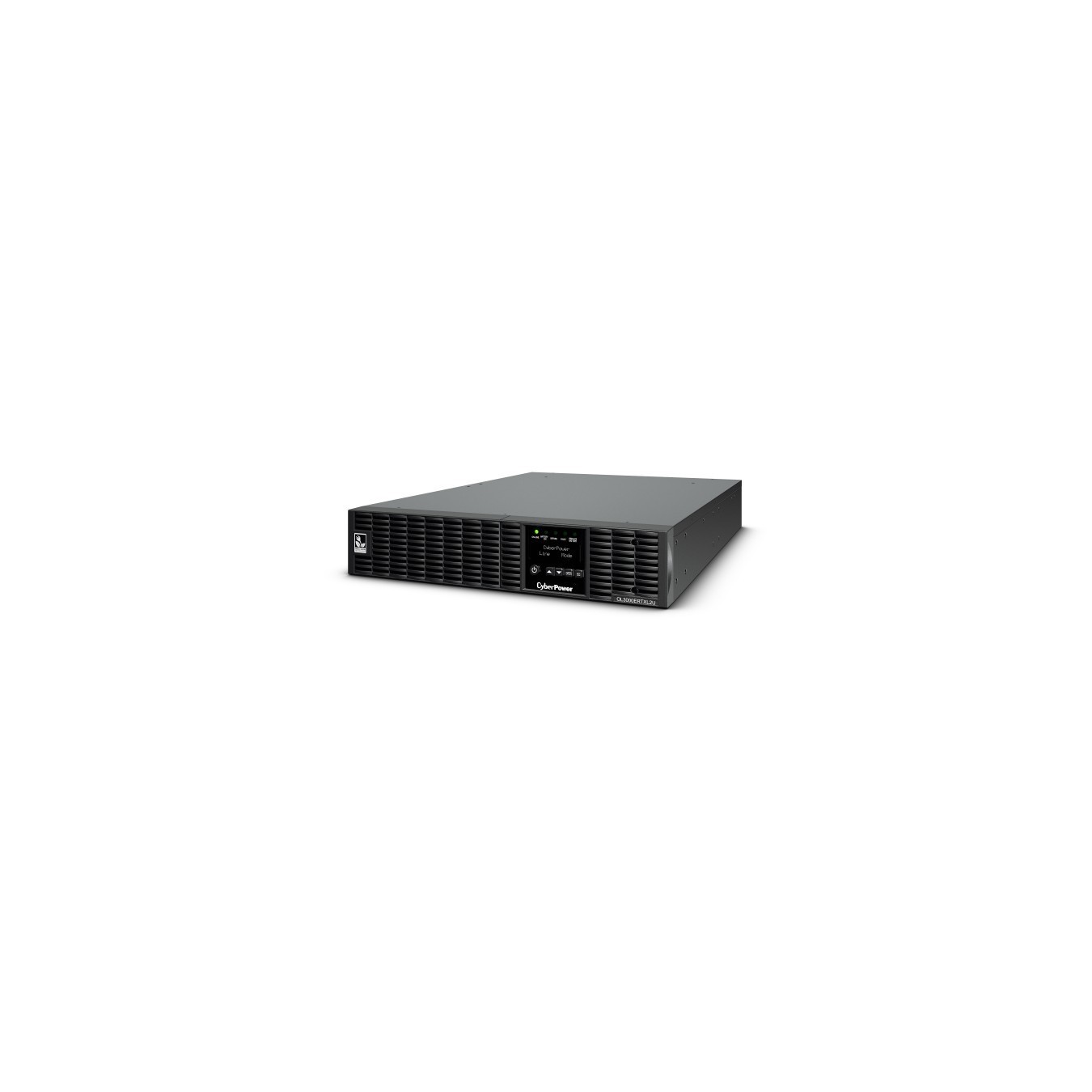

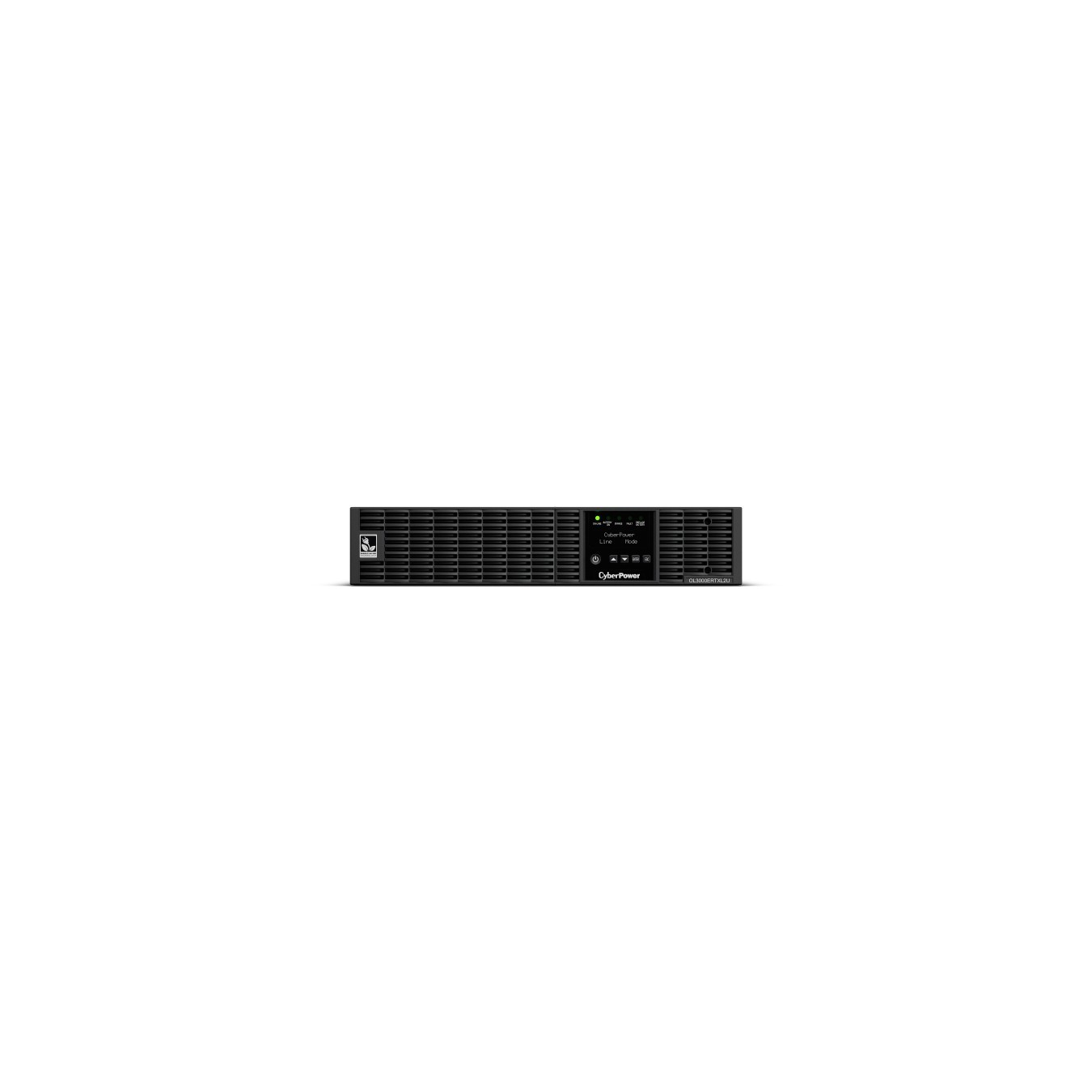

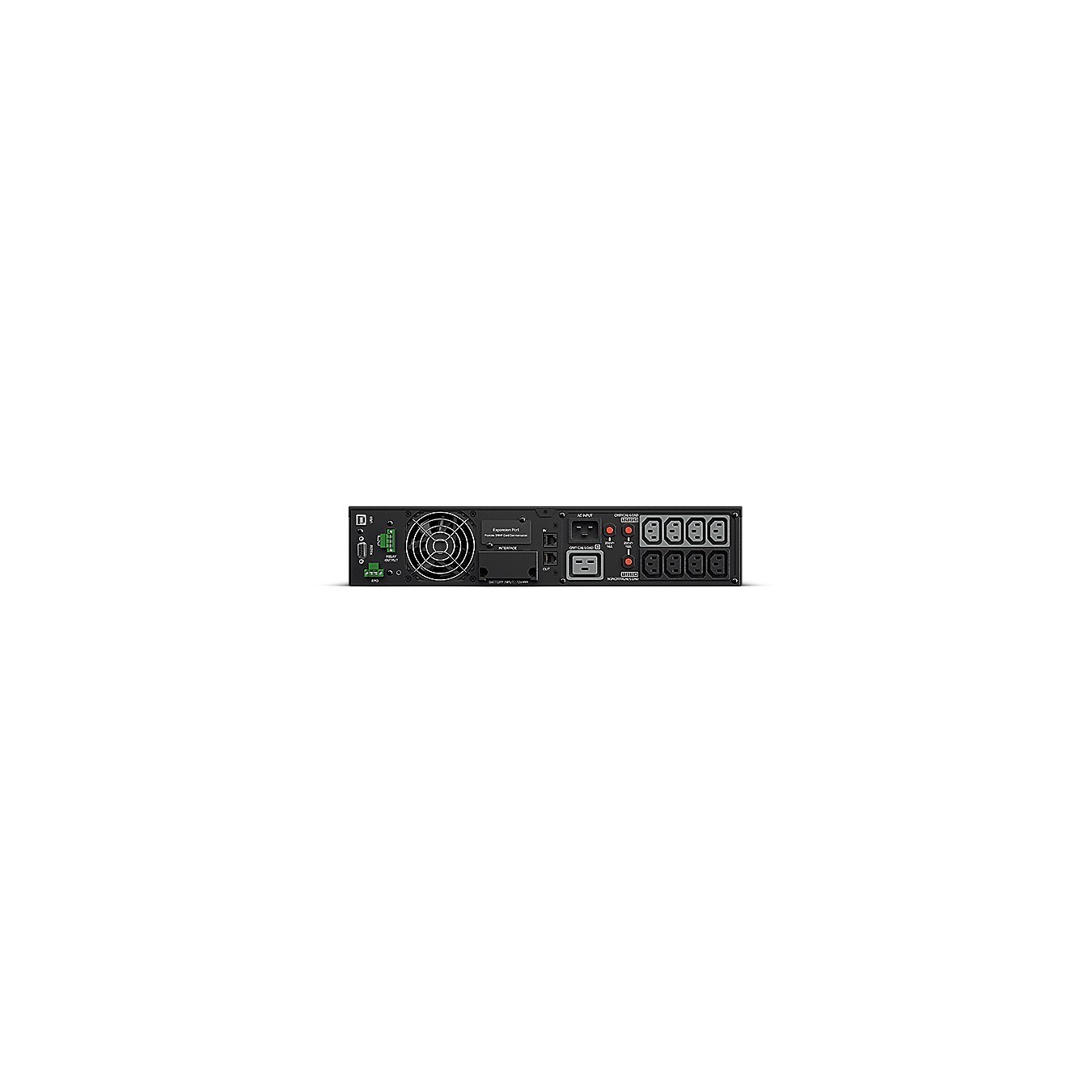

CyberPower - OL3000ERTXL2U - 19' 2HE
CyberPower OL3000ERTXL2U online double-conversion UPS, 3 kVA/2700 W, 190-300 V input, 50/60 Hz output, 1335 J surge, 0 ms response, 9 outlets, 2U rack/tower, black metal enclosure.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Input Plug | IEC C20 |
|---|---|
| UPS & Power Backup - Output Receptacles | Mixed |
CyberPower OL3000ERTXL2U. UPS topology: Double-conversion (Online). Output power capacity: 3 kVA. Output power: 2700 W. AC outlet types: C13 coupler. C19 coupler. Power plug: C20 coupler. AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA). Typical backup time at full load: 3 min. Typical backup time at half load: 11 min. Form factor: Rackmount/Tower. Product colour: Black. Housing material: Metal. Compliance certificates: BSMI. RCM. RoHS
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 190 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Maximum current | 15 A |
| Surge energy rating | 1335 J |
| Response time | 0 ms |
| Heat dissipation | 1139 BTU/h |
| Output power factor | 0.9 |
| Feature | Overload protection |
| Total Harmonic Distortion (THD) (linear load) | 3% |
| Total Harmonic Distortion (THD) (non-linear load) | 5% |
| Surge protection features | Fax. Modem. Network. Telephone |
| Power protection features | Overload. Short circuit |
| Audible alarm modes | Battery replacement |
| AC outlet types | C13 coupler. C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 3 min |
| Typical backup time at half load | 11 min |
| Battery recharge time | 5 h |
| Form factor | Rackmount/Tower |
| Housing material | Metal |
| Rack capacity | 2U |
| Cooling type | Active |
| Product colour | Black |
| Control type | Buttons |
| Display type | LCD + LED |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | BSMI. RCM. RoHS |
| Cables included | Serial. USB cable |
| Width | 433 mm |
| Depth | 600 mm |
| Height | 88 mm |
| Weight | 32 kg |
| Bundled software | PowerPanel® Business Edition |
| Package width | 565 mm |
| Package depth | 880 mm |
| Package height | 240 mm |
| Package weight | 39.5 kg |
| Harmonized System (HS) code | 8504408590 |
| Warranty period | 3 year(s) |
| Country of origin | China |
| Battery type | RBP0076 |
| Compatible operating systems | Windows 7 / Vista / XP / 2000. Server 2008 / 2003. Linux |
