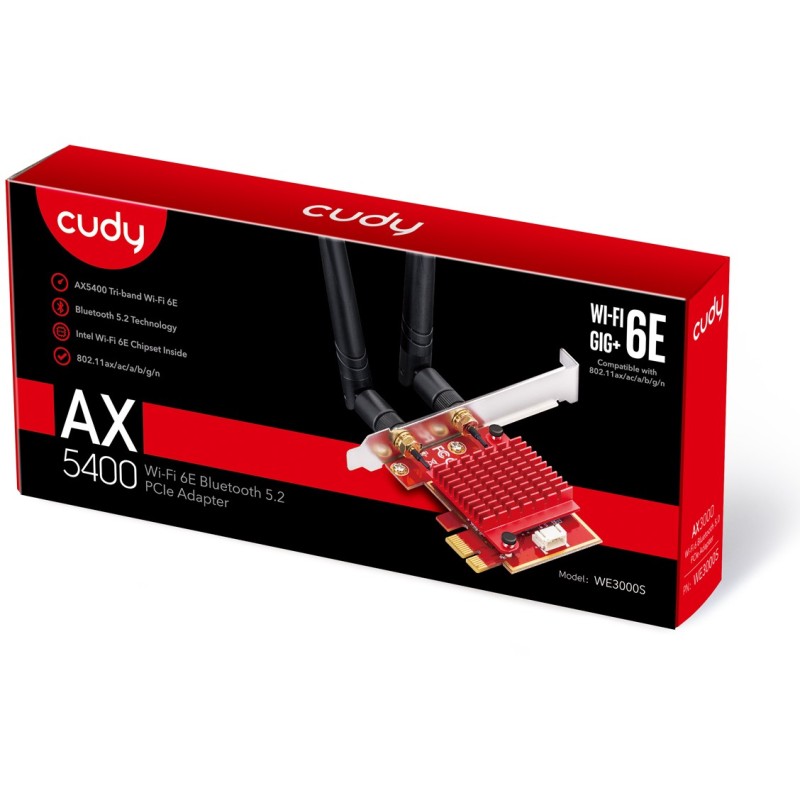

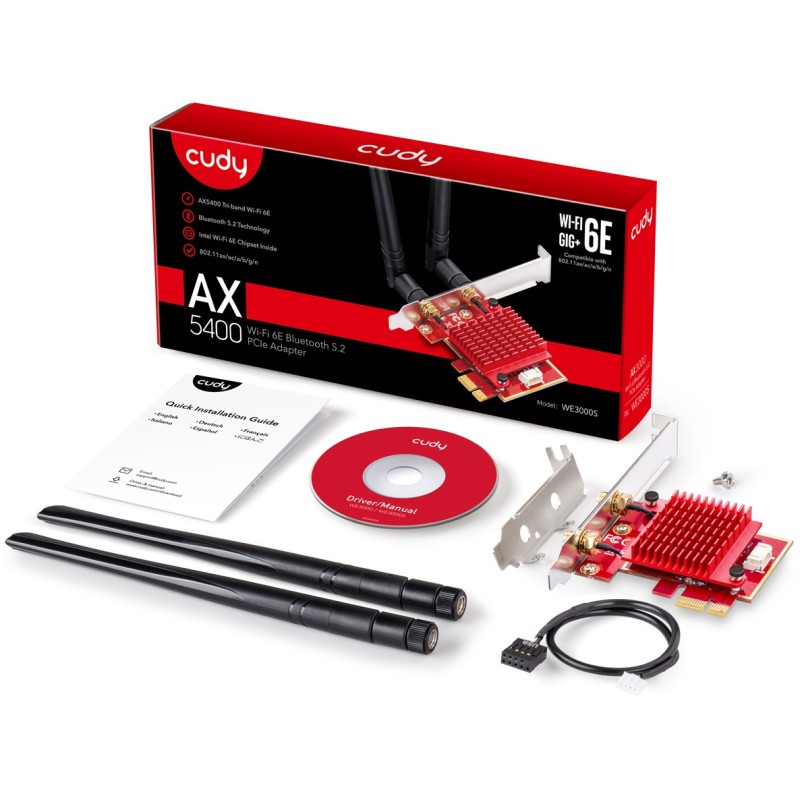

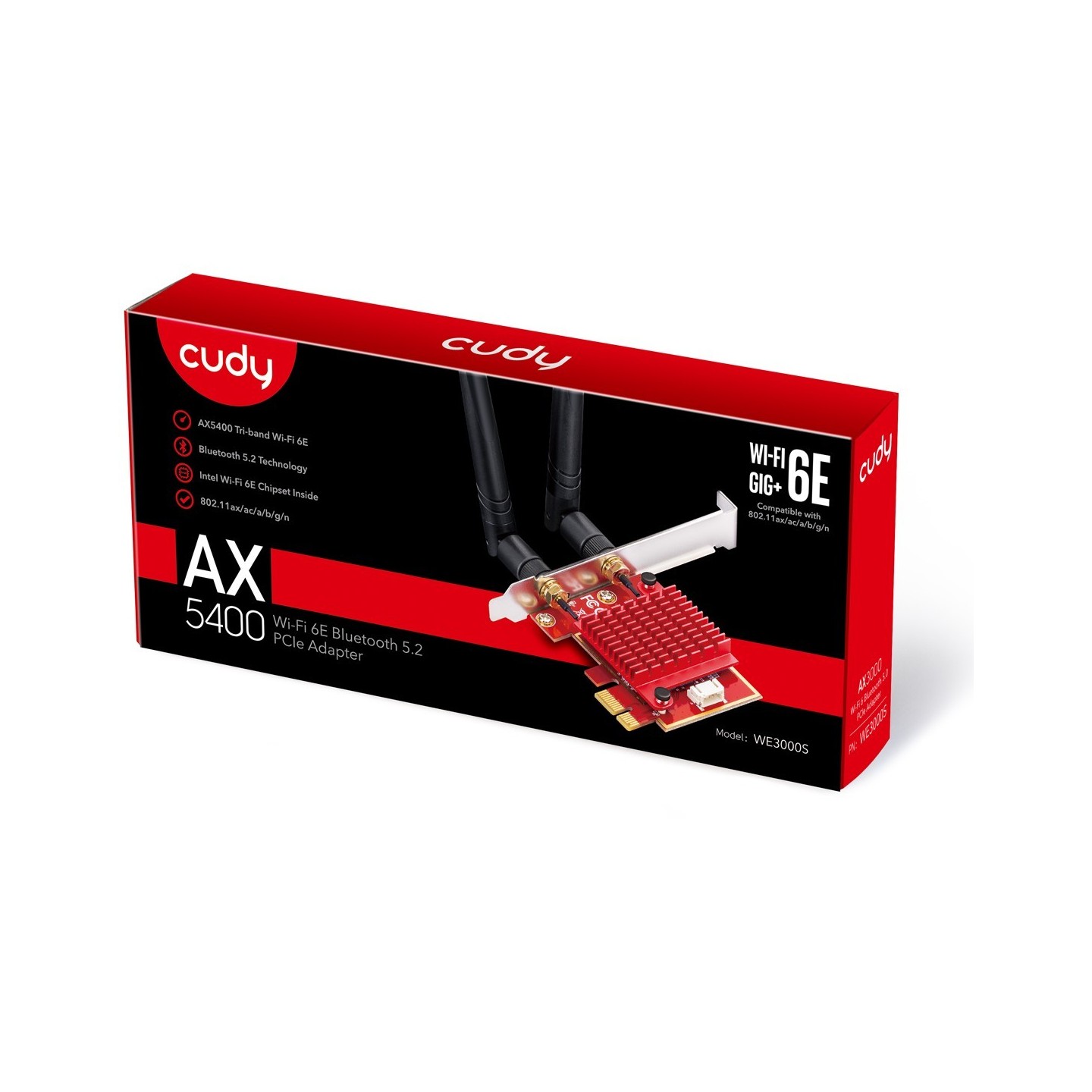

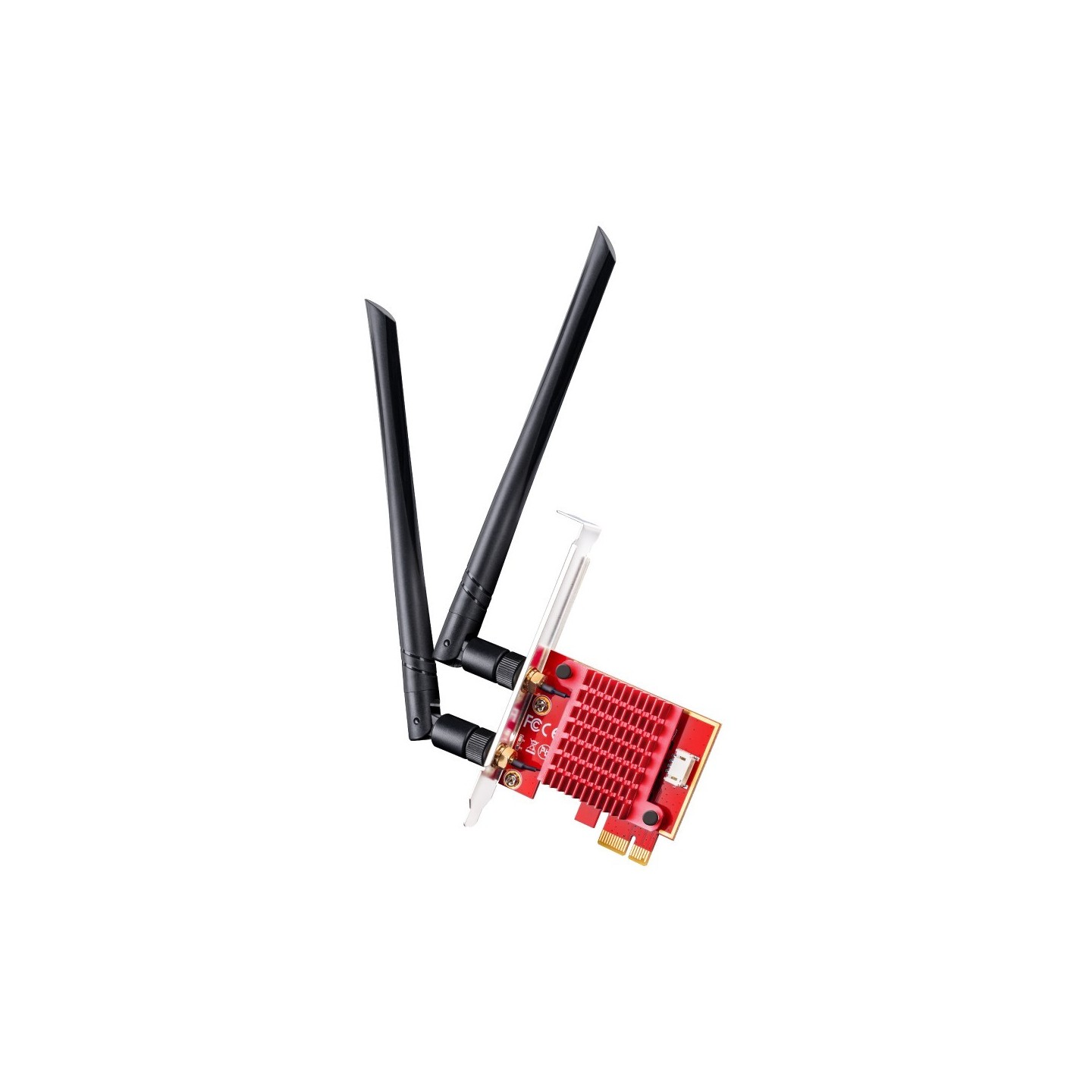

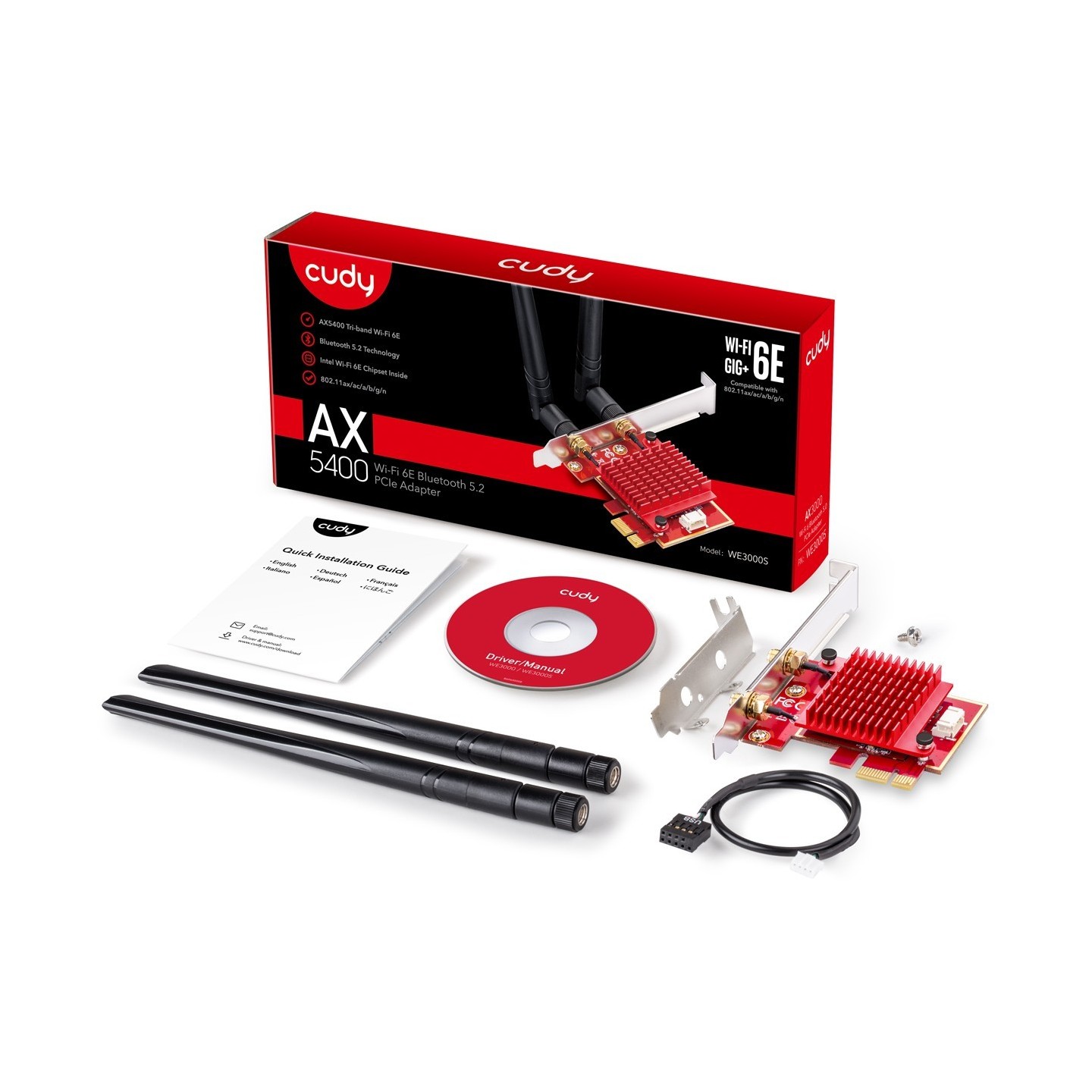

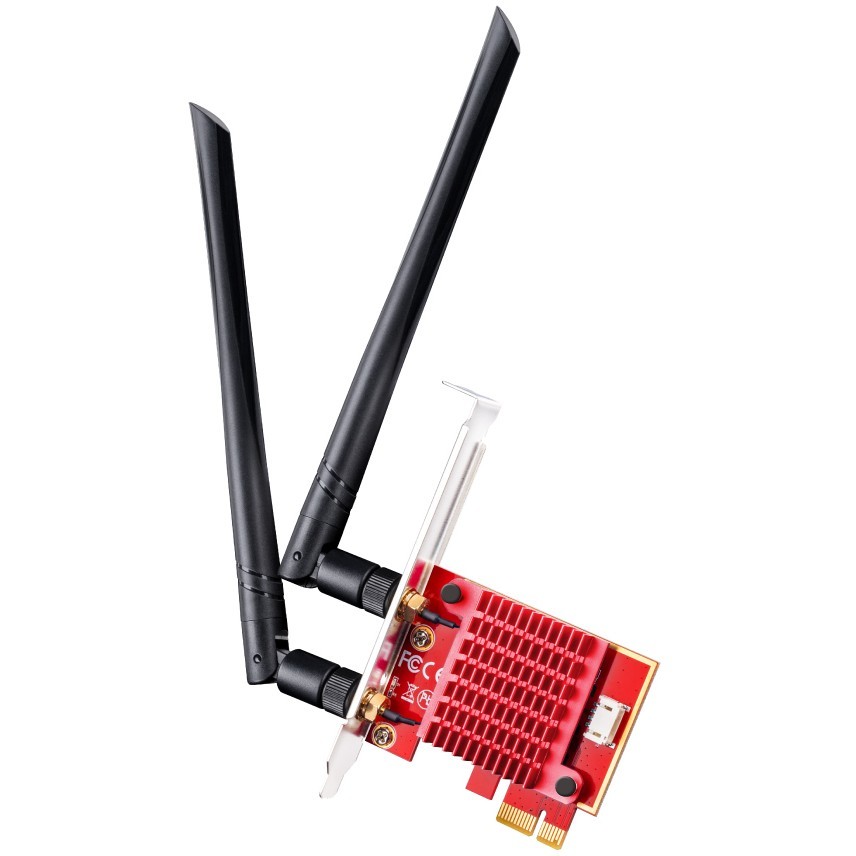

Cudy Wi-Fi 6E PCI Express Adapter - AX5400 - Wi-Fi 6E PCI Express Adapter
Cudy WE3000S internal wireless PCIe WLAN/Bluetooth adapter, 2400 Mbps.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PCIe Network Cards - Low-Profile Bracket | Included |
|---|---|
| PCIe Network Cards - OS Compatibility | Windows |
Cudy WE3000S. Internal. Connectivity technology: Wireless. Host interface: PCI Express. Interface: WLAN / Bluetooth. Maximum data transfer rate: 2400 Mbit/s. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| PCI Card form factor | Full-height (low-profile) |
| Maximum data transfer rate | 2400 Mbit/s |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n |
| Feature | Quick installation guide |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 574.2402 Mbit/s |
| Spread spectrum method | OFDMA |
| Security algorithms | WPA3 |
| Bluetooth version | 5.2 |
| LAN controller | Intel AX210 |
| Component for | PC |
| Antenna design | External |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 5 dBi |
| Windows operating systems supported | Windows 10. Windows 11 |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 65 mm |
| Depth | 44.5 mm |
| Height | 1.6 mm |

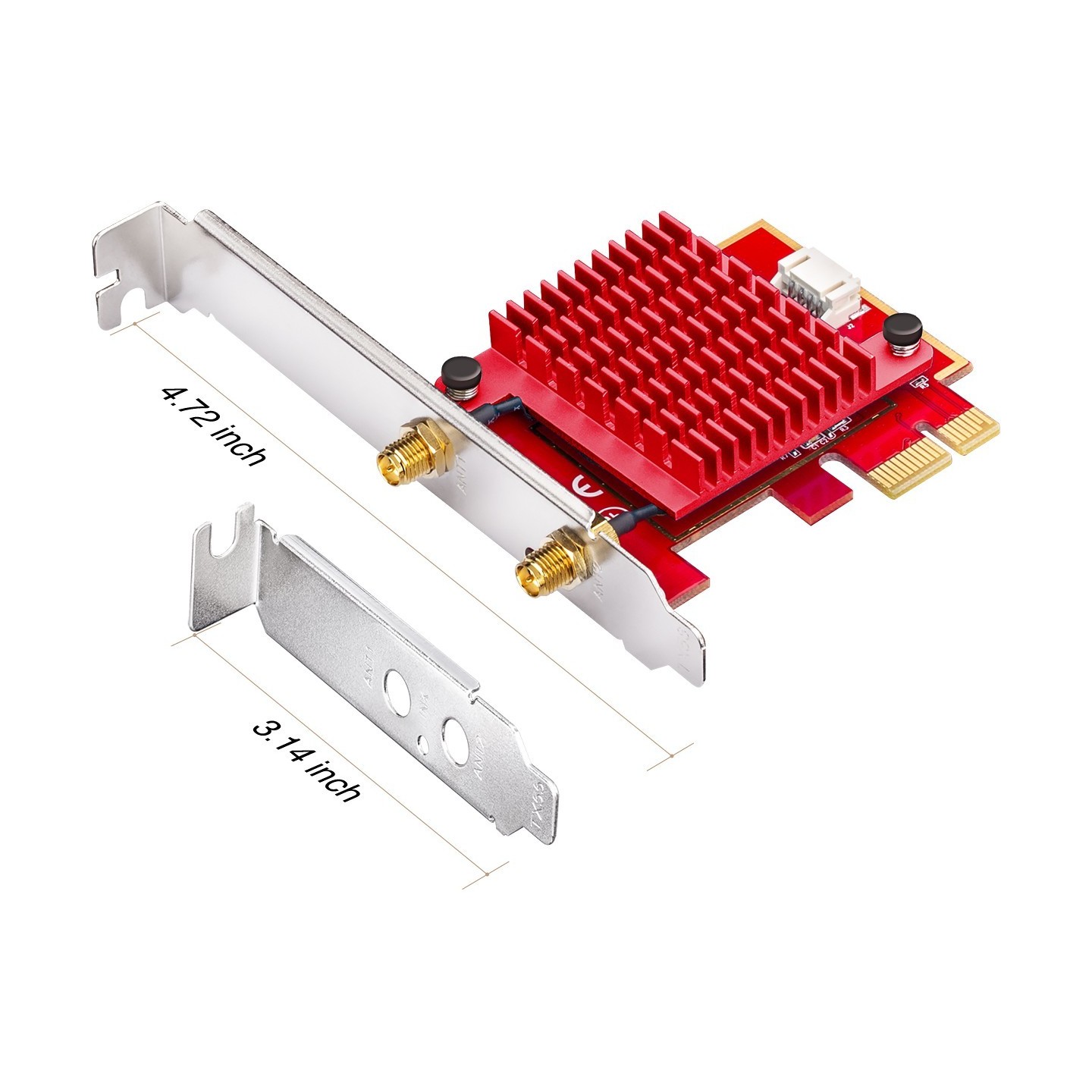

| Bracket height | Low-Profile (LP) / Full-Height (FH) |
