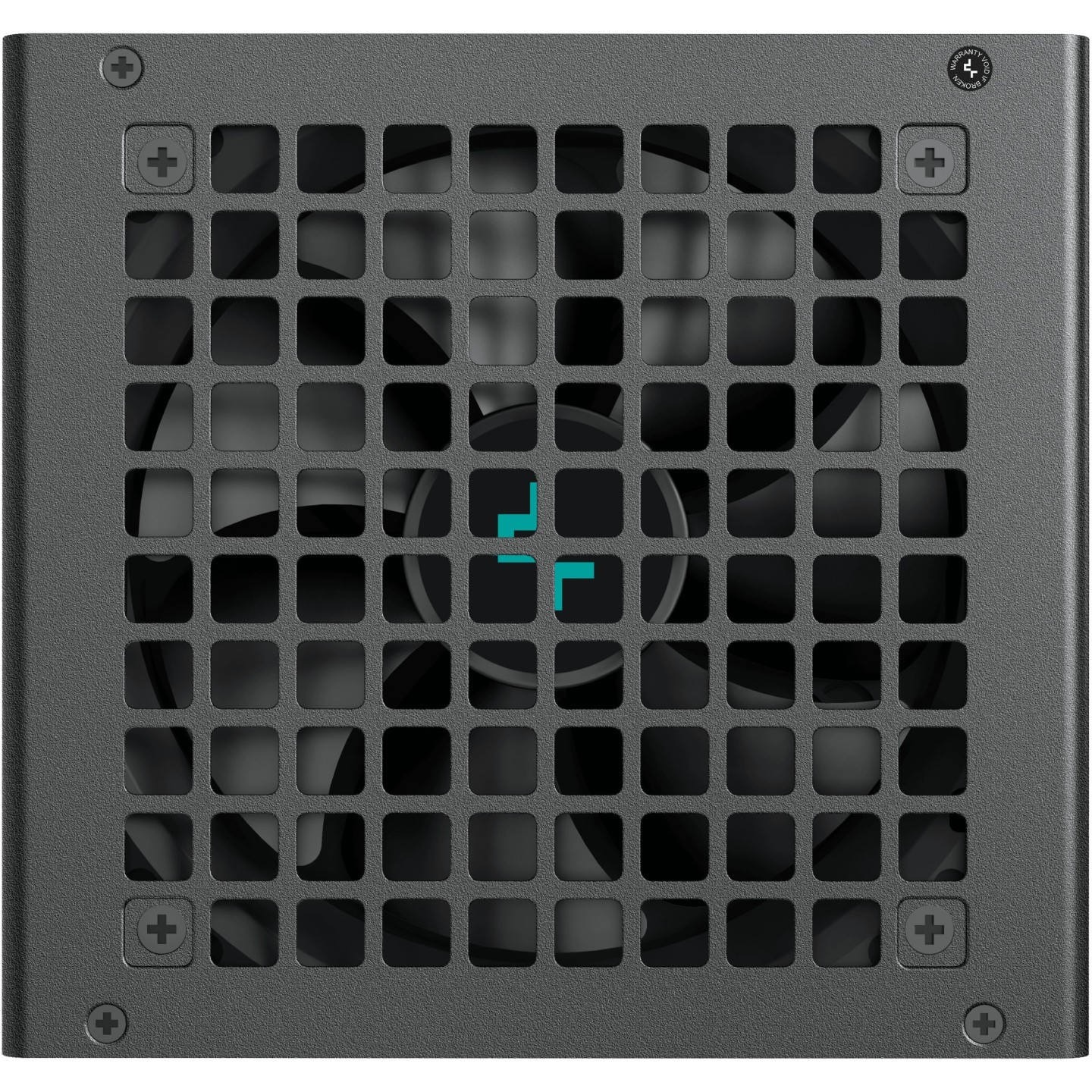

DeepCool PL650D 650W - 80 Plus Bronze ATX 3.1 Non-Modular Power Supply - PL650-D (Boxed)
DeepCool PL650D 650W 80 PLUS Bronze certified ATX 3.1 PSU. Non-modular design with 120mm hydro bearing fan, 12V-2x6 GPU connector, 3x PCIe 6+2 pin, 2x EPS. Reliable DC-to-DC topology for modern gaming PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 3x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The DeepCool PL650D is a 650W non-modular power supply unit compliant with the latest ATX 3.1 standard, featuring a native 12V-2x6 (12+4 pin) connector for next-gen GPUs up to 450-600W. Certified 80 PLUS Bronze for at least 85% efficiency at typical loads, it uses premium electrolytic capacitors ensuring ≥16ms hold-up time even during power outages.

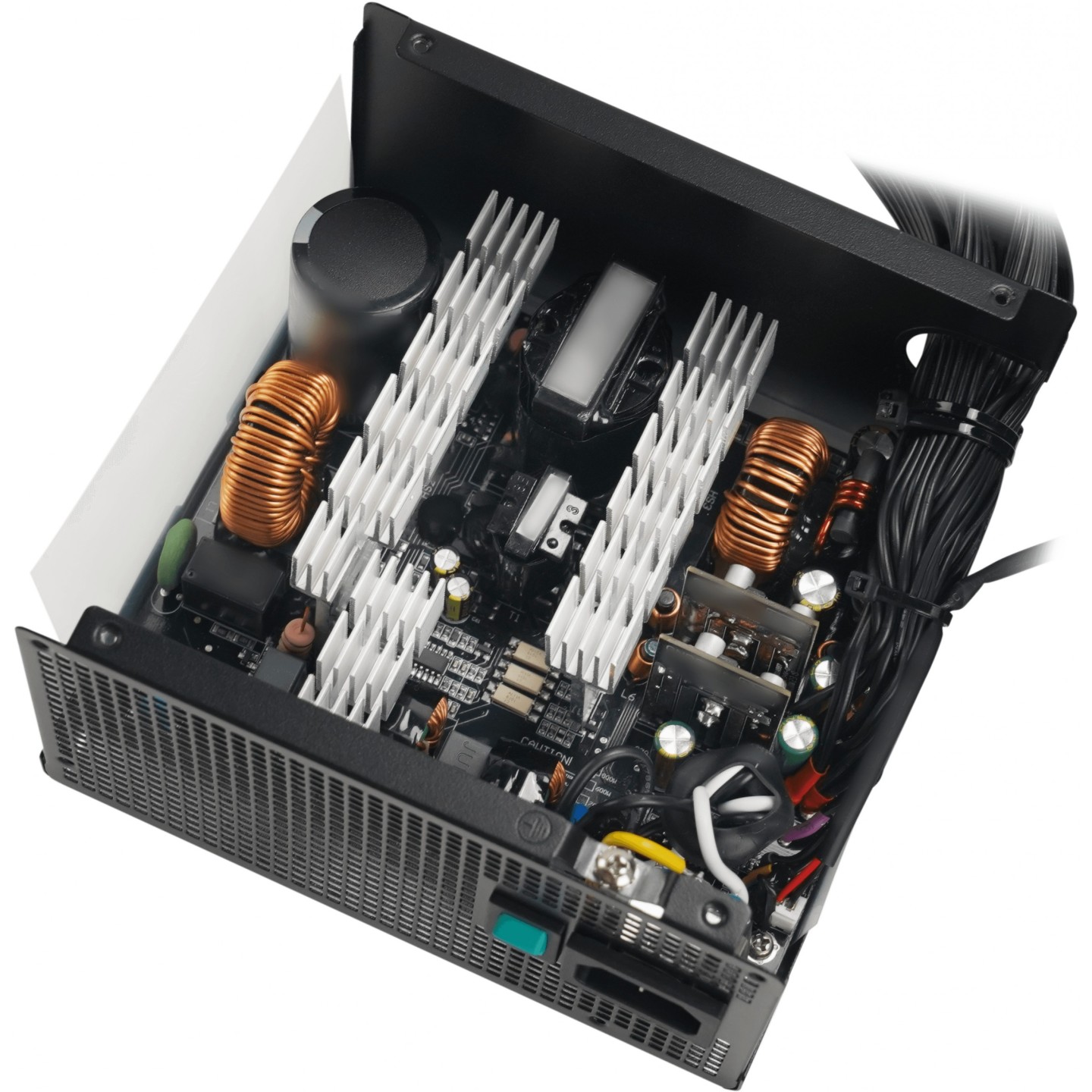

Equipped with Active PFC + DC-to-DC topology and high-quality components, this PSU operates reliably up to 5,000m altitude. The 120mm hydro bearing fan provides quiet cooling, while connectors include 2x EPS (4+4 pin), 3x PCIe 6+2 pin, 6x SATA, and 2x Molex for comprehensive system support. Dimensions: 150×140×86mm.
- ✅ 80 PLUS Bronze efficiency (85%+ at 50% load)
- ✅ ATX 3.1 compliant with 12V-2x6 GPU connector
- ✅ 120mm Hydro Bearing fan for silent operation
- ✅ 5-year warranty & 100,000 hours MTBF
- ✅ Full protection: OCP, OVP, OPP, SCP, OTP
| Type | ATX12V V3.1 |
| Total Power | 650W |
| Efficiency Certification | 80 PLUS Bronze |
| Fan Size | 120 mm Hydro Bearing |
| Topology | Active PFC + DC to DC |
| Modular | Non-Modular |
| Main Power Connector | 1x 20+4 pin |
| EPS CPU Connectors | 2x 4+4 pin |
| PCIe GPU Connectors | 1x 12V-2x6 (12+4 pin) + 3x 6+2 pin |
| SATA Connectors | 6x |
| Molex Connectors | 2x 4-pin |
| Dimensions (WxDxH) | 150 × 140 × 86 mm |
| MTBF | 100,000 Hours |
| Warranty | 5 Years |

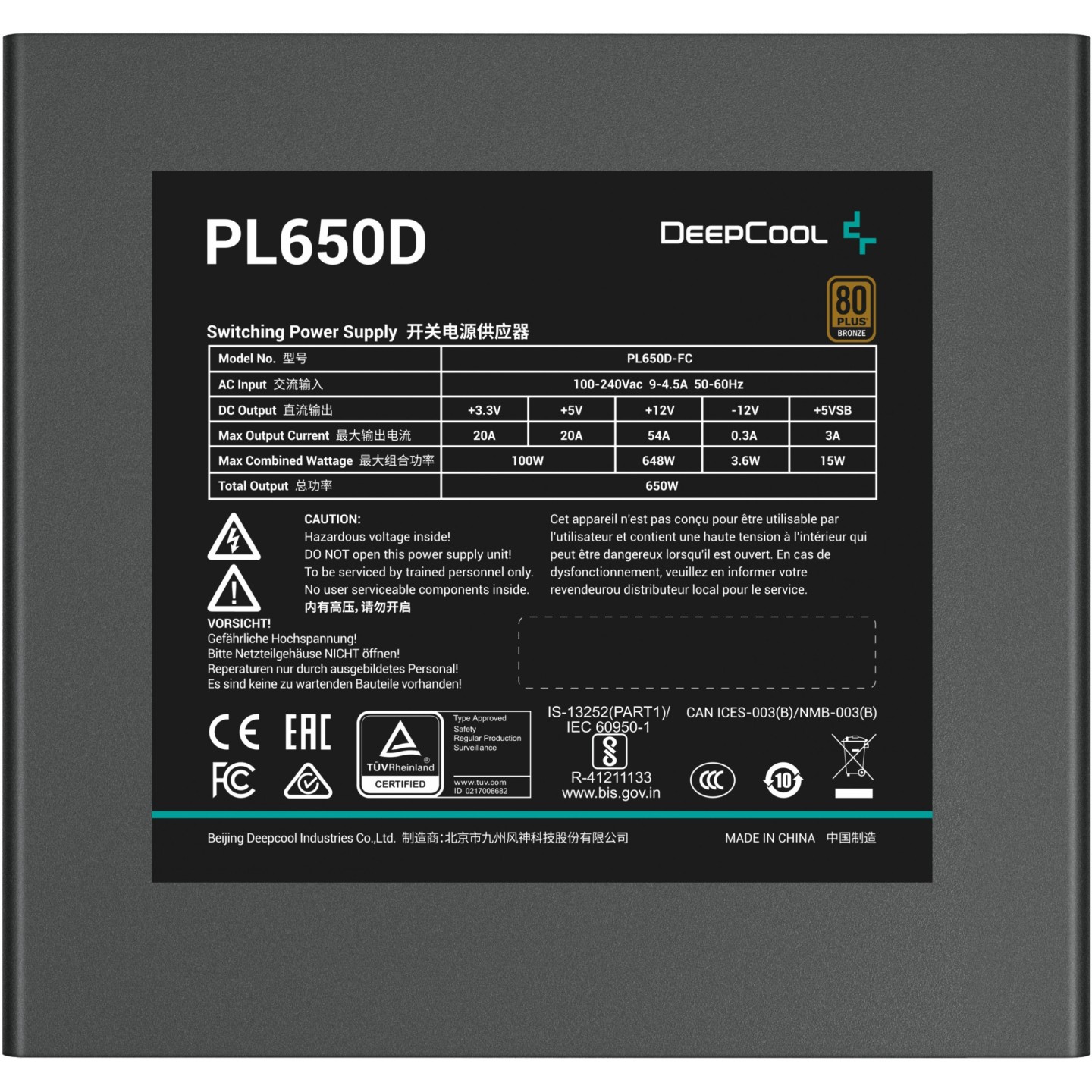

| +12V Rail | 648W (54A) |
| Input Voltage | 100-240Vac 9-4.5A 50-60Hz |
