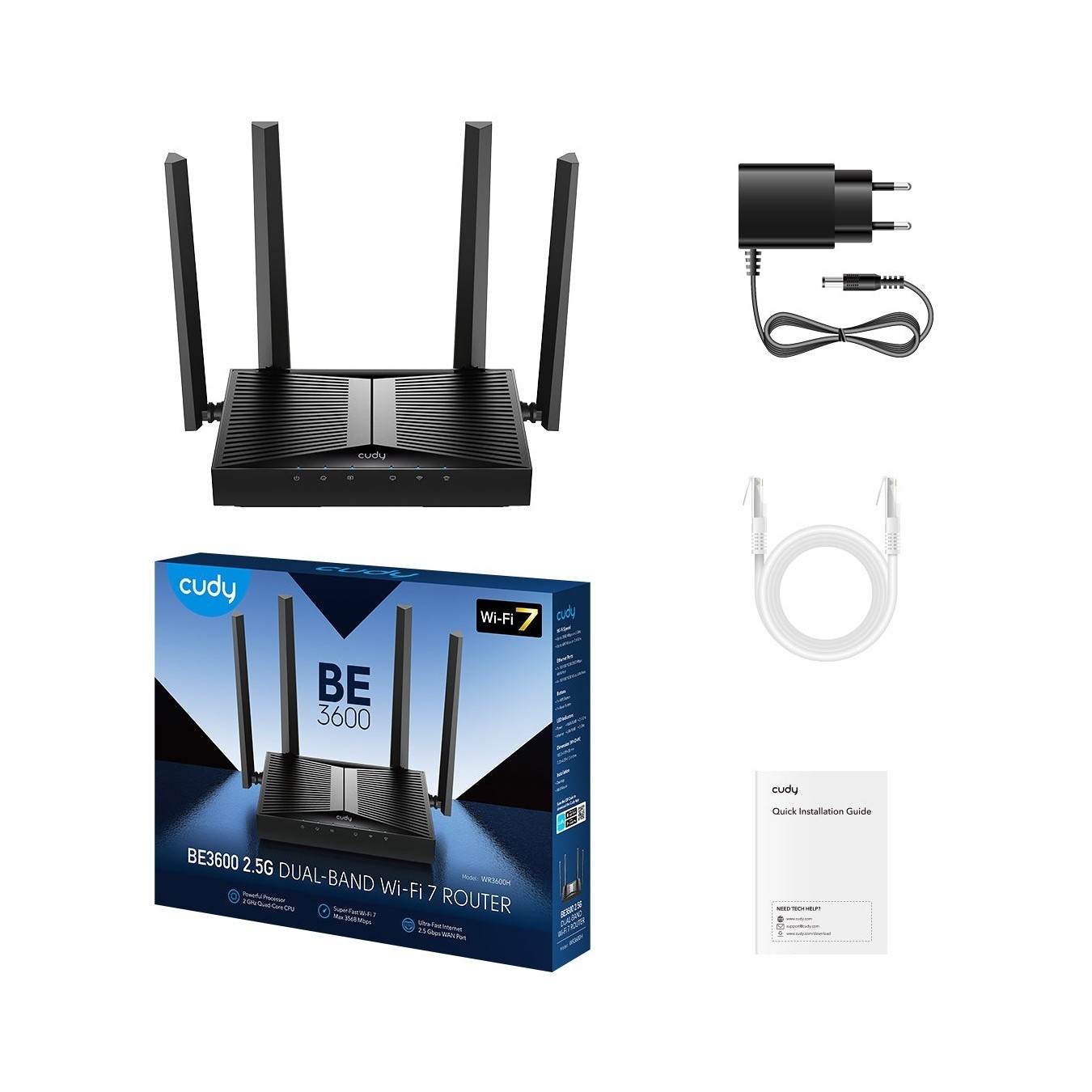

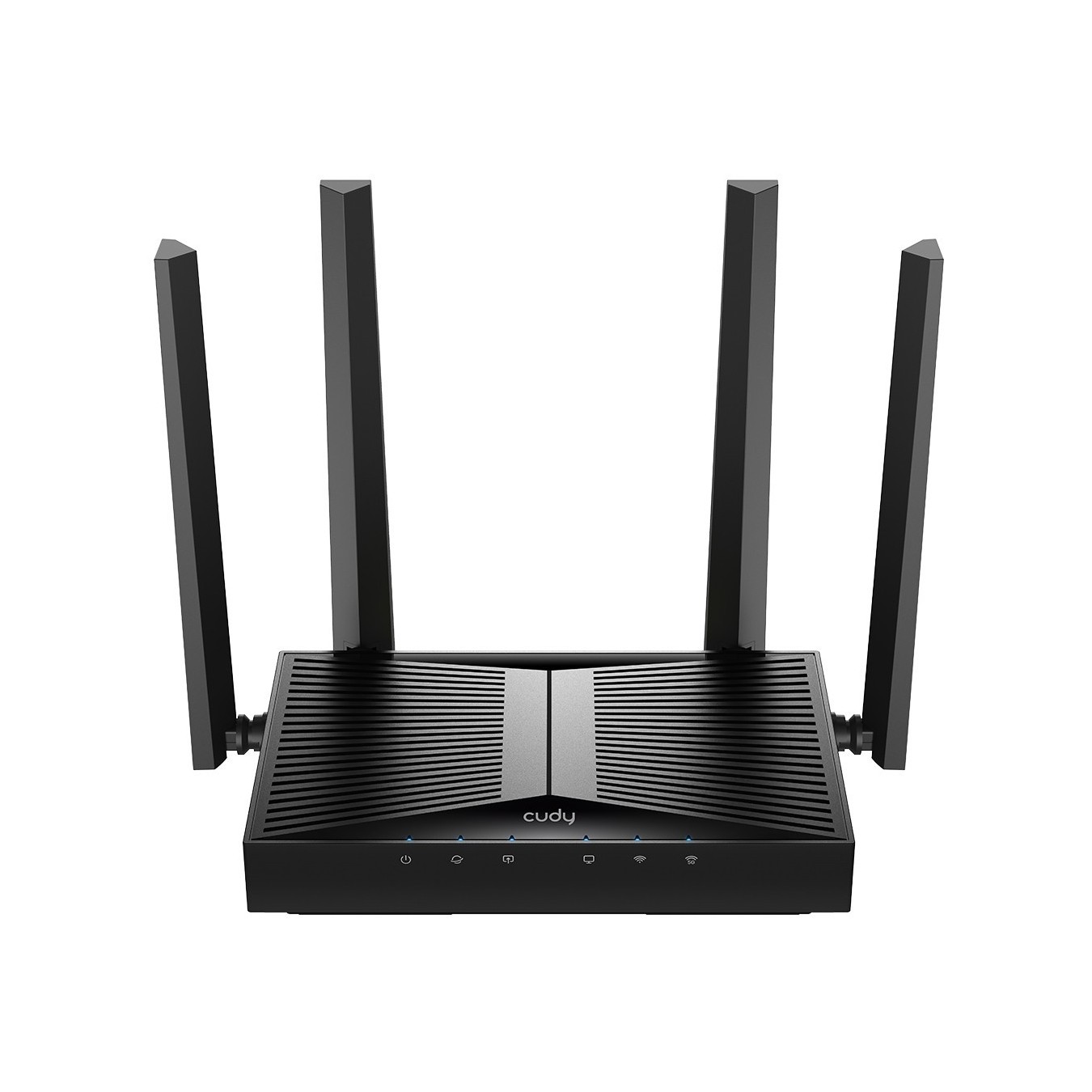

Cudy WR3600 BE3600 Wi-Fi 7 Dual-Band Gigabit Router (Boxed)
Cudy WR3600 BE3600 Wi-Fi 7 dual-band mesh router with 3.6 Gbps aggregate speed, 5 Gigabit ports, beamforming, OFDMA, and WPA3 security for gaming and large homes.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Mesh System Wireless Router |
|---|---|
| Routers - Special Features | Beamforming Guest Network MU-MIMO OFDMA QoS WPA3 Security |
| Routers - LAN Ports | 5-8 |
| Routers - Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Routers - Bands | Dual-band (2.4+5 GHz) |
The Cudy WR3600 BE3600 is a dual-band Wi-Fi 7 router delivering 3.6 Gbps aggregate wireless speed (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz). Featuring a Broadcom quad-core 2 GHz processor and 512 MB DDR3L RAM, this router supports up to 200 recommended connected devices with a maximum capacity of 512 devices. The device includes 5 Gigabit Ethernet ports (1 WAN + 4 LAN) and supports Cudy Mesh for seamless network expansion.
Advanced Wi-Fi 7 technologies include OFDMA with Multi-RU for intelligent frequency allocation, Preamble Puncturing for interference resilience, and beamforming for optimized signal delivery. The router operates across 160 MHz channel width with 4K-QAM modulation and provides maximum range of 220 meters in open-space environments. Security is ensured through WPA/WPA2/WPA3 protocols, with additional features including dual guest networks (2.4 GHz and 5 GHz), WPS, and per-user QoS rate limiting.
Key specifications:
- Wi-Fi Standard: Wi-Fi 7 (802.11be)
- Bands: Dual-band (2.4 GHz / 5 GHz)
- Processor: Broadcom Quad-Core 2 GHz ARM Cortex A7
- Memory: 512 MB DDR3L RAM, 128 MB Flash
- Antennas: 4× Fixed external antennas (2T2R MIMO per band)
- Power: 12V/1A DC input (100-240V AC)
- Operating Temperature: 0-40°C
- Dimensions (Device): 183.3 × 109 × 38 mm
- Weight (Device): 332g
| WAN Connection Type | RJ-45 Gigabit Ethernet |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Bands | Dual-band (2.4 GHz / 5 GHz) |
| 5 GHz Speed | 2882 Mbps |
| 2.4 GHz Speed | 688 Mbps |
| Aggregate Speed | 3.6 Gbps |
| 5 GHz Streams | 2T2R (2×2 MIMO) |
| 2.4 GHz Streams | 2T2R (2×2 MIMO) |
| Max Wi-Fi Channel Width | 160 MHz |
| Max Wi-Fi Modulation | 4K-QAM |
| Antennas Quantity | 4 |
| Antenna Design | Fixed External |
| Antenna Gain Level (Max) | 5.5 dBi |
| Beamforming | Yes |
| OFDMA | Yes (Multi-RU) |
| Preamble Puncturing | Yes |
| Range Performance | Max 220 m (722 ft) in open-space environments |

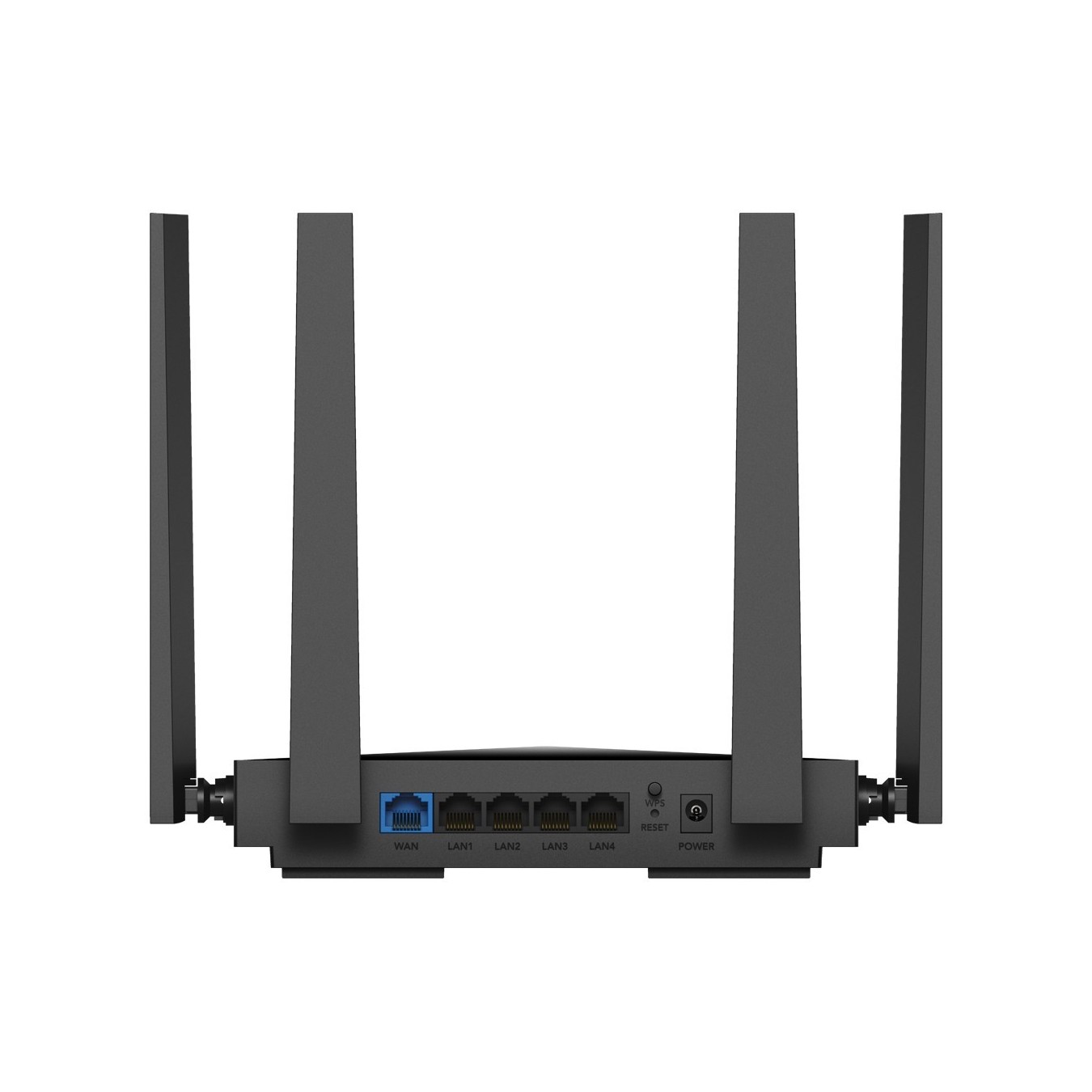

| LAN Ports | 5 Gigabit Ethernet (1 WAN + 4 LAN) |
| Ethernet LAN Data Rates | 10, 100, 1000, 2500 Mbps |
| Max Capacity | 512 devices |
| Recommended Client Upper Limit | 200 devices |
| Security Algorithms | WPA, WPA2, WPA3 |
| Guest Network | Yes (2.4 GHz and 5 GHz) |
| WPS | Yes |
| QoS | Per-User Rate Limiting |
| Mesh Support | Cudy Mesh |
| Multi-Band Backhaul | Yes |
| Processor | Broadcom Quad-Core 2 GHz ARM Cortex A7 |
| RAM | 512 MB DDR3L |
| Flash Memory | 128 MB |
| Power Input | 12V/1A DC (100-240V AC, 50/60 Hz) |
| Operating Temperature | 0-40°C |
| Storage Temperature | -40-70°C |
| Operating Humidity | 10-90% |
| Storage Humidity | 5-90% |
| Device Width | 183.3 mm |
| Device Depth | 109 mm |
| Device Height | 38 mm |
| Device Weight | 332 g |
| Product Type | Tabletop Router |
| Product Color | Black |
| LED Indicators | LAN, Power, WAN, WLAN |
| Compliance Certificates | CE, FCC |
| Cables Included | LAN (RJ-45) |
