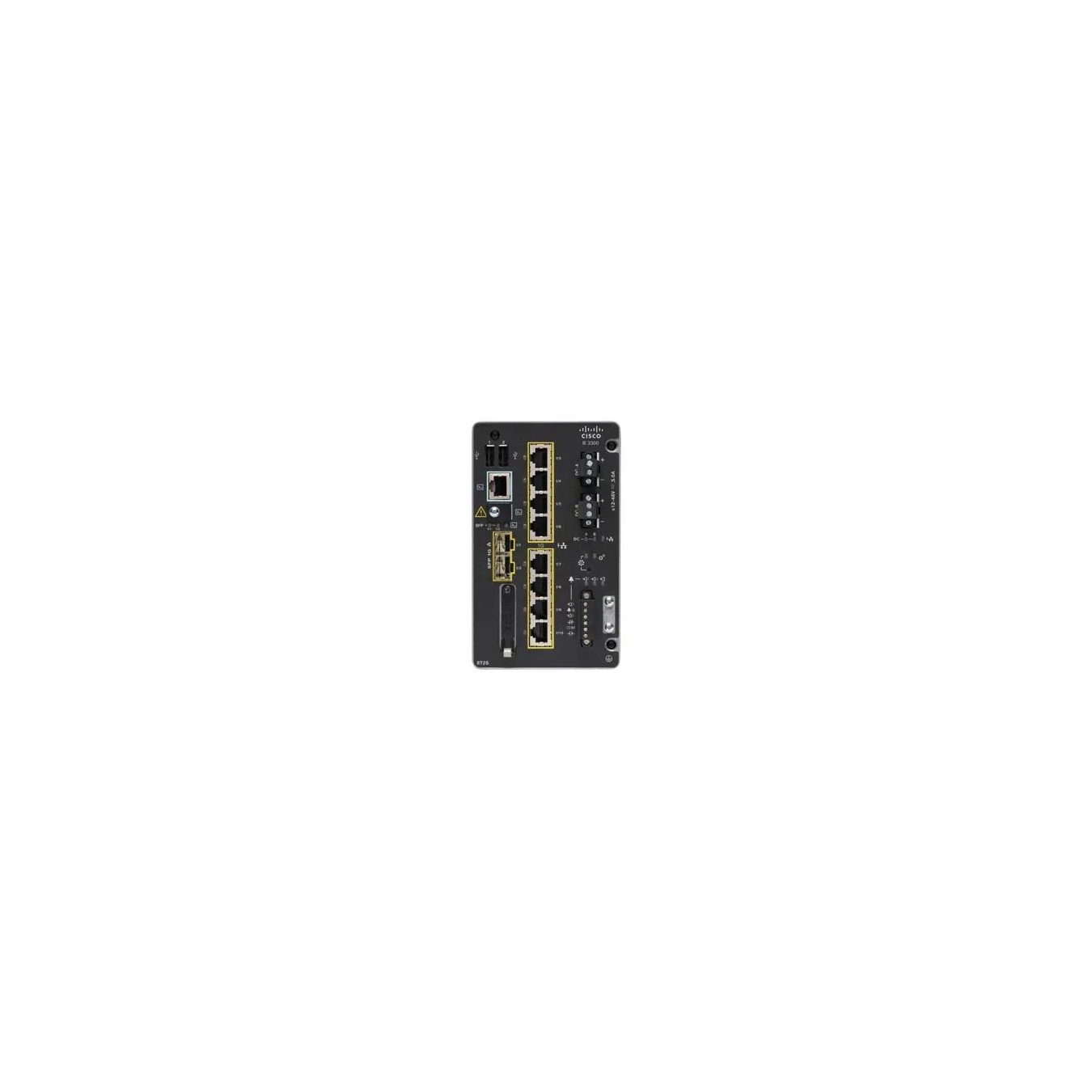

Cisco Catalyst - IE3300 - Rugged Series
Cisco Catalyst IE-3300-8T2S-E. Managed Layer 2 switch with 8 Gigabit copper ports and 2 SFP slots, rack-mountable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco Catalyst IE-3300-8T2S-E. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. USB 2.0 ports quantity: 2. Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 1588. IEEE 802.11ac. IEEE 802.11n. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE.... DC input voltage: 9.6 - 60 V. Power connector: DC-in jack. Rack mounting
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Redundant power supply (RPS) support |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 2 |
| Compatible memory cards | SD |
| Power connector | DC-in jack |
| Number of VLANs | 256 |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Jumbo frames | 8996 |
| DHCP features | DHCP server |
| Access Control List (ACL) ingress | 3000 |
| IGMP entries | 1000 |
| Security algorithms | 802.1x RADIUS. SNMPv3. SSH |
| Authentication | Guest VLAN. MAC-based authentication |
| Authentication type | IEEE 802.1x. RADIUS. TACACS+ |
| Management protocols | IEEE 802.1. 802.3 standard. NTP. UDLD. CDP. LLDP. unicast MAC filter. PAgP. LACP VTPv2. VTPv3. EtherChannel. voice VLAN. PVST+. MSTP. and RSTP |
| Switching protocols | IGMPv1. v2. v3 snooping. IGMP filtering. IGMP querier |
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Internal memory | 2000 MB |
| Flash memory | 1500 MB |
| Mean time between failures (MTBF) | 633420 h |
| DC input voltage | 9.6 - 60 V |
| Input current | 3.8 A |
| Power consumption (typical) | 23 W |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 4572 m |
| Width | 91 mm |
| Depth | 135 mm |
| Height | 152 mm |
| Weight | 1.7 kg |
| Certification | UL. BSMI CNS 13438 Class A. CISPR 24. cUL. EN55022. IEC 61000-4-2. IEC 61000-4-3. IEC 61000-4-4. IEC 61000-4-5. NOM. VCCI Class A ITE. IEC 60950. EN55 |
| Harmonized System (HS) code | 85176990 |
