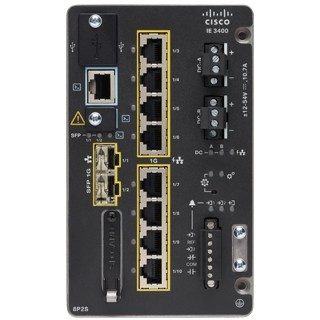

Cisco CAT - IE3400 - WITH 8GE POE POE+
Managed Cisco Catalyst switch with 8 PoE+ Gigabit ports, 2 SFP fiber ports, L2/L3 routing, rack-mountable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco Catalyst IE3400. Switch type: Managed. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Console port: RJ-45/Mini-USB. MAC address table: 8000 entries. Networking standards: IEEE 1588. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE.... DC input voltage: 9.6 - 60 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Console port | RJ-45/Mini-USB |
| Power connector | DC-in jack |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 256 |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| DHCP features | DHCP server. DHCP snooping |
| IGMP entries | 1000 |
| Security algorithms | 802.1x RADIUS. HTTPS. SNMP. SNMPv3. SSH |
| Routing protocols | BGP. BGP4. EIGRP. IS-IS. OSPF. RIP. RIP-1. RIP-2 |
| Product colour | Black |
| Memory type | DRAM |
| Internal memory | 4000 MB |
| Flash memory | 1500 MB |
| Mean time between failures (MTBF) | 414313 h |
| DC input voltage | 9.6 - 60 V |
| Input current | 10.6 A |
| Power consumption (typical) | 47 W |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 101.6 mm |
| Depth | 127 mm |
| Height | 152.4 mm |
| Weight | 2.27 kg |
| Harmonized System (HS) code | 85176990 |
