Cudy Mesh Router - AX3000 - Gigabit Wi-Fi 6 Mesh Router

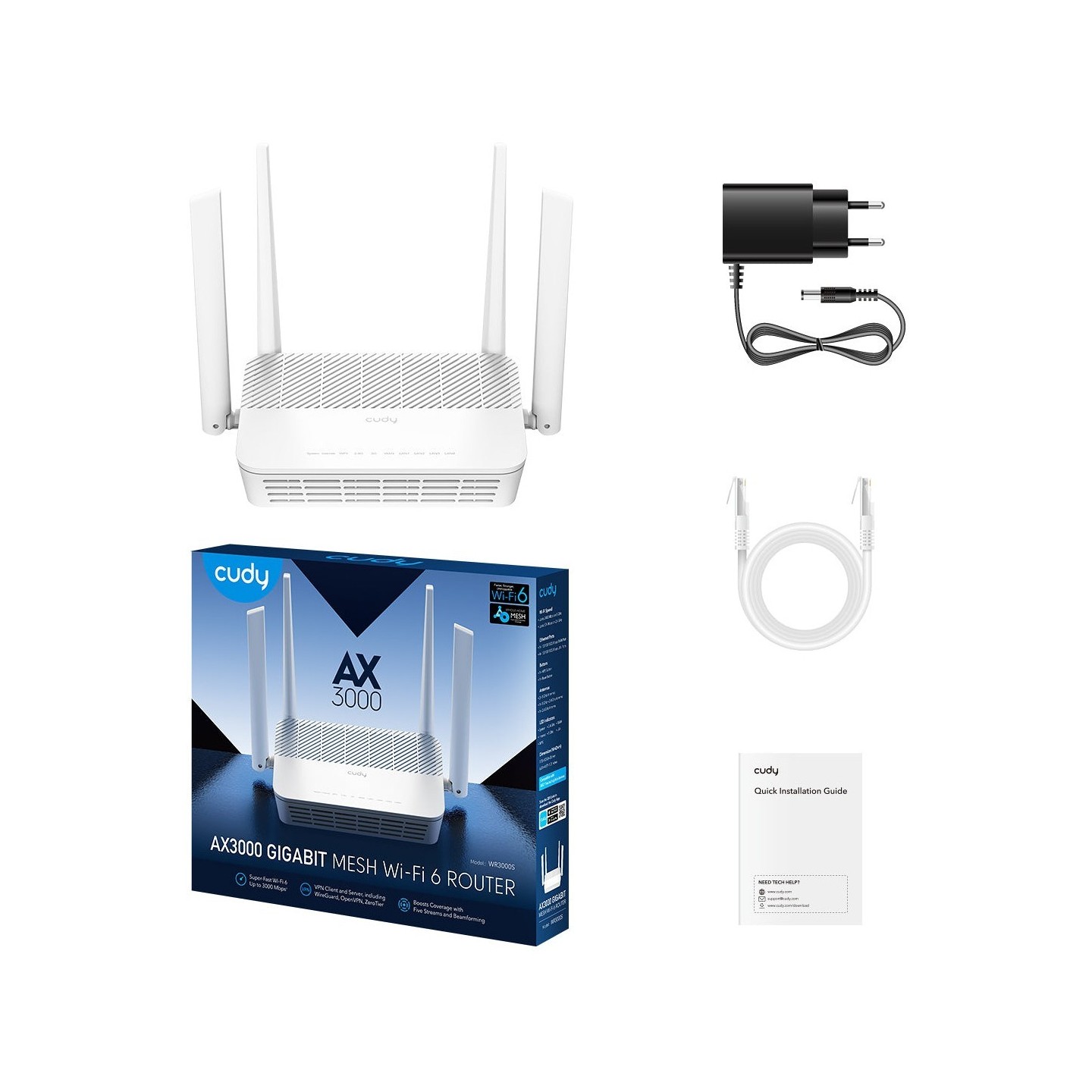

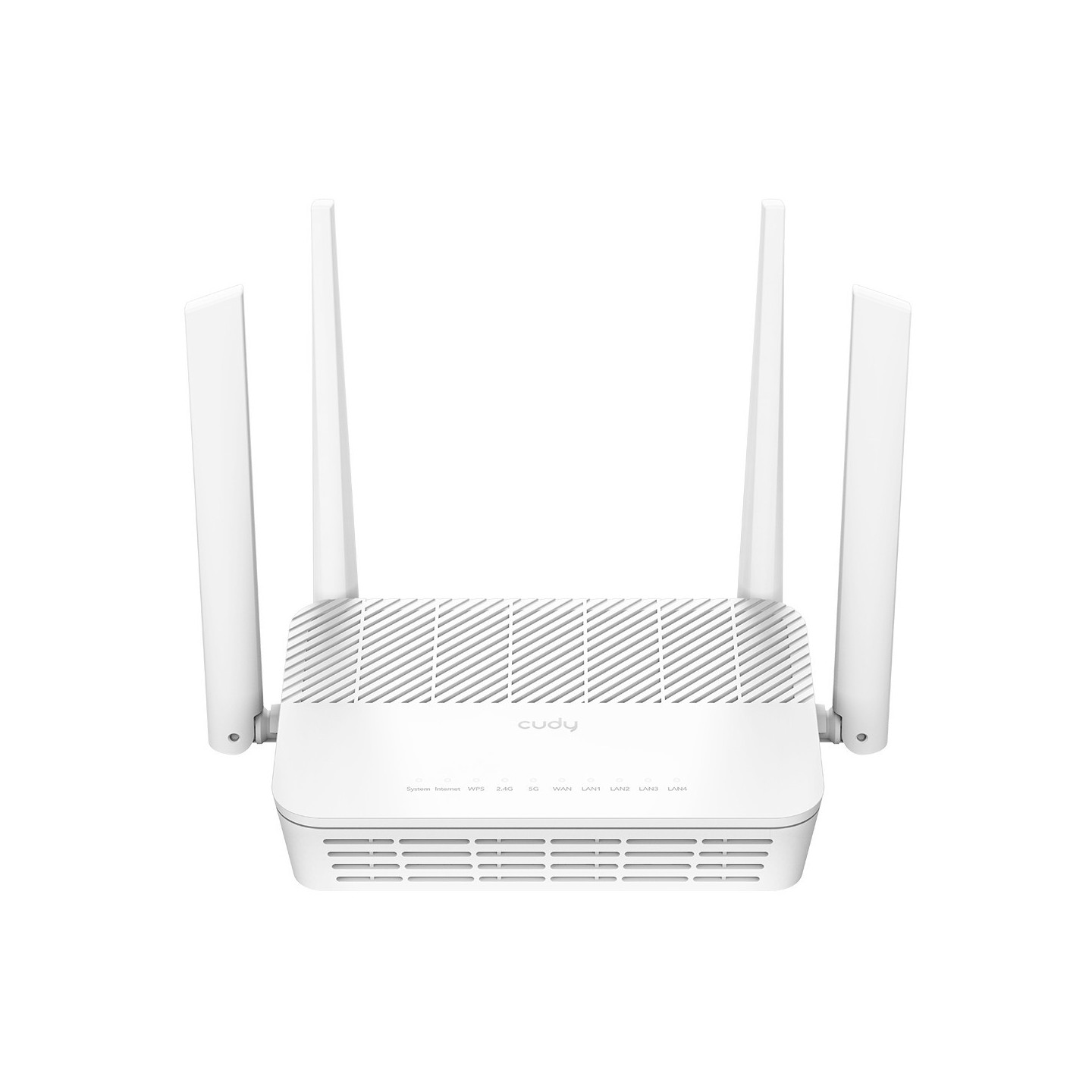

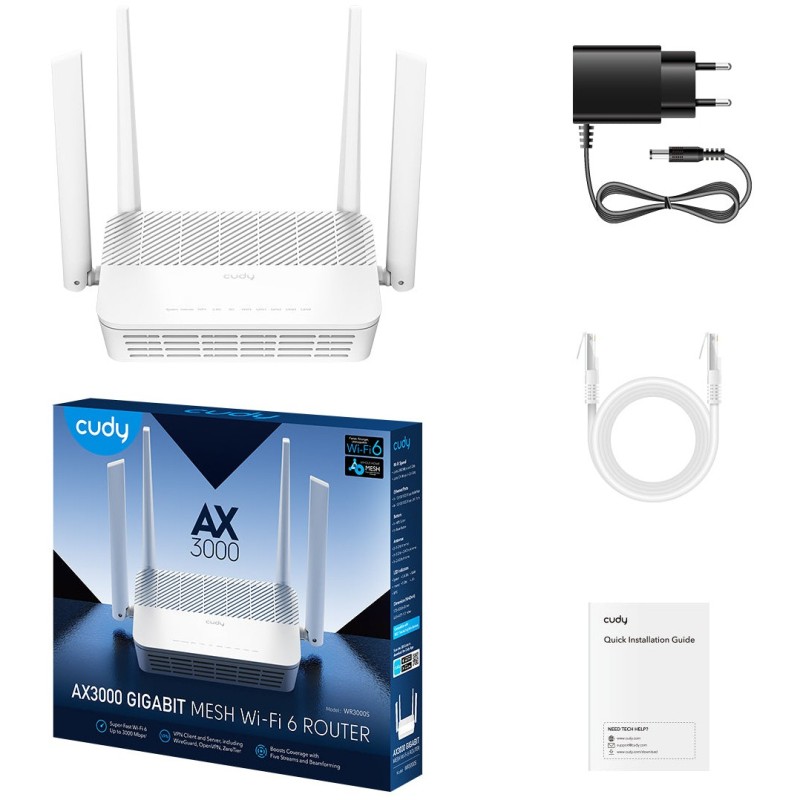

Cudy AX3000 mesh router with dual-band Wi-Fi 6, 4 Gigabit LAN ports, 4 external antennas, white desktop/pole router.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Routers - Wi-Fi Standard | Wi-Fi 6 |
|---|---|
| Routers - Bands | Dual-band (2.4+5 GHz) |
| Routers - VPN | Server (OpenVPN/WireGuard/PPTP/L2TP) |
| Routers - LAN Ports | 4 |
| Routers - USB Ports | None |
| Routers - Antennas | 4x External |
Cudy AX3000. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Top Wi-Fi standard: Wi-Fi 6 (802.11ax). WLAN data transfer rate (max): 2976 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet. Ethernet LAN data rates: 10.100.1000 Mbit/s. Cabling technology: 10/100/1000Base-T(X). Number of data streams: 2x2. Security algorithms: WPA. WPA2. WPA3
| Feature | Built-in processor |
| WAN connection type | RJ-45 |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2976 Mbit/s |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Modulation | 1024-QAM. OFDMA |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| VPN server | WireGuard. OpenVPN. IPsec. Zerotier. PPTP. L2TP |
| Ethernet LAN (RJ-45) ports | 4 |
| Number of data streams | 2x2 |
| Security algorithms | WPA. WPA2. WPA3 |
| Product colour | White |
| LED indicators | LAN. System. WAN. WLAN. WPS |
| Product type | Desktop/pole router |
| Certification | FCC. CE |
| Cables included | LAN (RJ-45) |
| Antenna design | External |
| Antenna gain level (max) | 5.3 dBi |
| Antennas quantity | 4 |
| Processor architecture | ARM Cortex-A53 |
| Processor frequency | 1300 MHz |
| Processor cores | 2 |
| Internal memory | 256 MB |
| Internal memory type | DDR3 |
| Flash memory | 128 MB |
| Number of simultaneously connected devices (max) | 200 |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 12 V |
| Output current | 1 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 173 mm |
| Depth | 123.8 mm |
| Height | 33 mm |
| Weight | 329.4 g |
| Package width | 304 mm |
| Package depth | 54 mm |
| Package height | 268 mm |
| Package weight | 725 g |
| Package type | Box |
| Number of products included | 1 pc(s) |
