DeepCool CG580 4F Mid-Tower ATX Case White (Boxed)
Mid-tower ATX PC case with panoramic tempered glass panel, supports up to 360mm radiators, includes 4 ARGB PWM fans, and accommodates standard gaming components.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm 240 mm 280 mm 360 mm |
| PC Cases - Included Fans | 4+ |
| PC Cases - Front I/O | Audio Combo Jack USB A USB C Gen2 |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | White |
| PC Cases - CPU Cooler Clearance | 170+ mm |

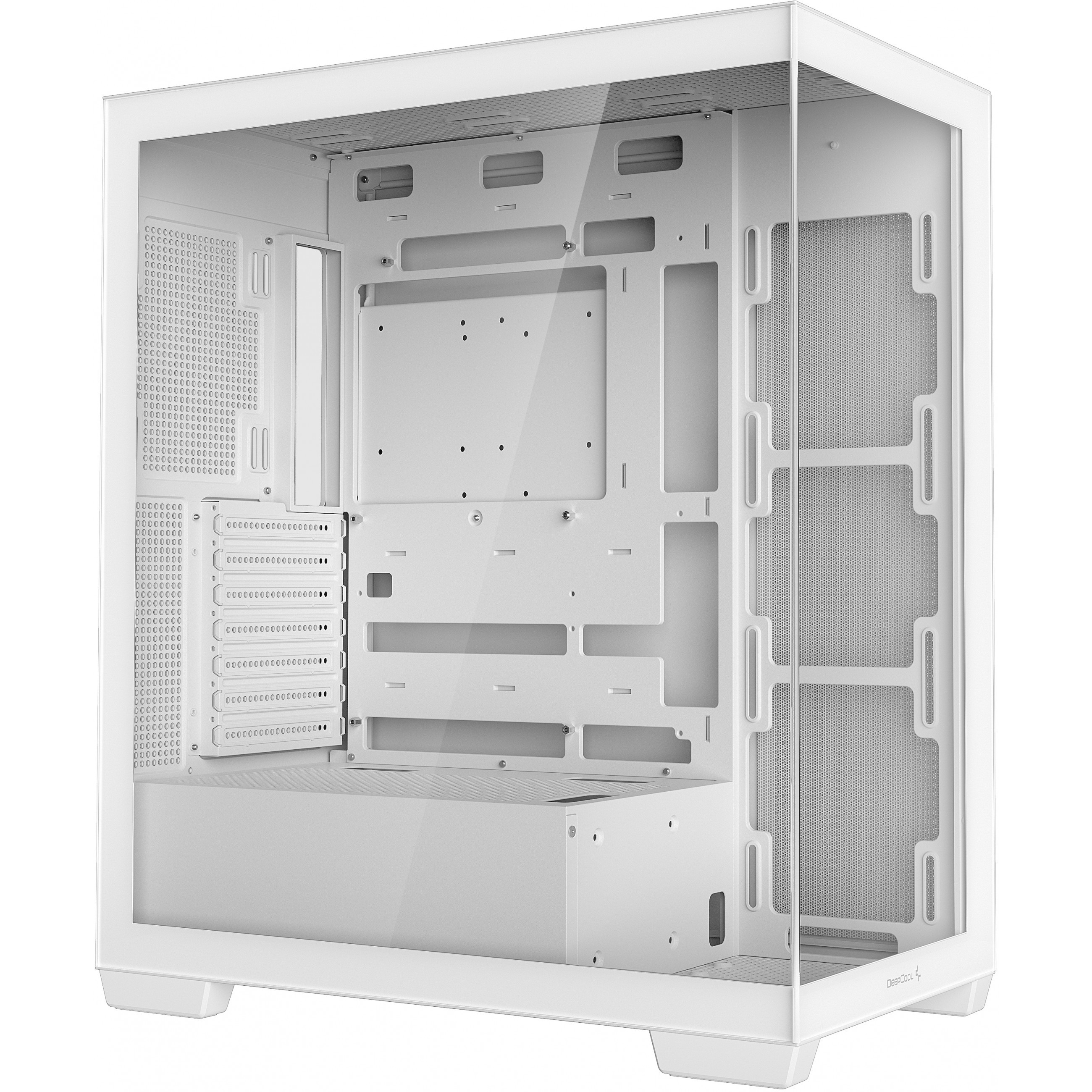

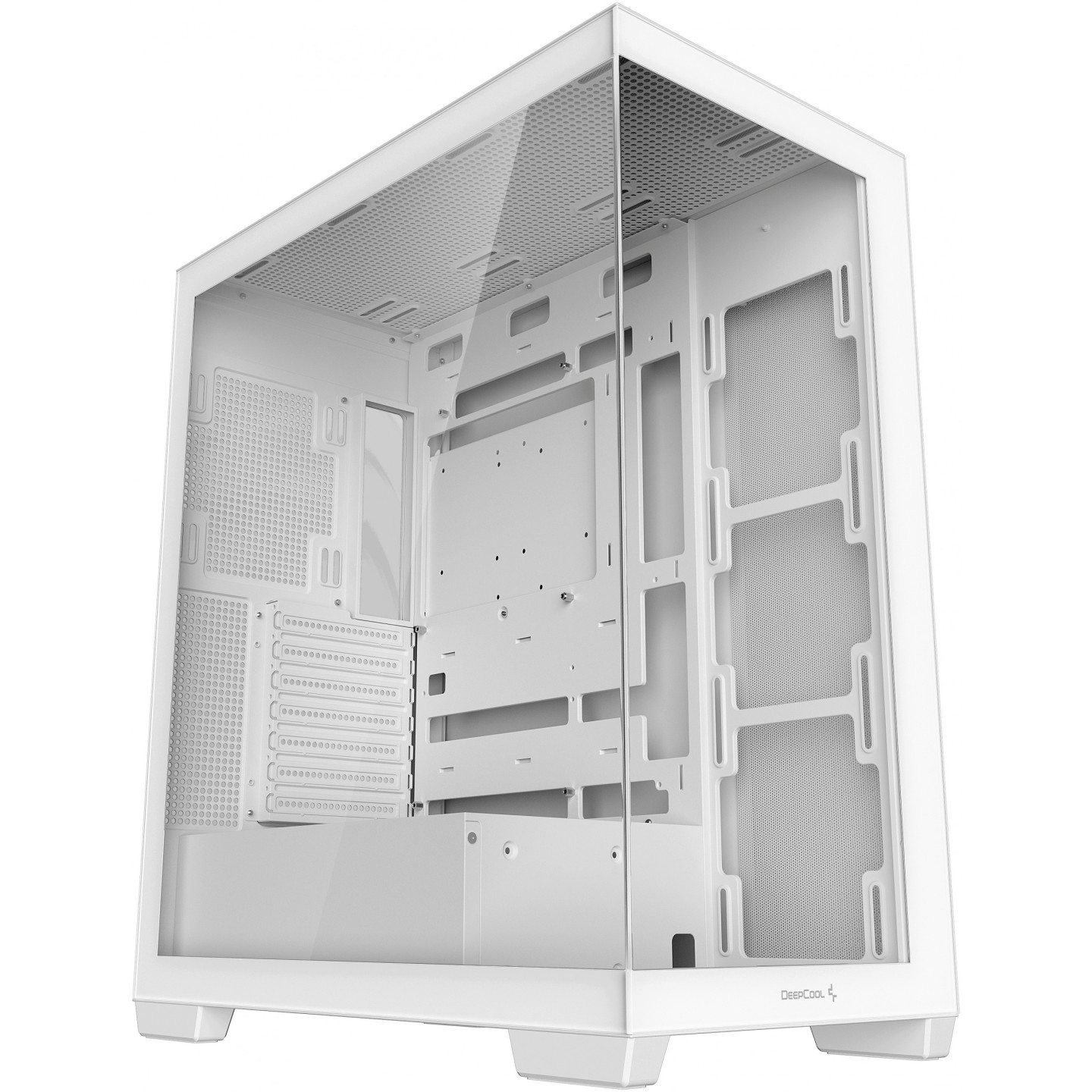

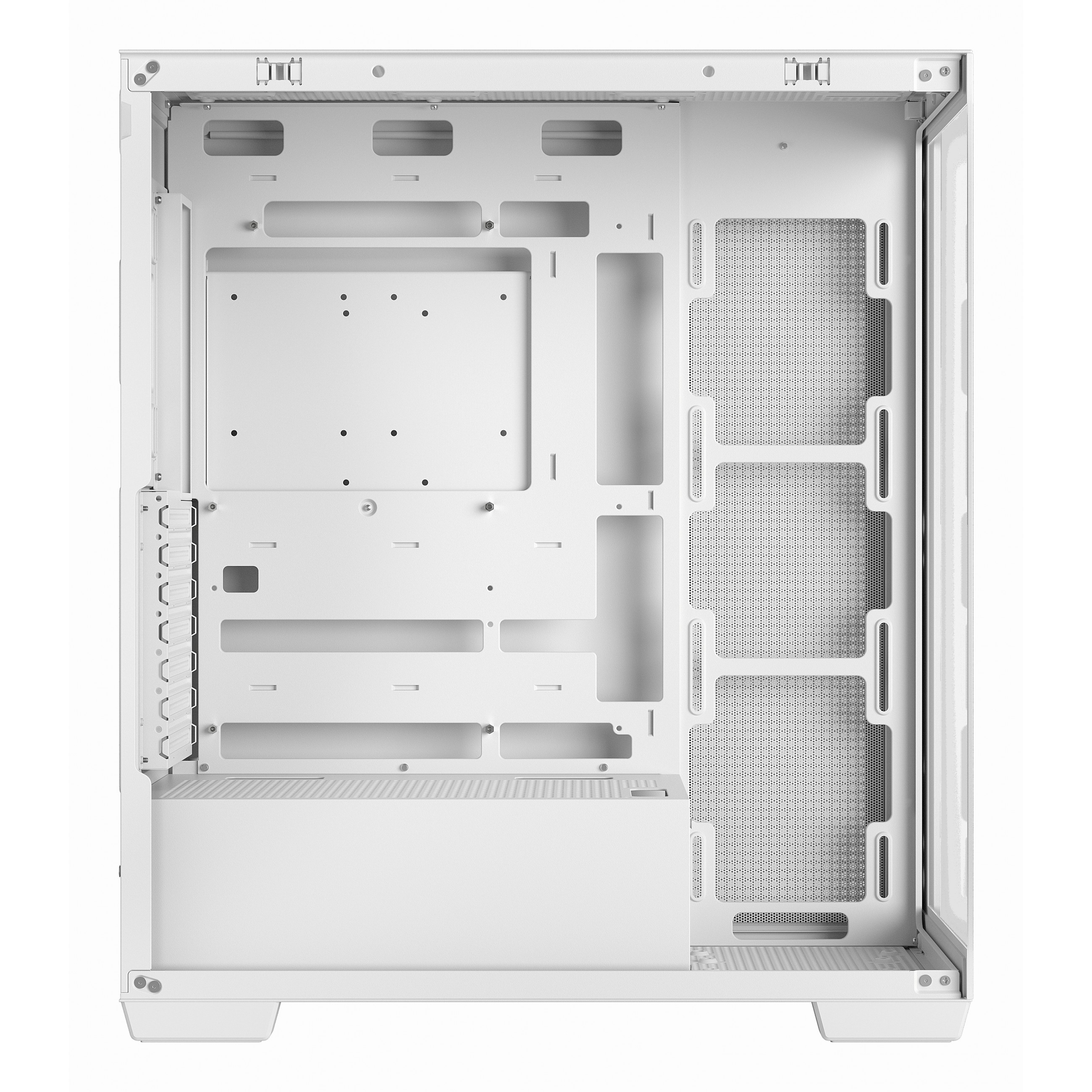

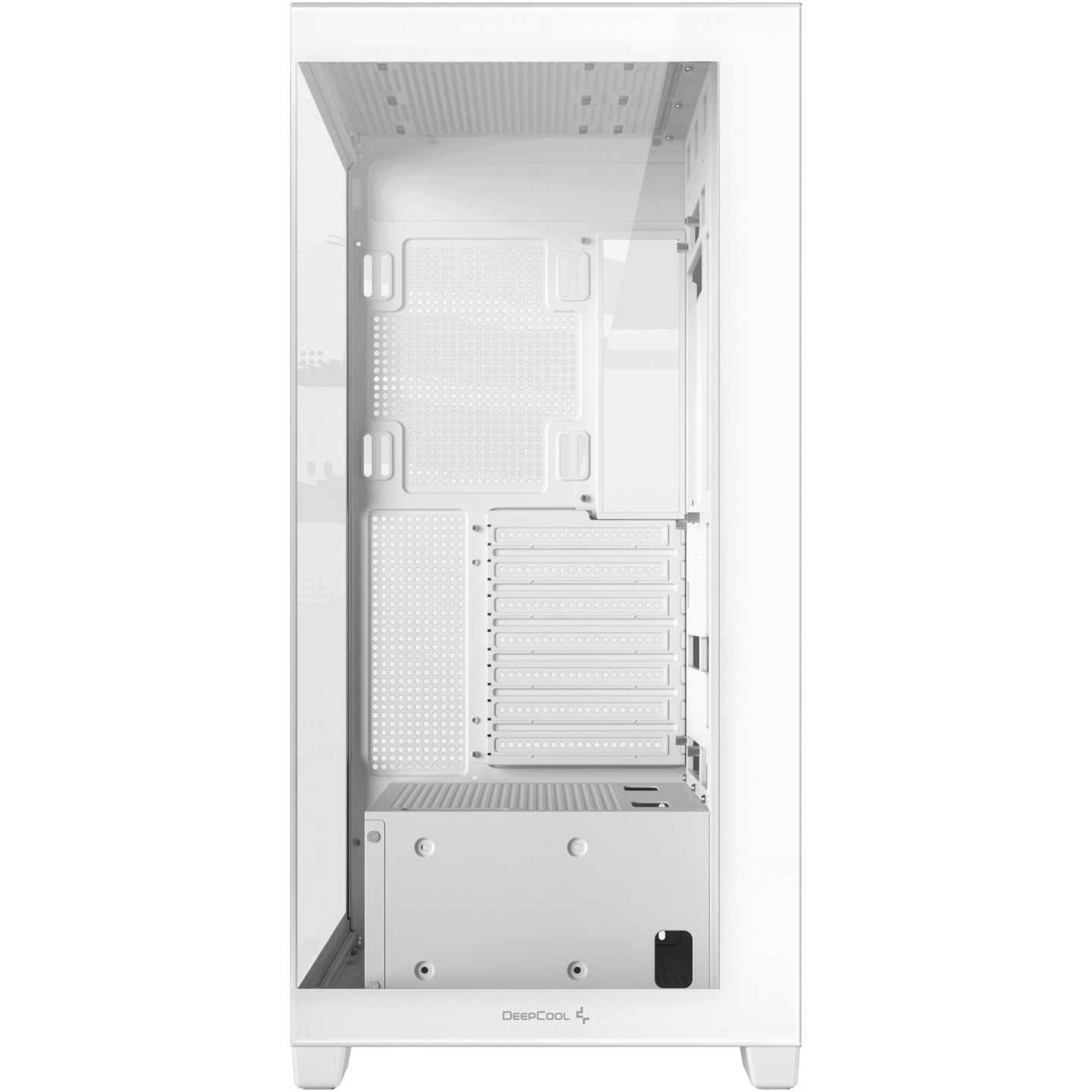

The DeepCool CG580 4F is a mid-tower ATX case featuring a distinctive single-chamber panoramic design with a large tempered glass side panel that showcases internal components. Constructed from SGCC steel, ABS plastic, and tempered glass, this case provides an excellent balance of aesthetics and functionality for modern PC builds. The case comes pre-installed with 4 ARGB PWM fans (3×120mm side fans and 1×120mm rear fan) for immediate cooling capability.
This case supports ATX, Micro-ATX, and Mini ITX motherboards, making it compatible with a wide range of builds. It accommodates CPU coolers up to 176mm in height, graphics cards up to 410mm in length (262mm with side-mounted AIO), and power supplies up to 210mm. The CG580 4F offers extensive radiator support including 360mm radiators on the top and side panels, along with 140mm radiators on the rear, making it ideal for custom water cooling enthusiasts. The front panel includes USB 3.0 ports, USB Type-C Gen2, and a combo audio jack for convenient connectivity.
Key Features:
- Panoramic tempered glass side panel for component visibility
- Pre-installed 4 ARGB PWM fans for immediate use
- Support for up to 360mm radiators (top/side) and 140mm (rear)
- Accommodates CPU coolers up to 176mm and GPUs up to 410mm
- 2×3.5" HDD bays and 2×2.5" SSD bays for storage flexibility
- 7 PCIe expansion slots for graphics cards and expansion cards
- Integrated cable management with routing channels behind motherboard tray
- Front I/O: 2×USB 3.0, 1×USB Type-C Gen2, Audio&Mic combo jack
| Type | Mid-Tower ATX Case |
| Color | White |
| Material | ABS + SGCC Steel + Tempered Glass |
| Dimensions (Internal) | 437mm (L) × 235mm (W) × 501mm (H) |
| Weight (Unboxed) | 8.7 kg |
| Motherboard Support | ATX, Micro-ATX, Mini ITX |
| Expansion Slots | 7 |
| 3.5 | 2 |
| 2.5 | 2 |
| Pre-Installed Fans | 4 (3×120mm side + 1×120mm rear, all PWM+ARGB) |
| Front Fan Support | None |
| Top Fan Support | 3×120mm or 2×140mm |
| Side Fan Support | 3×120mm |
| Rear Fan Support | 1×120mm or 1×140mm |
| Bottom Fan Support | 1×120mm (or 3.5 |
| Radiator Support (Top) | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support (Side) | 120mm, 240mm, 360mm |
| Radiator Support (Rear) | 120mm, 140mm |
| Radiator Support (Front) | None |
| Max CPU Cooler Height | 176mm |
| Max GPU Length | 410mm (262mm with side AIO installed) |
| Max PSU Length | 210mm |
| Front I/O Ports | 2×USB 3.0, 1×USB Type-C Gen2, Audio&Mic Combo Jack |
| Tempered Glass Panel | Yes (Panoramic side panel) |
| Dust Filters | Yes (Top & Bottom) |
| Cable Management | Yes (Integrated routing channels) |
| Power Supply Included | No |
| PSU Shroud | Yes (supports 2×120mm fans) |
