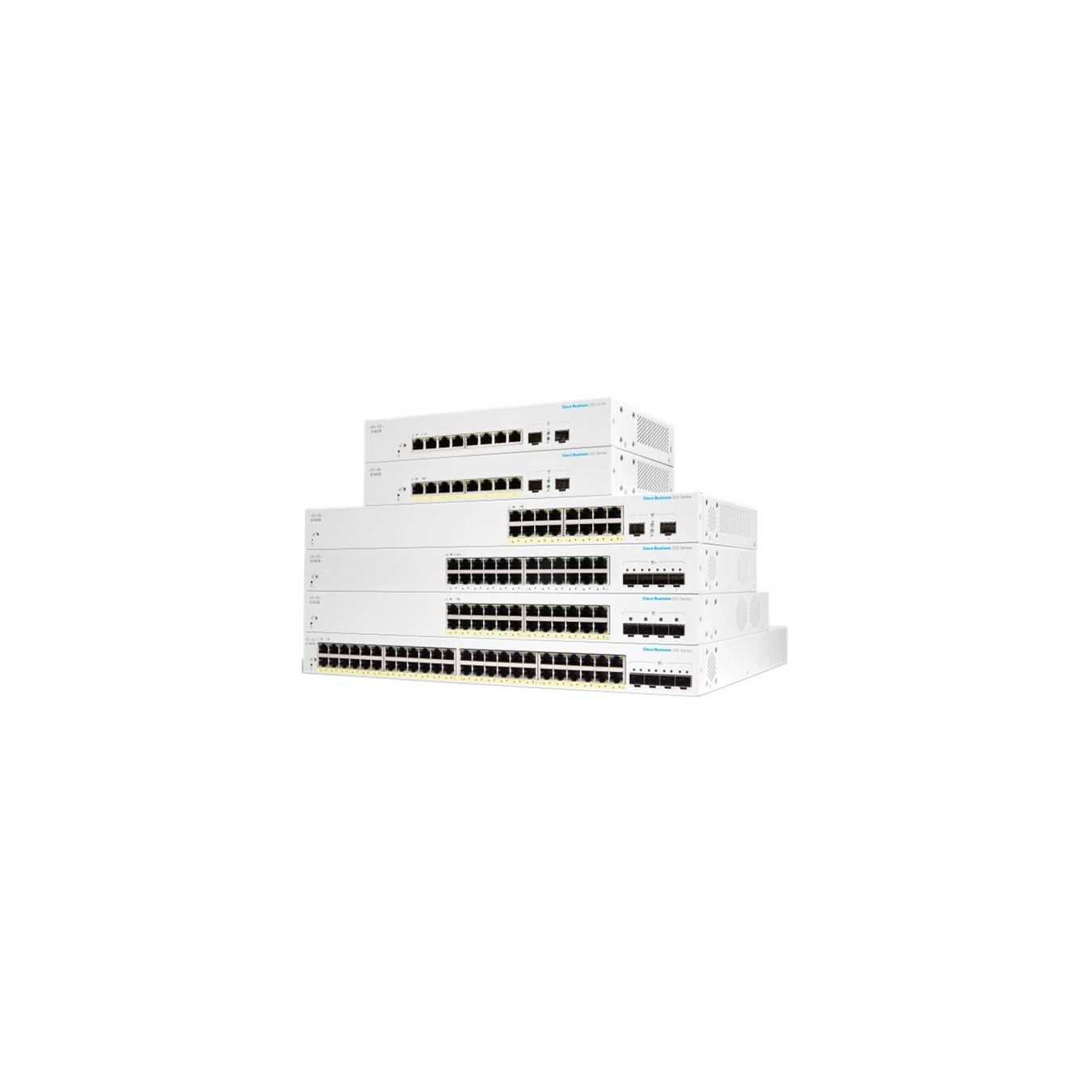

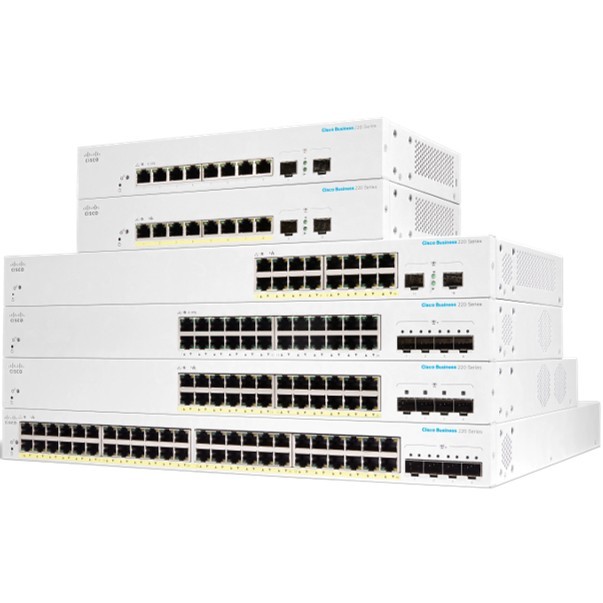

Cisco SMART 8-PORT GE FULL POE - CBS220 - SMART 8-PORT GE FULL POE
Cisco CBS220-8FP-E-2G-EU: Managed L2 switch with 8 PoE Gigabit ports and rack-mountable design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco CBS220-8FP-E-2G-EU. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8192 entries. Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3u. IEEE 802.3x. IEEE 802.3at. IEEE 802.3z..... Power over Ethernet (PoE). Rack mounting
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Networking standards | IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3u. IEEE 802.3x. IEEE 802.3at. IEEE 802.3z. IEEE 802.1D. IEEE 802.1w. IEEE 802.1x |
| Number of VLANs | 256 |
| Switching capacity | 20 Gbit/s |
| MAC address table | 8192 entries |
| Jumbo frames | 9216 |
| DHCP features | DHCP client |
| Access Control List (ACL) rules | 512 |
| IGMP entries | 256 |
| Security algorithms | SSL/TLS |
| Number of multicast groups filtered | 256 |
| Management protocols | SNMP |
| Product colour | White |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 130 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 516.6 BTU/h |
| Width | 279 mm |
| Depth | 170 mm |
| Height | 44 mm |
| Weight | 1.18 kg |
