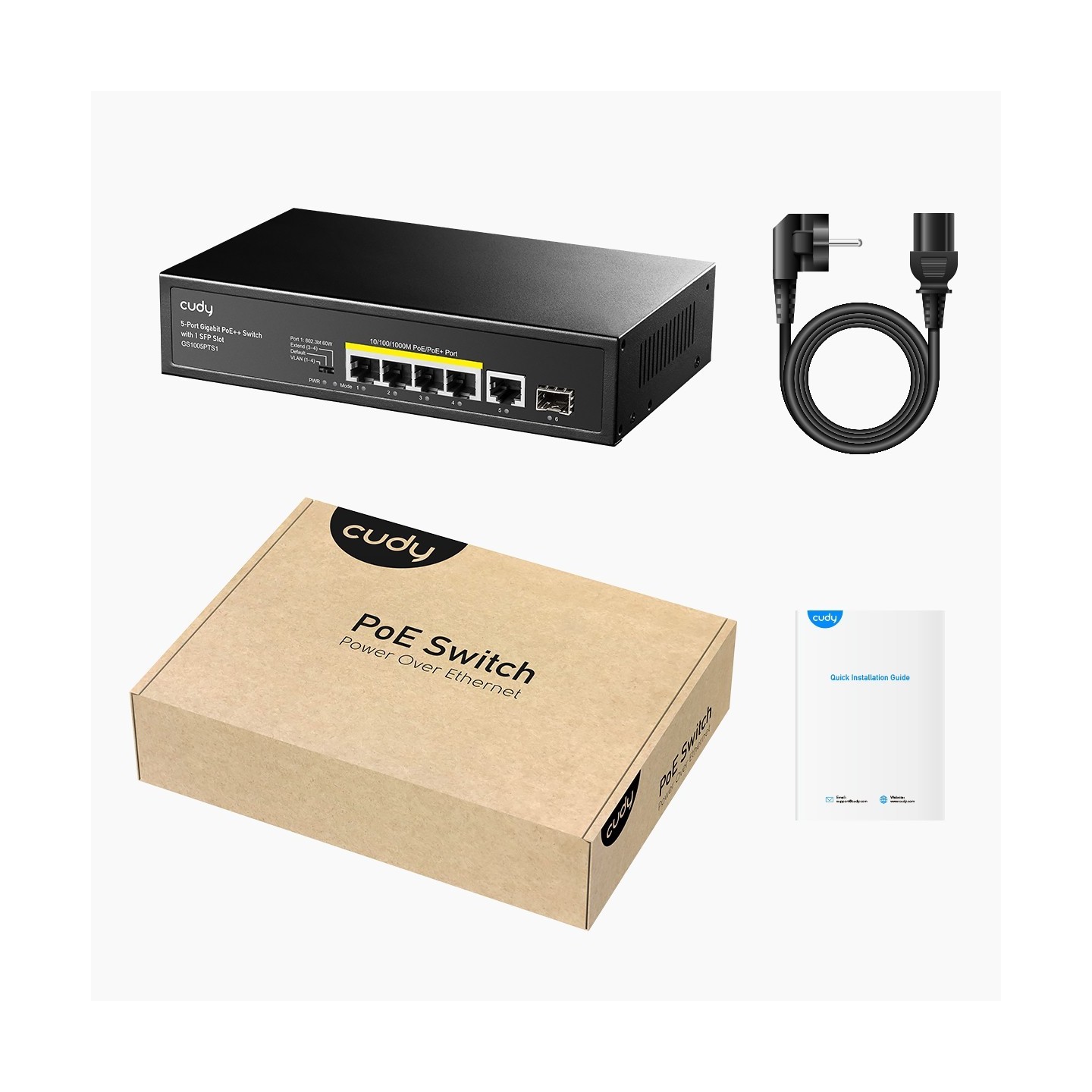

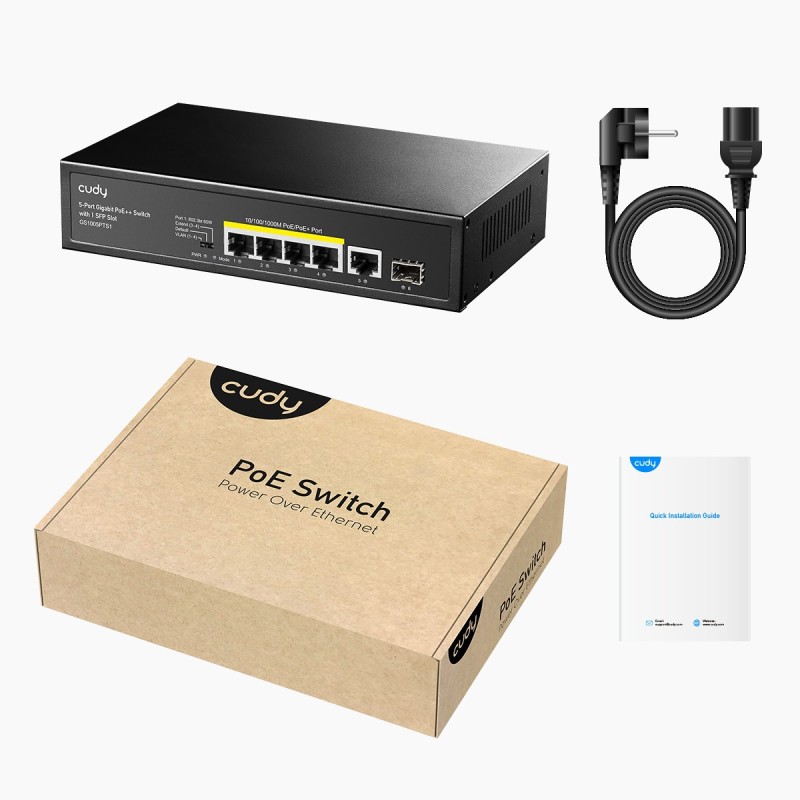

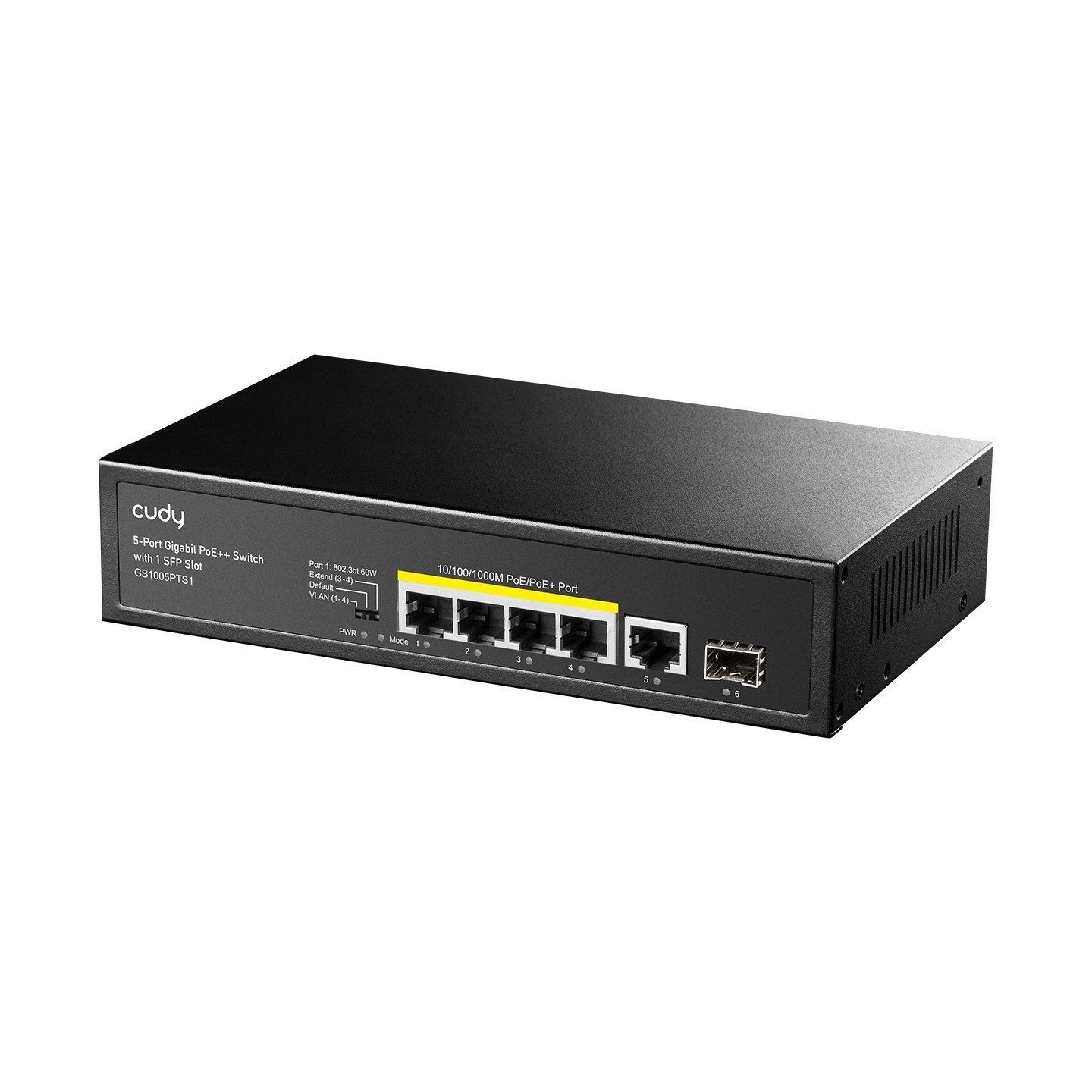

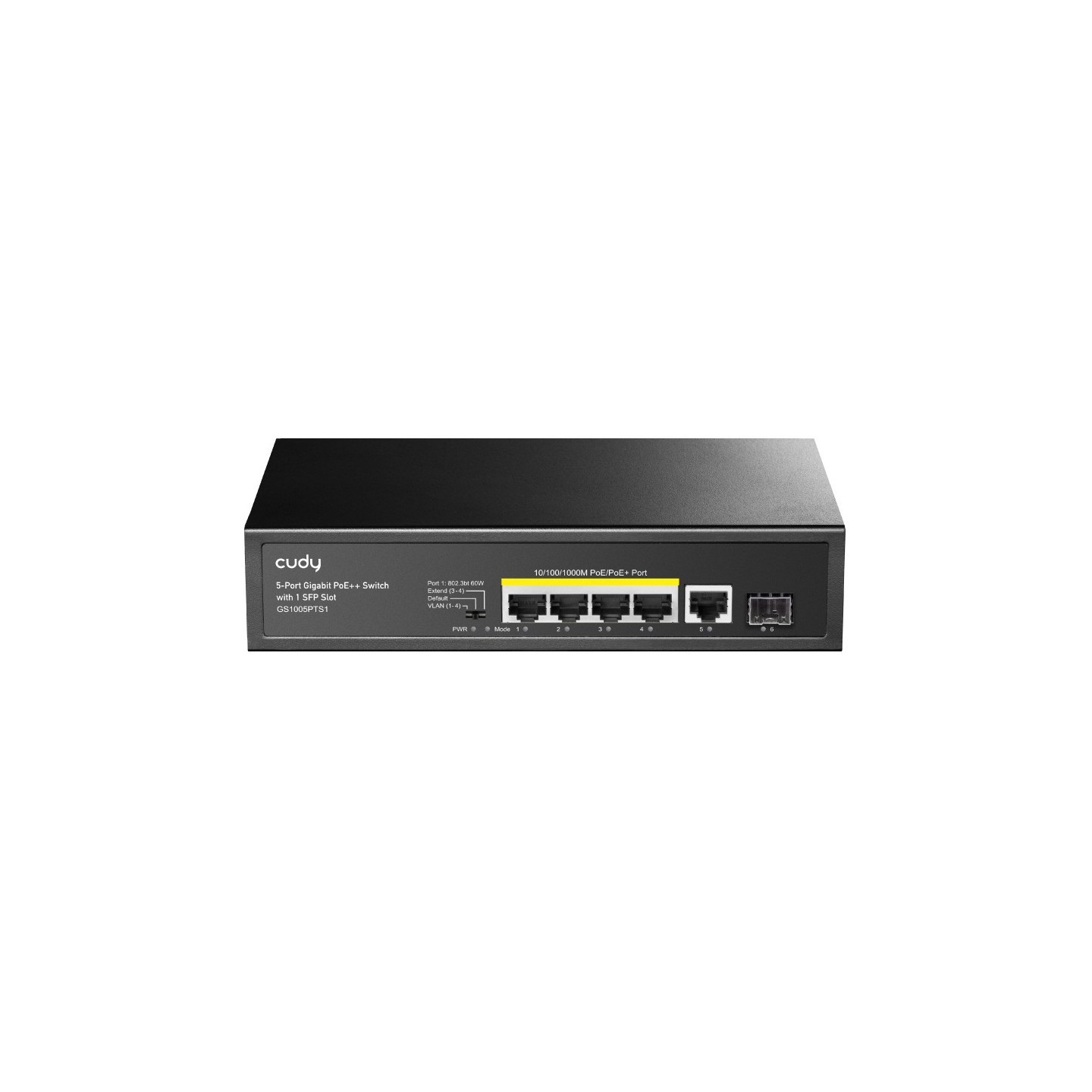

Cudy GS1005PTS1 - 5+1P PoE+ SFP
Compact Cudy switch with PoE+ and SFP, 5+1P configuration.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Ports | 5 |
|---|---|
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 61-130 W |
| Network Switches - Rackmount | Yes |
Cudy GS1005PTS1. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 5. Switching optical modules type: Gigabit Ethernet. Installed SFP modules quantity: 1. Full duplex. MAC address table: 2000 entries. Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. Power connector: AC-in jack. Power over Ethernet (PoE). Wall mountable. Rack mounting
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 1 |
| Combo SFP ports quantity | 1 |
| Uplink ports quantity | 1 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-TX |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e. Cat6. Cat6+. Cat6a. Cat6e. Cat7. Cat7e. Cat8. Cat8.1 |
| Feature | Manual |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Switching optical modules type | Gigabit Ethernet |
| Fiber type | Multi-mode |
| Switching capacity | 12 Gbit/s |
| Throughput | 8.928 Mpps |
| MAC address table | 2000 entries |
| Jumbo frames | 9216 |
| Packet buffer memory | 1 MB |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity. Link. Power |
| Mean time between failures (MTBF) | 100000 h |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Input current | 1.25 A |
| Output voltage | 52 V |
| Output current | 1.25 A |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3048 m |
| Width | 200 mm |
| Depth | 118 mm |
| Height | 44 mm |
| Weight | 600 g |
| Cables included | AC |
| Package type | Box |
| Package width | 245 mm |
| Package depth | 190 mm |
| Package height | 60 mm |
| Package weight | 900 g |
| Master (outer) case net weight | 19 kg |
| Master (outer) case width | 505 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 402 mm |
| Products per master (outer) case | 20 pc(s) |
