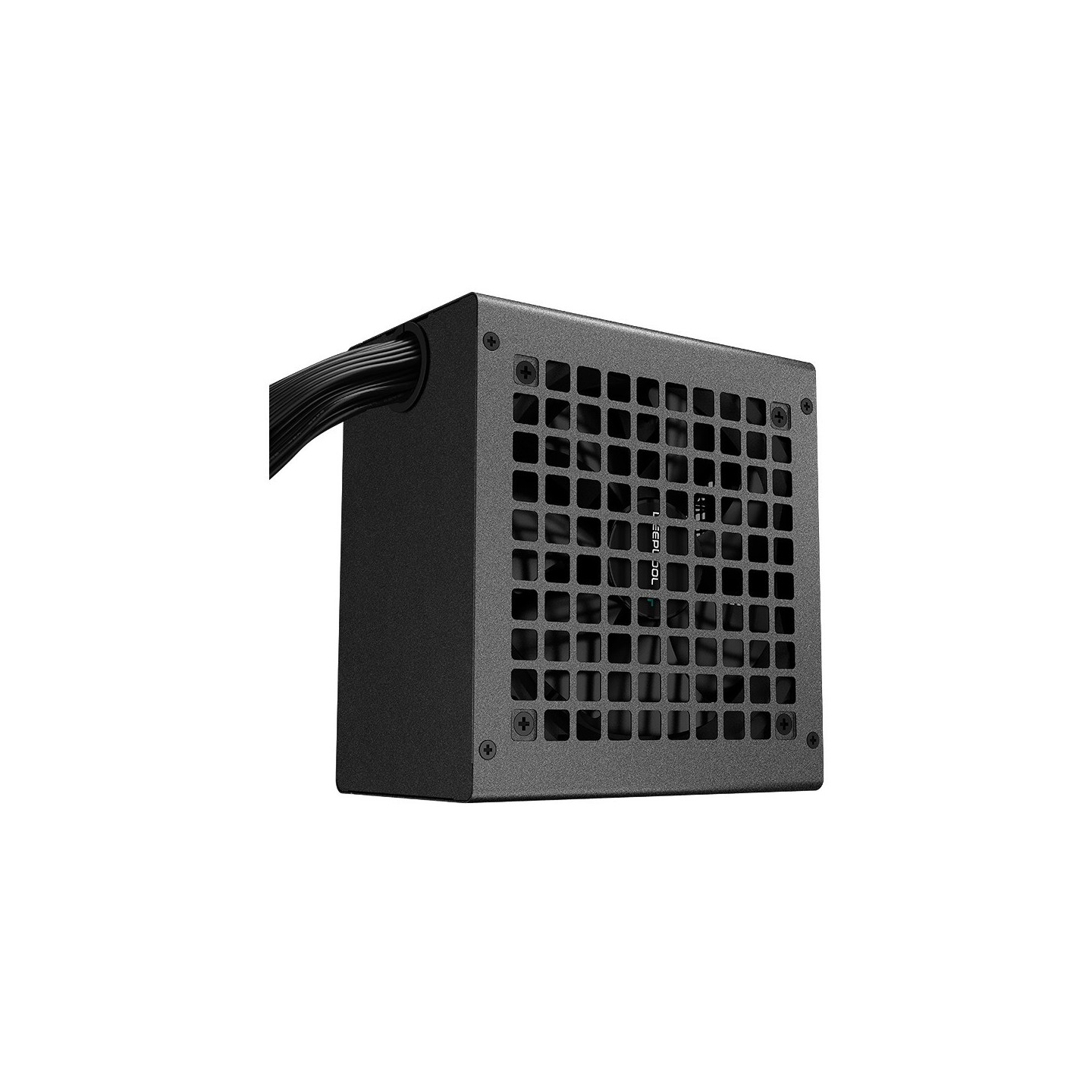

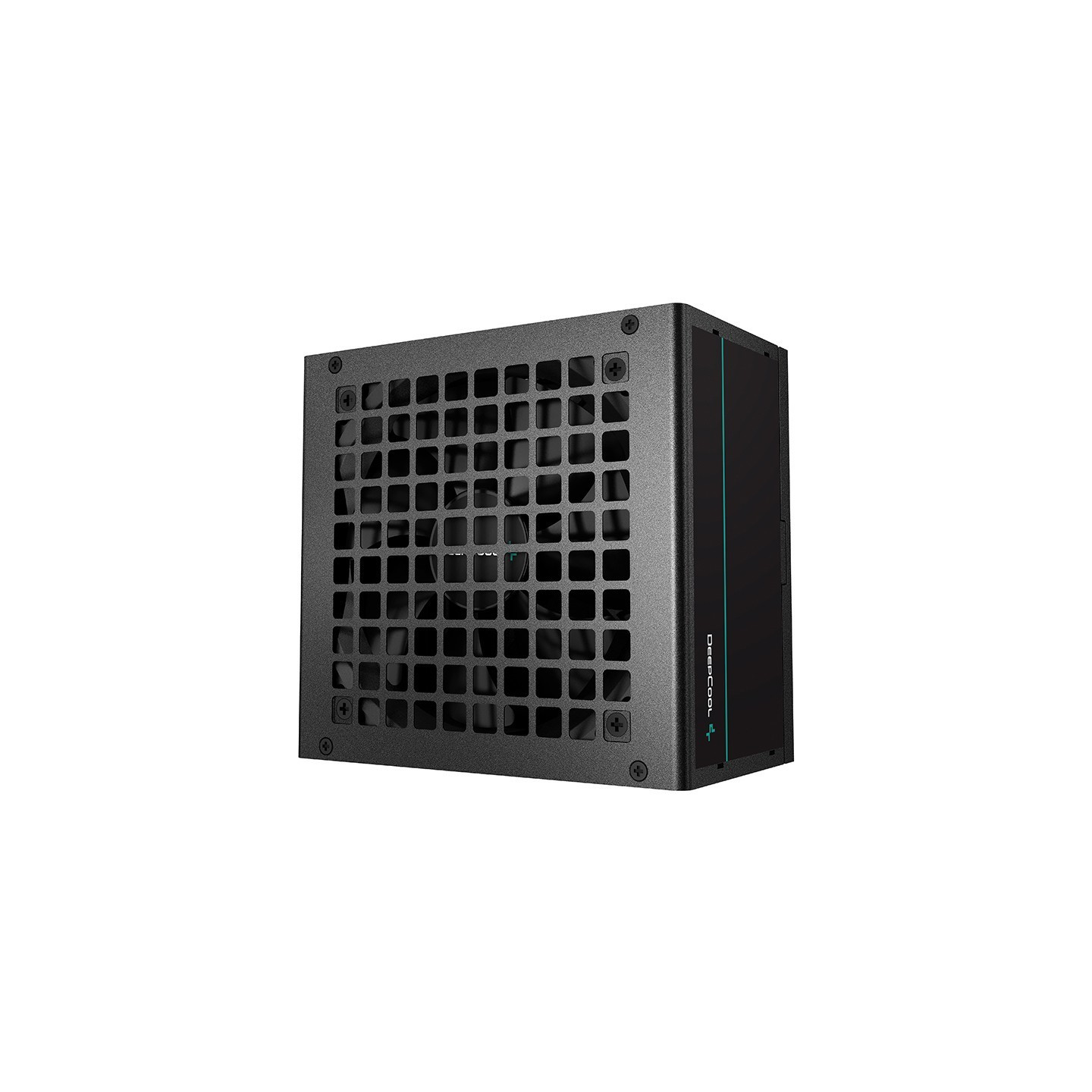

DeepCool PF750 750W 80 PLUS White ATX PSU Non-Modular (Boxed)
DeepCool PF750 750W non-modular ATX PSU with 80 PLUS White efficiency (85%), 230V input, Hypro Bearing 120mm fan, OPP/OVP/UVP/SCP protections, 6x SATA, 2x PCIe 6+2pin, black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus White |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |

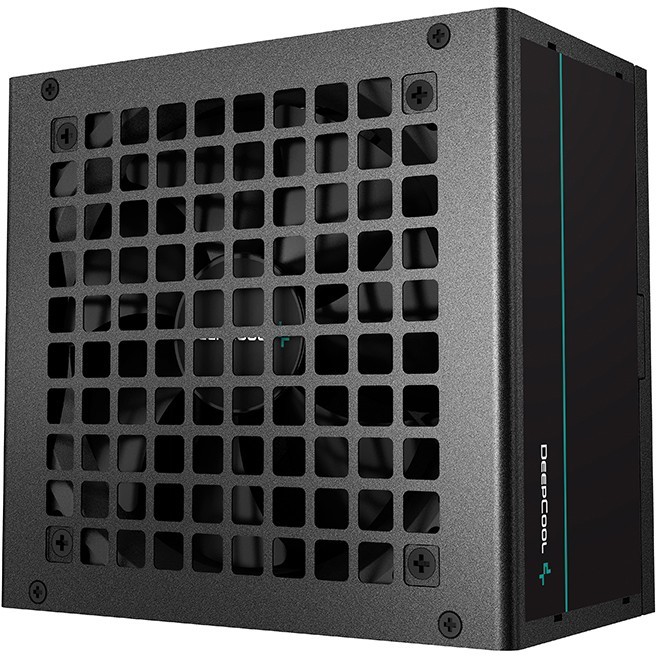

The DeepCool PF750 is a reliable 750W non-modular power supply designed for mid-range PC builds. It delivers stable power with 85% efficiency under typical loads, certified 80 PLUS White, and supports 230V AC input. Featuring a 120mm Hypro Bearing fan for active cooling and comprehensive protections including Over Power (OPP), Over Voltage (OVP), Under Voltage (UVP), and Short Circuit (SCP).
This ATX form factor PSU includes essential connectors: 20+4 pin ATX (55cm), 4+4 pin EPS for CPU, 2x PCIe 6+2 pin (on 2 cables for GPUs), 6x SATA (450mm cables), and 2x 4-pin Molex (900mm). Compact dimensions (150x140x86mm) fit most cases, with MTBF of 100,000 hours for durability. Ideal for gaming PCs without modular cable needs.
- Total Power: 750W
- Efficiency: 80 PLUS White (85%)

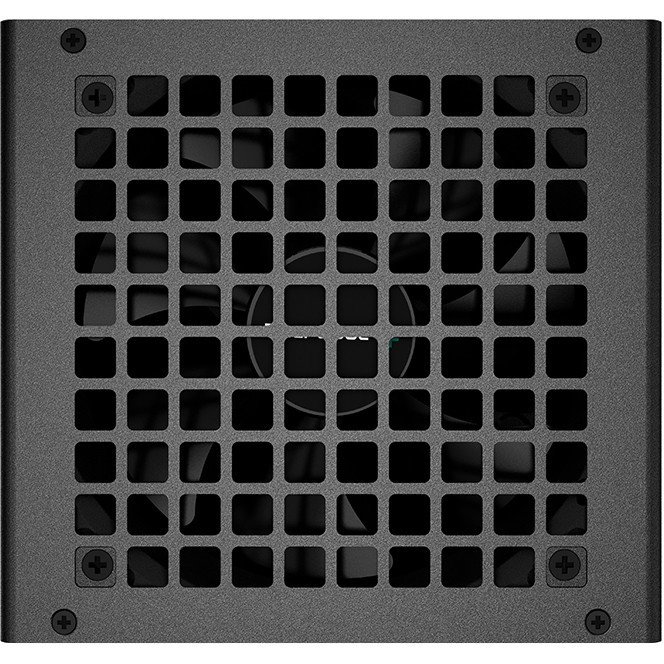

- Cooling: 120mm Hypro Bearing fan
- Connectors: 1x 20+4pin ATX, 1x 4+4pin EPS, 2x PCIe 6+2pin, 6x SATA, 2x Molex
- Protections: OPP, OVP, UVP, SCP
- Certifications: CB/CCC/CE/UKCA/EAC/RCM
| Total power | 750 W |
| AC input voltage | 230 V |
| Efficiency | 85% |
| Power protection features | Over power. Over voltage. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 450 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 900 mm |
| EPS/ATX12V connectors | 1x 4+4 pin |
| PCIe 6+2 pin connectors | 2 (2 cables) |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS White |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | Hypro Bearing |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 0 - 40 °C |
| Certification | CB/CCC/CE/UKCA/EAC/RCM |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
