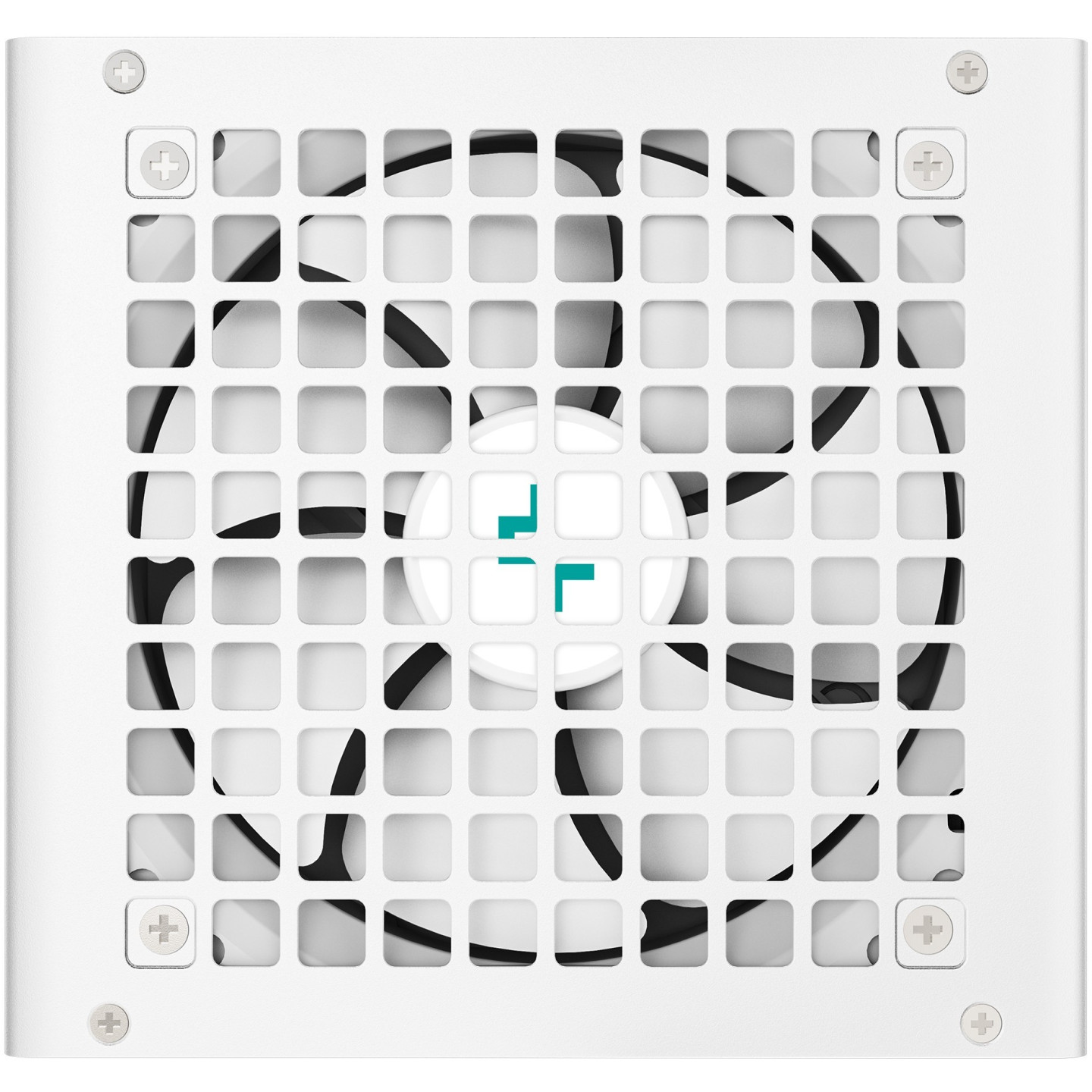

DeepCool PL750D 750W ATX 3.1 Non-Modular PSU - White (Boxed)
DeepCool PL750D 750W non-modular PSU with ATX 3.1 compliance, 80 PLUS Bronze/Cybenetics Silver certification, native PCIe 5.0 support, and 5-year warranty for stable PC power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze Cybenetics Silver |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12VHPWR 16-pin 3x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The DeepCool PL750D is a 750W non-modular power supply designed for budget-conscious PC builders seeking ATX 3.1 compliance and modern power delivery standards. This unit features a native PCIe 5.0 power connector rated for up to 300W, enabling support for the latest high-end graphics cards. With 80 PLUS Bronze and Cybenetics Silver efficiency ratings, the PL750D delivers an average efficiency of 85.834% across typical loads, ensuring reliable and stable power delivery for years of operation.

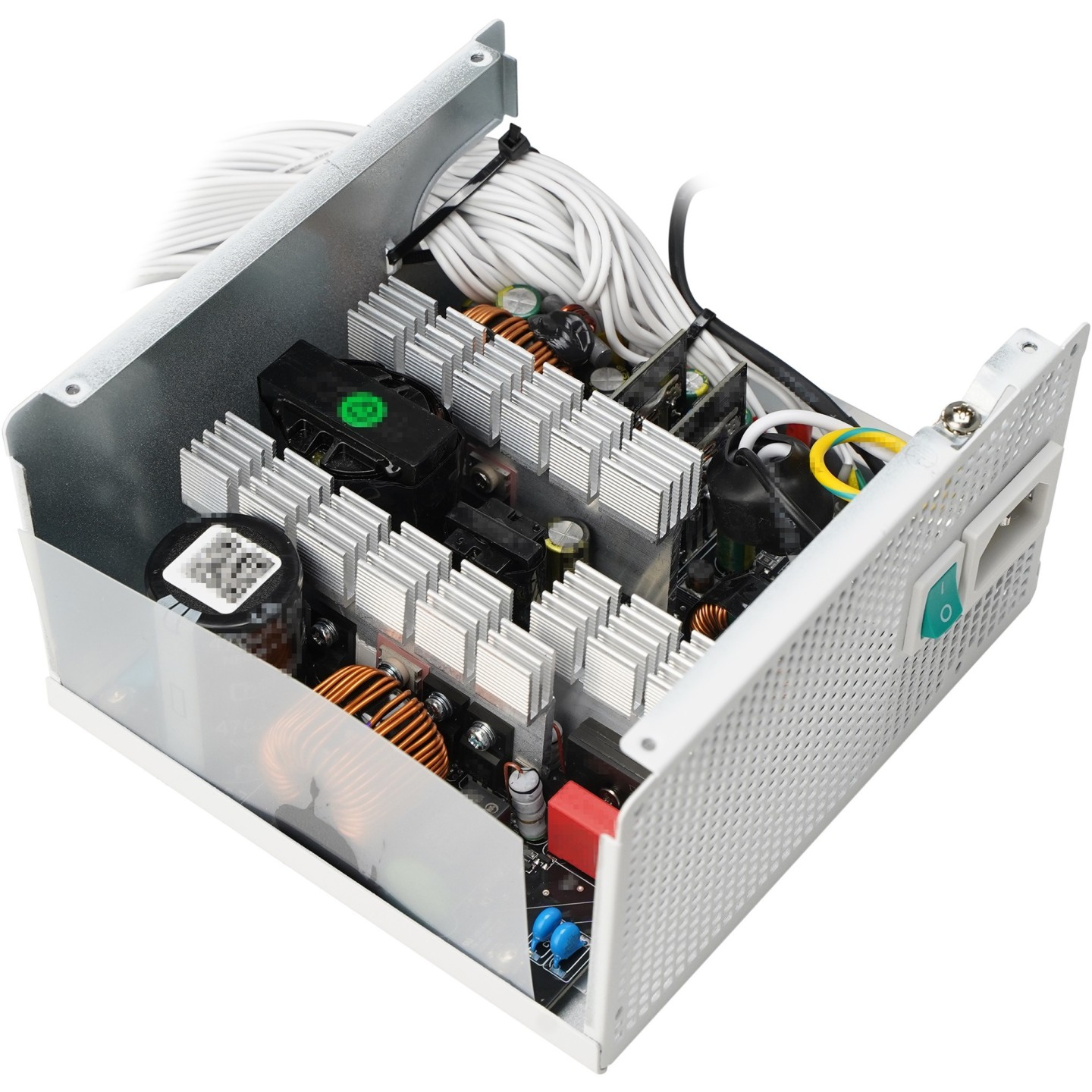

Built with premium electrolytic capacitors and a well-designed dual-transistor forward topology, this PSU maintains a hold-up time of ≥16ms under full load and can operate at altitudes up to 5,000 meters. The unit employs active PFC and DC-to-DC conversion for improved power quality, while comprehensive protection features including OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO safeguard your system components. Cooling is handled by a 120mm hydraulic dynamic bearing fan that operates quietly at an average of 33.59 dB[A], and the PSU comes backed by a 5-year manufacturer warranty.
- ATX 3.1 and PCIe 5.0 compliant with native 12V-2x6 connector support
- 80 PLUS Bronze / Cybenetics Silver certified (85-87% efficiency at 115V)
- 1x PCIe 12+2 pin (600W) + 3x PCIe 6+2 pin connectors for GPU power
- 2x EPS 4+4 pin connectors for CPU power delivery
- 120mm hydraulic bearing fan with Cybenetics Standard++ noise rating (30-35 dB[A])
- Comprehensive protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
- Operating temperature range: 0-40°C with 5-year warranty

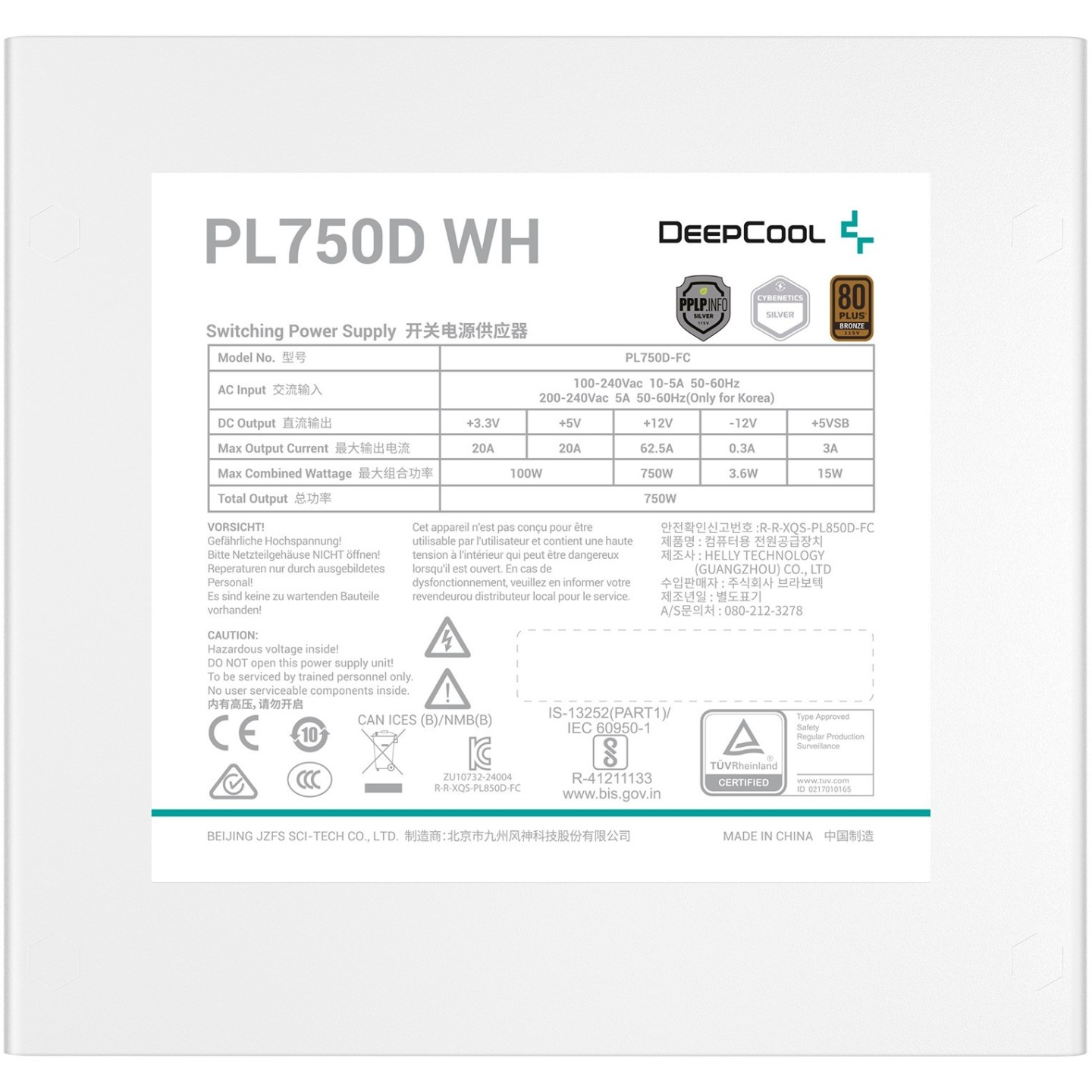

| Total Power Output | 750 W |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Power Factor Correction | Active PFC |
| 12V Rail Power | 750 W (single rail) |
| 5V + 3.3V Combined Power | 100 W |
| 5VSB Power | 15 W |
| -12V Power | 3.6 W |
| Max Output Current 12V | 62.5 A |
| Max Output Current 5V | 20 A |
| Max Output Current 3.3V | 20 A |
| Max Output Current 5VSB | 3 A |
| Max Output Current -12V | 0.3 A |
| Efficiency Rating | 80 PLUS Bronze / Cybenetics Silver |
| Average Efficiency (115V) | 85.834% |
| Average Efficiency (230V) | 87-89% |
| Noise Level | Cybenetics Standard++ (30-35 dB[A]) |
| Average Noise Output (115V) | 33.59 dB[A] |
| Hold-up Time | ≥16 ms |
| Power Good Signal Delay | 100 - 150 ms |
| Protection Features | OPP (Over Power Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), OCP (Over Current Protection), UVP (Under Voltage Protection), SIP (Surge & Inrush Protection), NLO (No Load Operation) |
| Motherboard Power Connector | 1x 20+4 pin ATX |
| EPS CPU Power Connectors | 2x 4+4 pin EPS12V |
| PCIe GPU Power Connectors | 1x 12+2 pin (600W rated) + 3x 6+2 pin |
| SATA Power Connectors | 8x SATA |
| Molex 4-pin Connectors | 2x 4-pin Molex |
| Cabling Type | Non-Modular |
| Form Factor | ATX |
| ATX Compliance | ATX 3.1 |
| PCIe Compliance | PCIe 5.0 / PCIe CEM 5.1 |

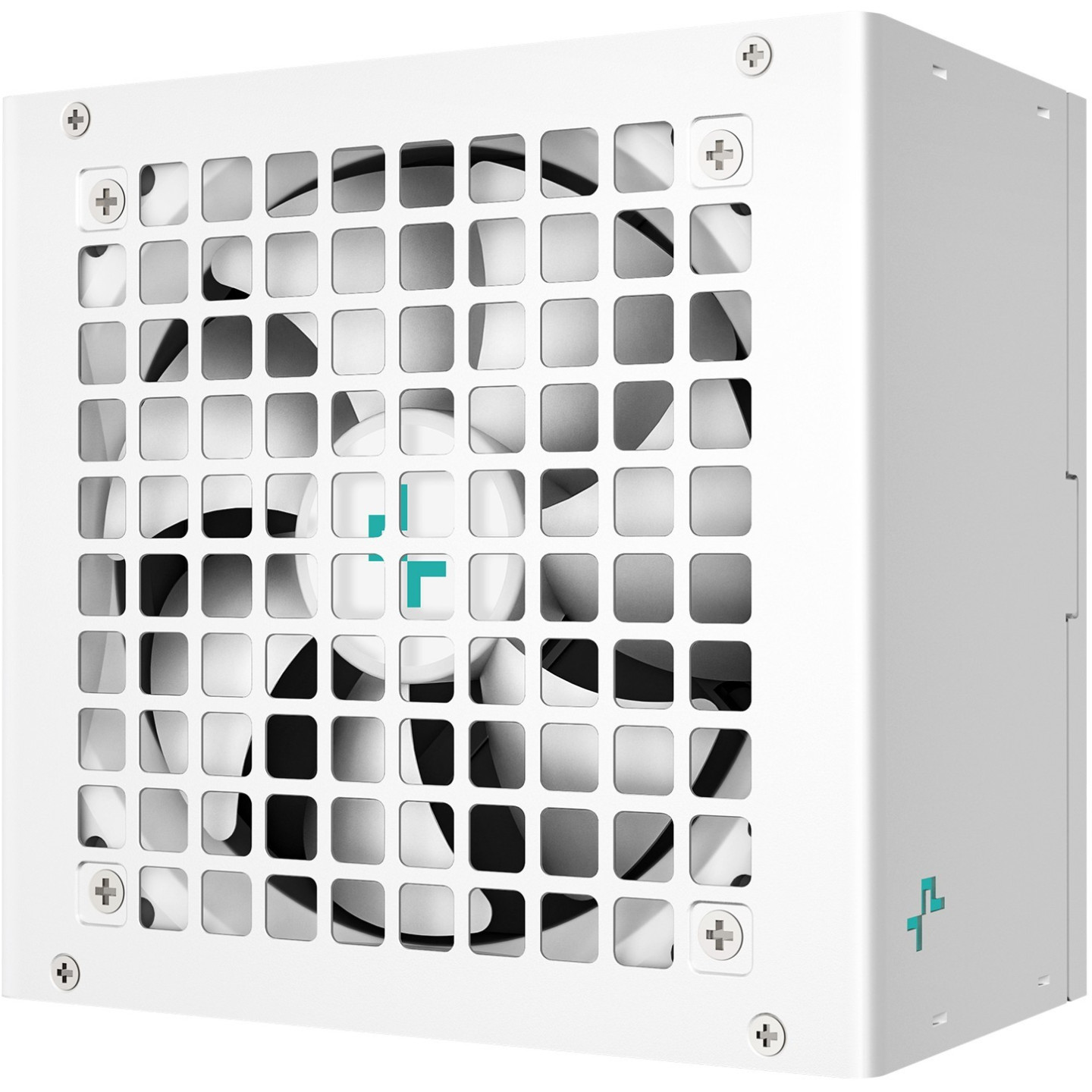

| Cooling Solution | 1x 120mm Hydraulic Dynamic Bearing Fan (W12025HZ12SEMA) |
| Fan Location | Top |
| Operating Temperature | 0 - 40°C |
| Operating Altitude | Up to 5,000 meters |
| MTBF | 100,000 hours |
| Warranty | 5 years |
| Dimensions (Unit) | 150 mm (W) x 140 mm (D) x 86 mm (H) |
| Color | White |
| Certifications | CE, FCC, CCC, RCM, EAC, BIS, RoHS, WEEE, ErP, Triman |
| OEM Manufacturer | Helly Technology |
| Country of Origin | China |
