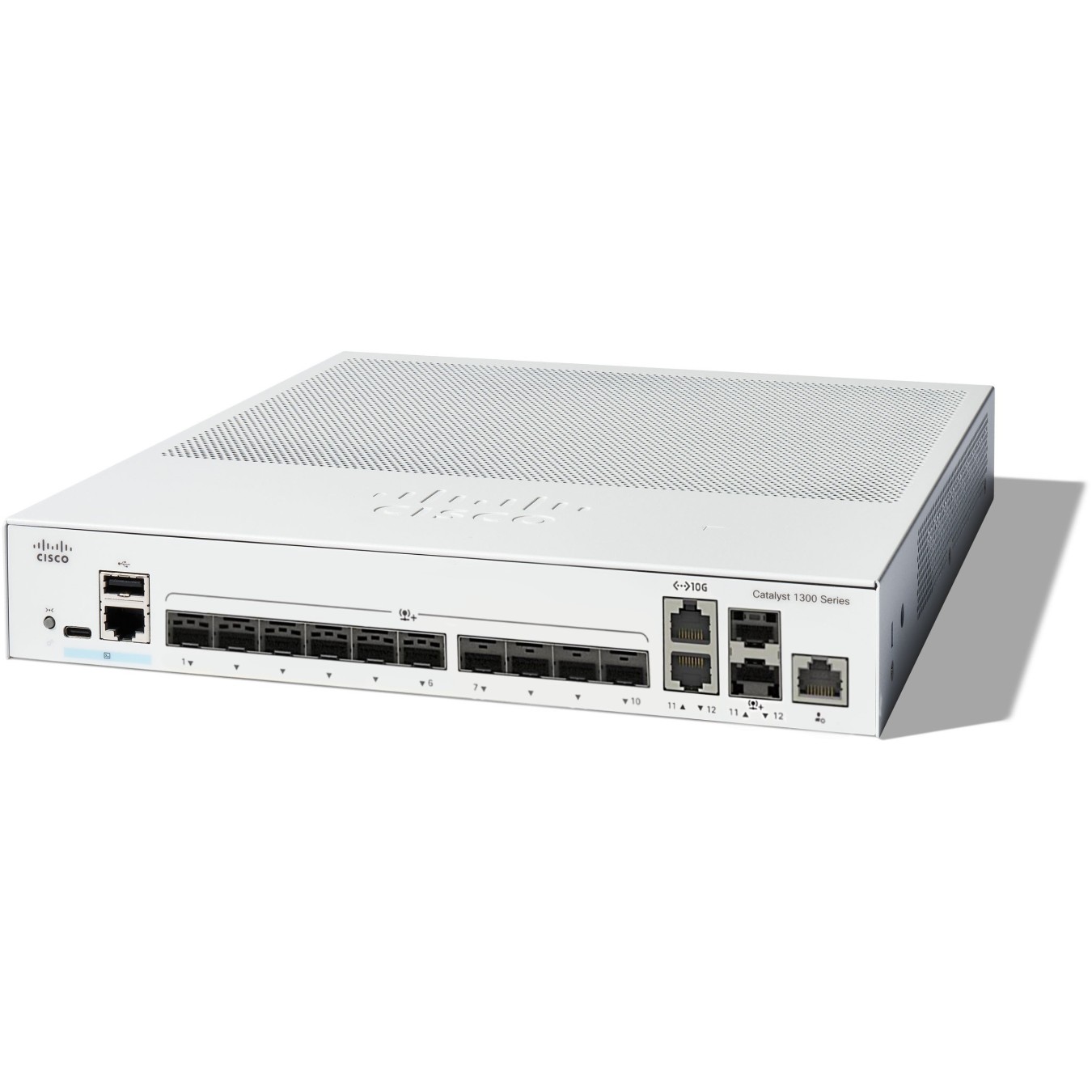

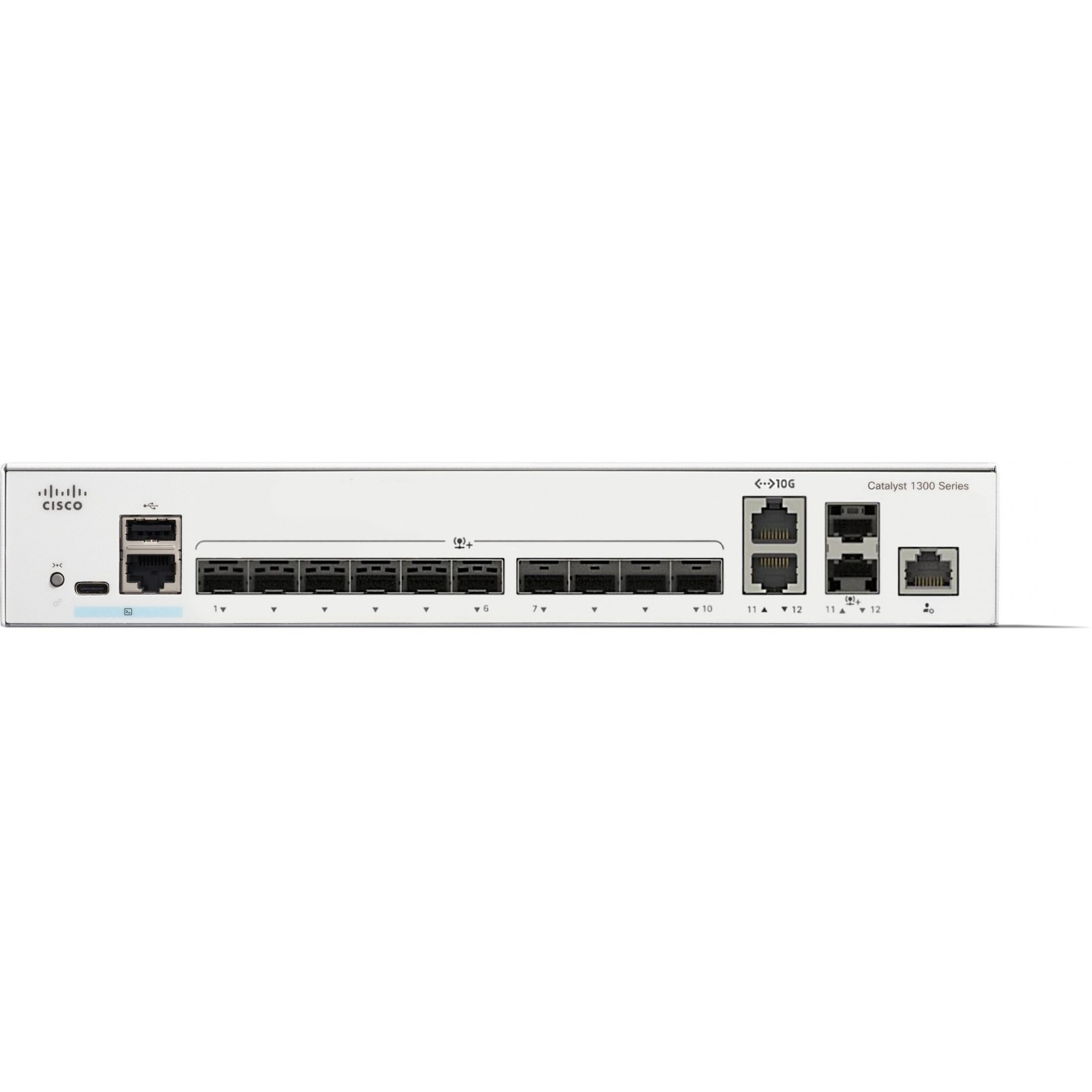

Cisco Catalyst 1300 - 12-Port SFP+
Managed Cisco Catalyst 1300 switch with 12-port SFP+, L2/L3 capabilities, and rack-mountable design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Cisco Catalyst C1300-12XS. Switch type: Managed. Switch layer: L2/L3. MAC address table: 16000 entries. Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE.... Rack mounting
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Built-in processor |
| 10G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 10 |
| Virtual LAN features | Private VLAN. Voice VLAN |
| Switching capacity | 240 Gbit/s |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| DHCP features | DHCP auto-config. DHCP client. DHCP relay. DHCP server. DHCP snooping |
| Access Control List (ACL) rules | 1024 |
| Security algorithms | HTTPS. SNMP. SNMPv2. SNMPv3. SSH. SSH-2 |
| Authentication | MAC-based authentication. Web-based authentication |
| Authentication type | RADIUS. TACACS+ |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| IPv4 & IPv6 features | ICMPv6. IPv6 SNMP. IPv6 SSH. IPv6 TFTP. IPv6 Telnet |
| Product colour | Grey |
| Power source | AC |
| AC input voltage | 100 - 220 V |
| AC input frequency | 50/60 Hz |
| Power plug type | Type C |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Width | 300 mm |
| Depth | 268 mm |
| Height | 44 mm |
| Weight | 2.67 kg |
| Package width | 355.9 mm |
| Package depth | 402.3 mm |
| Package height | 103.7 mm |
| Package weight | 3.55 kg |
| Country of origin | China |
