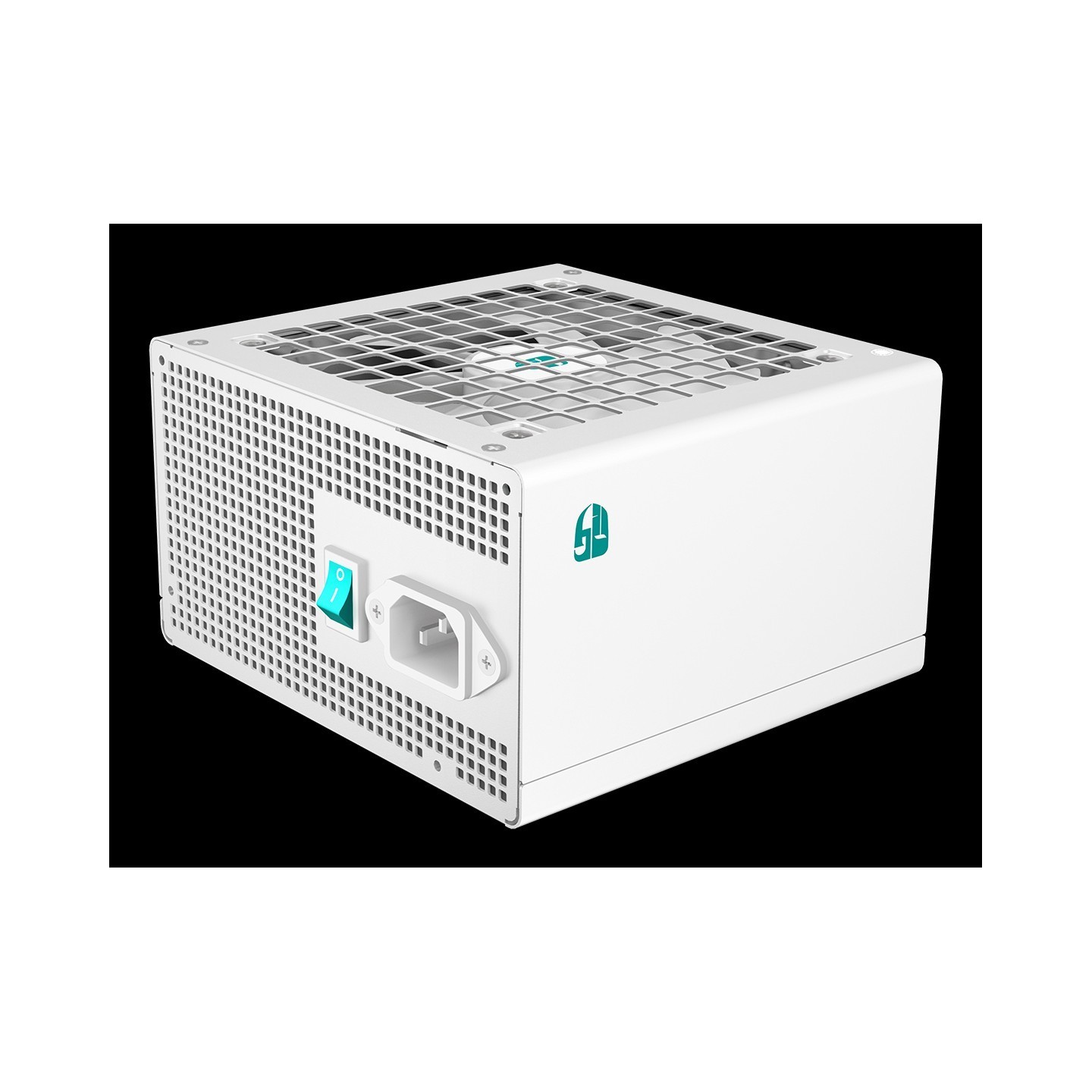

DeepCool PN850M 850W ATX 3.1 Fully Modular 80 Plus Gold PSU (Boxed)
DeepCool PN850M 850W ATX 3.1 fully modular power supply with 80 Plus Gold efficiency, 12V-2×6 connector, FDB bearing fan, and 10-year warranty. Delivers 88.9% efficiency at 115V.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Gold |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 2x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The DeepCool PN850M is an 850W fully modular ATX 3.1 power supply designed for modern high-performance PC builds. Manufactured on a proven platform with a 120mm FDB (Fluid Dynamic Bearing) cooling fan, it delivers consistent power with Cybenetics Gold efficiency rating (88.943% average at 115V, 91.024% at 230V) and operates at a quiet 35.19 dBA average noise level. The unit features ATX 3.1 compliance with a single 12V-2×6 pin connector rated for 600W, making it compatible with next-generation graphics cards and power-hungry components.

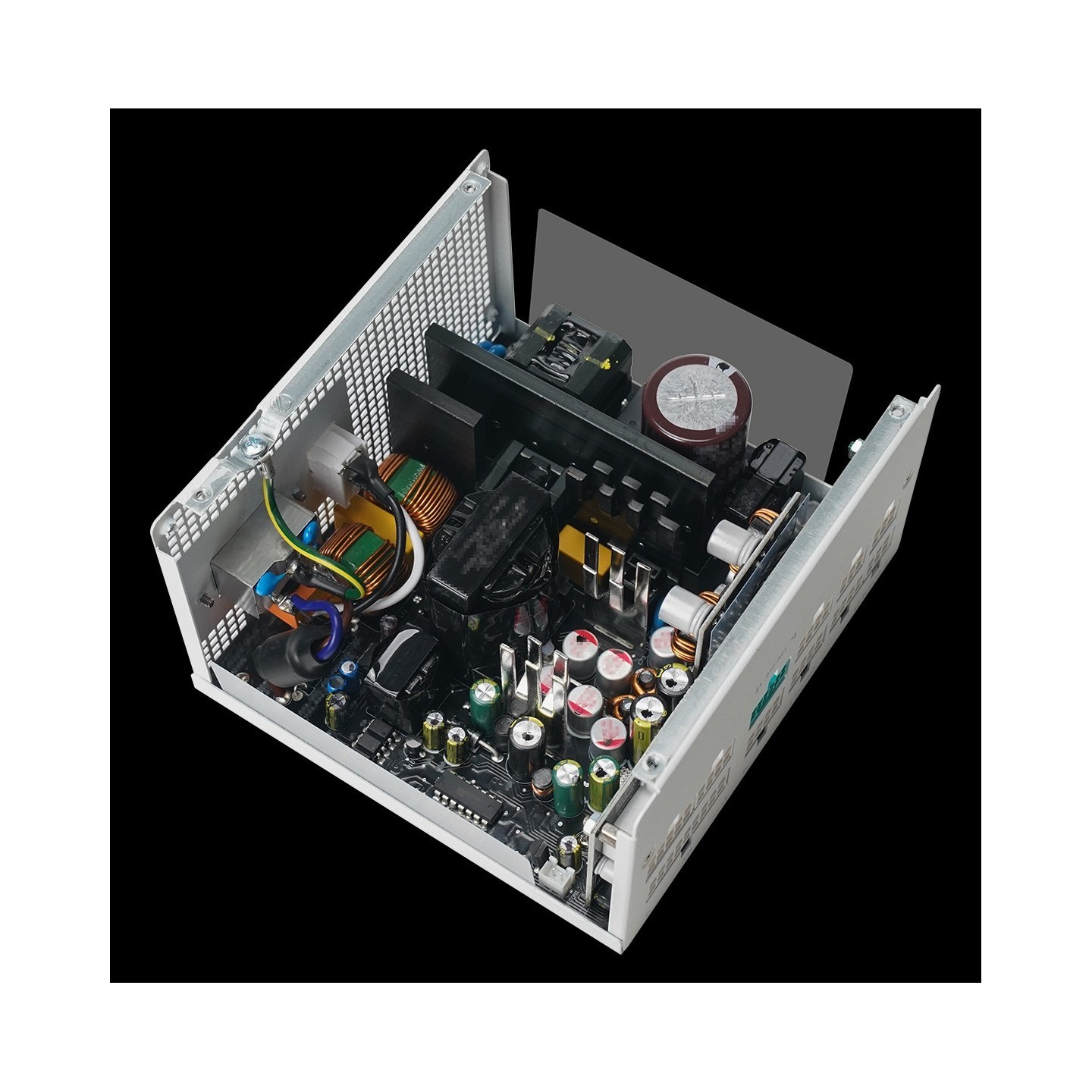

Built with high-quality 105°C Japanese capacitors and comprehensive protection features (OPP, OVP, OTP, SCP, OCP, UVP), the PN850M maintains tight voltage regulation and delivers full 850W power at 47°C. Its compact dimensions (150×140×86mm unit size) and fully modular cable design ensure excellent case compatibility and cable management. The power supply includes a 10-year warranty and supports Intel's Alternative Low Power Mode (ALPM) for enhanced efficiency during idle states.
- Cybenetics Gold efficiency: 88.943% (115V) / 91.024% (230V)
- ATX 3.1 compliant with 1x 12V-2×6 connector (600W)
- 3x PCIe 6+2 pin connectors for GPU power
- 120mm FDB bearing fan with semi-passive operation
- Full 850W output at 47°C continuous operation
- Fully modular cabling for optimal cable management
- 10-year manufacturer warranty
- Compact 140mm depth design
| Total Power Output | 850 W |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Power Factor Correction | Active PFC |
| Efficiency Rating | 80 PLUS Gold, Cybenetics Gold (88.943% at 115V, 91.024% at 230V) |
| Form Factor | ATX |
| ATX Version | ATX 3.1 |
| Modularity | Fully Modular |

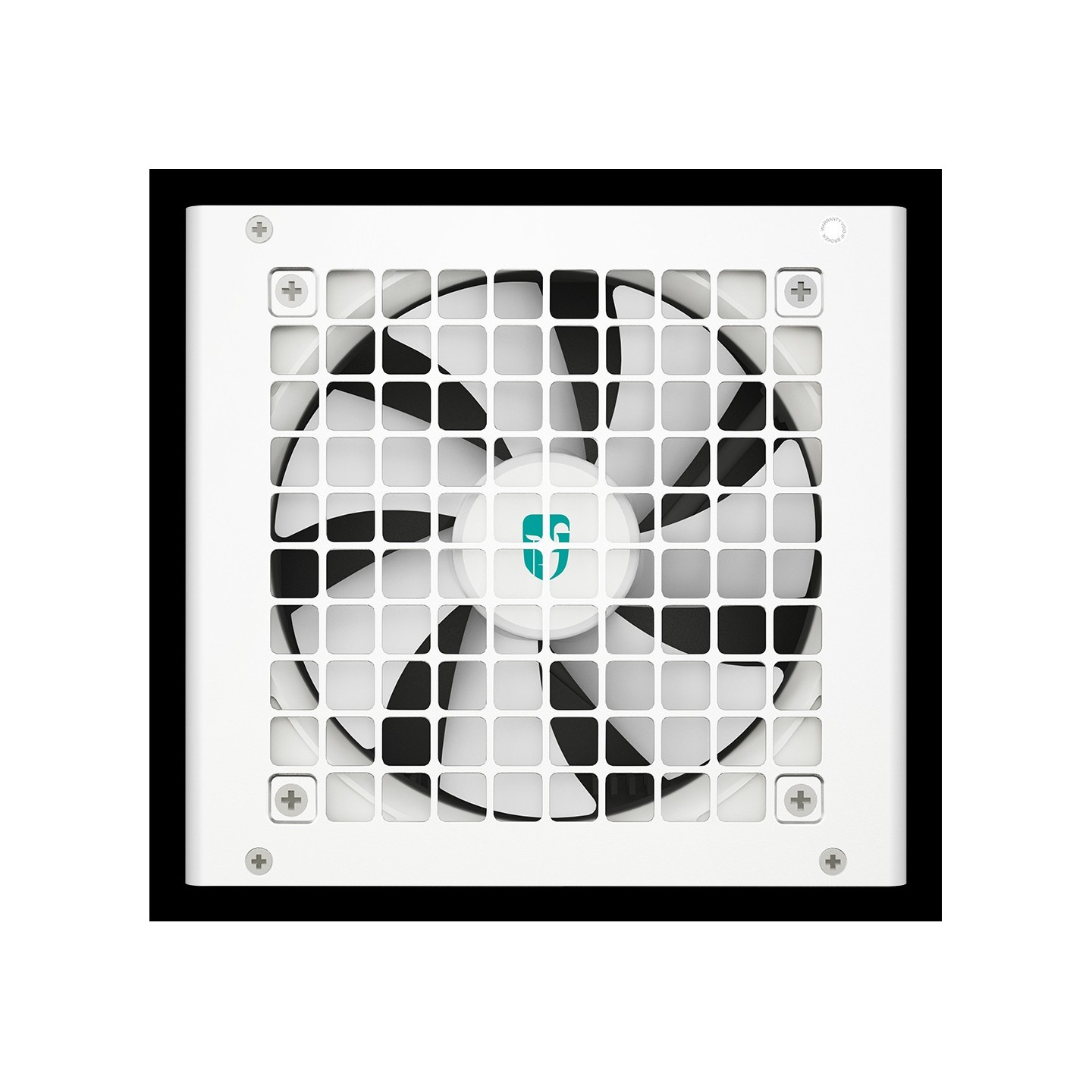

| Cooling Fan | 120mm FDB (Fluid Dynamic Bearing) |
| Semi-Passive Operation | Yes |
| Motherboard Power Connector | 20+4 pin ATX |
| CPU Power Connector | 1x 4+4 pin EPS/ATX12V |

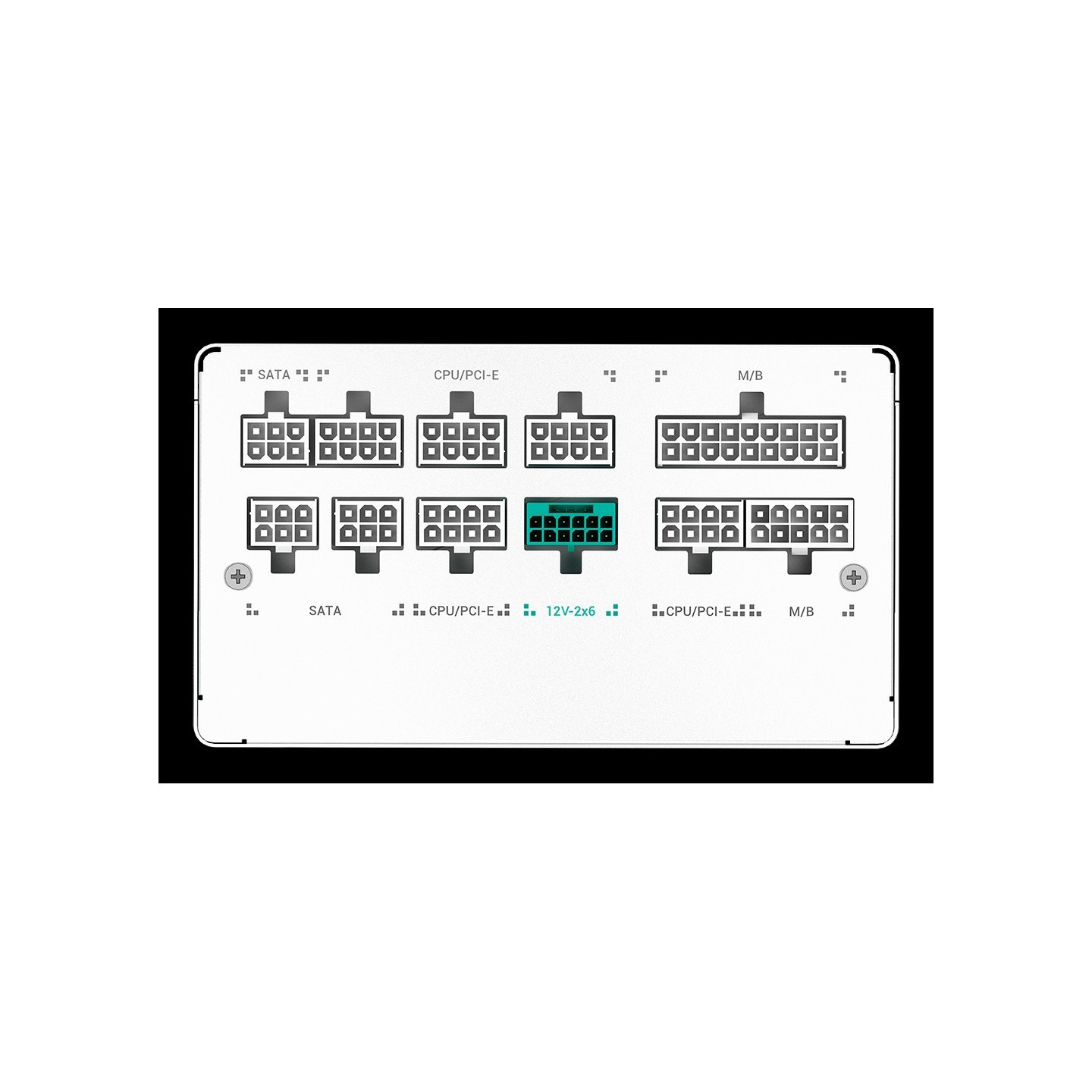

| PCIe GPU Connectors | 1x 12V-2×6 pin (600W), 3x 6+2 pin PCIe |
| SATA Power Connectors | 8x SATA |
| Molex Connectors | 2x 4-pin Peripheral |
| Max Output Current +3.3V | 20 A |
| Max Output Current +5V | 20 A |
| Max Output Current +12V | 70.5 A |
| Max Output Current +5VSB | 3 A |
| Max Output Current -12V | 0.3 A |
| Combined Power +3.3V | 110 W |
| Combined Power +5V | 110 W |
| Combined Power +12V | 846 W |
| Combined Power +5VSB | 15 W |
| Combined Power -12V | 3.6 W |
| 12V Ripple (Full Load) | 32.08 mV |
| 5V Ripple (Full Load) | 16.78 mV |
| Noise Output | 35.19 dBA (115V), 34.09 dBA (230V) |
| Operating Temperature | 0 - 40°C |
| Hold-up Time | 16 ms |
| Inrush Current | 32.26 A |
| Standby Power Consumption | 0.0553 W |
| Protection Features | OPP, OVP, OTP, SCP, OCP, UVP, NLO, SIP |
| ALPM Compatible | Yes (Alternative Low Power Mode) |
| Dimensions (Unit) | 150 (W) × 140 (D) × 86 (H) mm |
| Warranty | 10 years |
| MTBF | 100,000 hours |
| Compliance Certifications | CCC, CE, EAC, FCC, RCM, RoHS, WEEE, ErP, Triman |

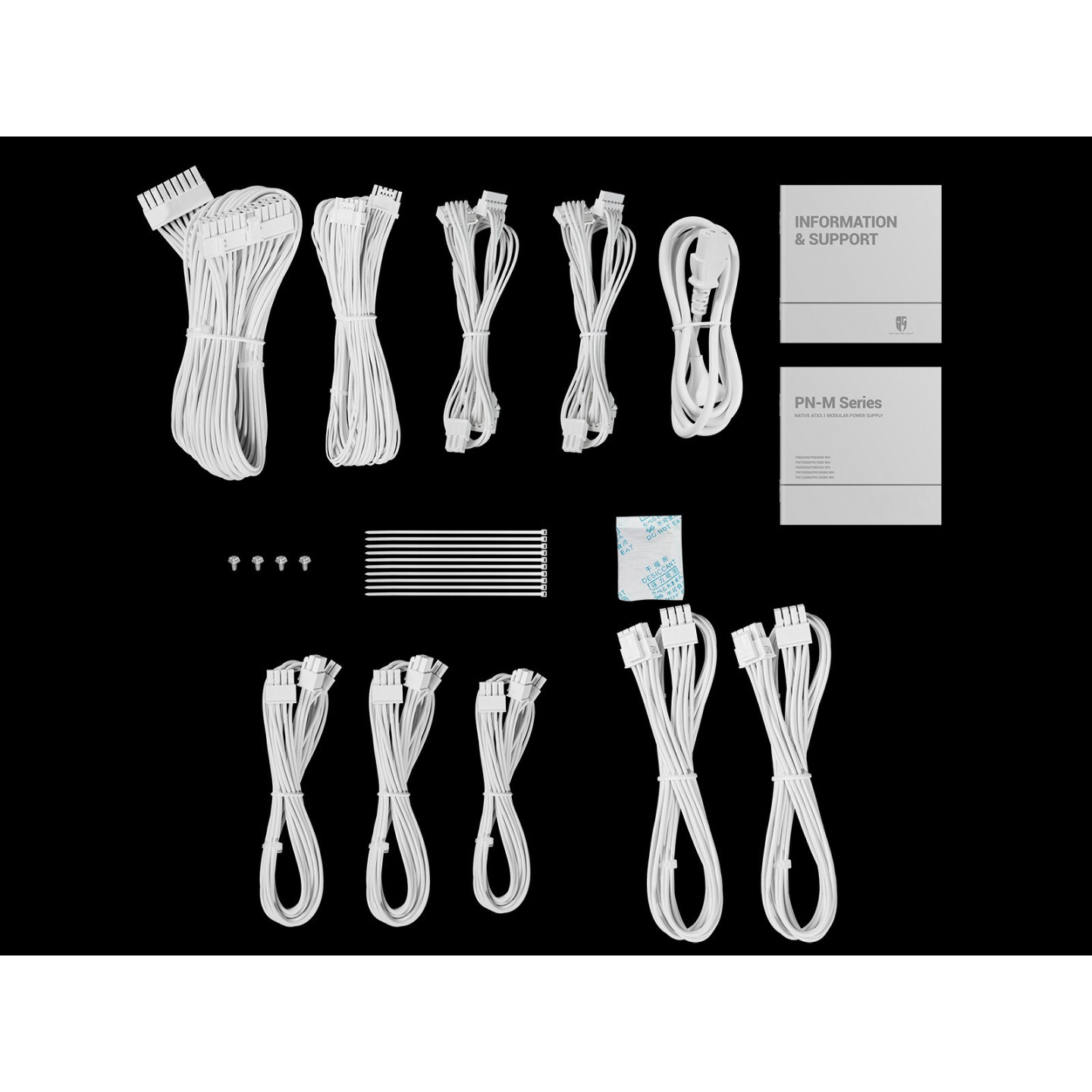

| Cable Design | Fully Modular with cable ties included |
