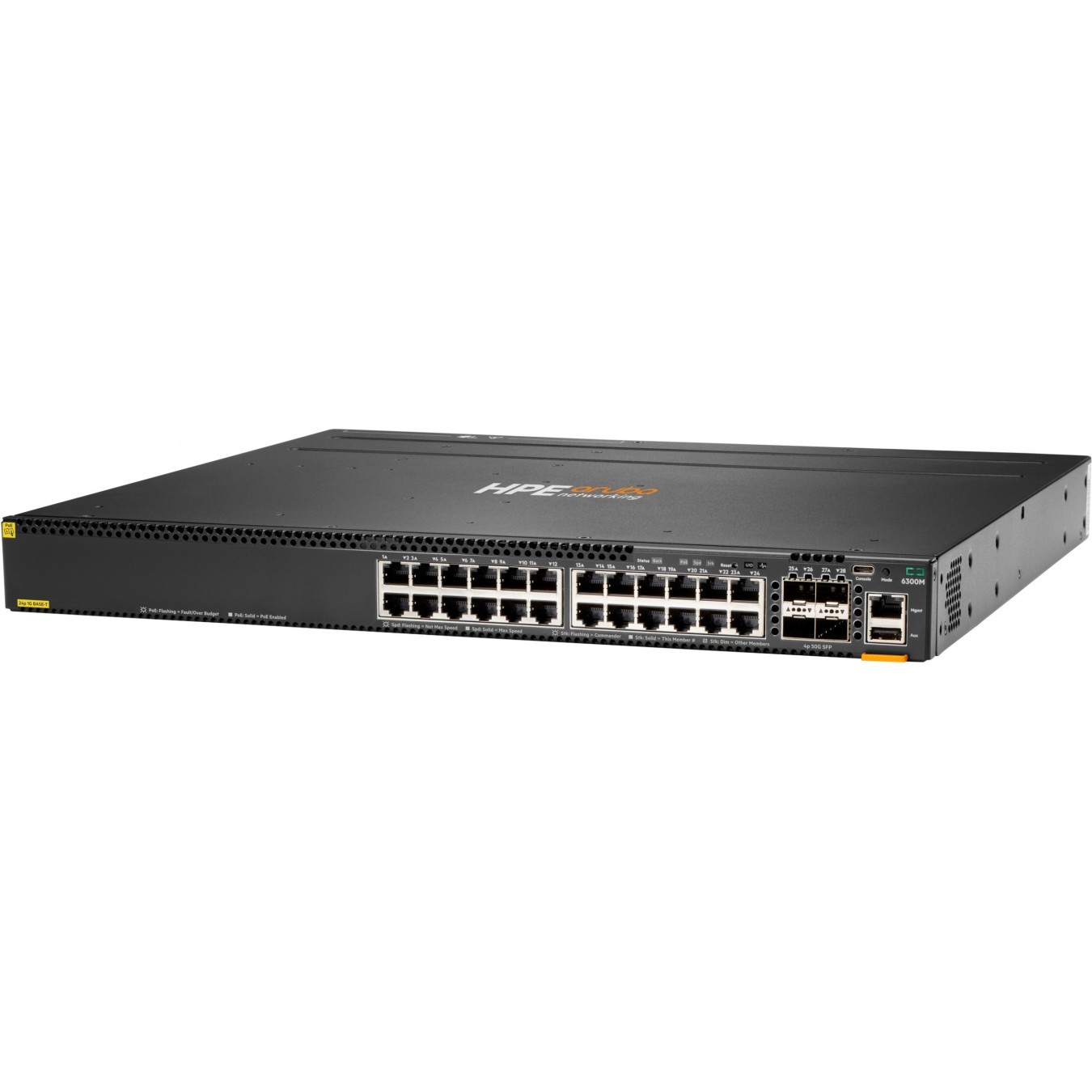

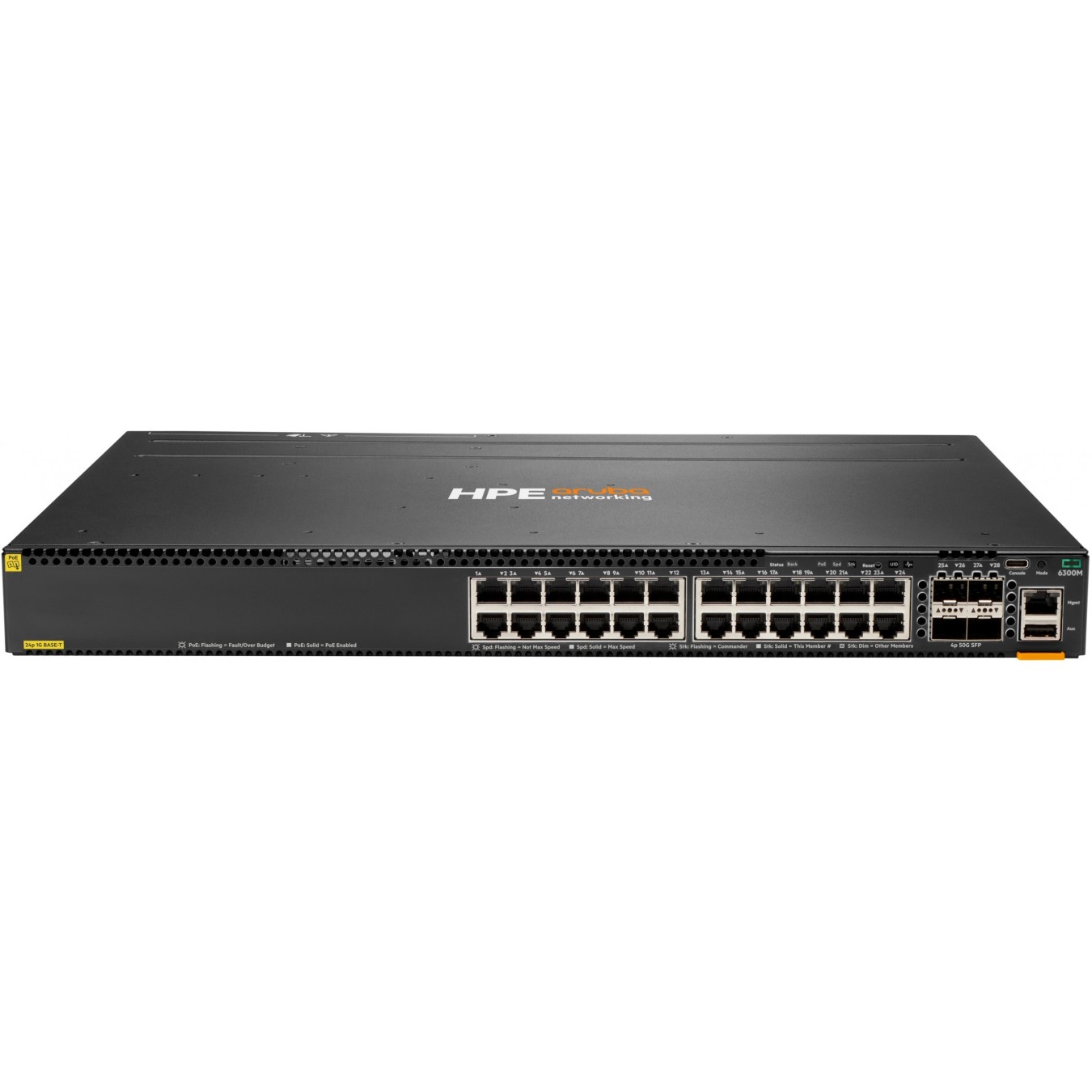

Aruba - 6300M - 24G CL4 POE 4 STOCK
Aruba 6300M switch with 24G CL4 PoE and 4 STOCK; managed.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
HPE Aruba Networking CX 6300M 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 32768 entries. Switching capacity: 448 Gbit/s. Networking standards: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1ad. IEEE 802.1af. IEEE 802.1ak..... Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Switching capacity | 448 Gbit/s |
| Throughput | 334 Mpps |
| MAC address table | 32768 entries |
| Latency (1 Gbps) | 2.2 µs |
| Latency (10 Gbps) | 1.46 µs |
| Packet buffer memory | 8 MB |
| DHCP features | DHCP server |
| Routing protocols | BGP. BGP4. IP. OSPF. OSPFv2. OSPFv3 |
| Form factor | 1U |
| Physical stacking (units) | 10 |
| Processor model | ARM Cortex-A72 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 74 W |
| Total Power over Ethernet (PoE) budget | 720 W |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Width | 44 mm |
| Depth | 442 mm |
| Height | 385 mm |
| Weight | 5 kg |
| Harmonized System (HS) code | 85176990 |
