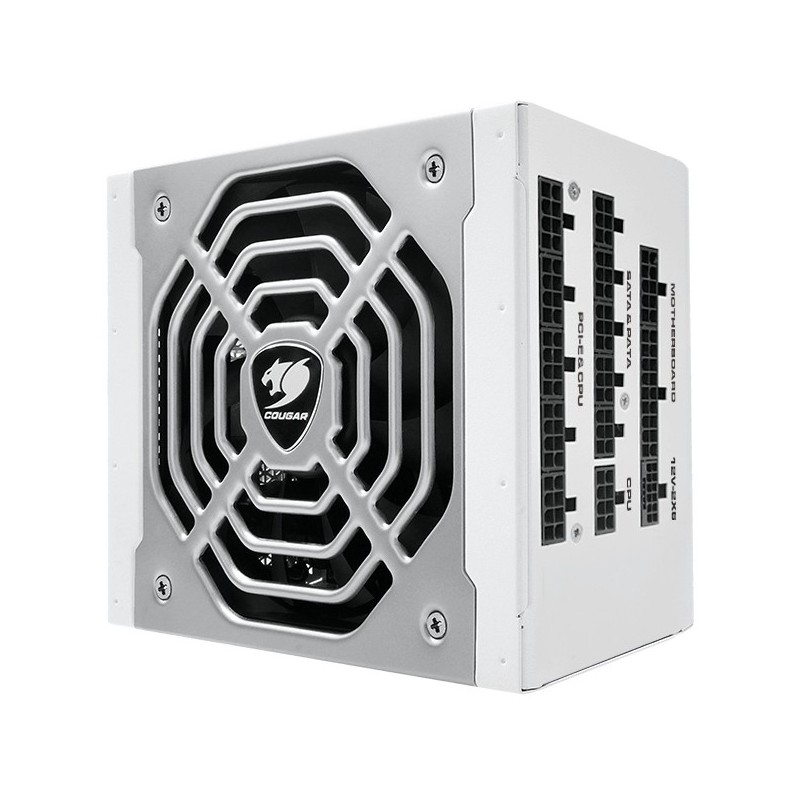

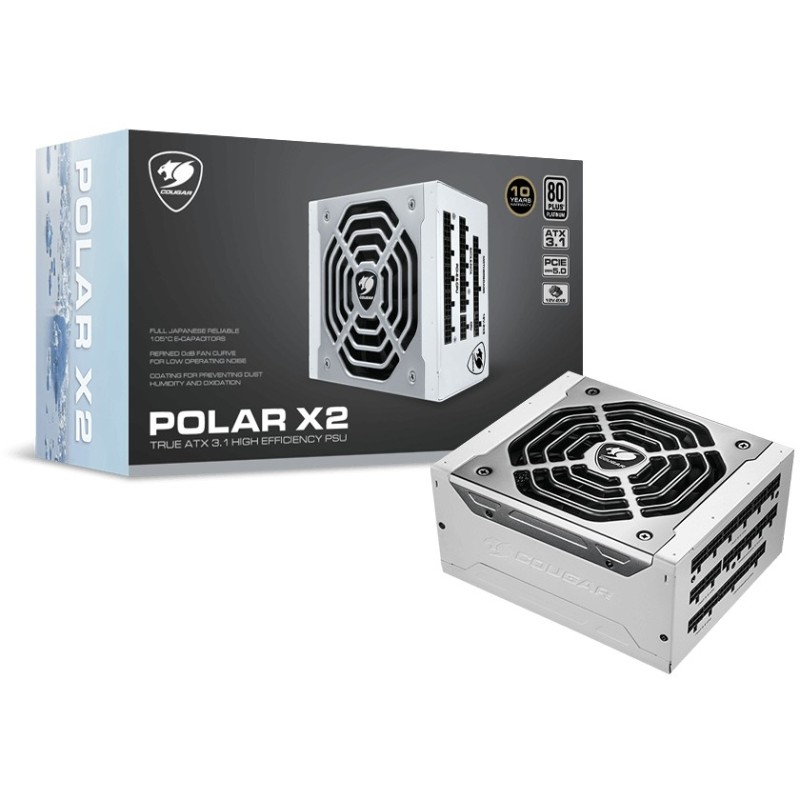

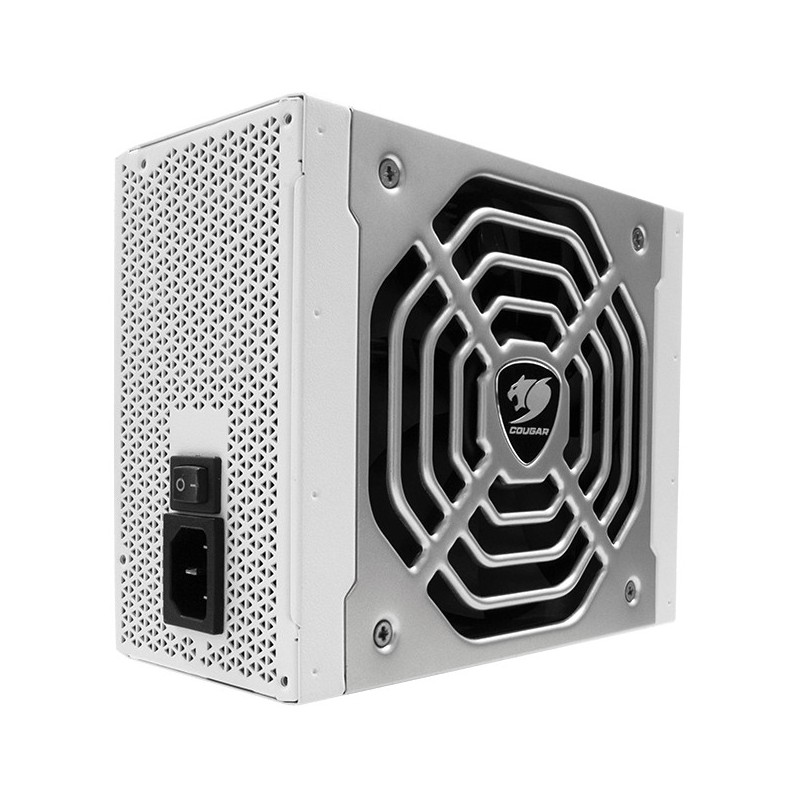

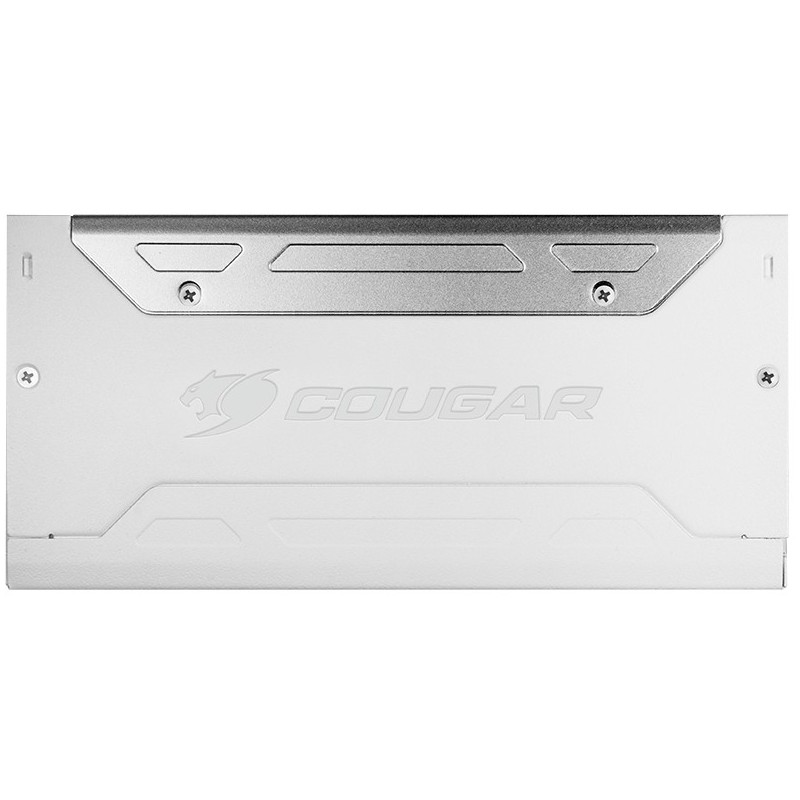

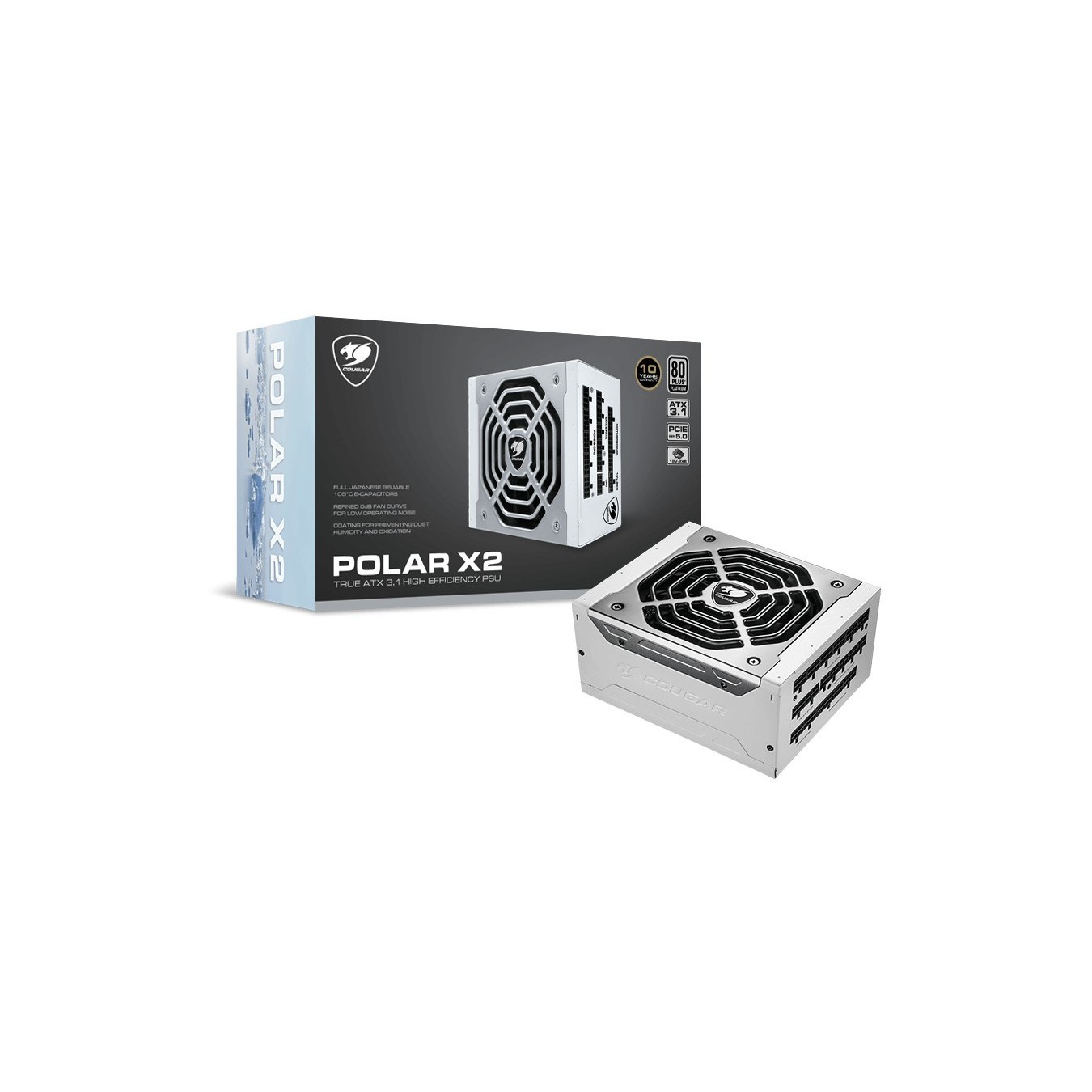

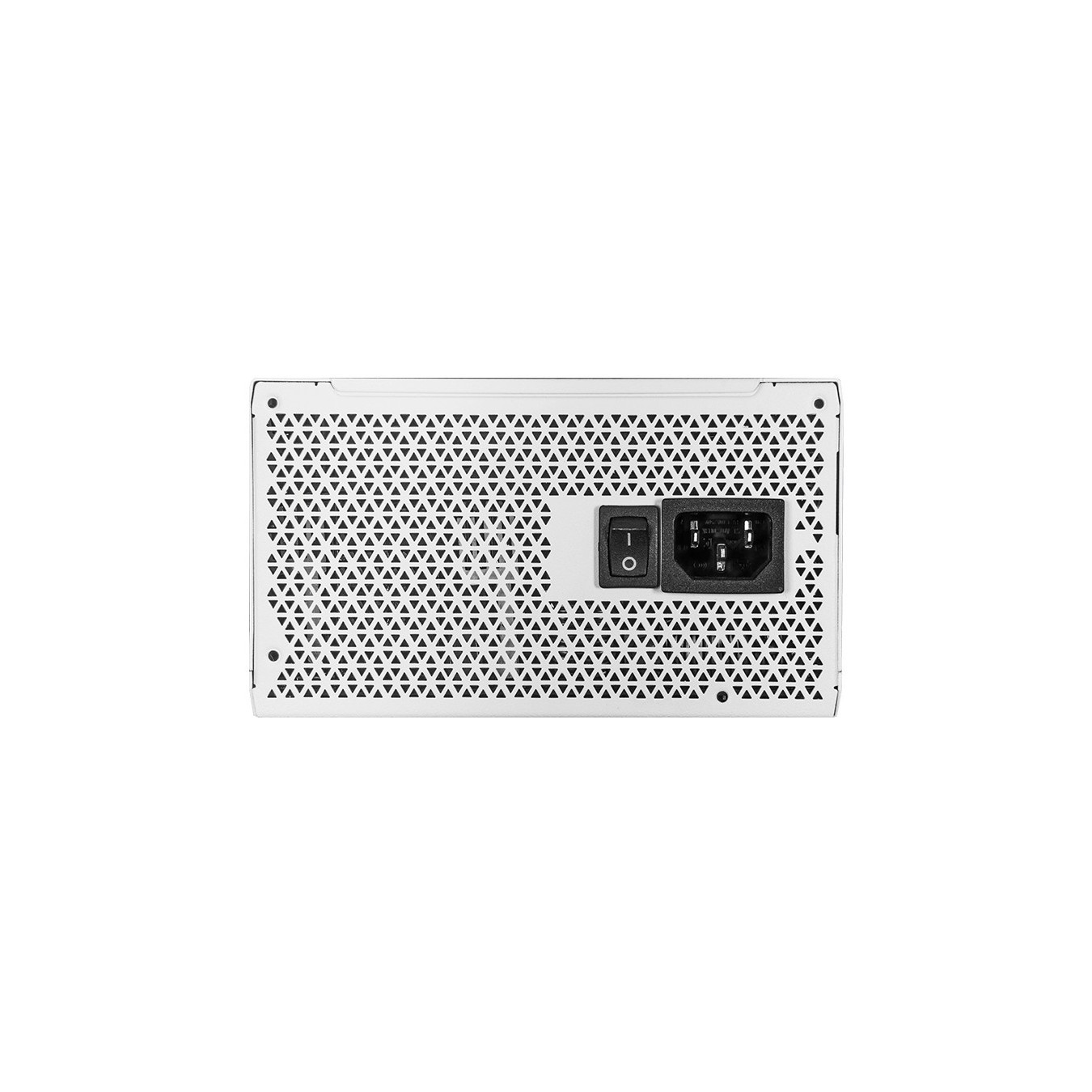

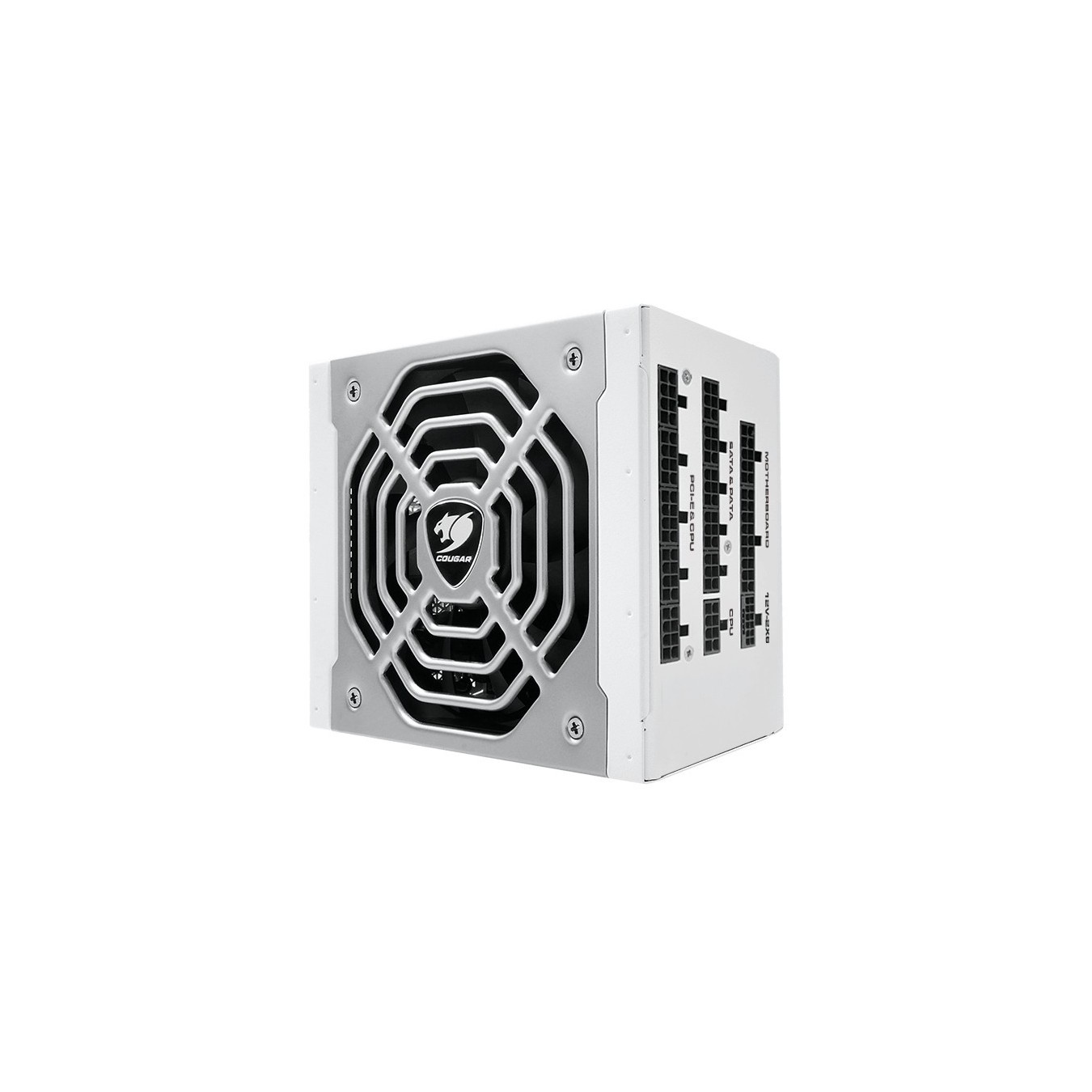

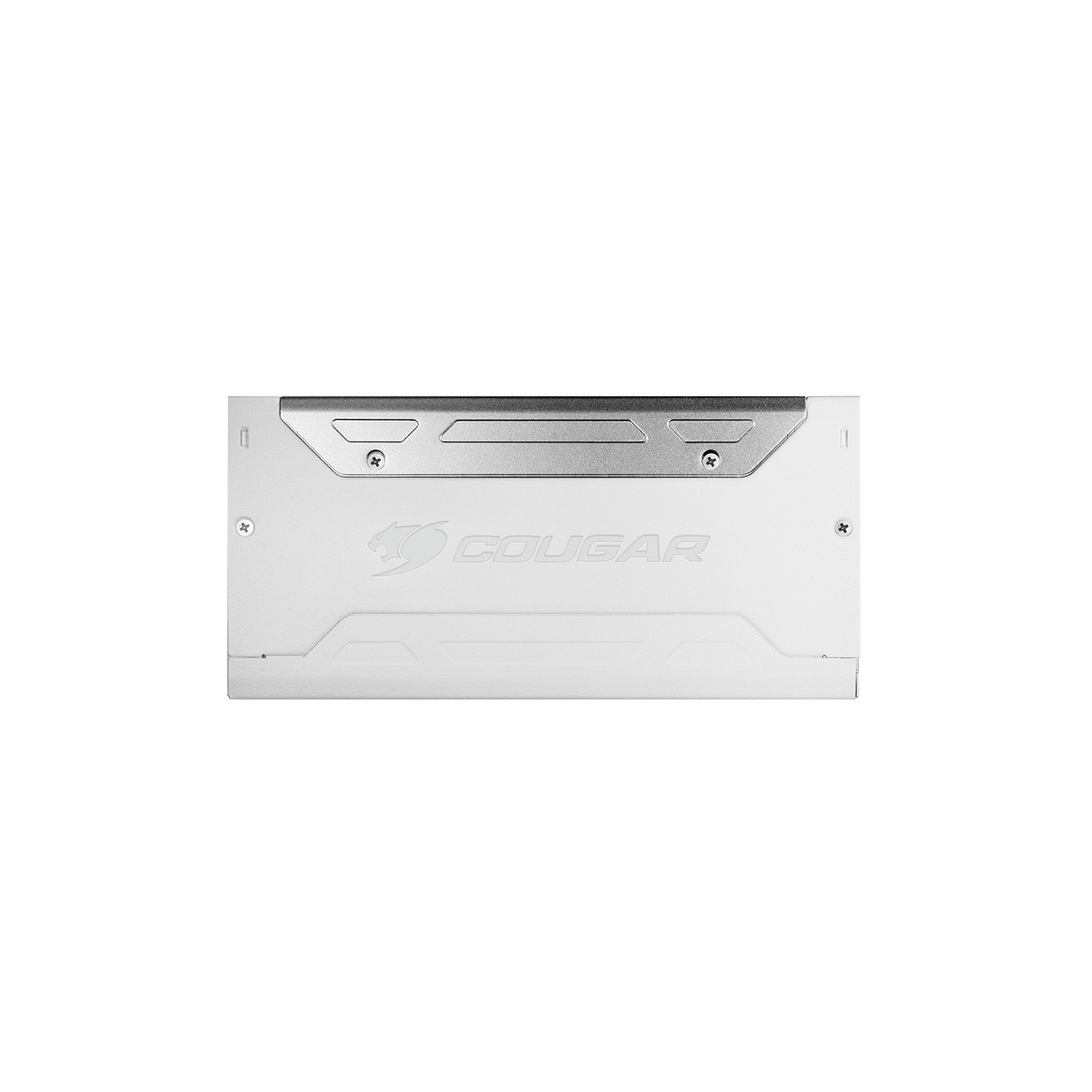

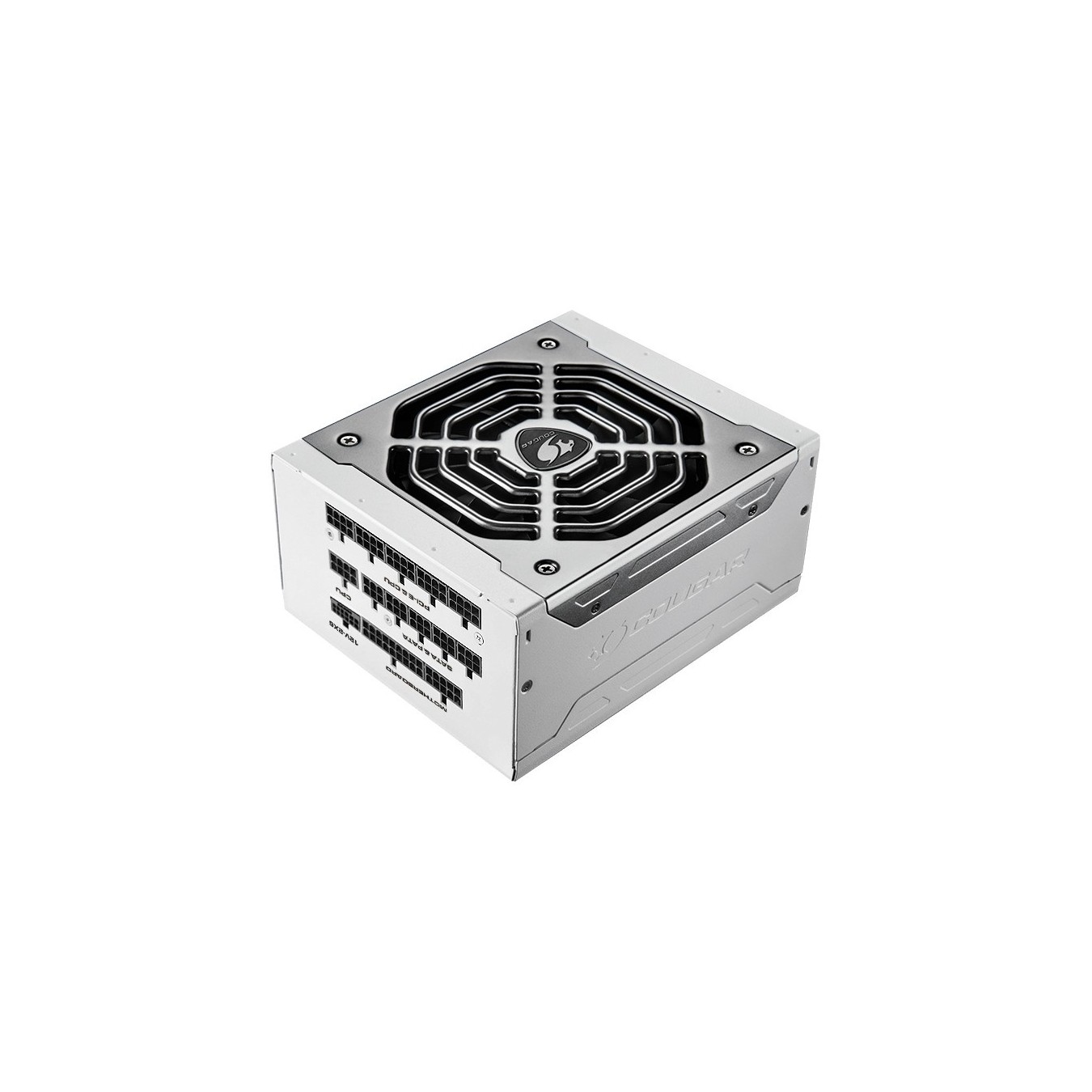

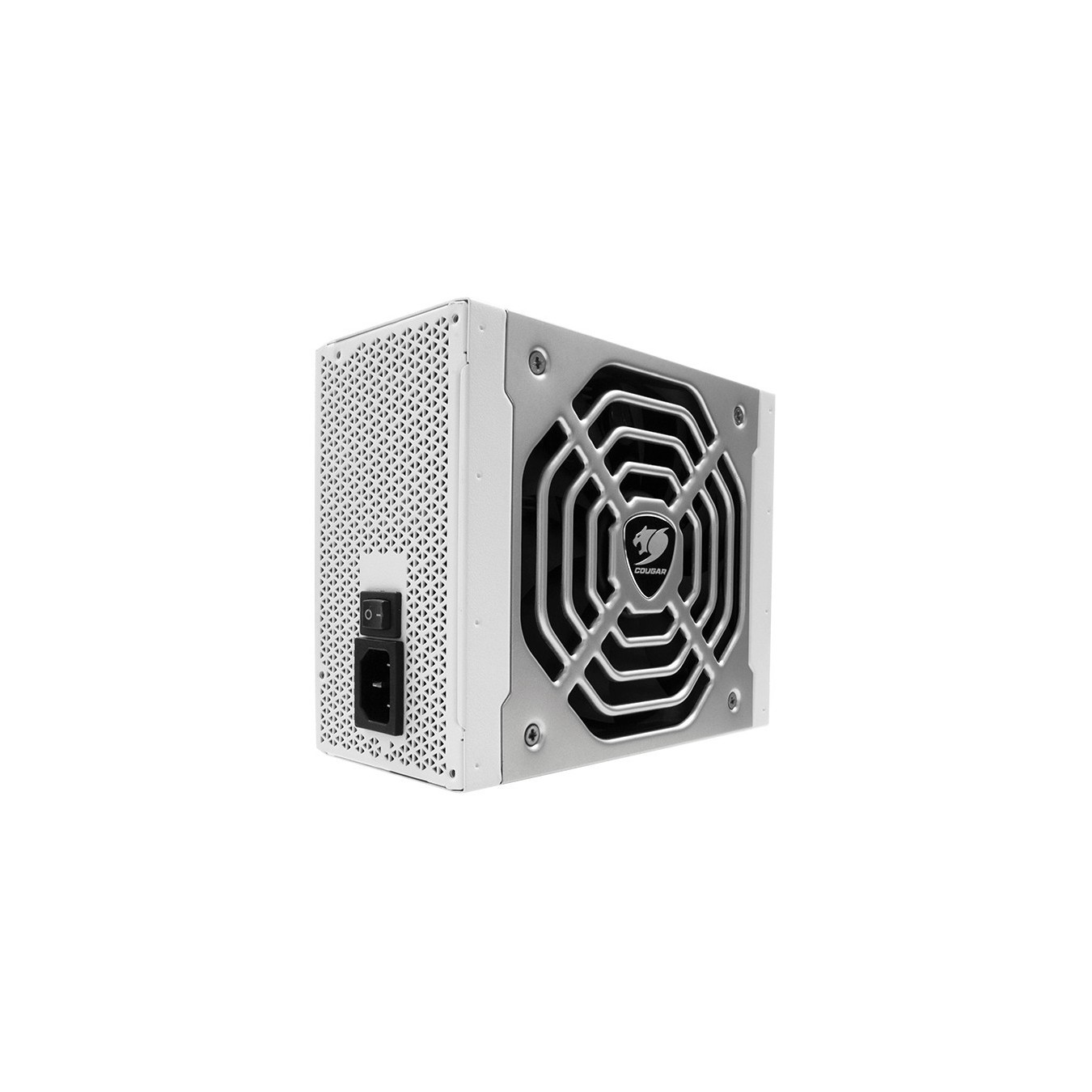

COUGAR Power Supply - POLAR X2 - 1050W ATX3.1 80 Plus Platinum Modular
COUGAR Power Supply POLAR X2, 1050W, ATX3.1, 80 Plus Platinum, Modular design for flexible cabling
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Efficiency Rating | 80+ Platinum |
|---|---|
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 135 mm |
| PSU (Power Supplies) - Length | 161-180 mm |
COUGAR Gaming POLAR X2. Total power: 1050 W. AC input voltage: 100 - 240 V. AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 65 cm. SATA power cable length: 120.500 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Platinum. Product colour: Silver. Cooling type: Active. Fan diameter: 13.5 cm. Compliance certificates: EAC. TÜV mark. Federal Communications Commission (FCC). RoHS. CCC. CE
| Total power | 1050 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 15 - 7 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1050 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 87.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Overheating. Over current. Over power. Under voltage. Over voltage. Short circuit |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 12 |
| Number of PATA power connectors | 4 |
| SATA power cable length | 120.500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 120.500 mm |

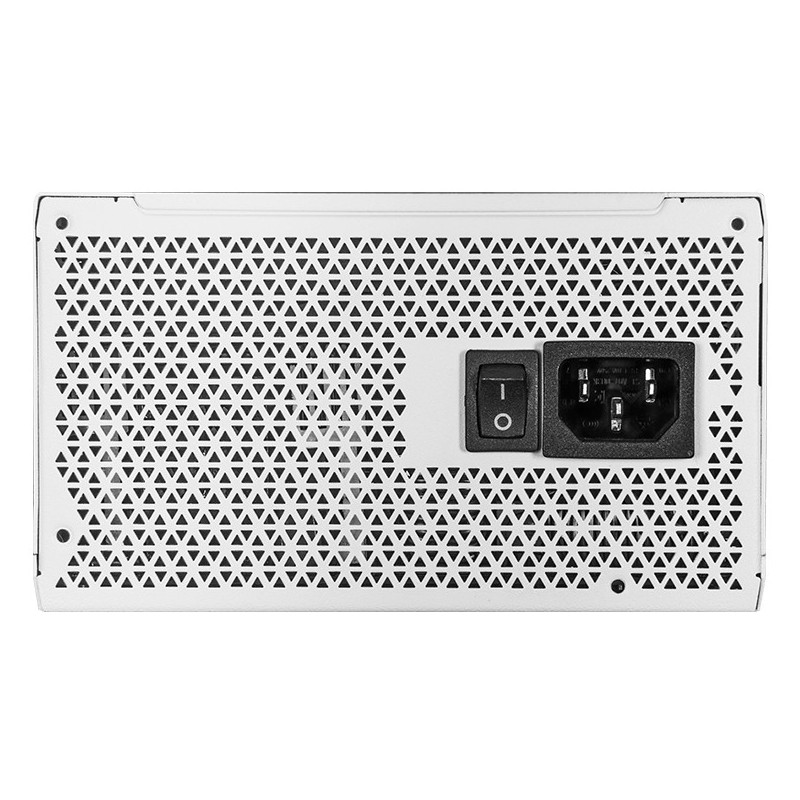

| Feature | On/off switch |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (8-pin) | 1 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 650 mm |
| CPU power cable length | 65 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Noise level | 22 dB |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Silver |
| Cooling type | Active |

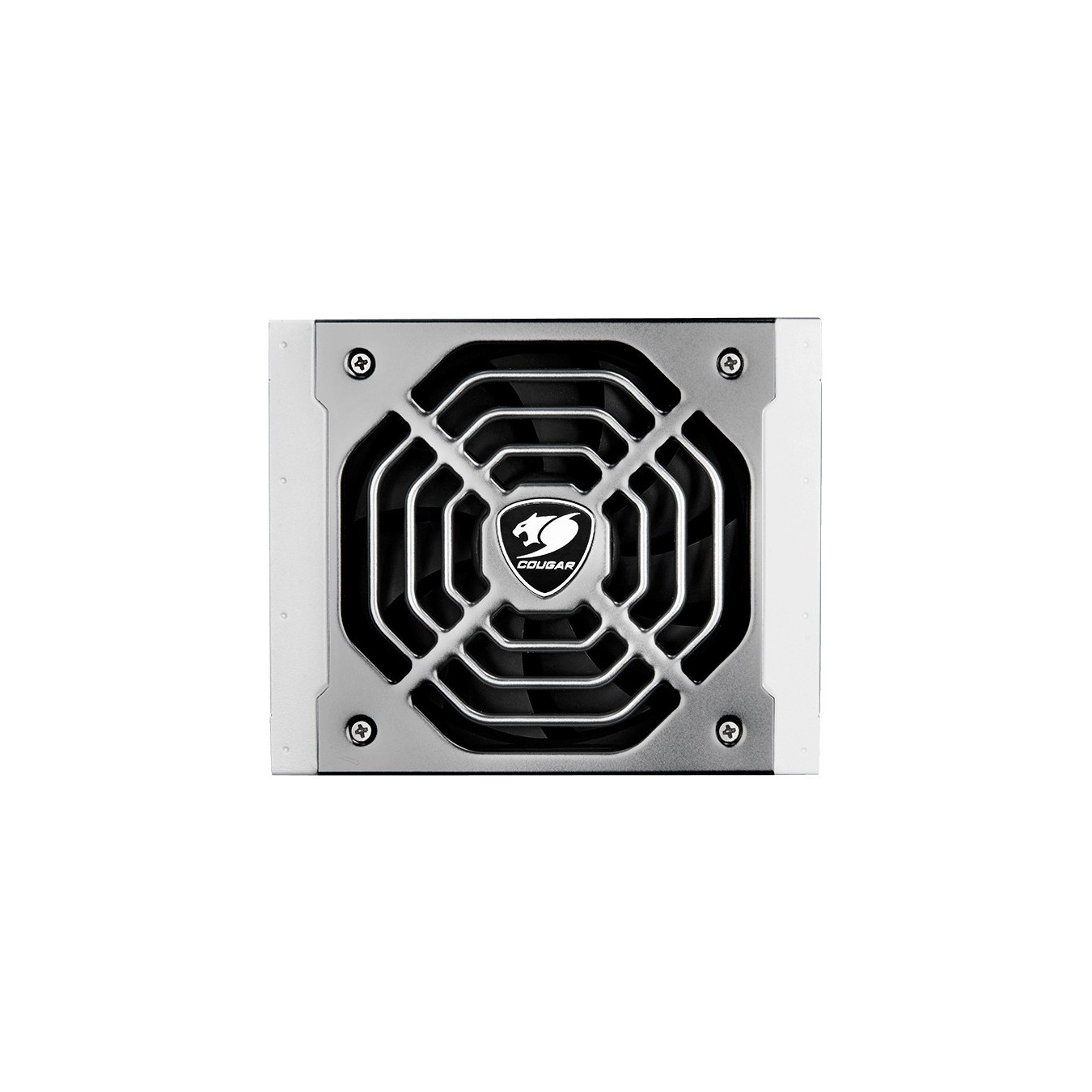

| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Compliance certificates | EAC. TÜV mark. Federal Communications Commission (FCC). RoHS. CCC. CE |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
| Weight | 2.09 kg |
| Package width | 229 mm |
| Package depth | 331 mm |
| Package height | 107 mm |
| Package weight | 3.59 kg |
| Package type | Box |
| Country of origin | China |
