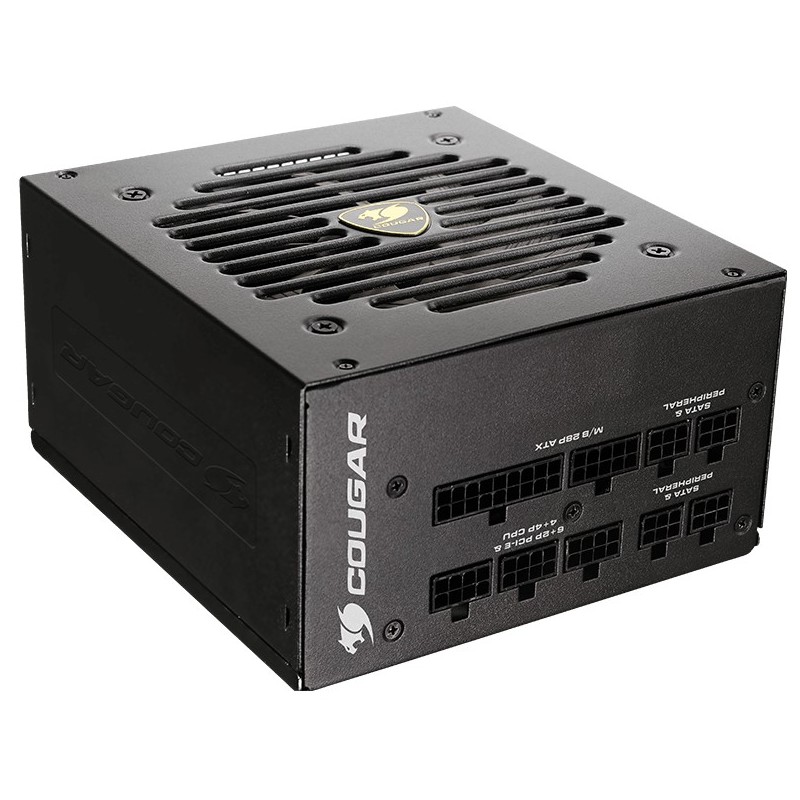

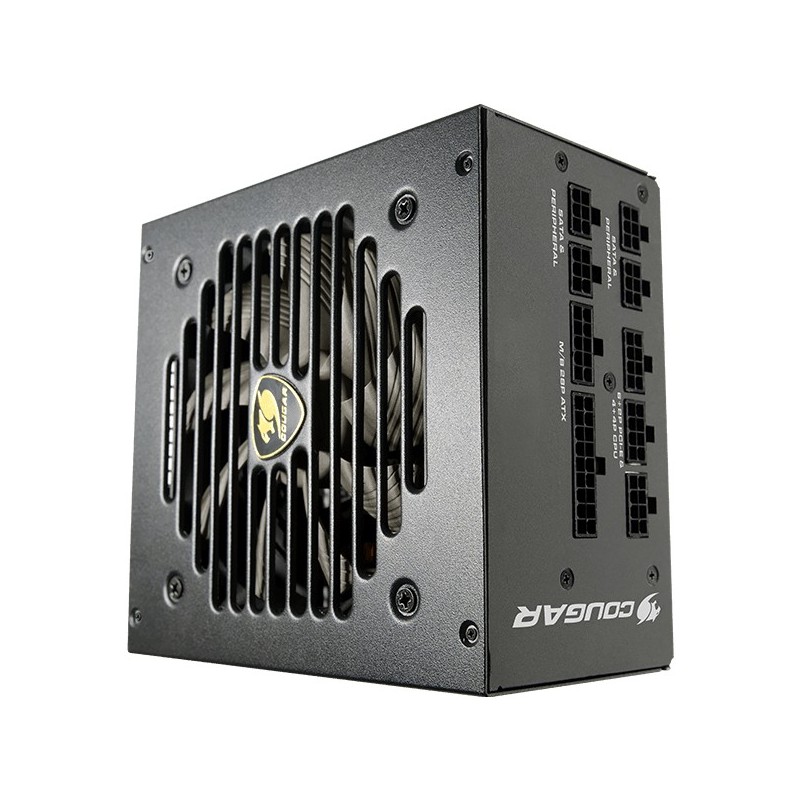

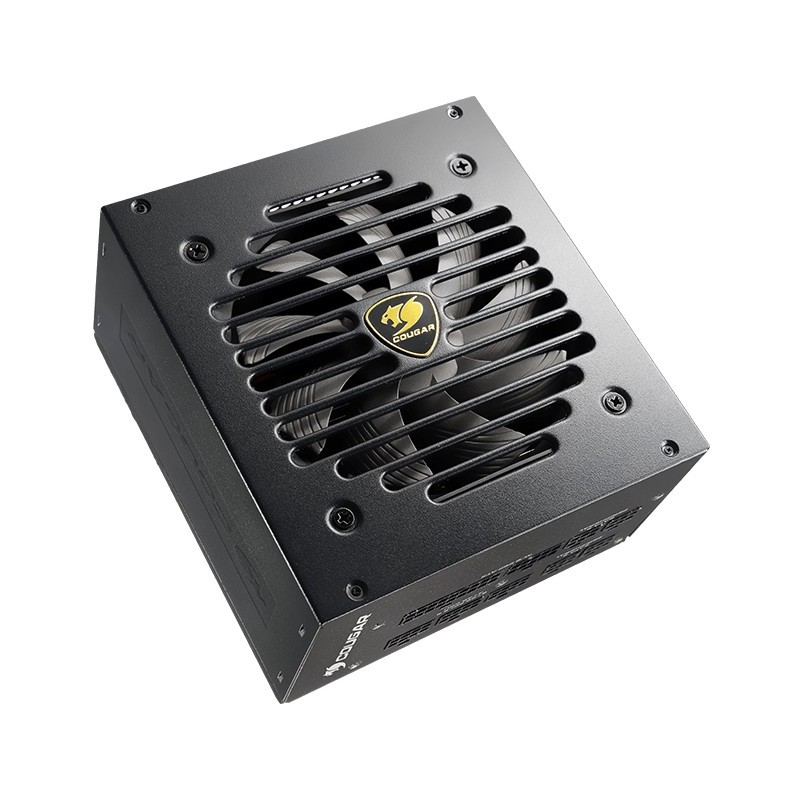

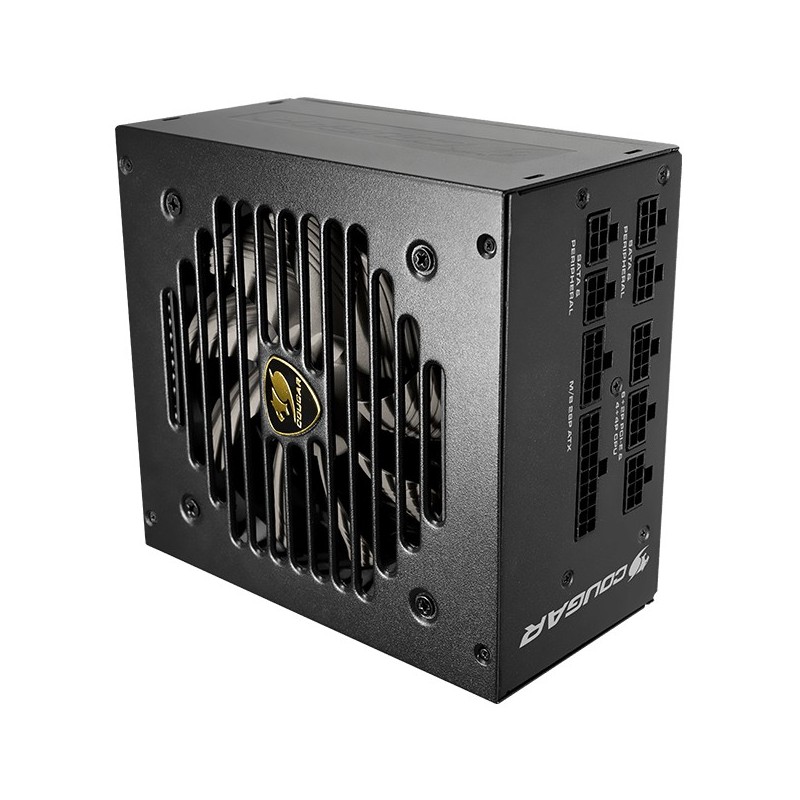

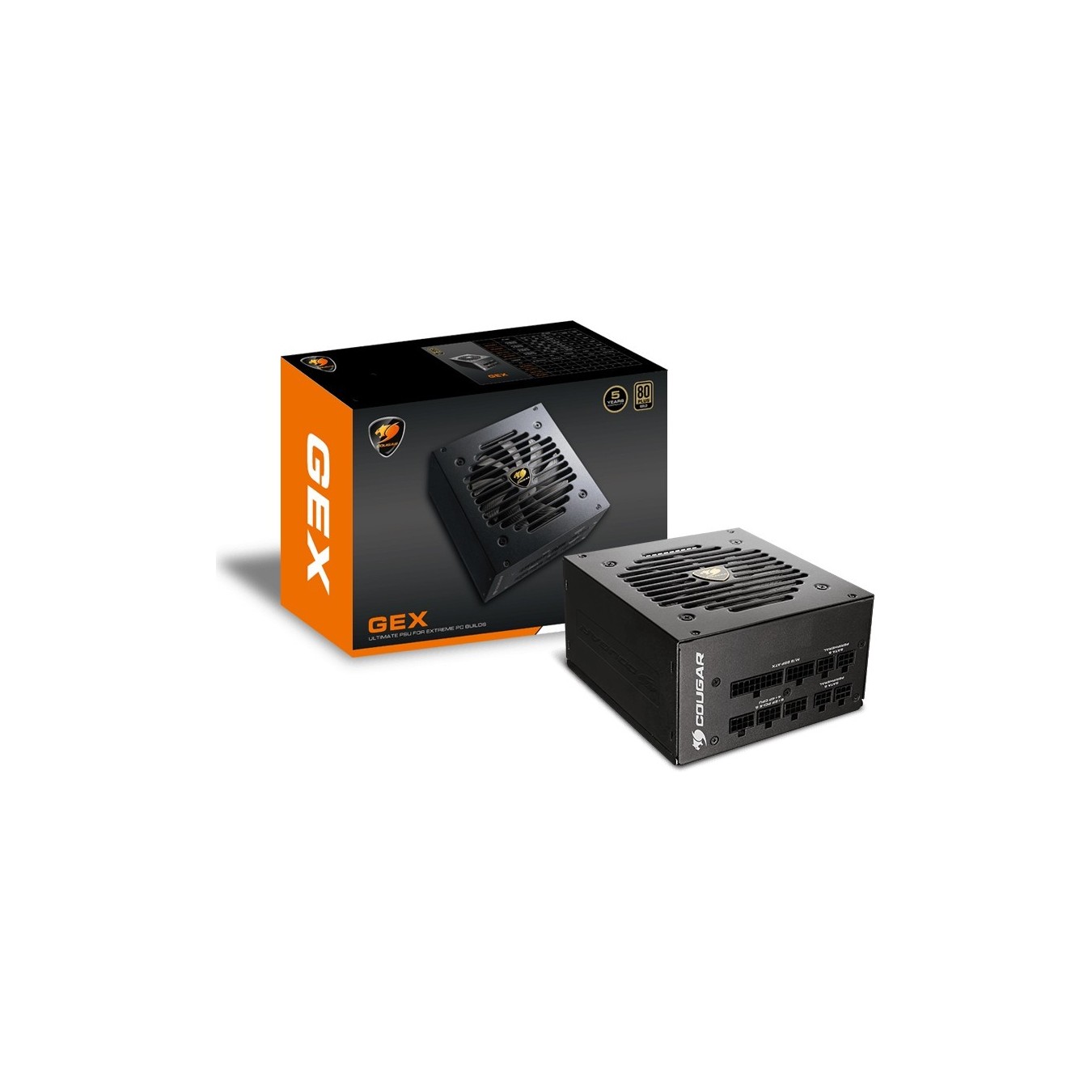

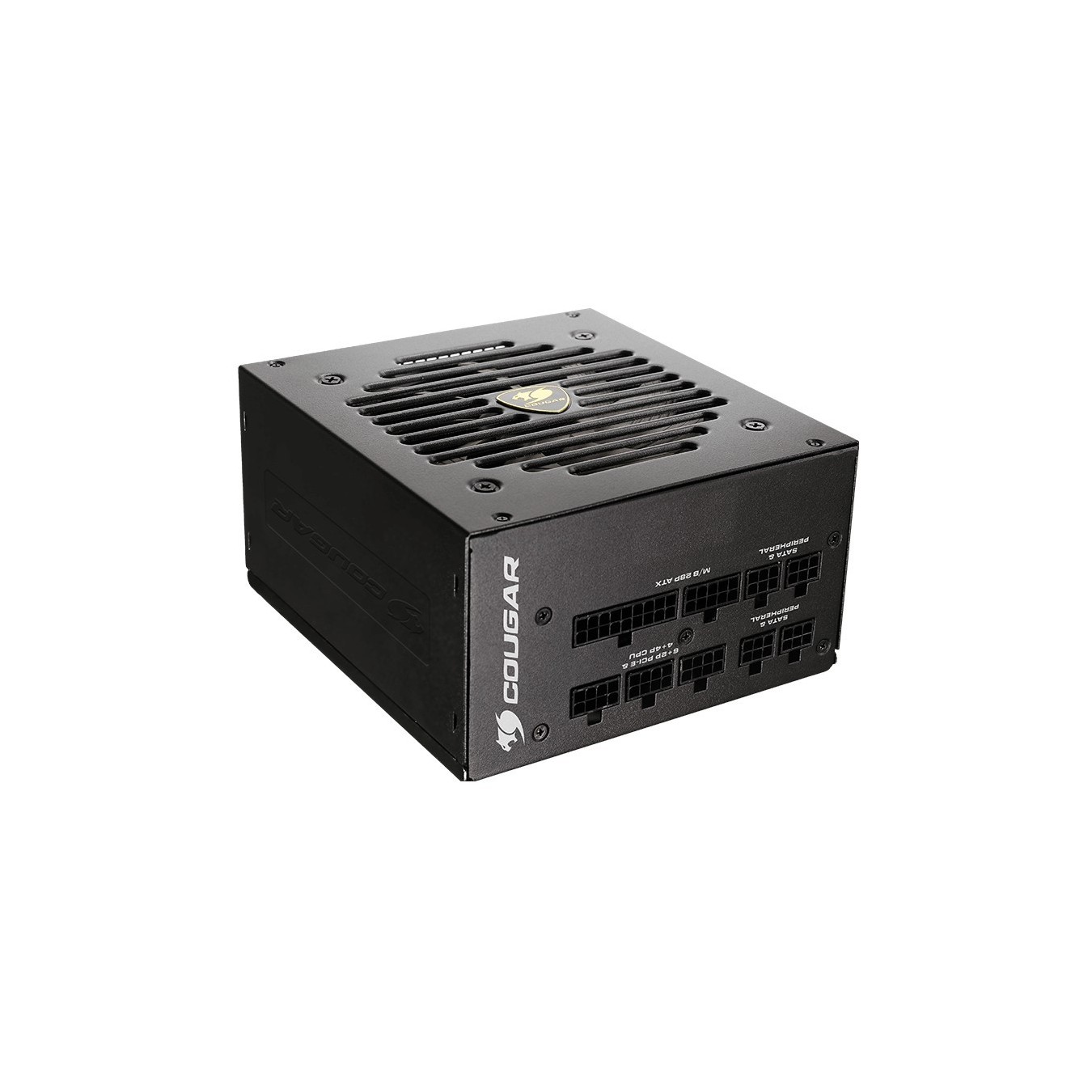

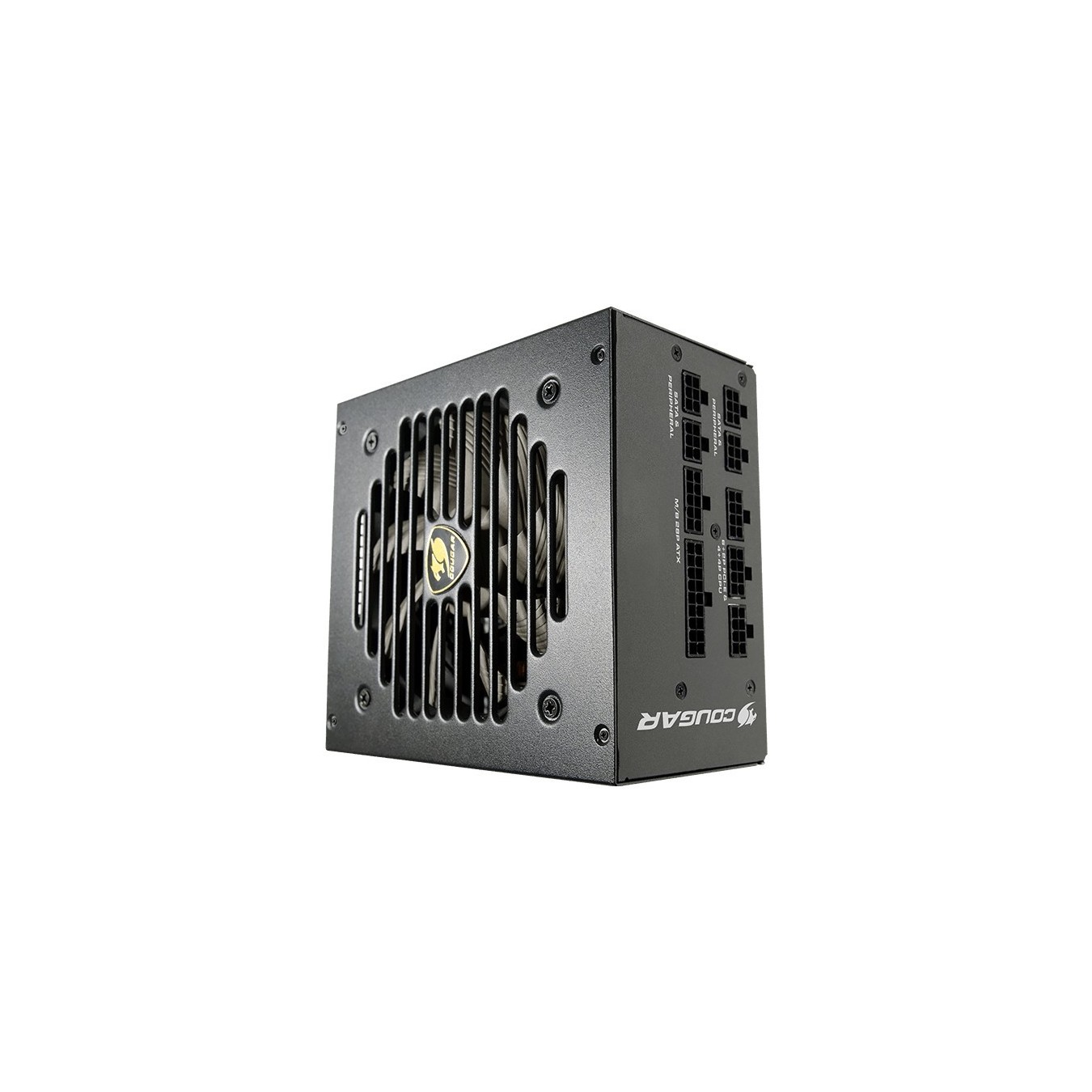

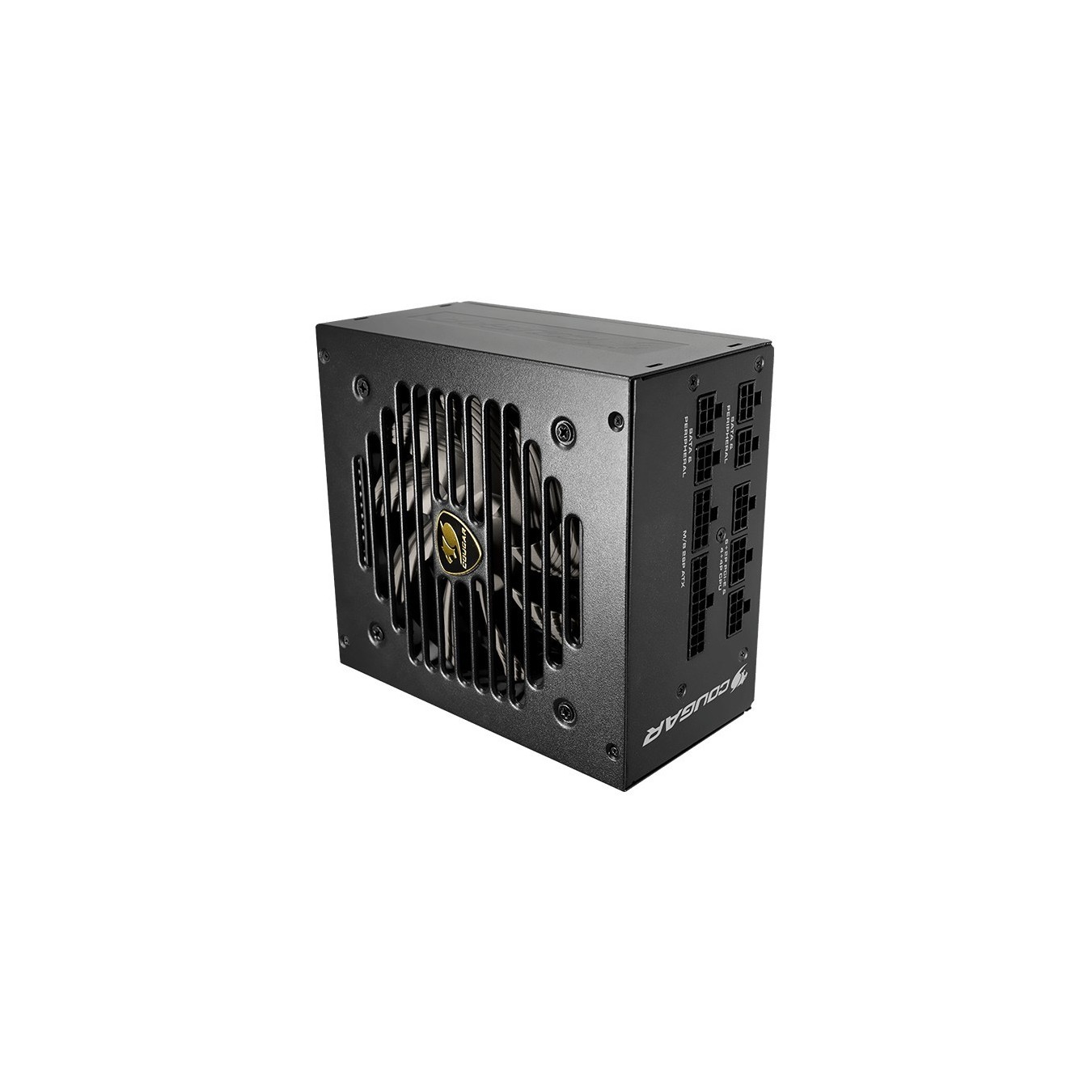

COUGAR Power Supply - GEX 850W - ATX3.0 80 Plus Gold Modular
COUGAR GEX 850W modular power supply featuring ATX3.0 compliance and 80 Plus Gold efficiency.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 850 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 3.0 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | 141-160 mm |
COUGAR Gaming GEX850. Total power: 850 W. AC input voltage: 100 - 240 V. AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 61 cm. SATA power cable length: 120.450 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Cables included: AC. CPU. PCIe. Peripheral (Molex). SATA
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12 - 6 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 0.3 W |
| Combined power (+5Vsb) | 3 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |

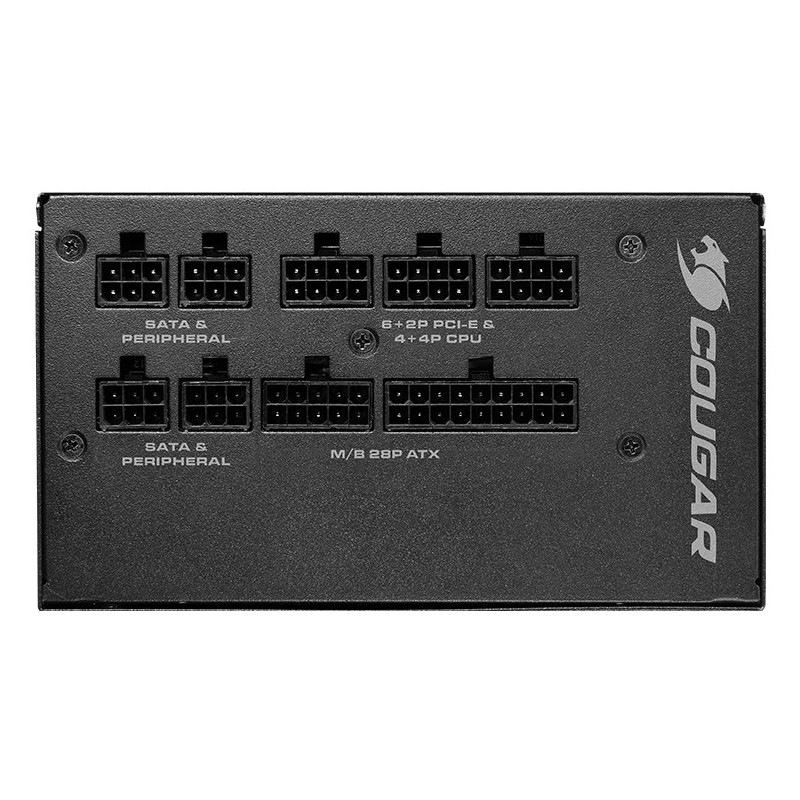

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| Number of PATA power connectors | 3 |
| SATA power cable length | 120.450 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 120.450 mm |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 60 cm |

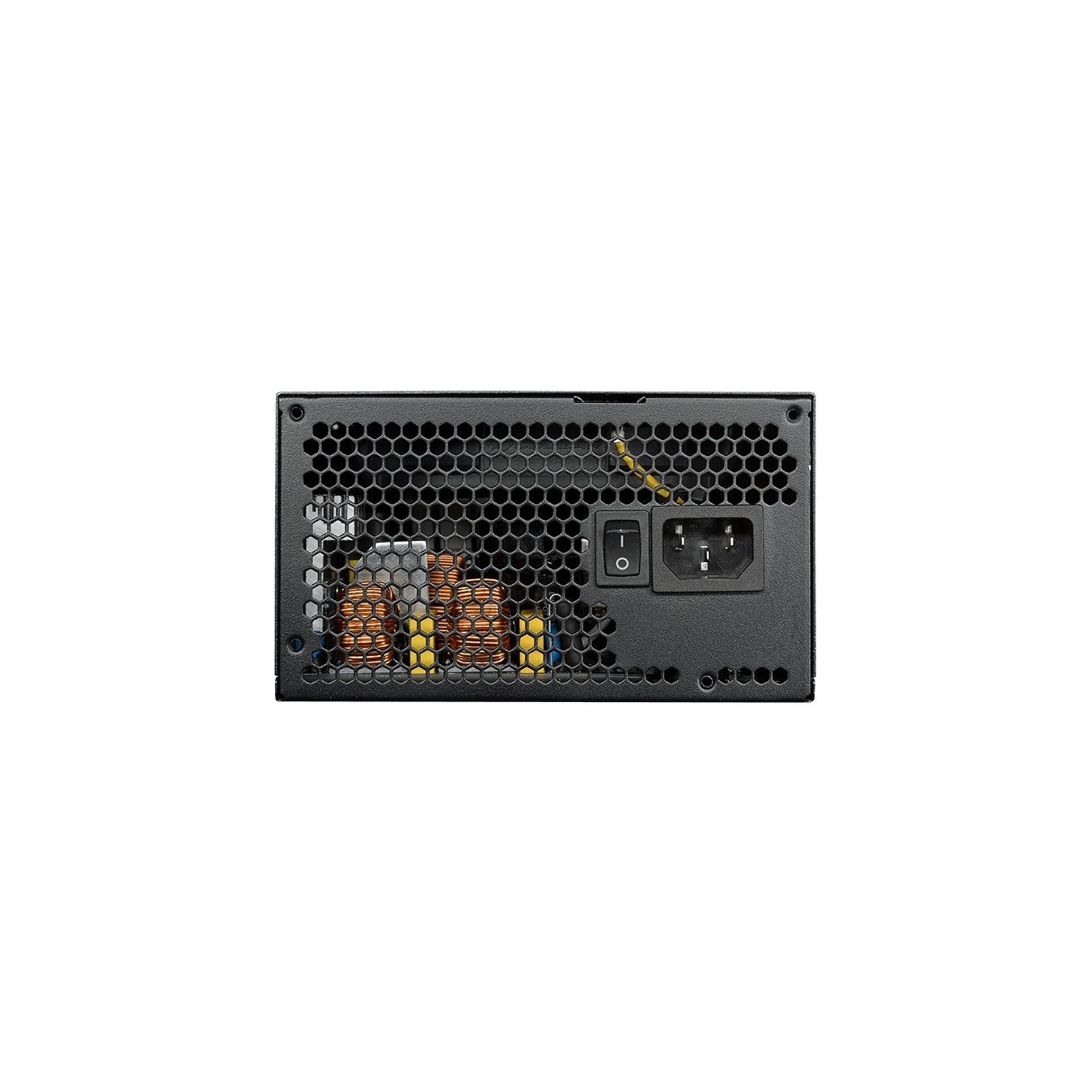

| Feature | On/off switch |
| CPU power cable length | 65 cm |

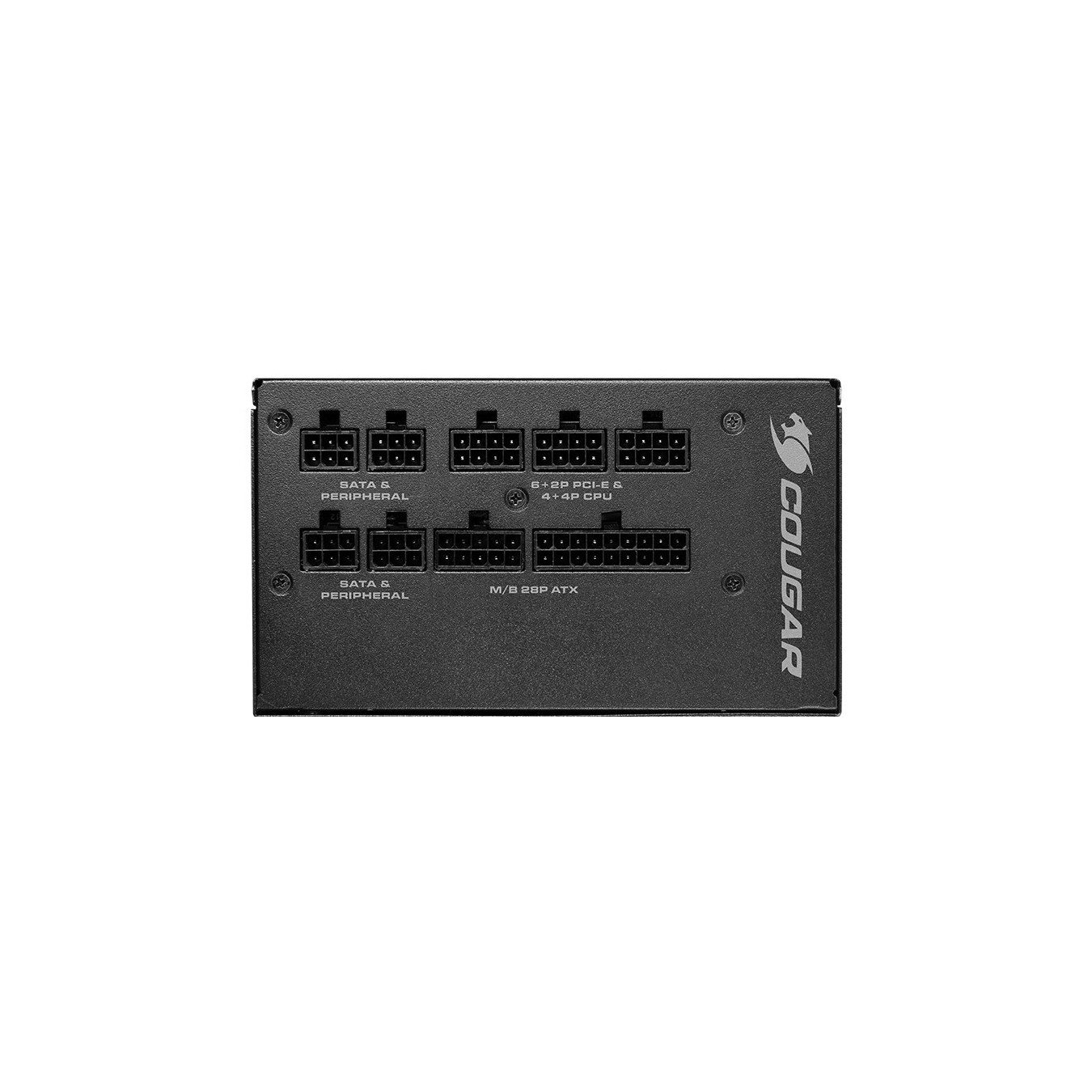

| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | HDB |
| Product colour | Black |
| Cooling type | Active |

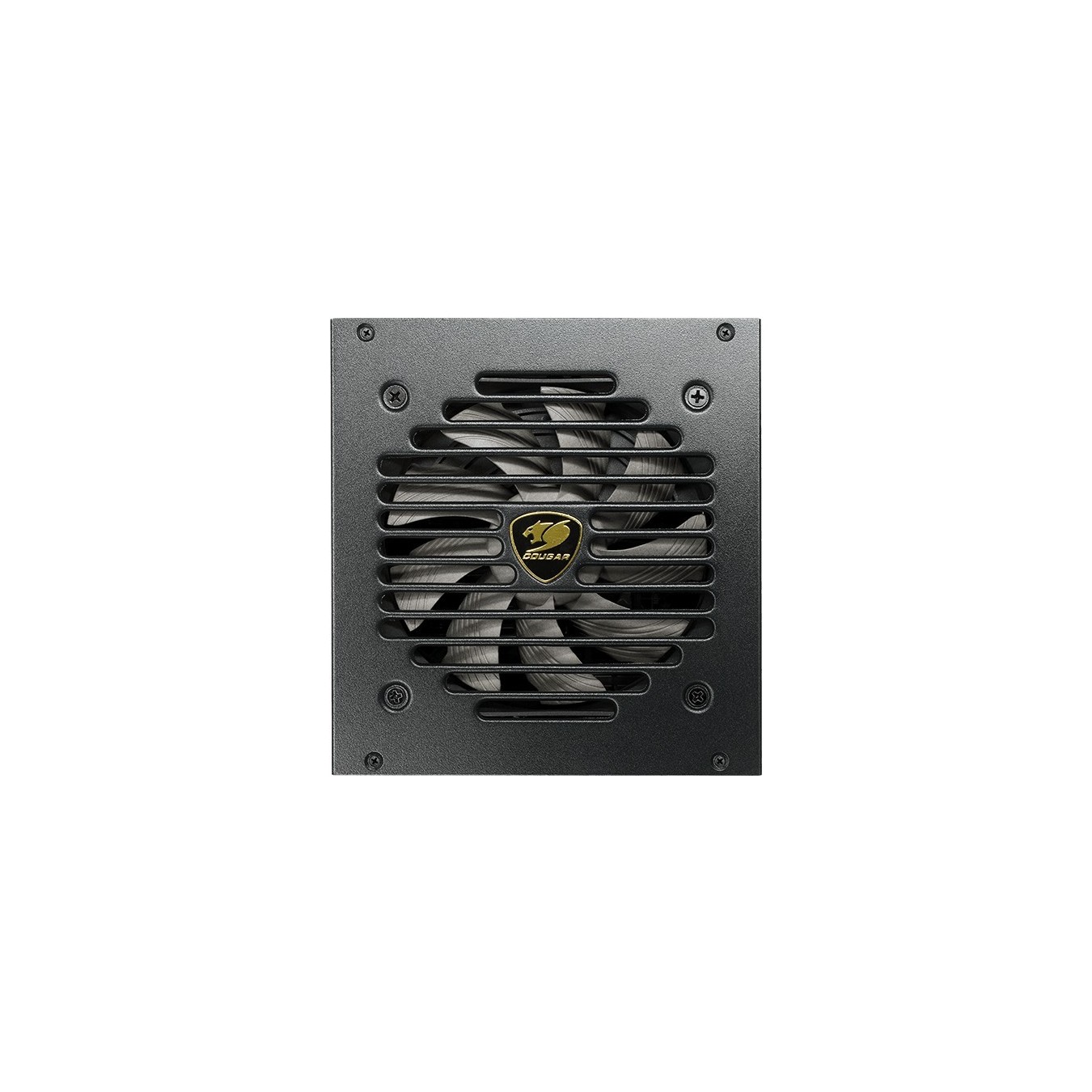

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |

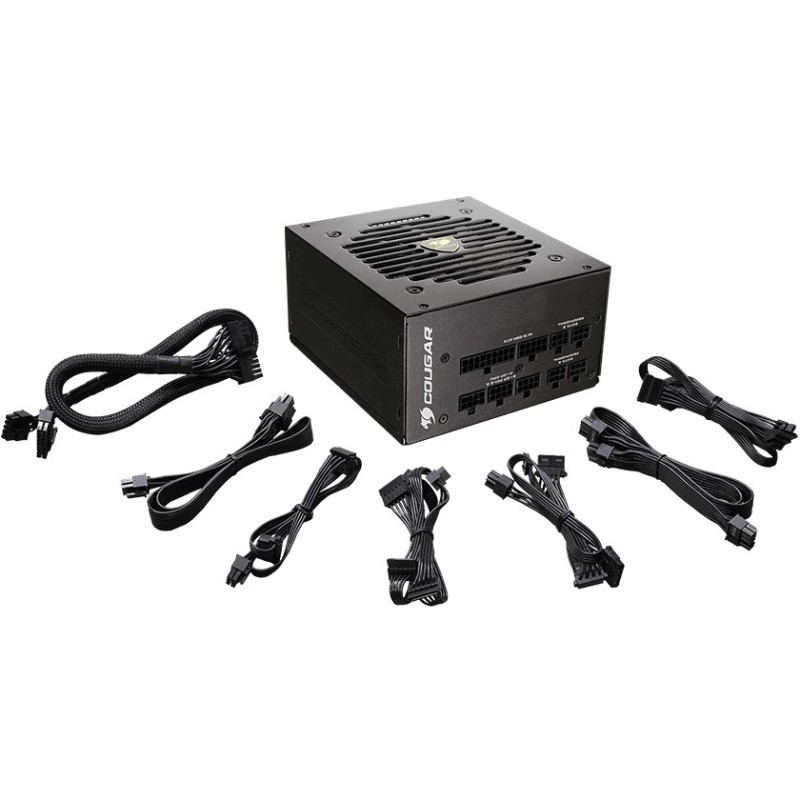

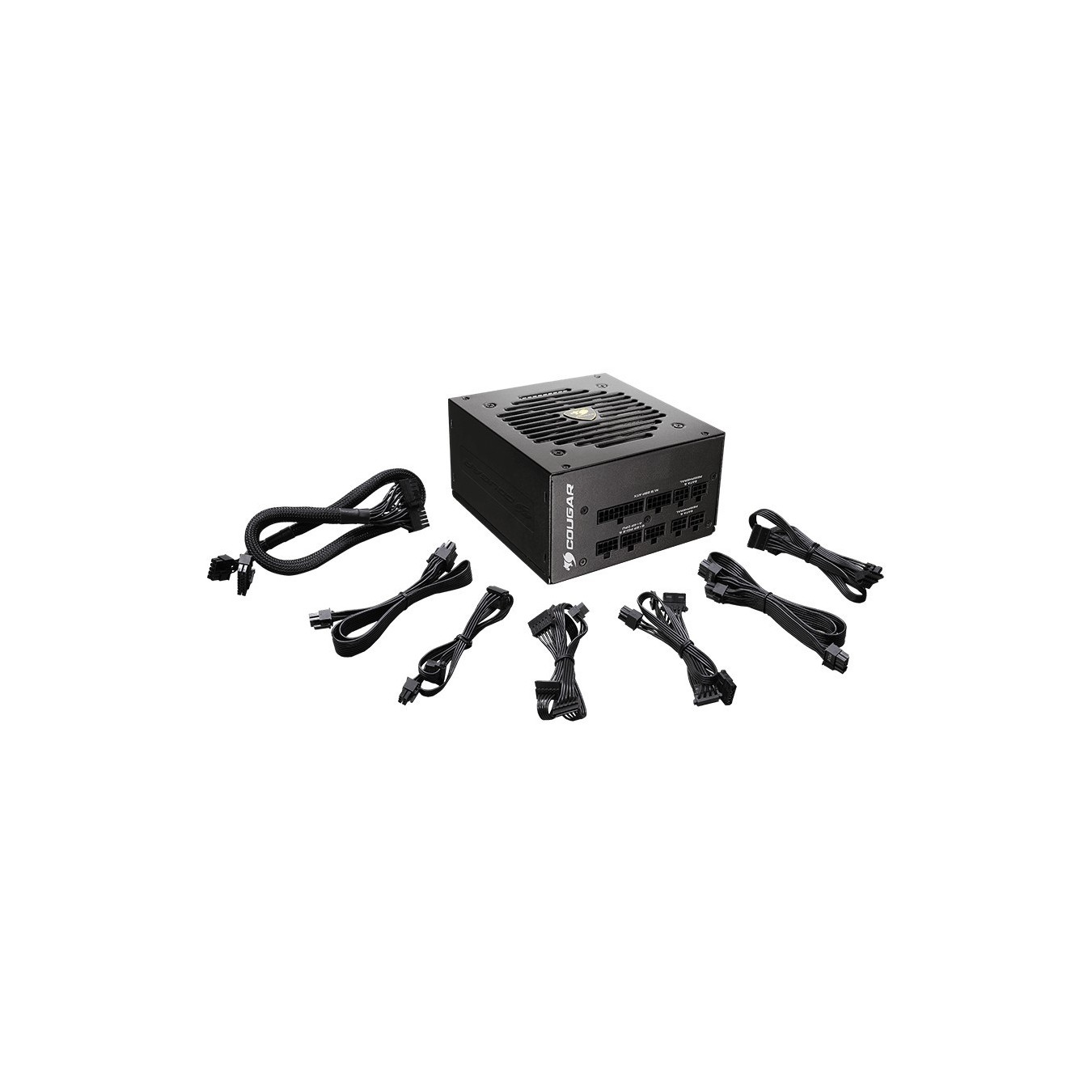

| Cables included | AC. CPU. PCIe. Peripheral (Molex). SATA |
| Compliance certificates | CCC. CE. EAC. Federal Communications Commission (FCC). RoHS. TÜV mark |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.56 kg |
| Package width | 229 mm |
| Package depth | 331 mm |
| Package height | 107 mm |
| Package weight | 2.76 kg |
| Package type | Box |
| Warranty period | 5 year(s) |
