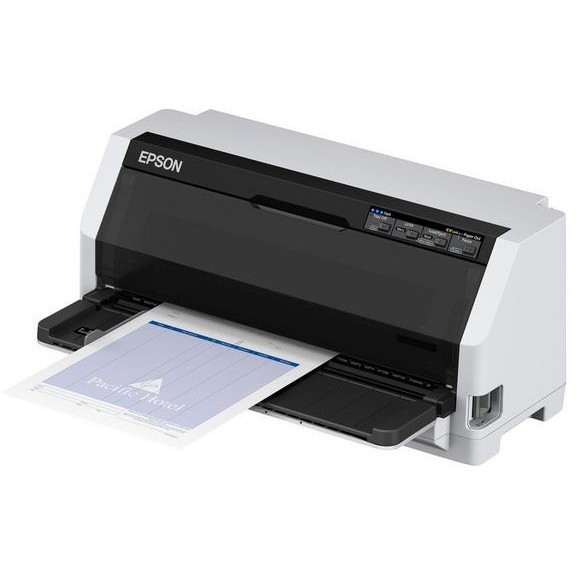

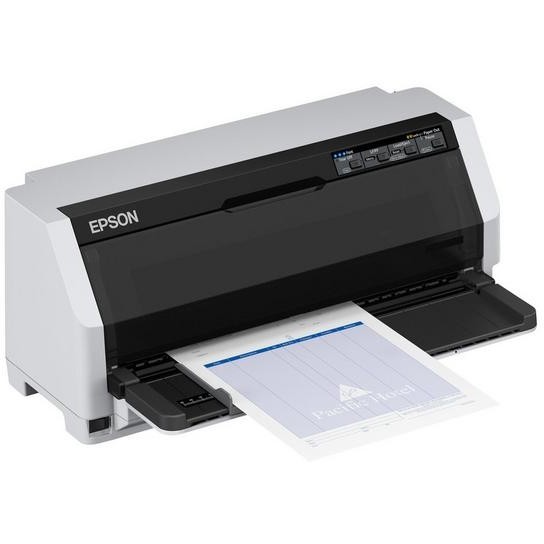

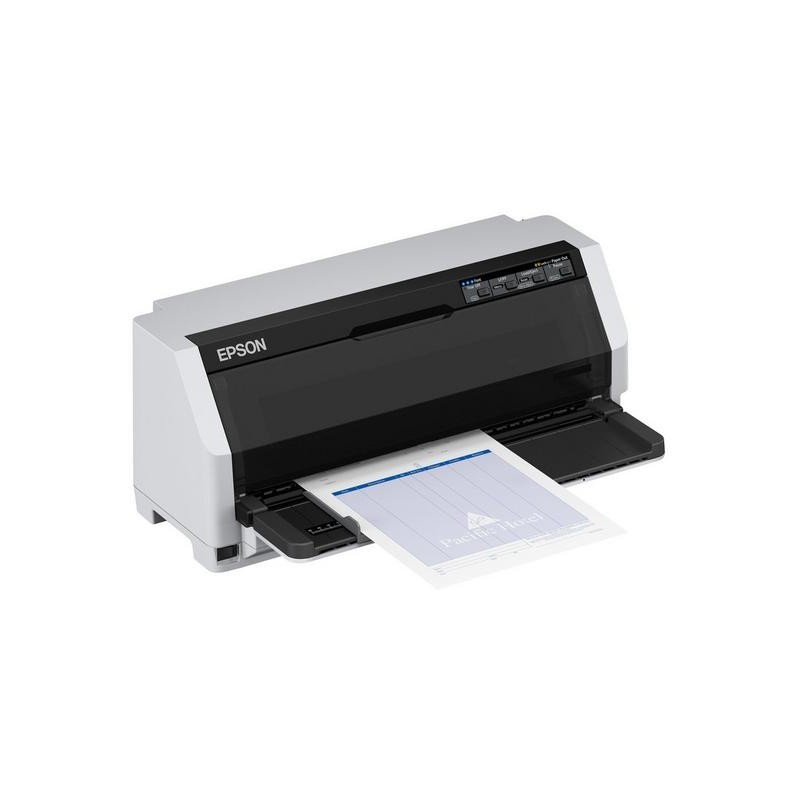

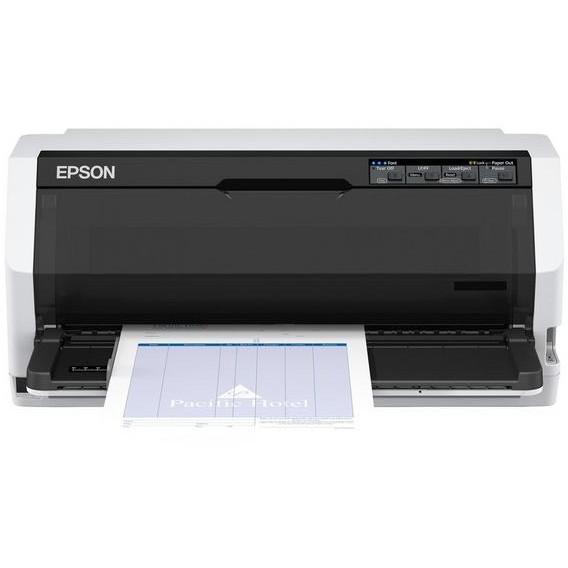

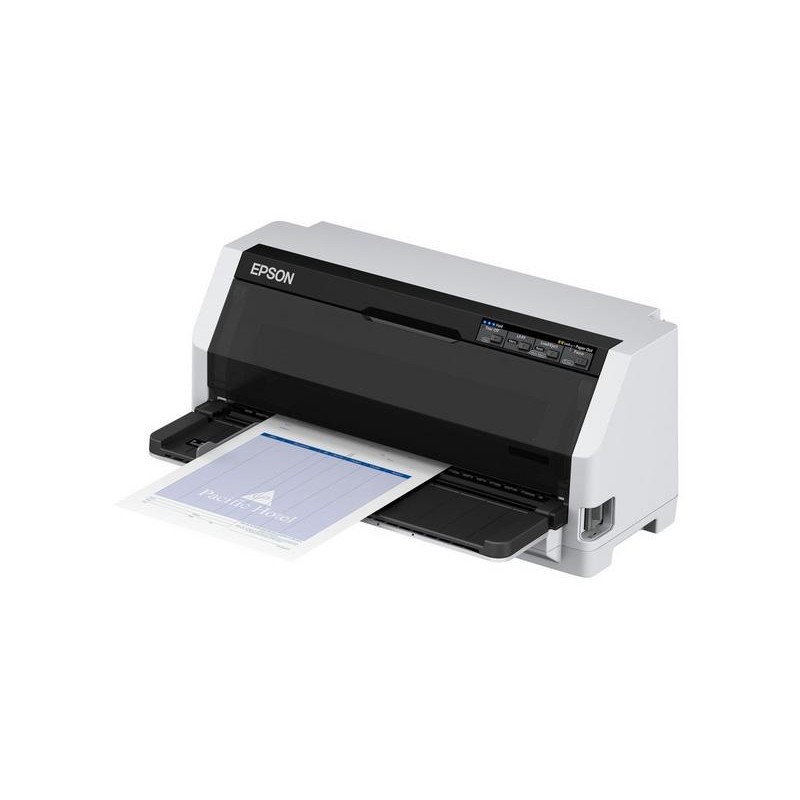

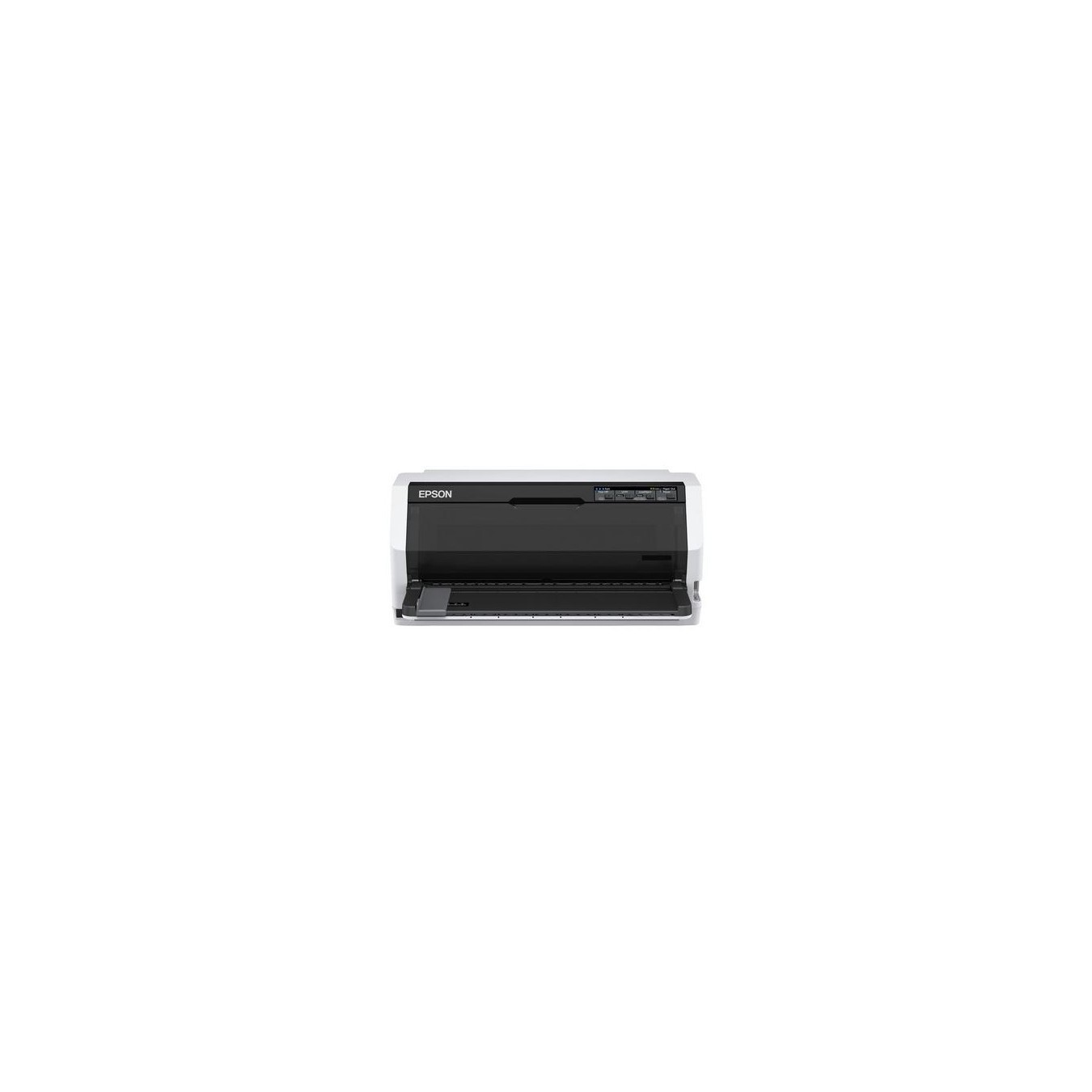

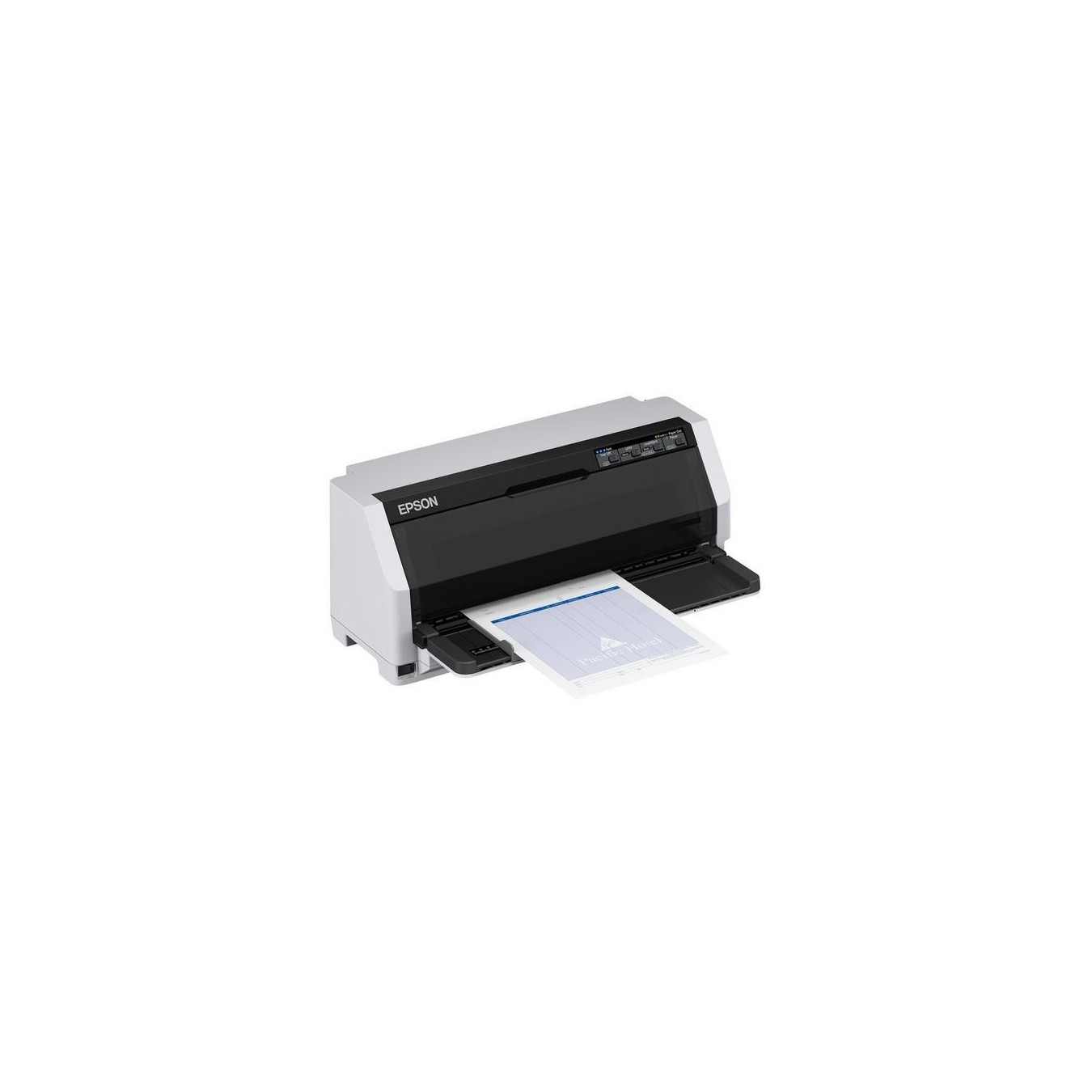

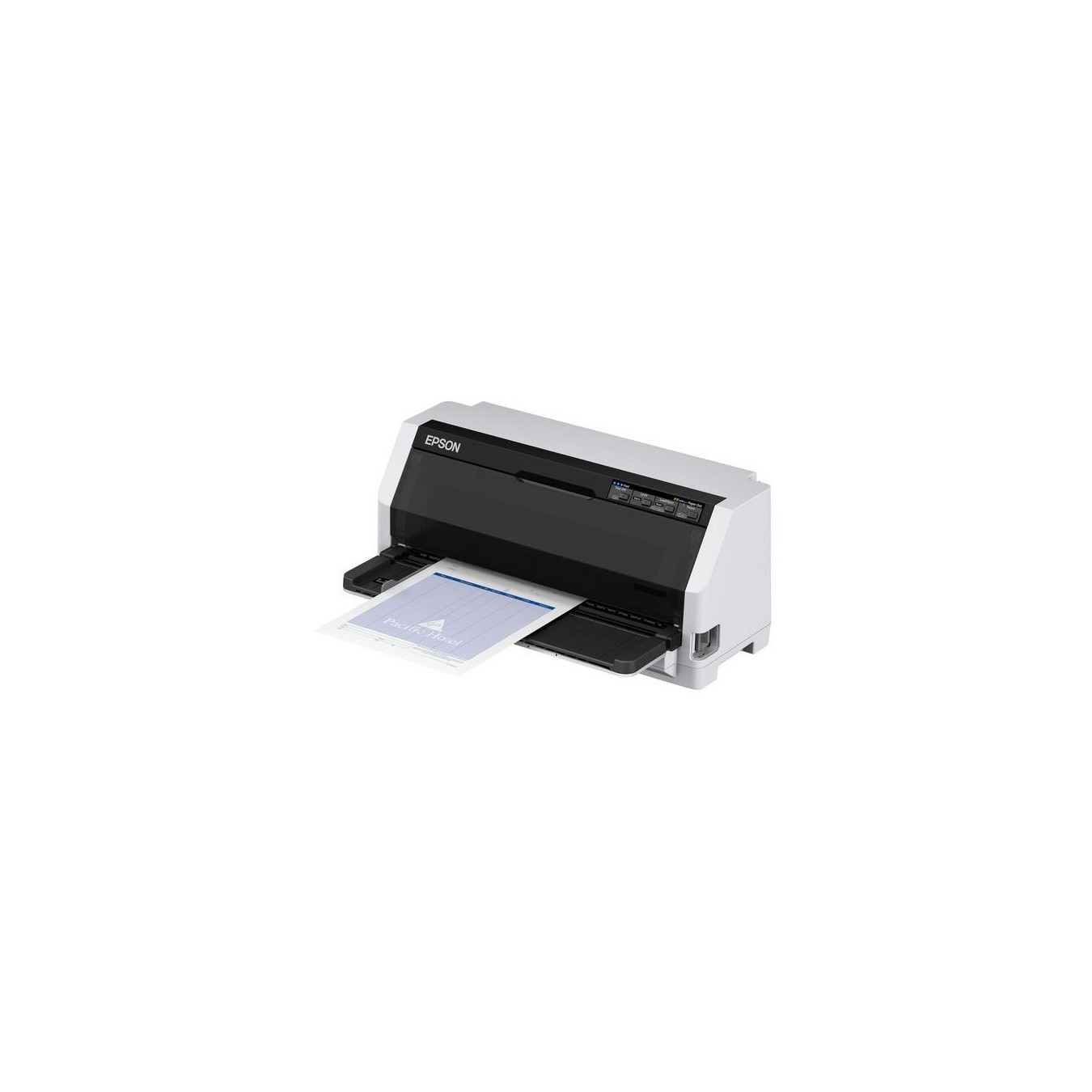

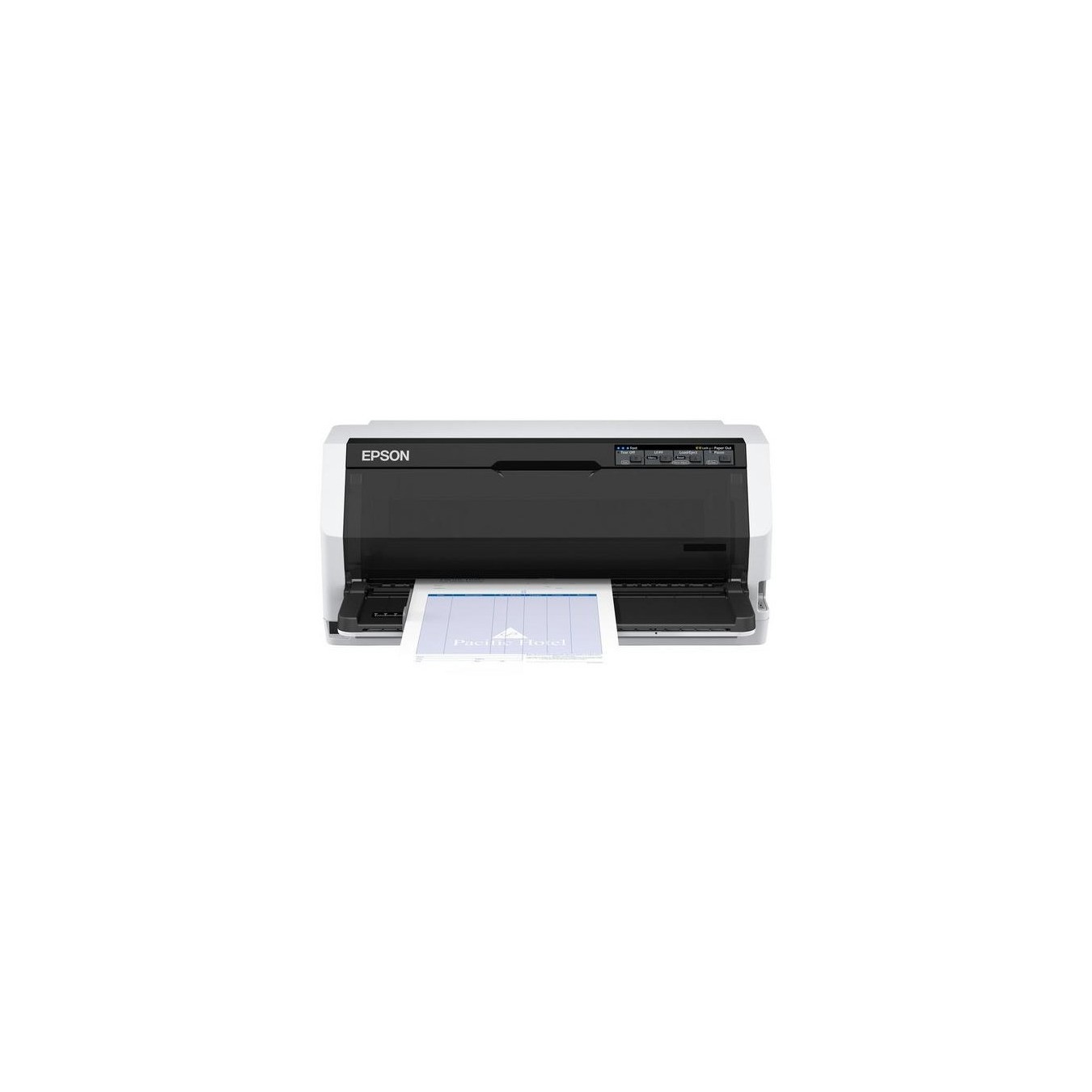

Epson - LQ-690II
Dot matrix printer with up to 487 cps, 4800 x 1200 DPI, 7 copies, multiple barcodes, 24-pin head, USB 2.0 and Parallel.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Printers - Color | Mono |
|---|---|
| Printers - Connectivity | USB |
| Printers - OS | Windows |
Epson LQ-690II. Maximum print speed: 487 cps. Maximum resolution: 4800 x 1200 DPI. Maximum print speed (draft): 366 cps. Paper feed: Manual. Pull tractor. Paper tray media types: Envelopes. Labels. Plain paper. Roll. Continuous paper thickness range: 0.065 - 0.49 mm. Product colour: Black. White. Buffer size: 128 KB. Sound pressure level (printing): 59 dB. Standard interfaces: Parallel. USB 2.0. Print head: 24-pin. Print head life: 400 million characters. Ribbon life: 10 million characters
| Maximum resolution | 4800 x 1200 DPI |
| Maximum printing width (columns) | 106 |
| Maximum print speed | 487 cps |
| Maximum print speed (draft) | 366 cps |
| Maximum print speed (LQ) | 121 cps |
| Maximum number of copies | 7 copies |
| Built-in barcodes | CODABAR (NW-7). Code 39. Code-128 Codabar Library. EAN128. EAN13. Industrial 2/5. Interleaved 2/5. Matrix 2/5. POSTNET. UPC-A. UPC-E |
| Character sets | ISO 8859-15. Italic. PC437. PC708. PC720. PC850. PC858. PC864. PCAR864. Roman 8 |
| Paper feed | Manual. Pull tractor |
| Paper tray media types | Envelopes. Labels. Plain paper. Roll |
| Continuous paper thickness range | 0.065 - 0.49 mm |
| Label thickness range | 0.16 - 0.19 mm |
| Multi-part paper thickness range | 0.12 - 0.49 mm |
| Single sheet thickness range | 0.065 - 0.15 mm |
| Product colour | Black. White |
| Buffer size | 128 KB |
| Sound pressure level (printing) | 59 dB |
| Country of origin | Indonesia |
| Standard interfaces | Parallel. USB 2.0 |
| Print head | 24-pin |
| Print head life | 400 million characters |
| Ribbon life | 10 million characters |
| Mean time between failures (MTBF) | 20000 h |
| Power consumption (typical) | 38 W |
| Power consumption (standby) | 3 W |
| Operating temperature (T-T) | 5 - 35 °C |
| Feature | Windows operating systems supported |
| Bundled software | Epson Status Monitor |
| Width | 480 mm |
| Depth | 301 mm |
| Height | 211 mm |
| Weight | 6.8 kg |
