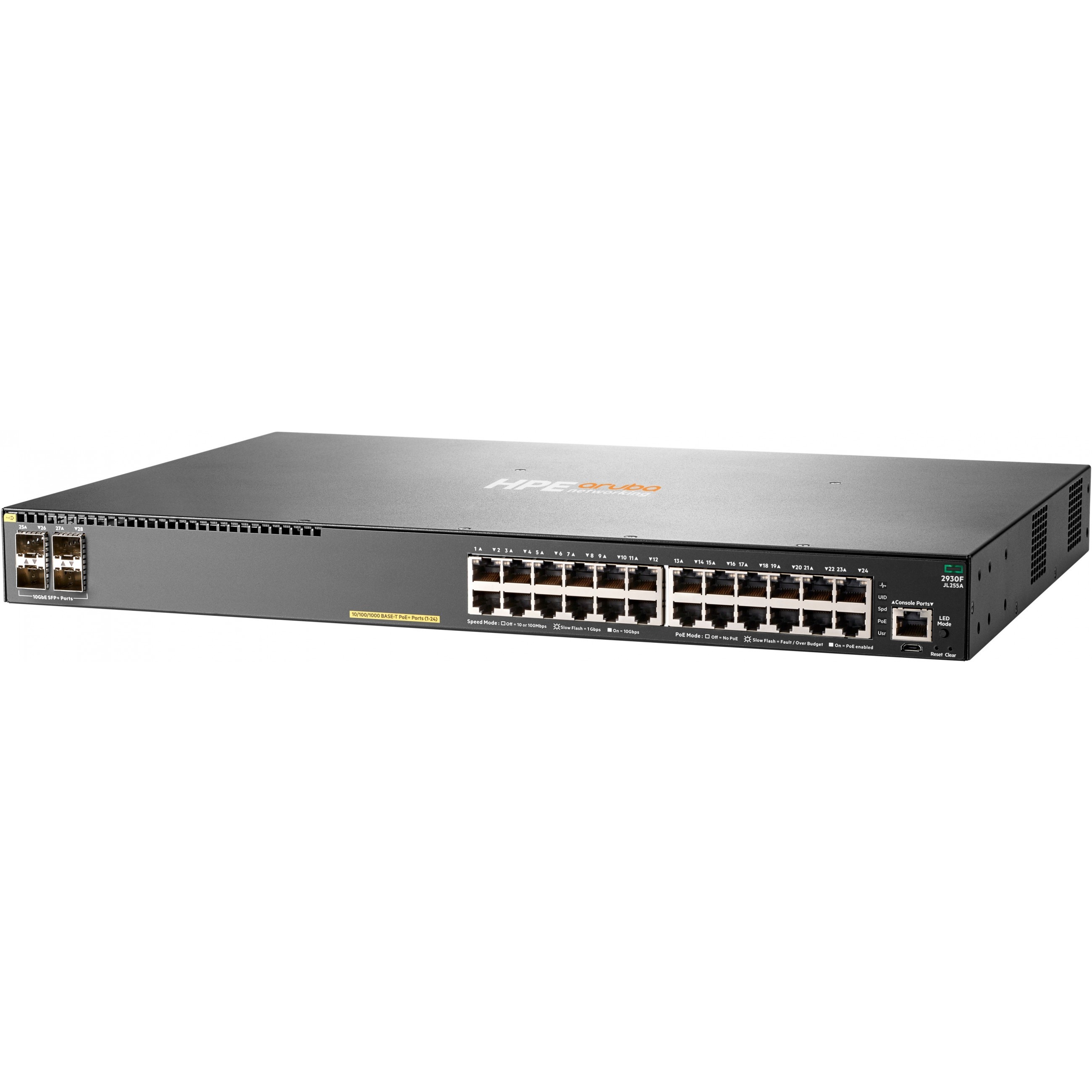

Aruba - 2930F - 24G PoE+ 4SFP-STOCK
Aruba 2930F switch with 24G PoE+ and 4 SFP ports; managed, L3, rack-mountable 1U.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
HPE Aruba Networking 2930F 24G PoE+ 4SFP+ Switch. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Console port: RJ-45/micro-USB. Full duplex. MAC address table: 32768 entries. Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1v. IEEE 802.1w. IEEE 802.1x. IEEE.... Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/micro-USB |
| Virtual LAN features | Private VLAN |
| Switching capacity | 128 Gbit/s |
| Throughput | 95.2 Mpps |
| MAC address table | 32768 entries |
| Latency (1 Gbps) | 3.8 µs |
| Latency (10 Gbps) | 1.6 µs |
| Packet buffer memory | 12.38 MB |
| Authentication | MAC-based authentication. Web-based authentication |
| Authentication type | RADIUS. TACACS+ |
| Management protocols | SNMPv1. SNMPv2. SNMPv3 |
| Routing protocols | RIPng. VRRP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Form factor | 1U |
| Airflow direction | Side-to-side airflow |
| Virtual stacking (units) | 8 |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 4096 MB |
| Power source | AC |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 445 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 258 BTU/h |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 304.2 mm |
| Weight | 3.9 kg |
