DeepCool PN850-M 850W 80+ Gold Fully Modular ATX 3.1 PSU (Boxed)
DeepCool PN850-M 850W fully modular ATX 3.1 PSU with 80 PLUS Gold efficiency. Features 1x 12V-2x6 (450-600W), 3x 6+2 PCIe, 8x SATA connectors, FDB fan, and 10-year warranty for reliable PC power delivery.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 3x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The DeepCool PN850-M is a high-performance 850W power supply unit designed for modern gaming and productivity PCs. Compliant with the latest ATX 3.1 and PCIe 5.1 standards, it delivers stable power even under demanding GPU excursions. Achieving 80 PLUS Gold and Cybenetics Gold efficiency ratings (up to 91% at 230V), it ensures low energy waste and cool operation.

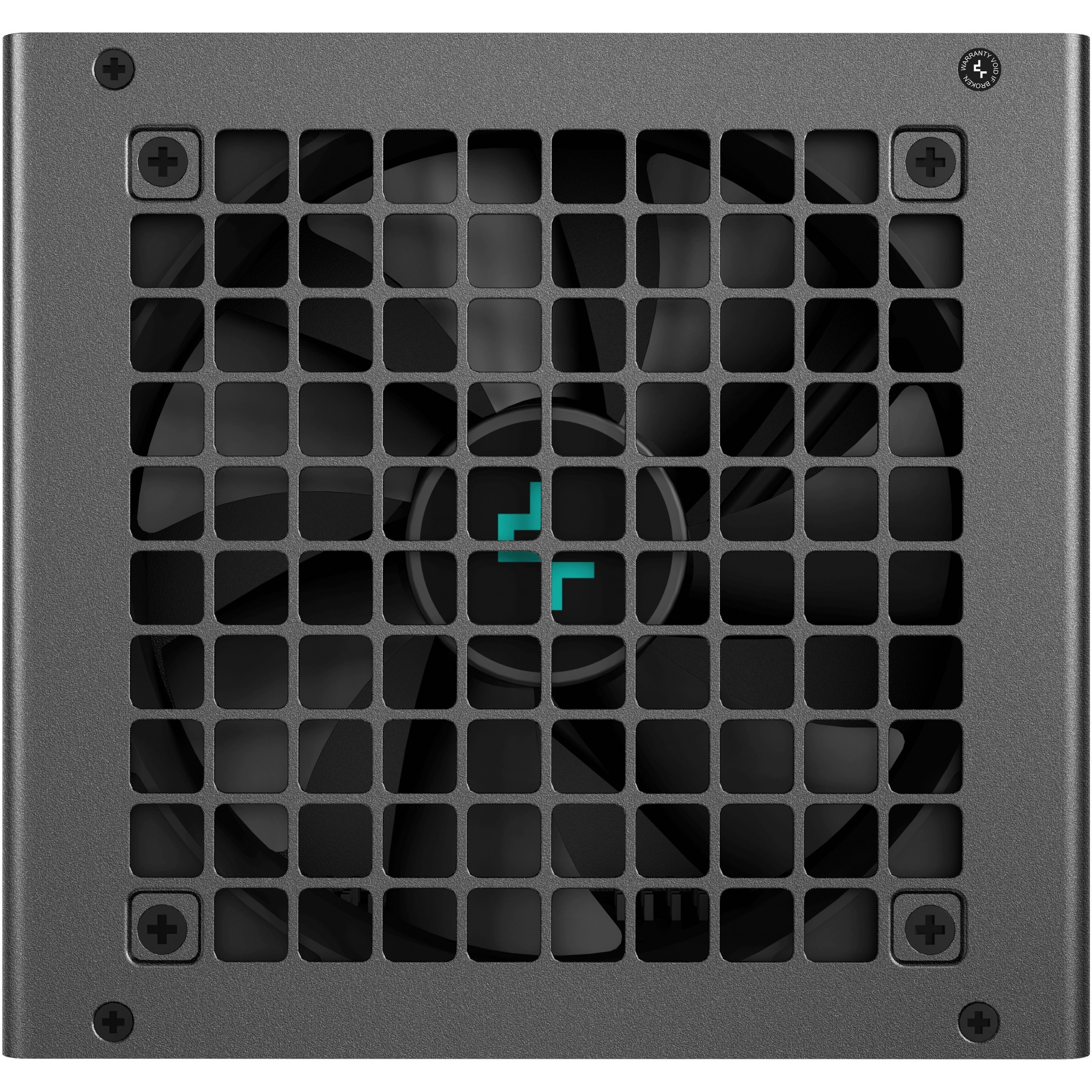

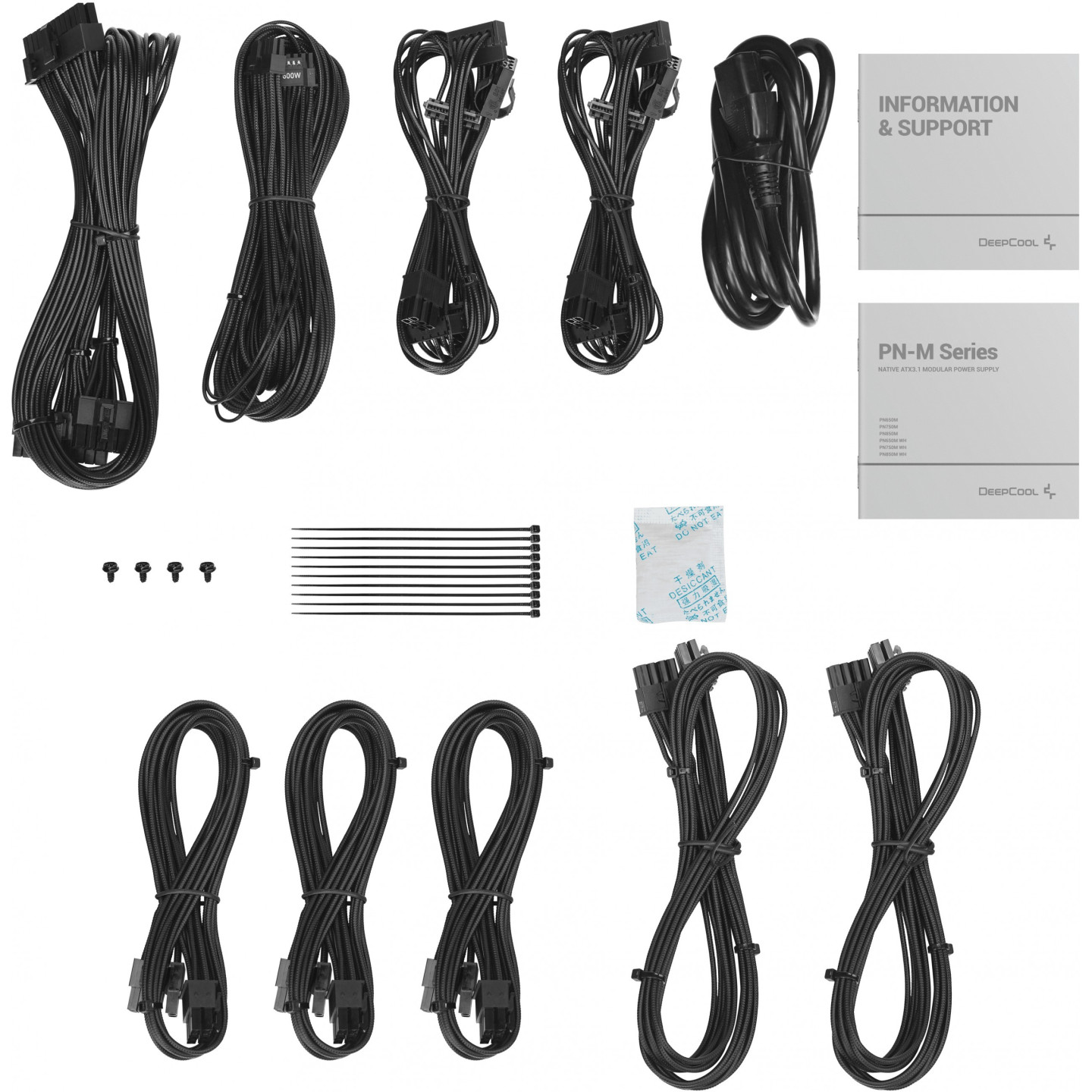

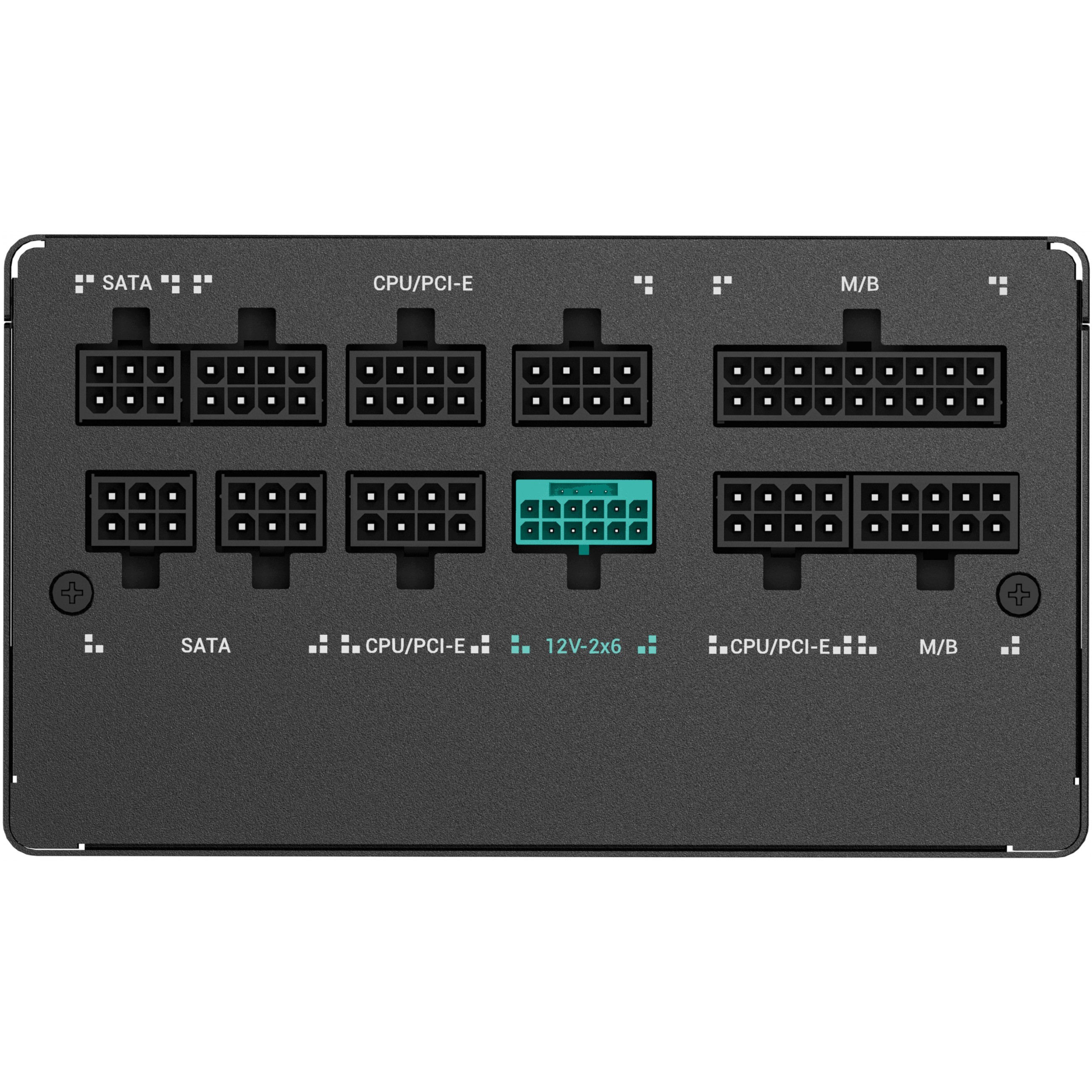

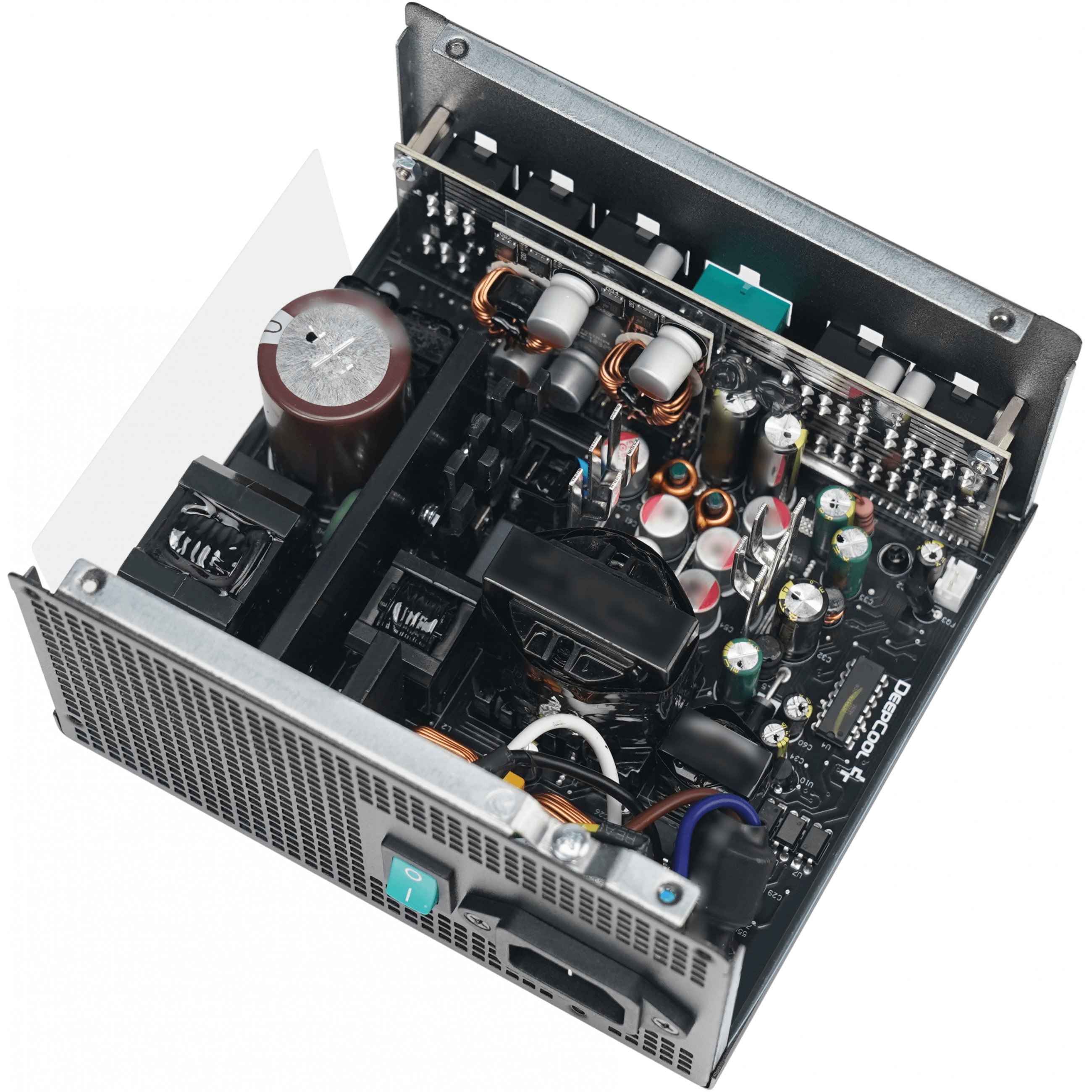

Fully modular cabling simplifies builds with individual sleeved cables, including 1x 12V-2x6 (16-pin) for next-gen GPUs (450-600W capable), 3x 6+2 pin PCIe, dual EPS 4+4pin CPU, 8x SATA, and 2x Molex connectors. The compact 150x140x86mm chassis houses a quiet 120mm FDB fan with fluid dynamic bearings for longevity (100,000h MTBF). Robust protections cover OPP, OVP, OTP, SCP, UVP, and more.
- ✅ 850W total power, 70.5A on +12V rail (846W combined)
- ✅ Full power delivery up to 47°C ambient
- ✅ 10-year warranty and ErP/Triman sustainability certs
- ✅ Black finish, active cooling, low ripple/noise (Cybenetics Standard++)
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| 80 PLUS certification | 80 PLUS Gold |
| Cybenetics Efficiency | Gold (91.024% avg 230V) |
| ATX version | 3.1 |
| Cabling type | Fully-Modular |
| PCI Express power connectors (16-pin) | 1 (12V-2x6) |
| PCI Express power connectors (6+2 pin) | 3 |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connectors | 2x 4+4 pin EPS/ATX12V |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Warranty | 10 years |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Power protection features | OPP, OVP, OTP, SCP, UVP, OCP, NLO, SIP |
