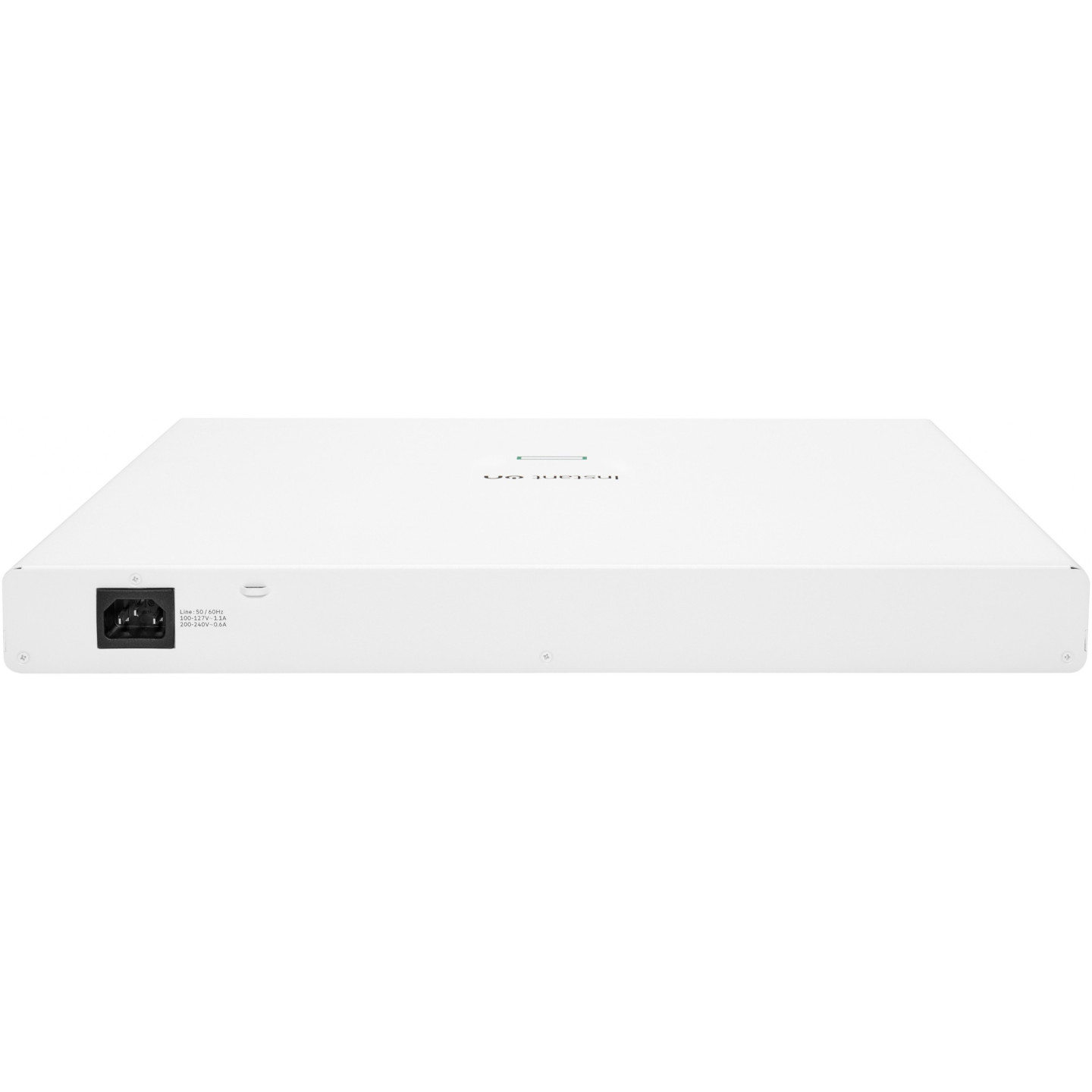

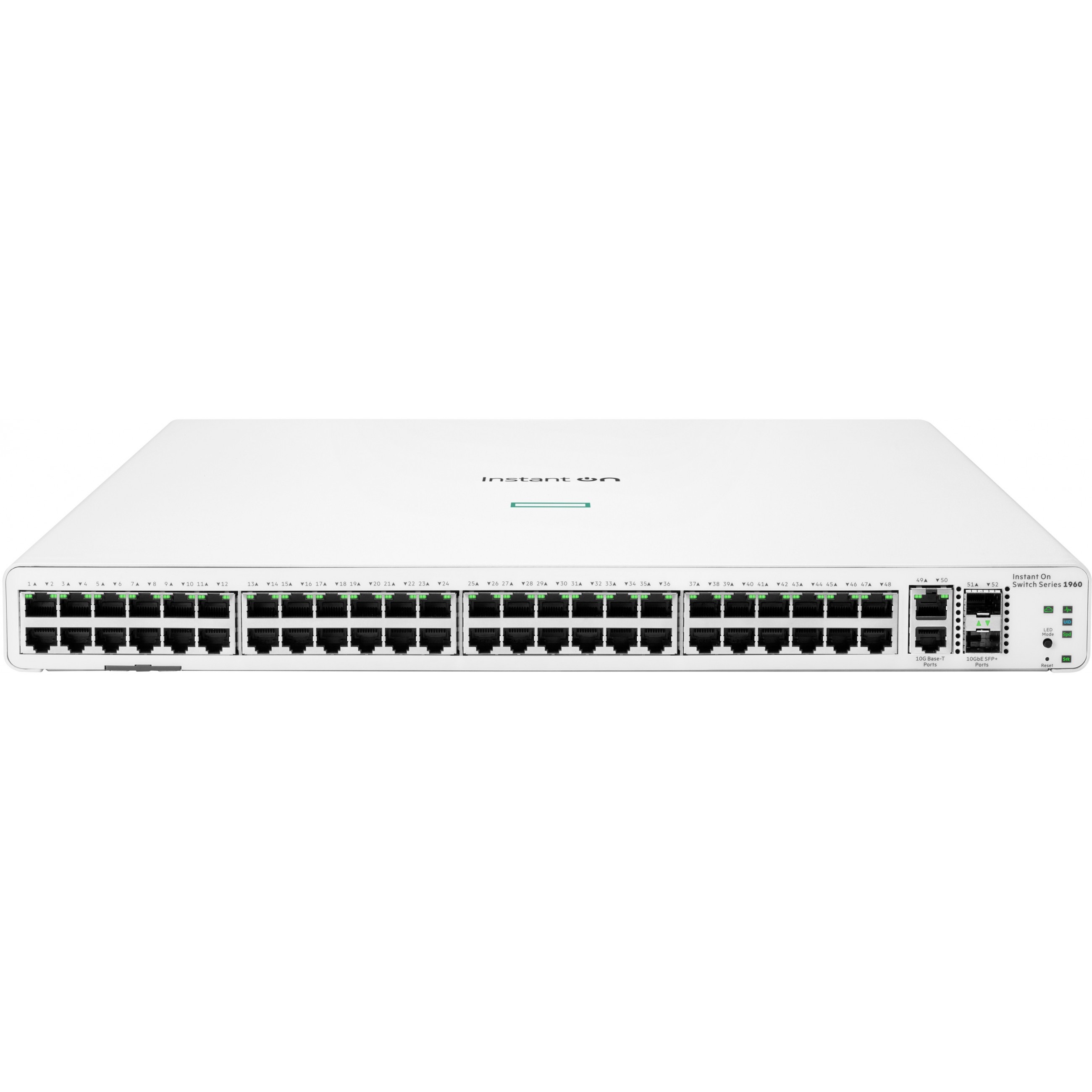

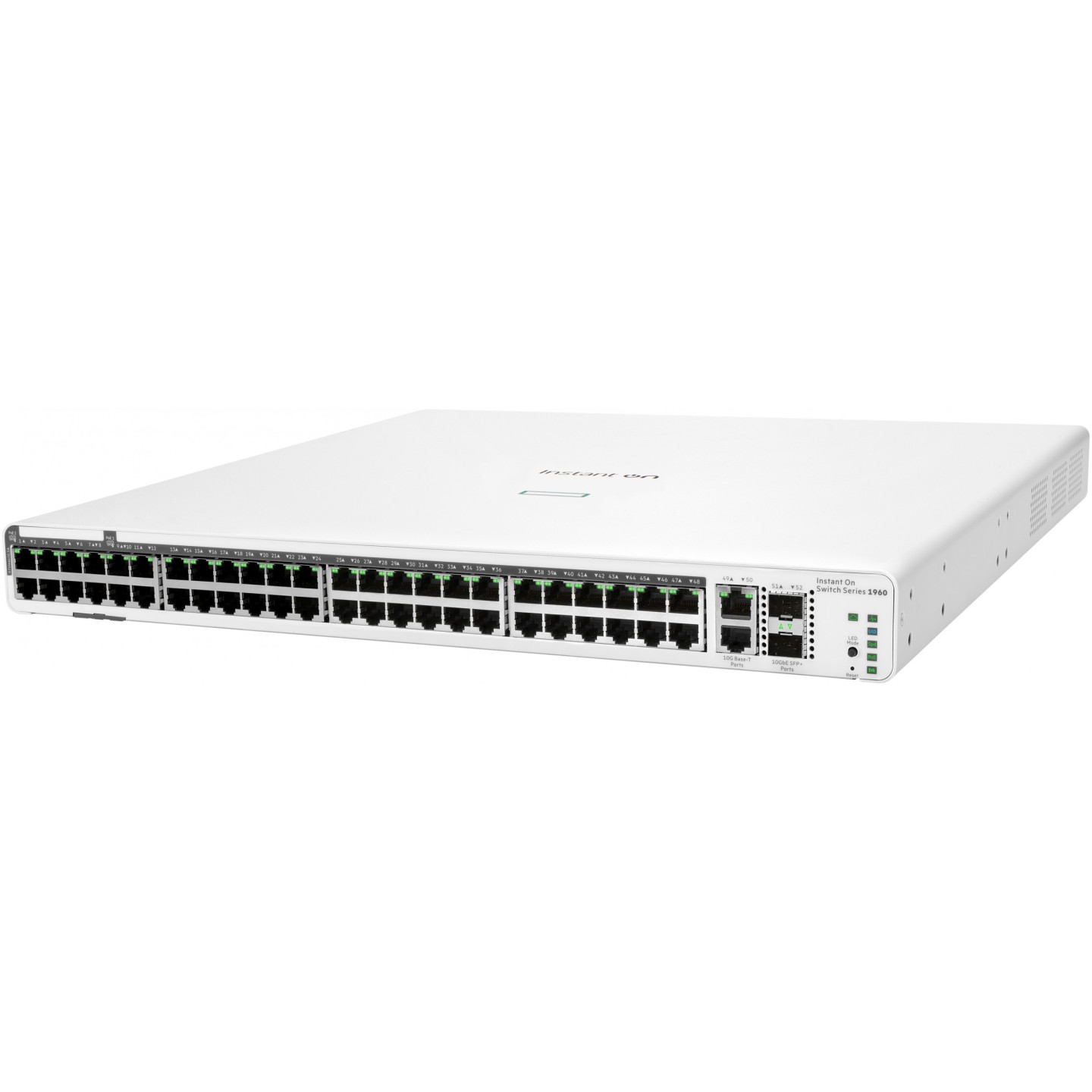

HP Enterprise Aruba Instant On Switch - 1960 RM - 48G 2SFP+ 2XGT
Aruba Instant On 1960 RM switch with 48 Gigabit ports, 2 SFP+ 10 Gb uplinks, 2XGT, managed, L2+, 1U rack-mount.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Ports | 48 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | Yes |
HPE Aruba Networking Networking Instant On Switch 48p Gigabit 2p 10GBT 2p SFP+ 1960. Switch type: Managed. Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE.... Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2+ |
| Feature | Power supply included |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 10G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Switching capacity | 176 Gbit/s |
| Throughput | 131 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 4.4 µs |
| Latency (1 Gbps) | 2.2 µs |
| Latency (10 Gbps) | 1.1 µs |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP snooping |
| Authentication | Port-based authentication |
| Authentication type | RADIUS |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| IPv4 FIB entries | 32 |
| IPv6 FIB entries | 32 |
| Form factor | 1U |
| Product colour | White |
| Physical stacking (units) | 4 |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 800 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 120 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating altitude | 0 - 3000 m |
| Width | 350.5 mm |
| Depth | 442.5 mm |
| Height | 44 mm |
| Weight | 4.4 kg |
| Harmonized System (HS) code | 85176990 |
