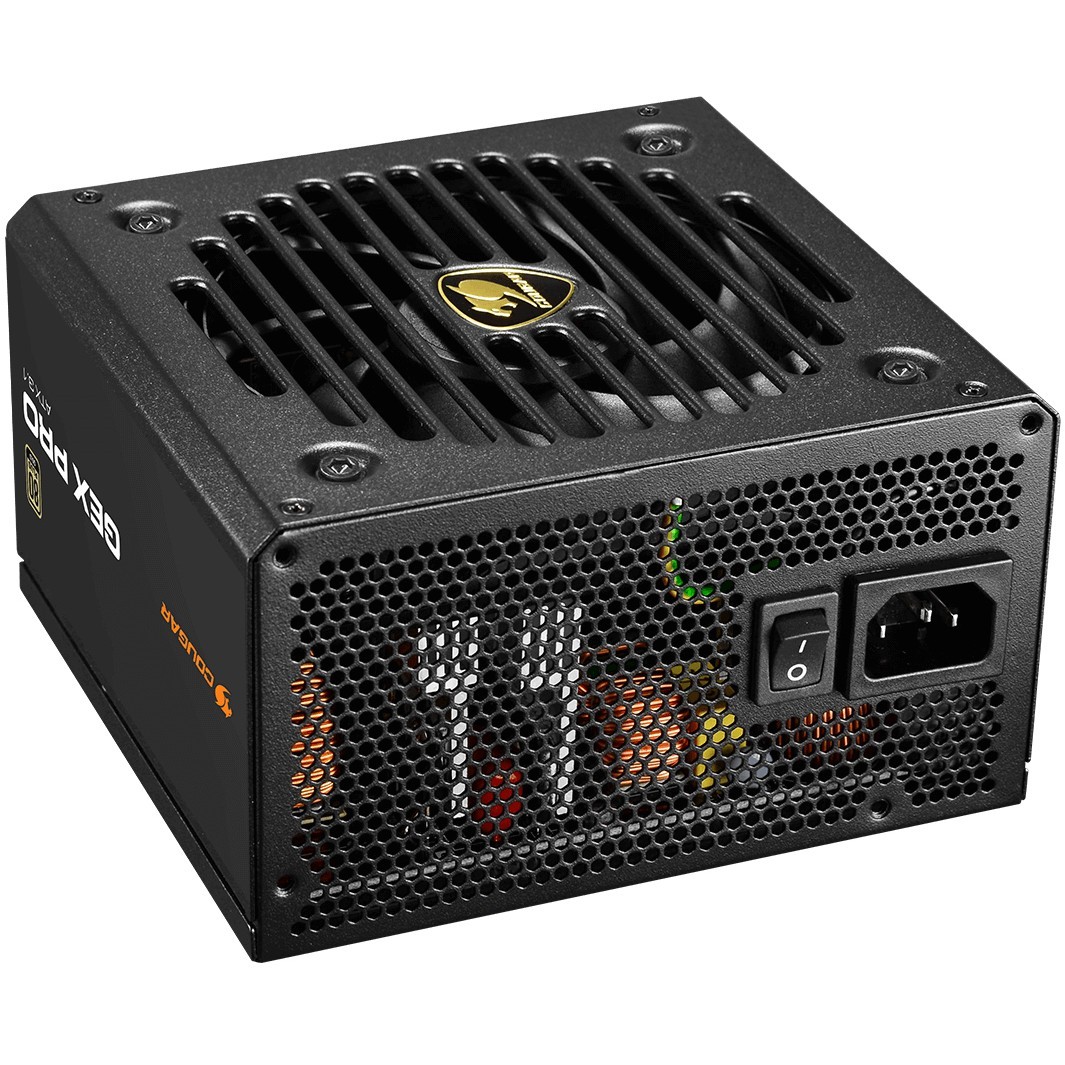

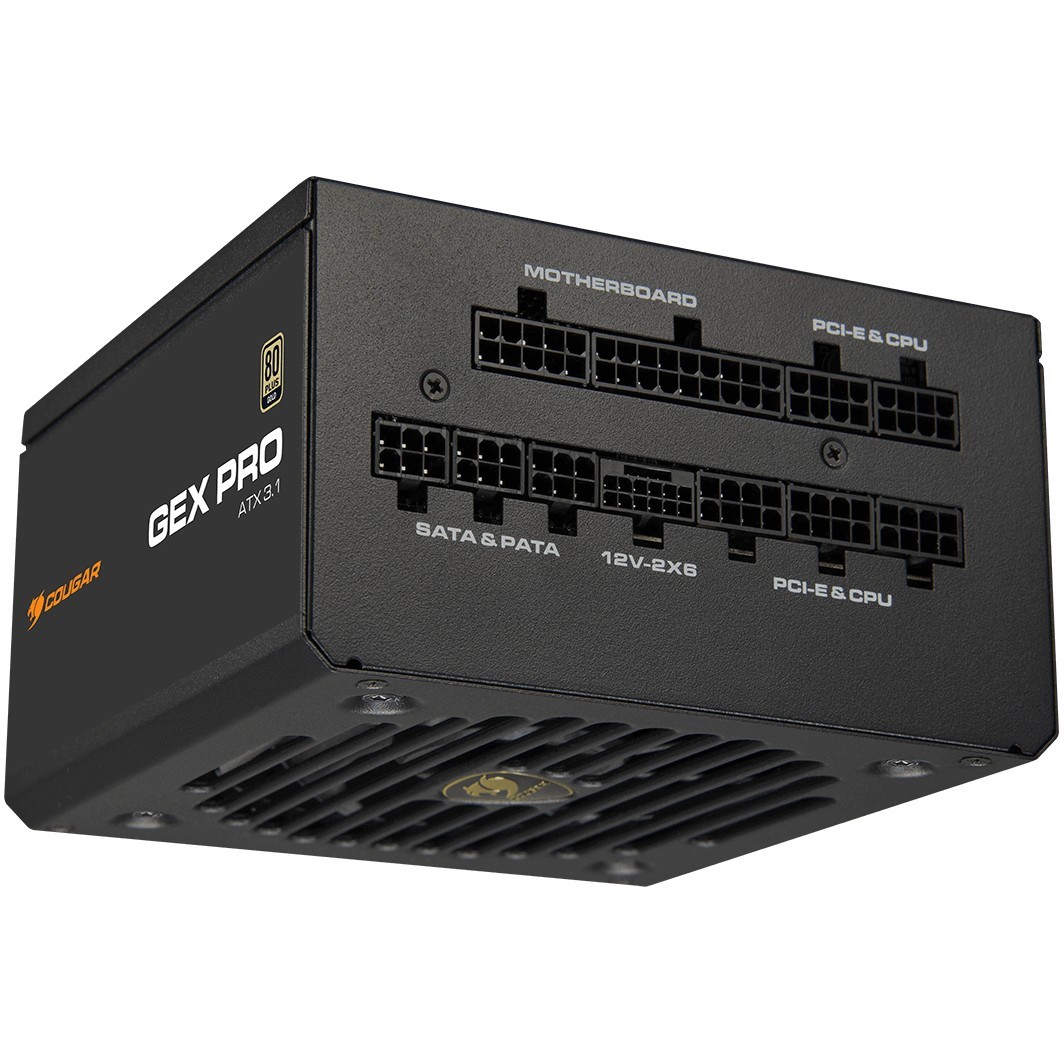

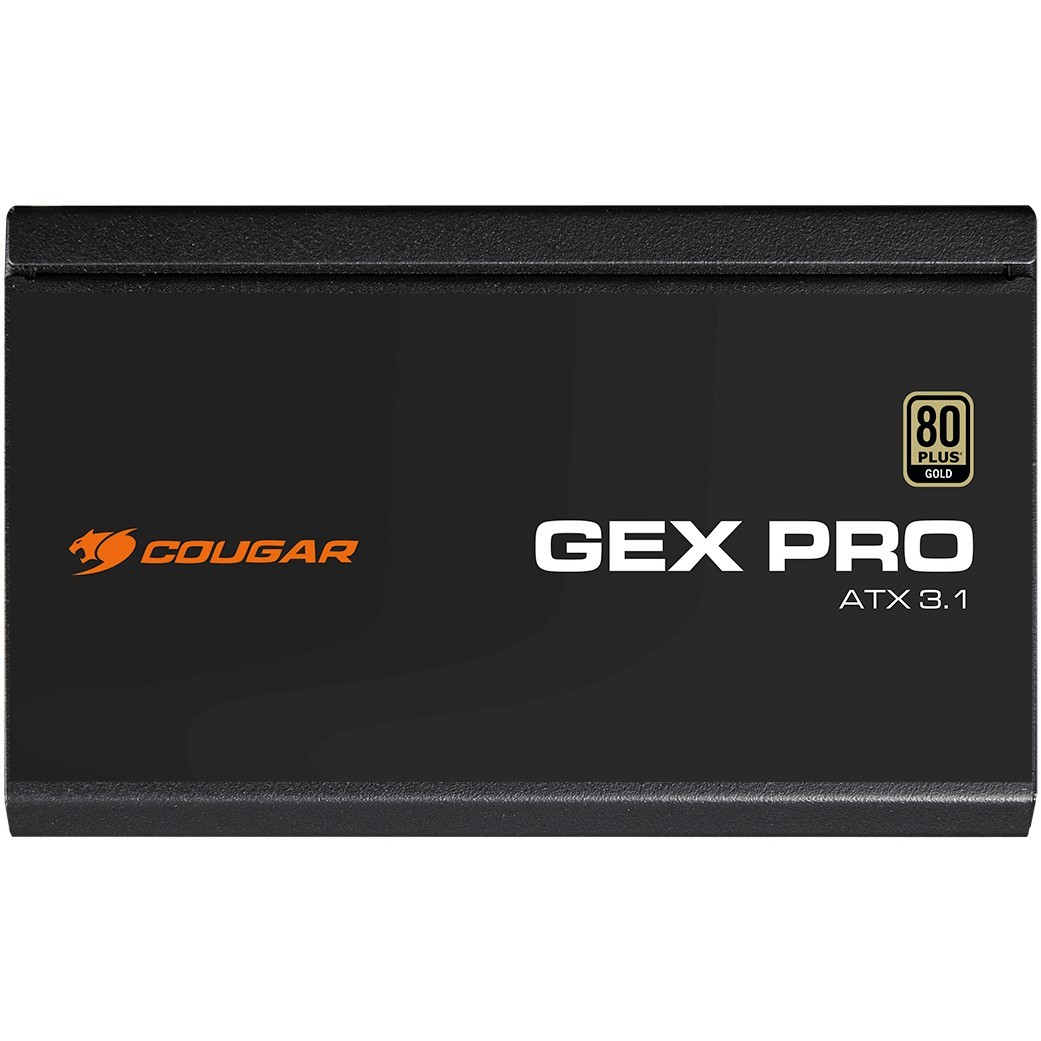

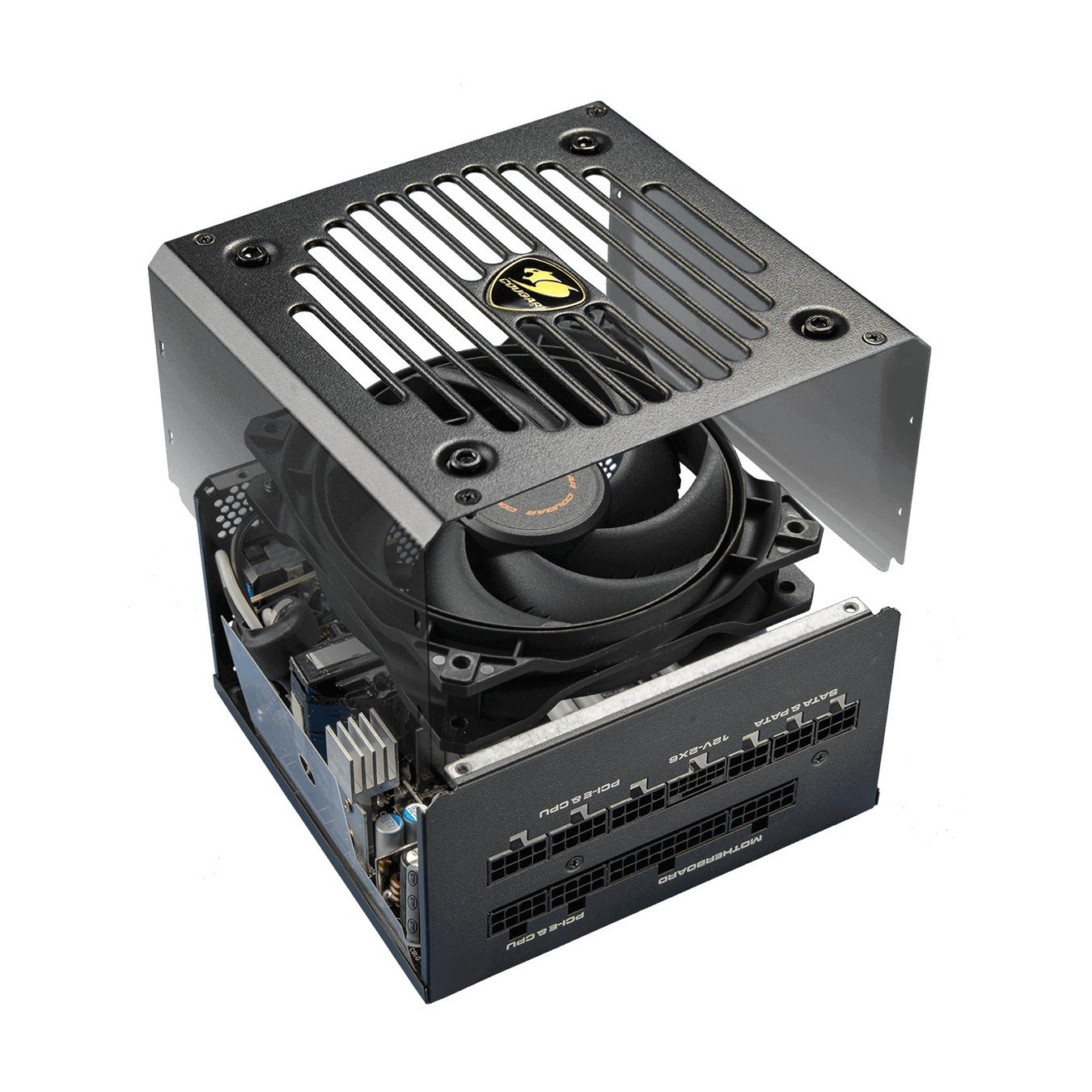

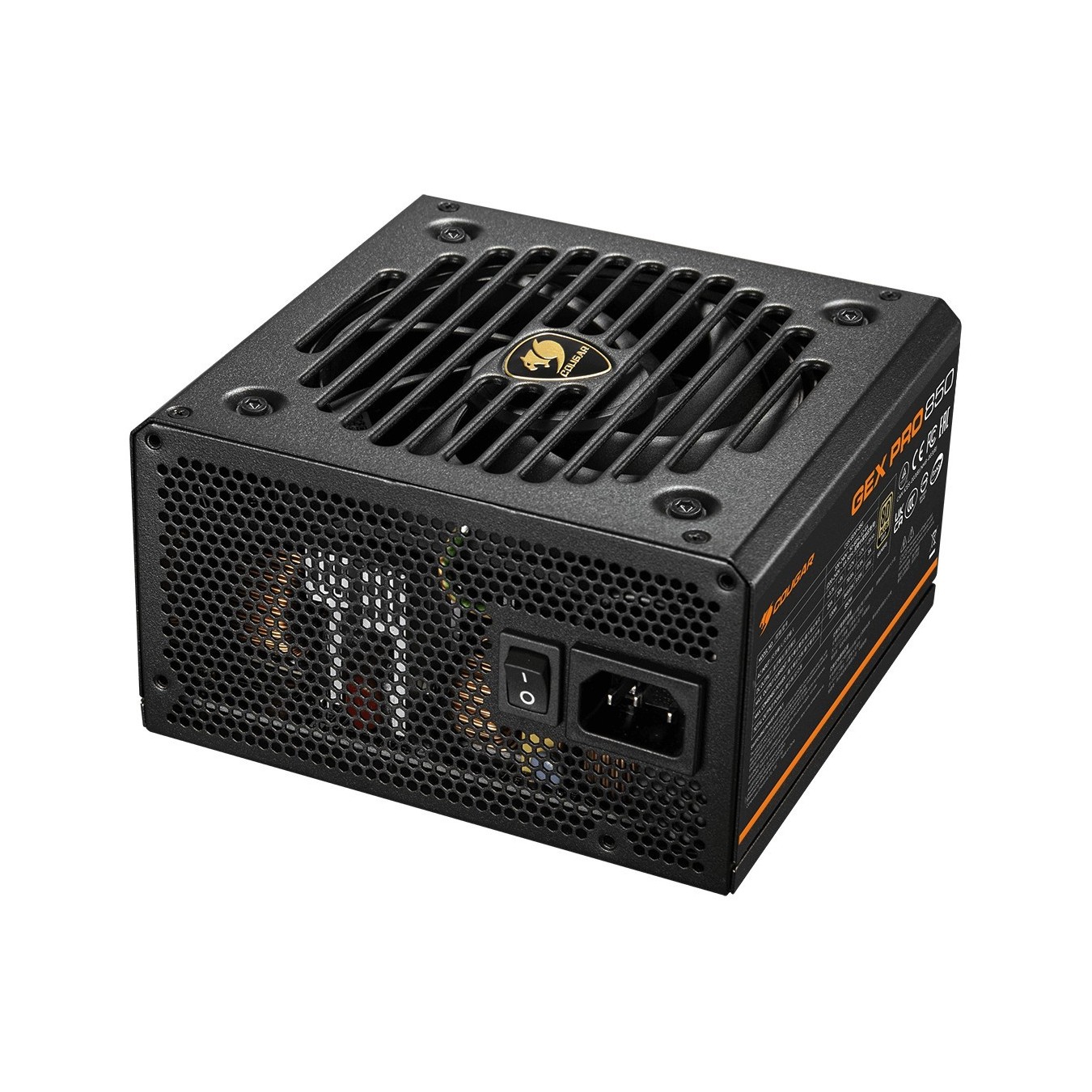

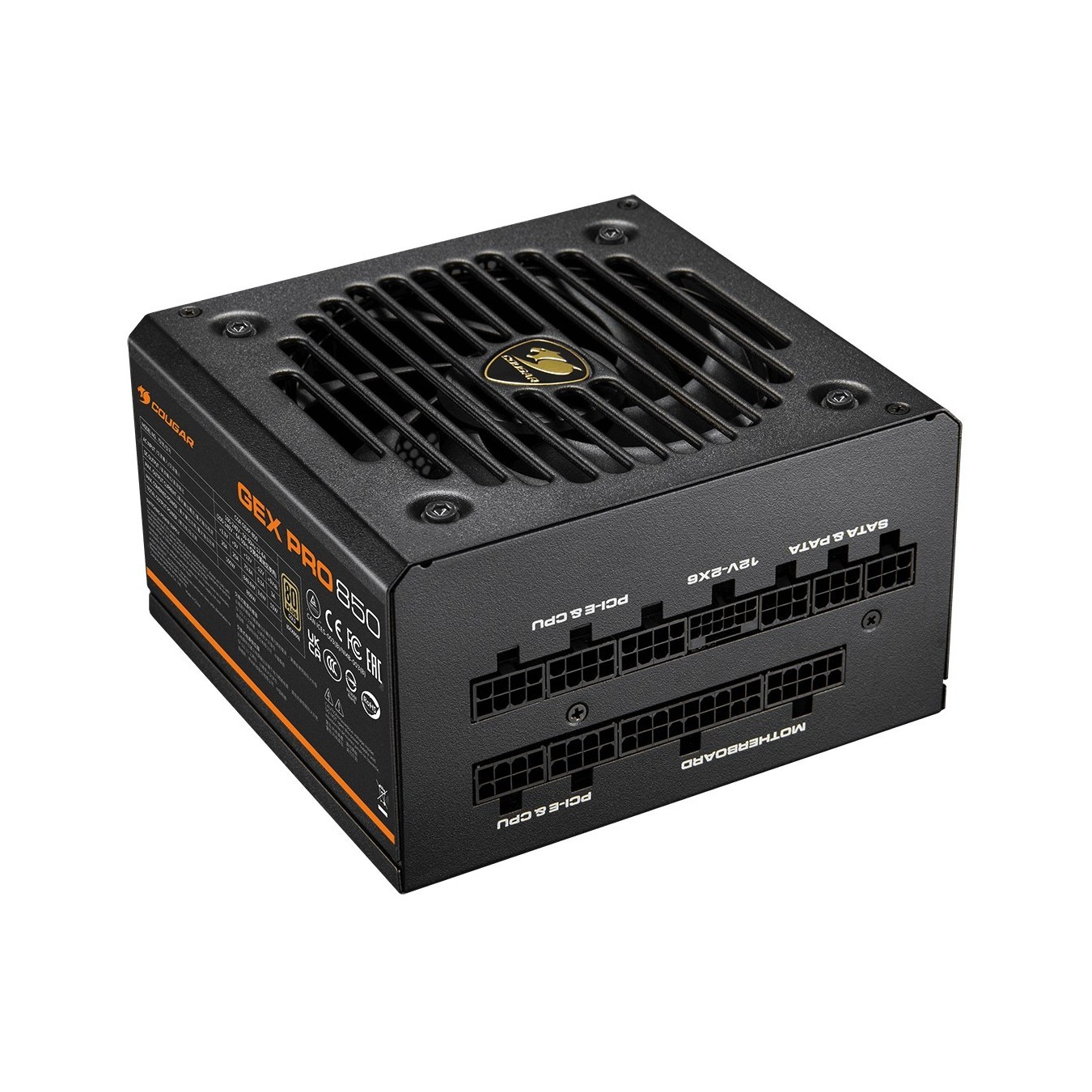

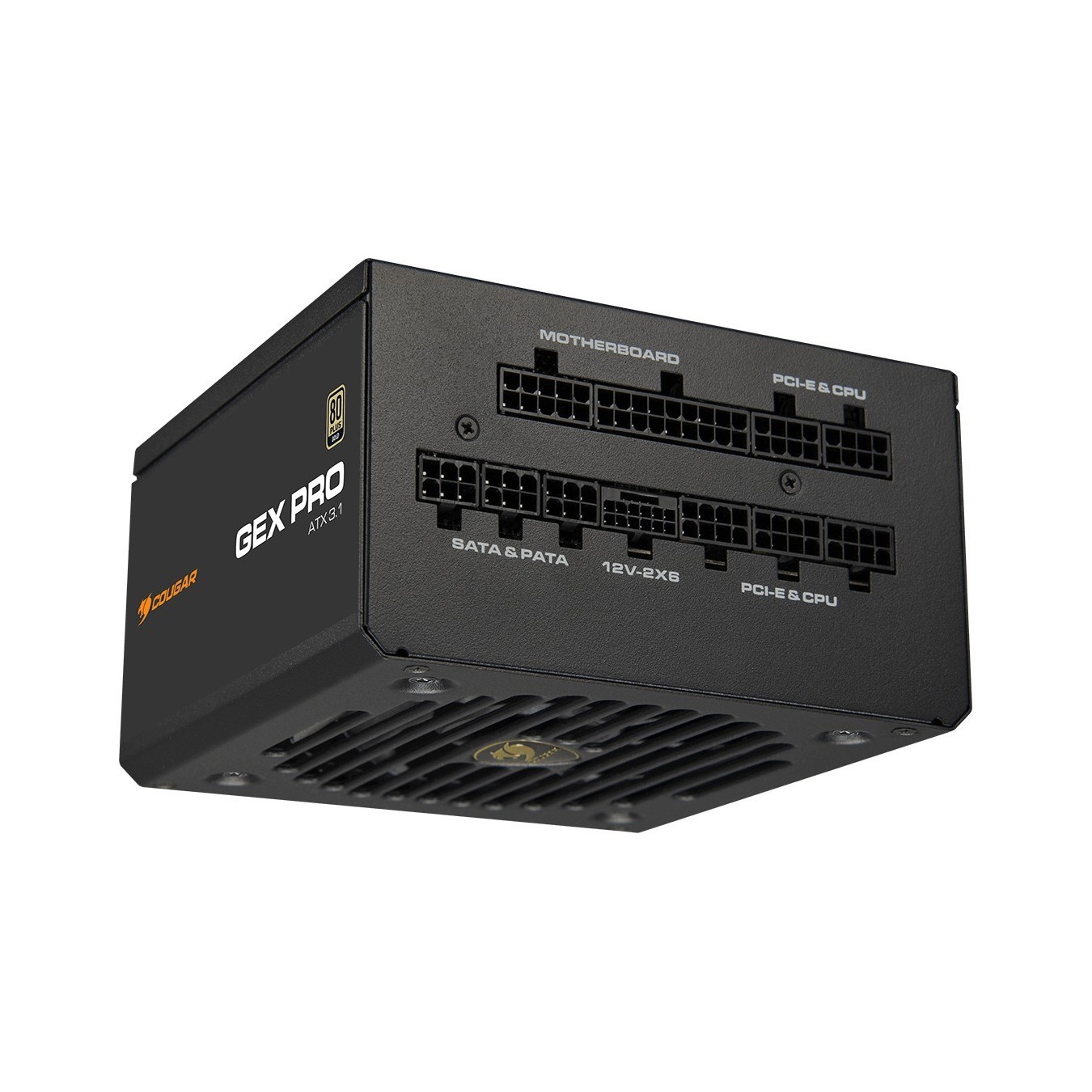

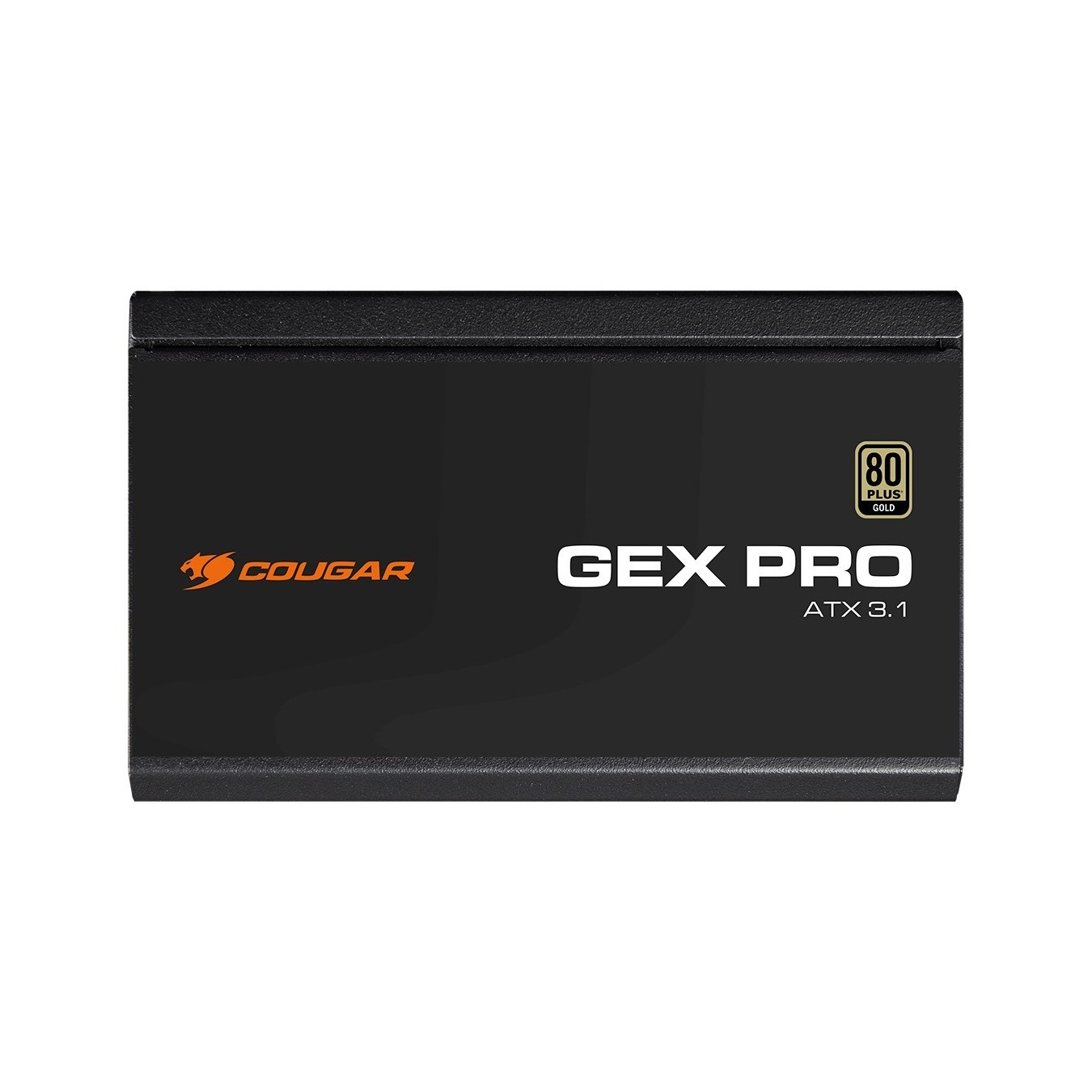

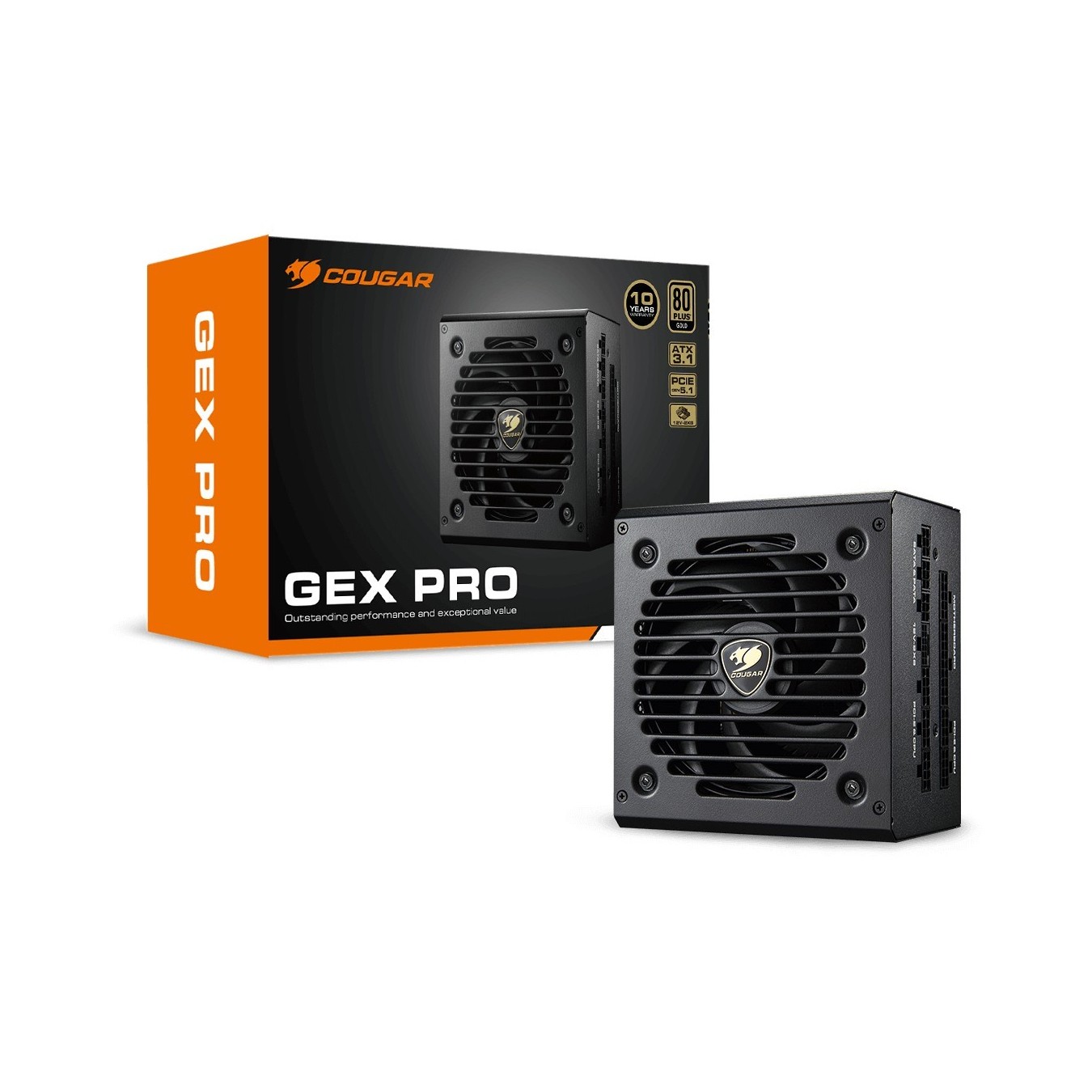

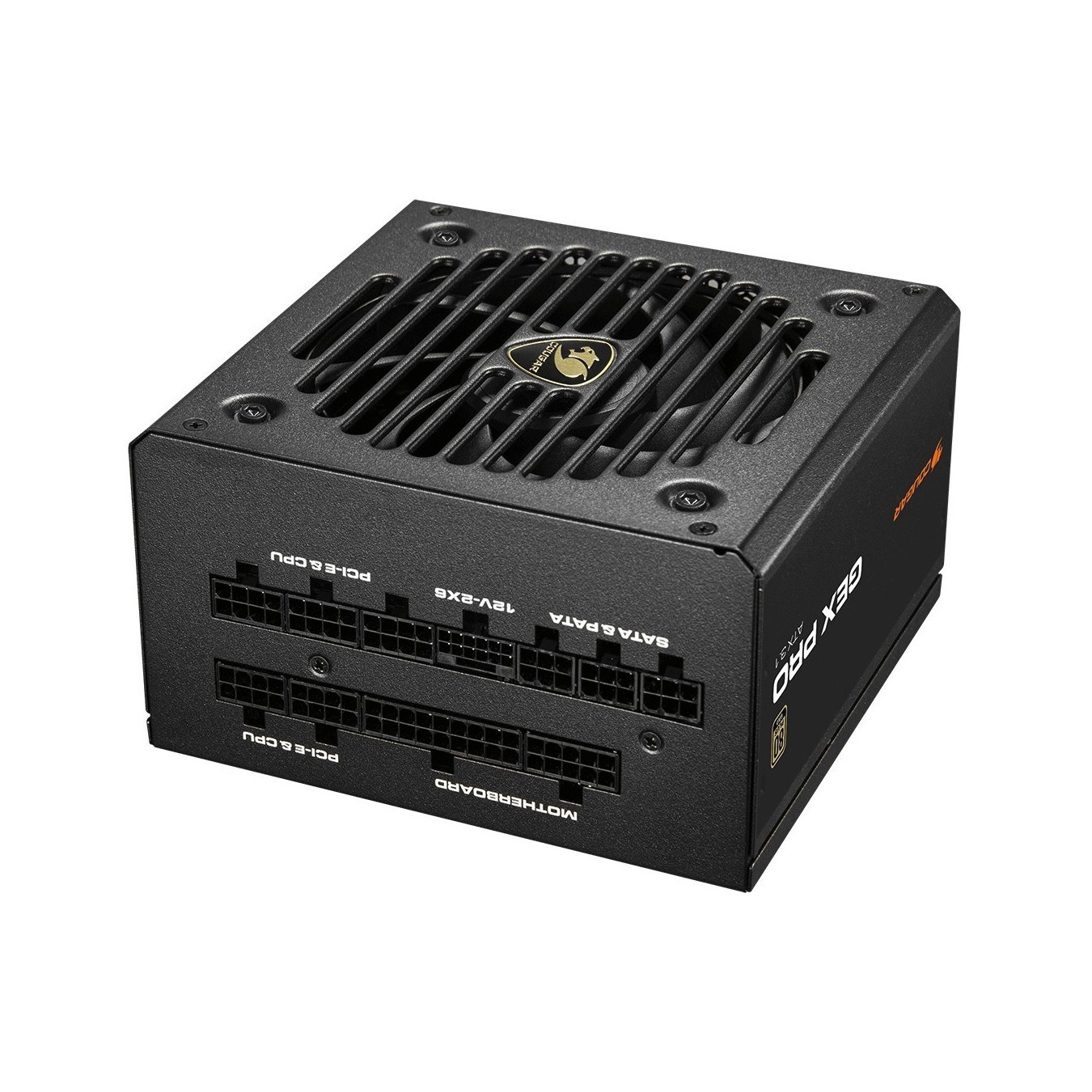

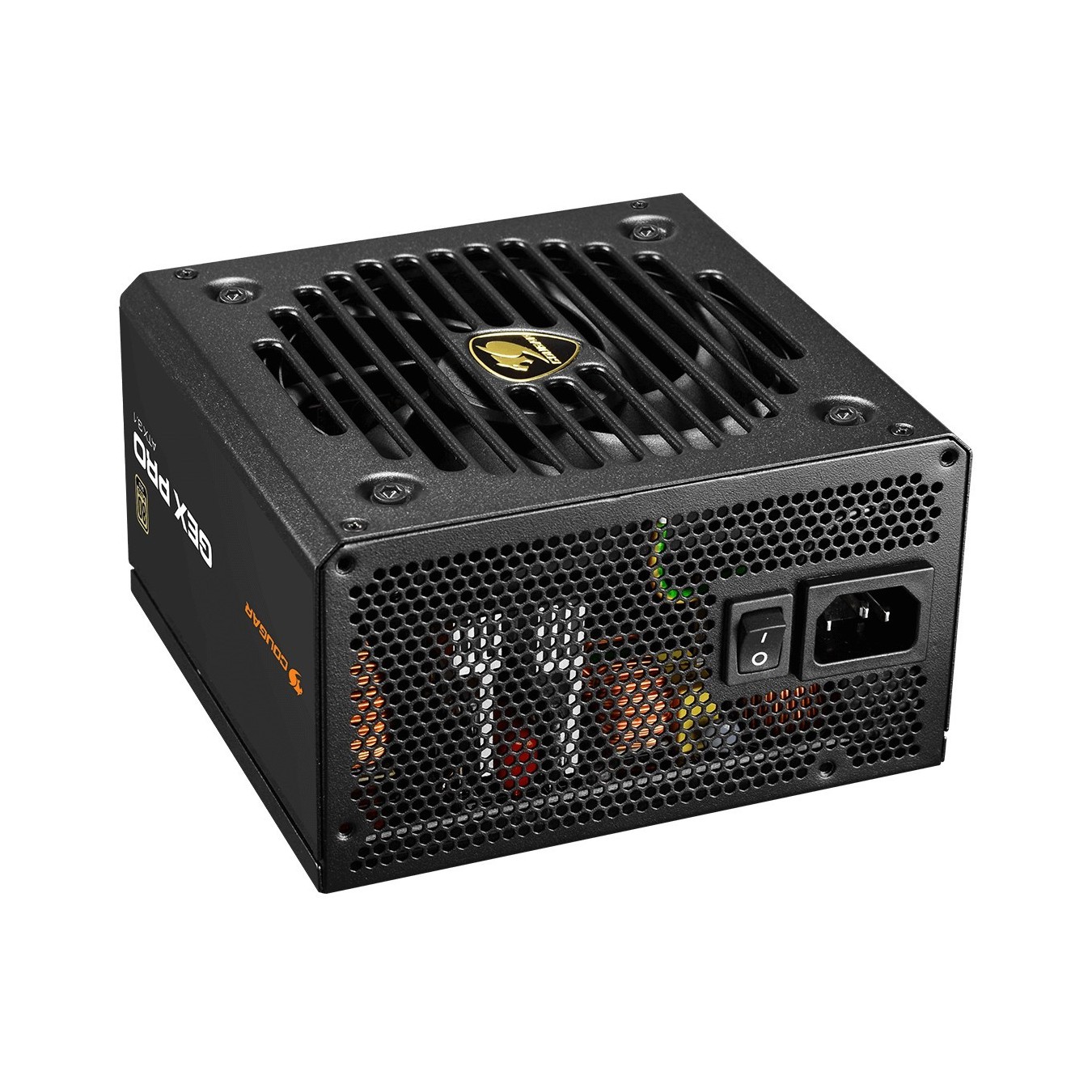

COUGAR Power Supply - GEX PRO 650W - ATX3.1 80 Plus Gold Modular
COUGAR GEX PRO 650W modular power supply with ATX3.1 and 80 Plus Gold efficiency for PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 650 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
COUGAR Gaming CGR GEXP-650. Total power: 650 W. AC input voltage: 100 - 240 V. AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 61 cm. SATA power cable length: 400.520.640.760 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Compliance certificates: CE. EAC. Federal Communications Commission (FCC). RoHS. UKCA
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10-5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 649.2 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.1 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |

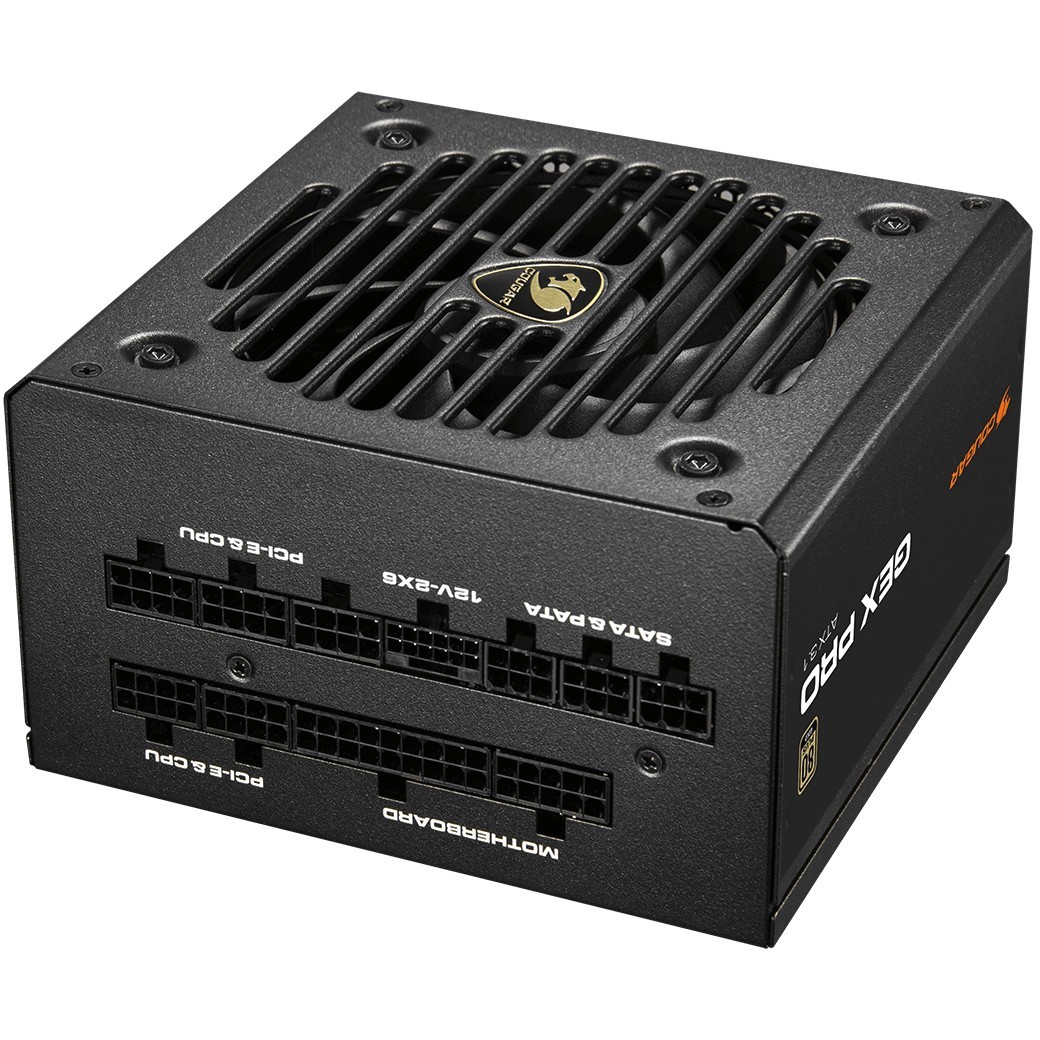

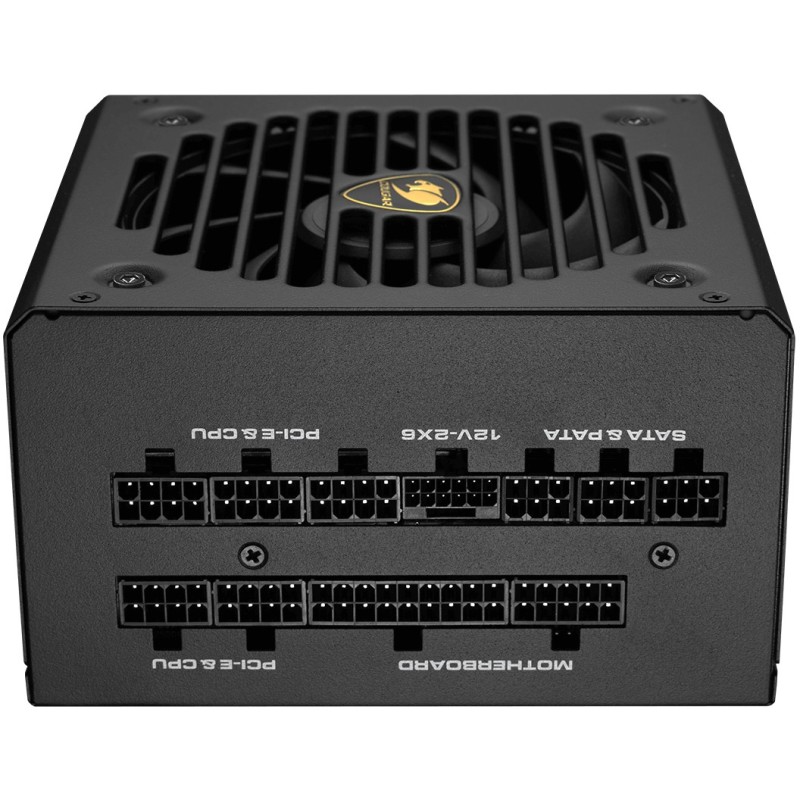

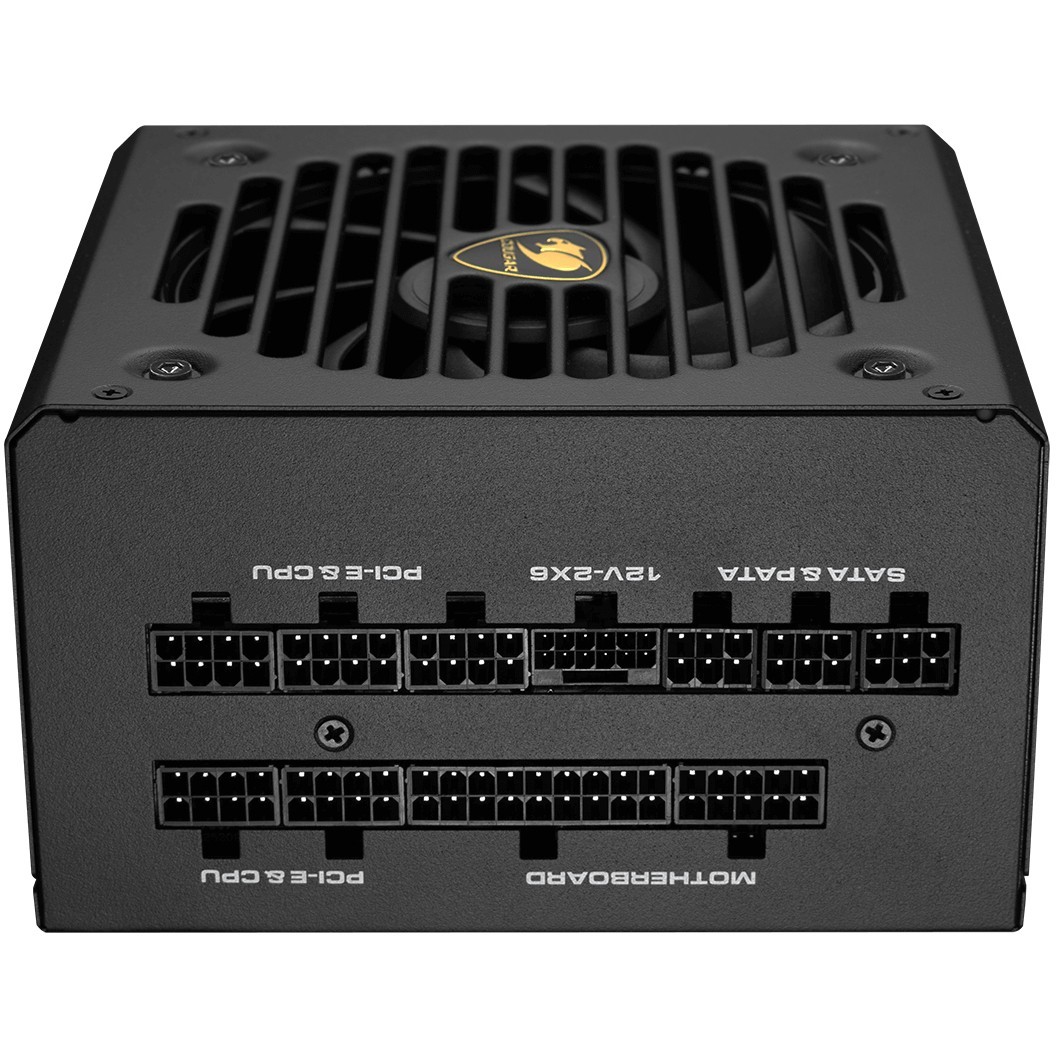

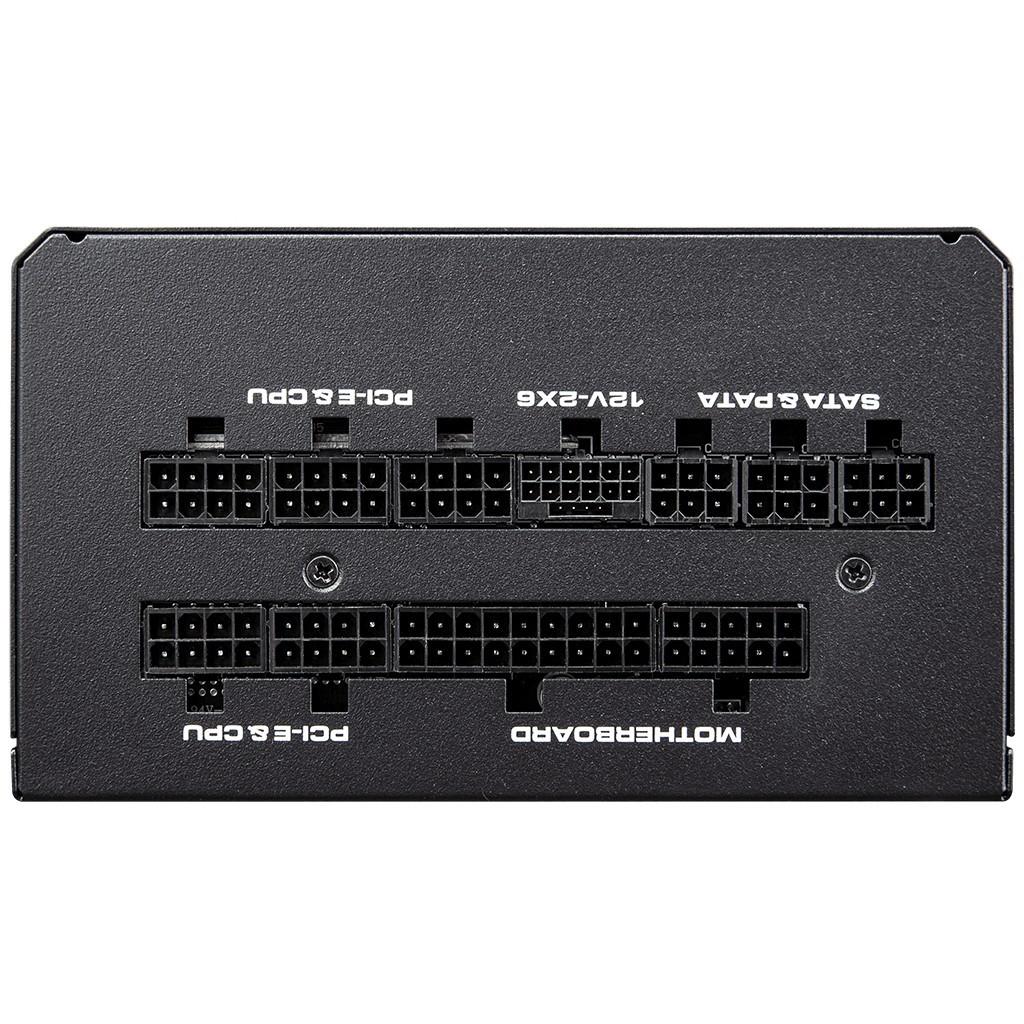

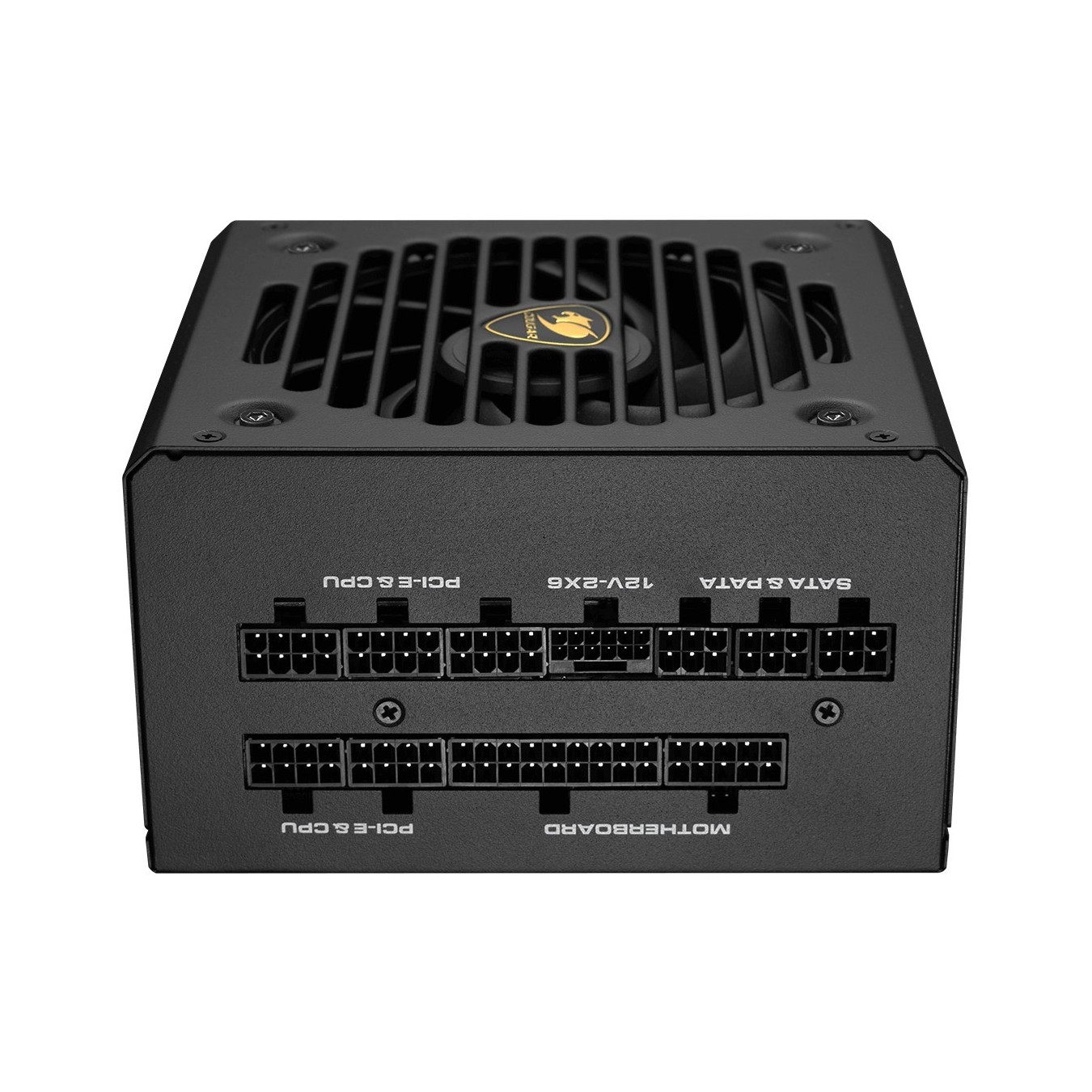

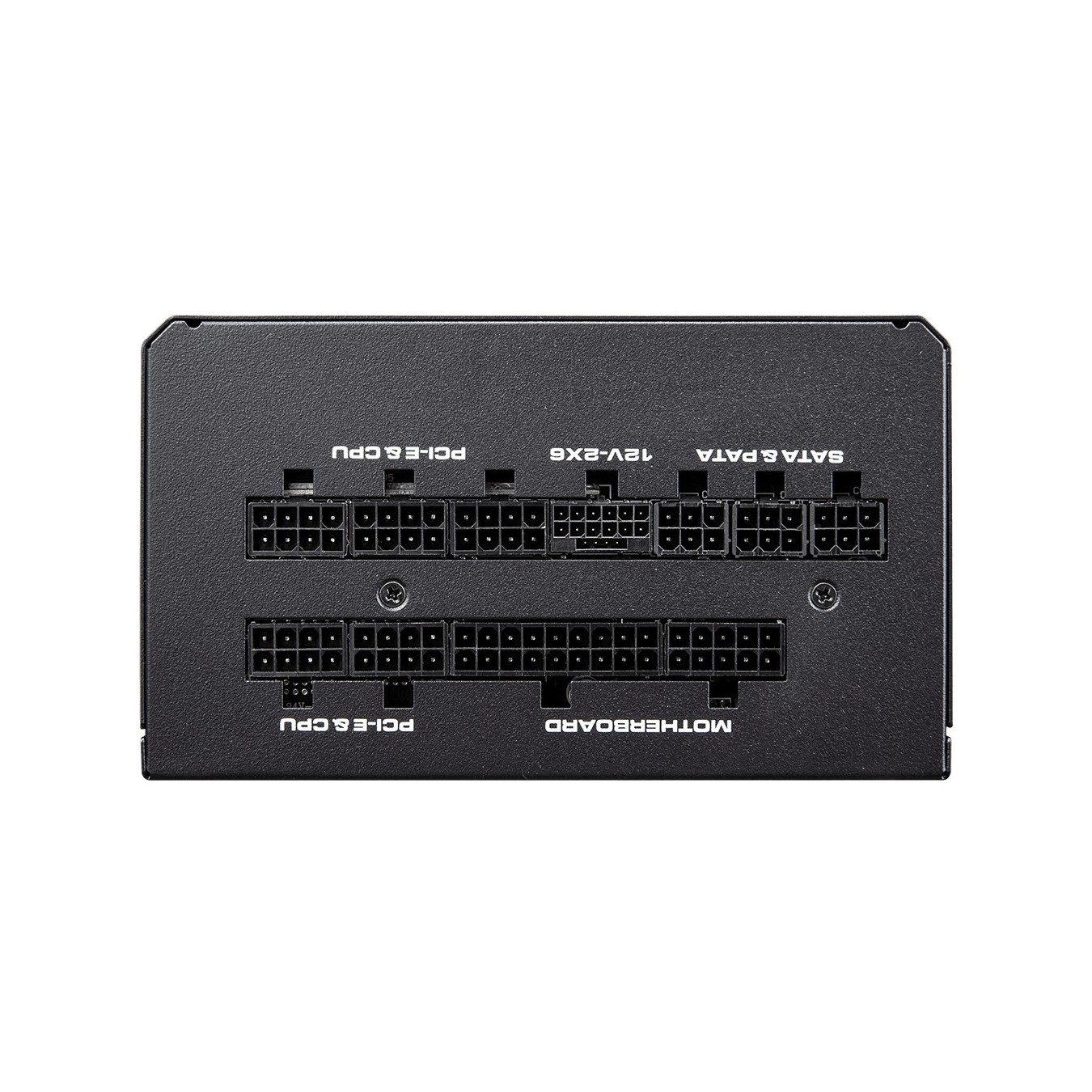

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| Number of PATA power connectors | 3 |
| SATA power cable length | 400.520.640.760 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 650 mm |

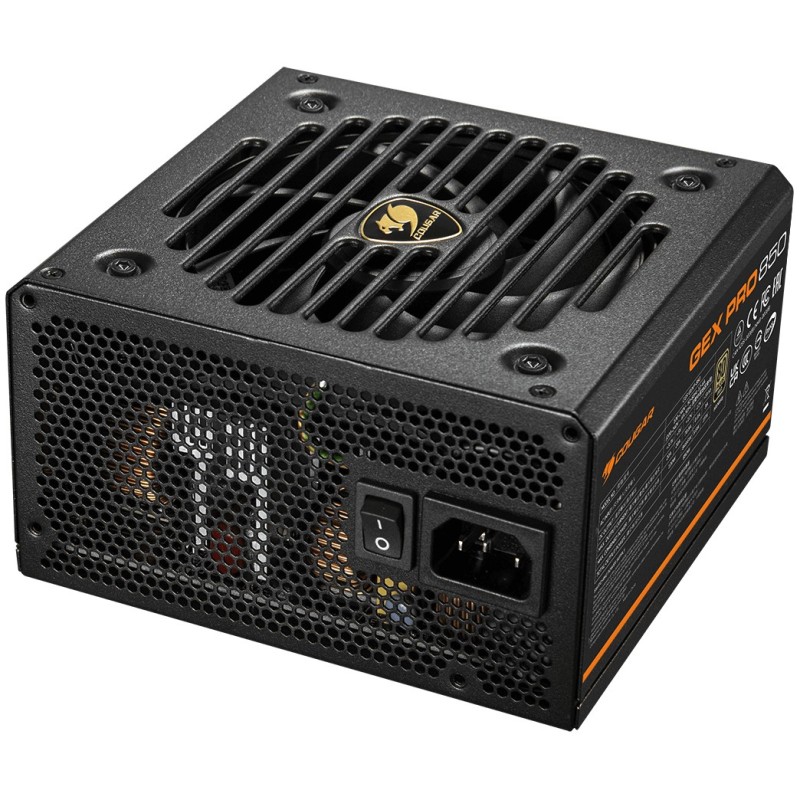

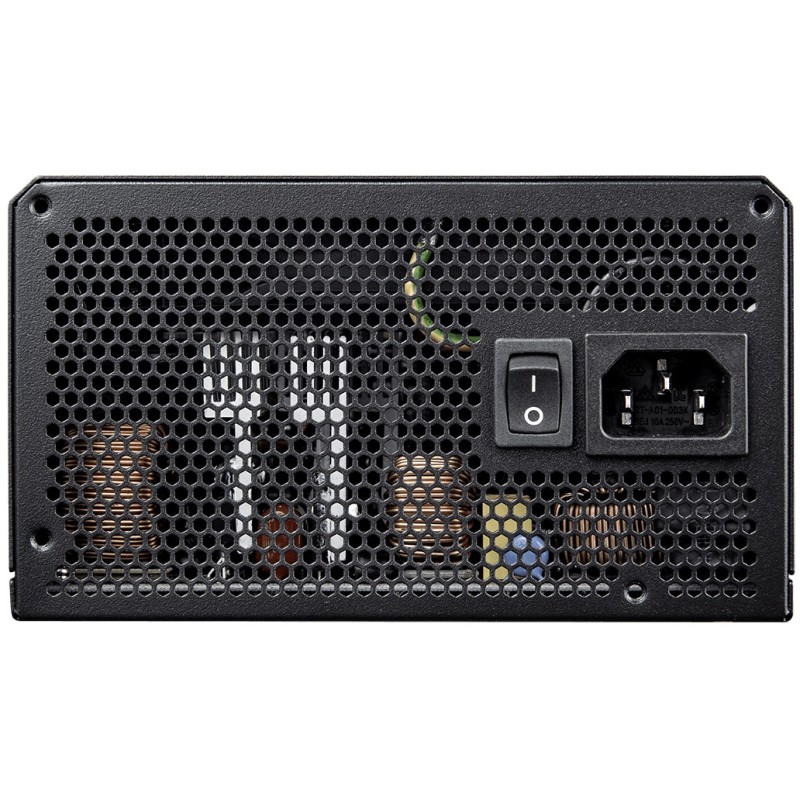

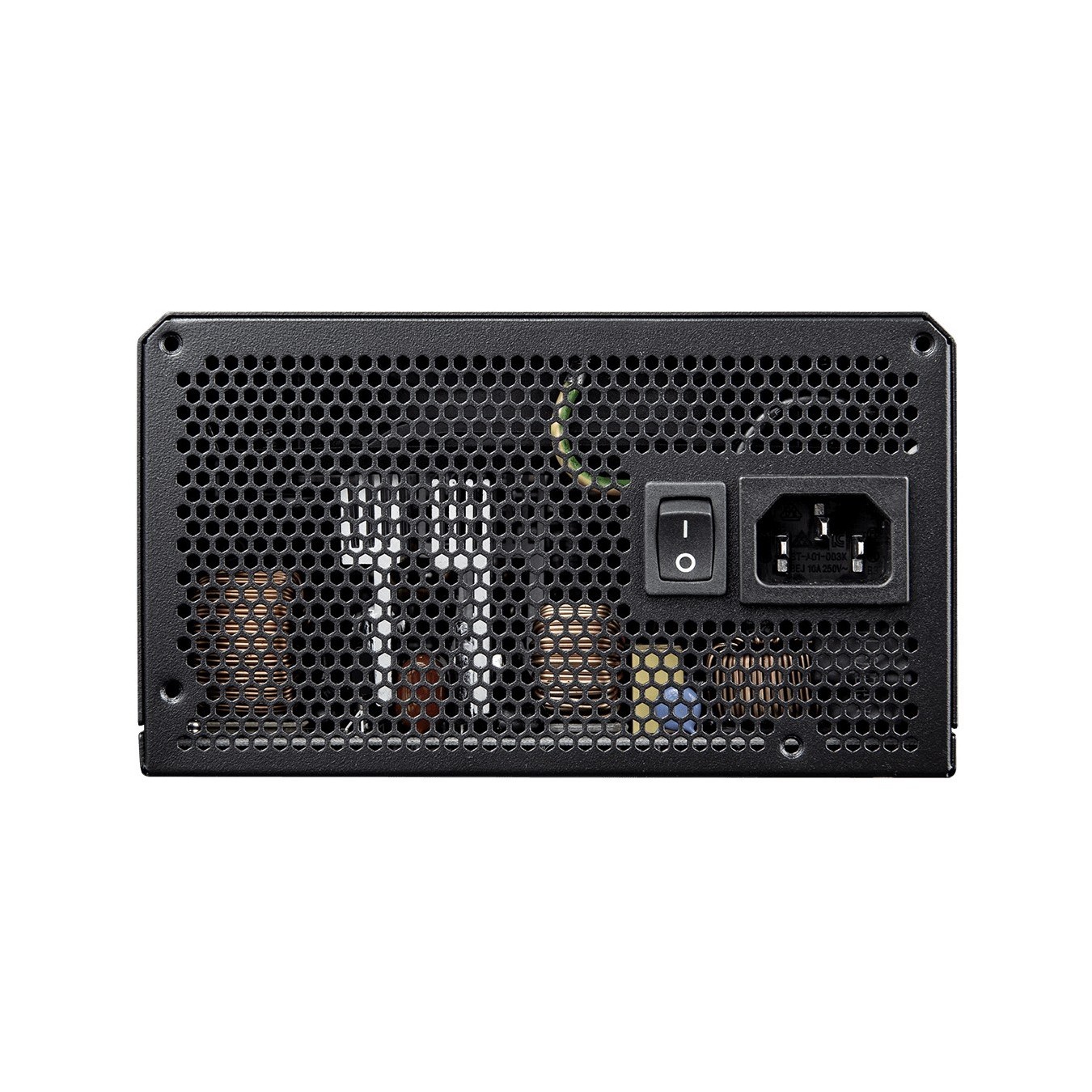

| Feature | On/off switch |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |

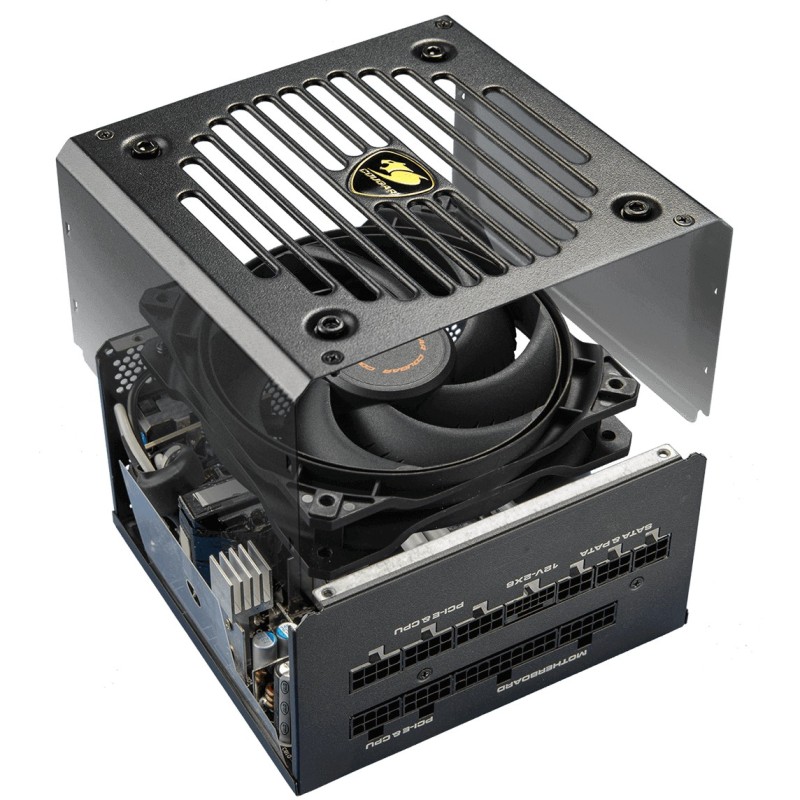

| Bearing technology | HDB |
| Product colour | Black |
| Cooling type | Active |

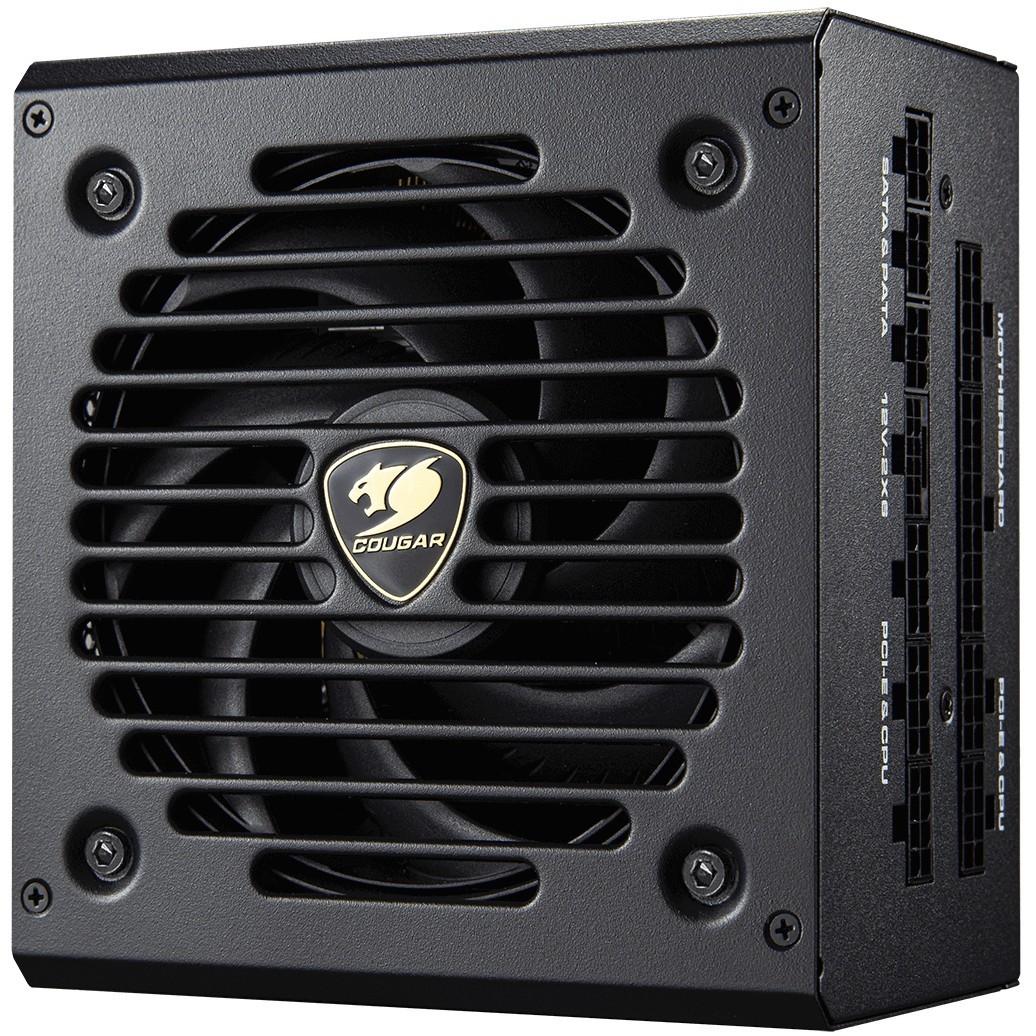

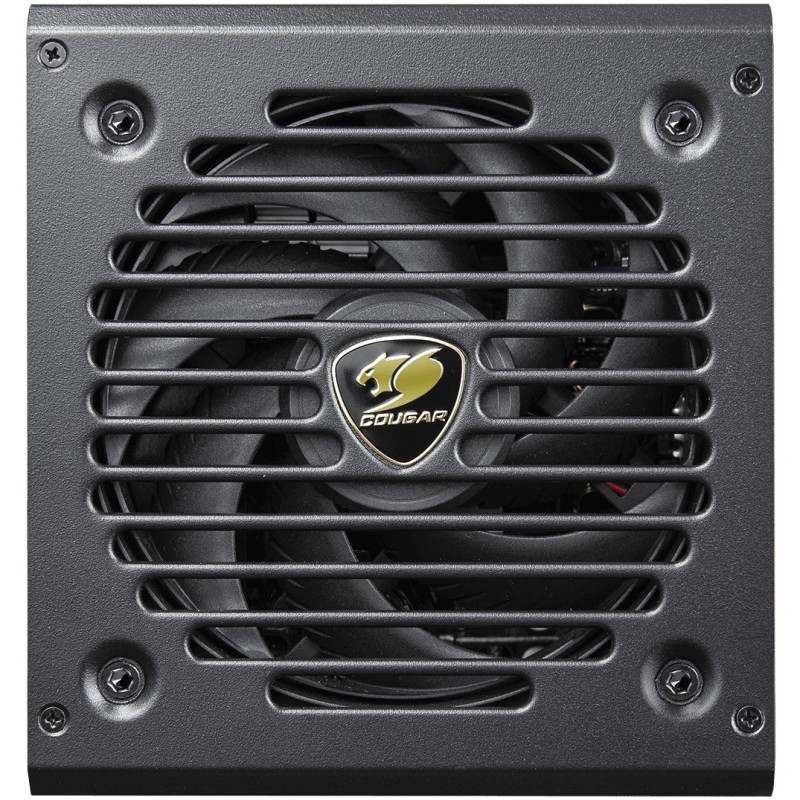

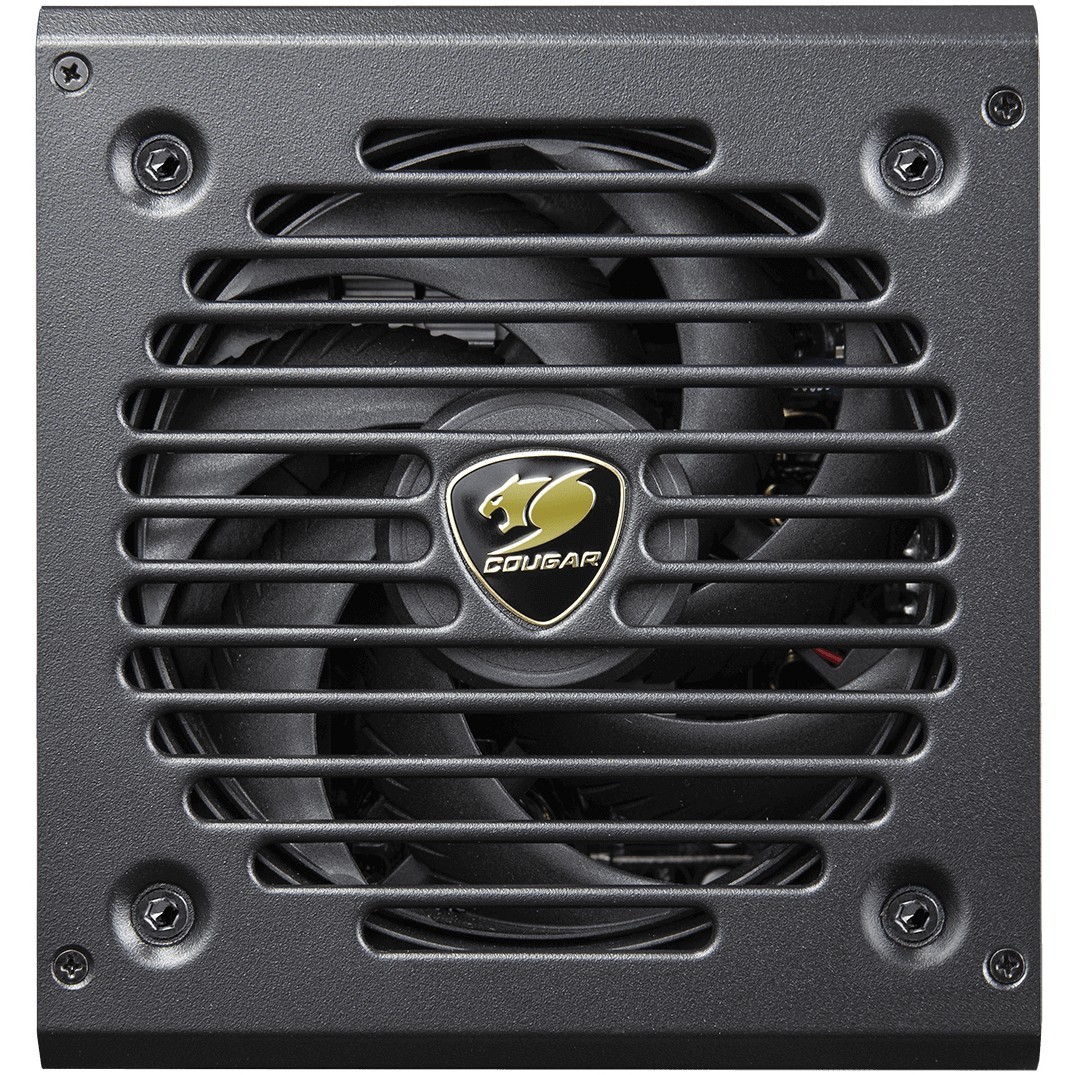

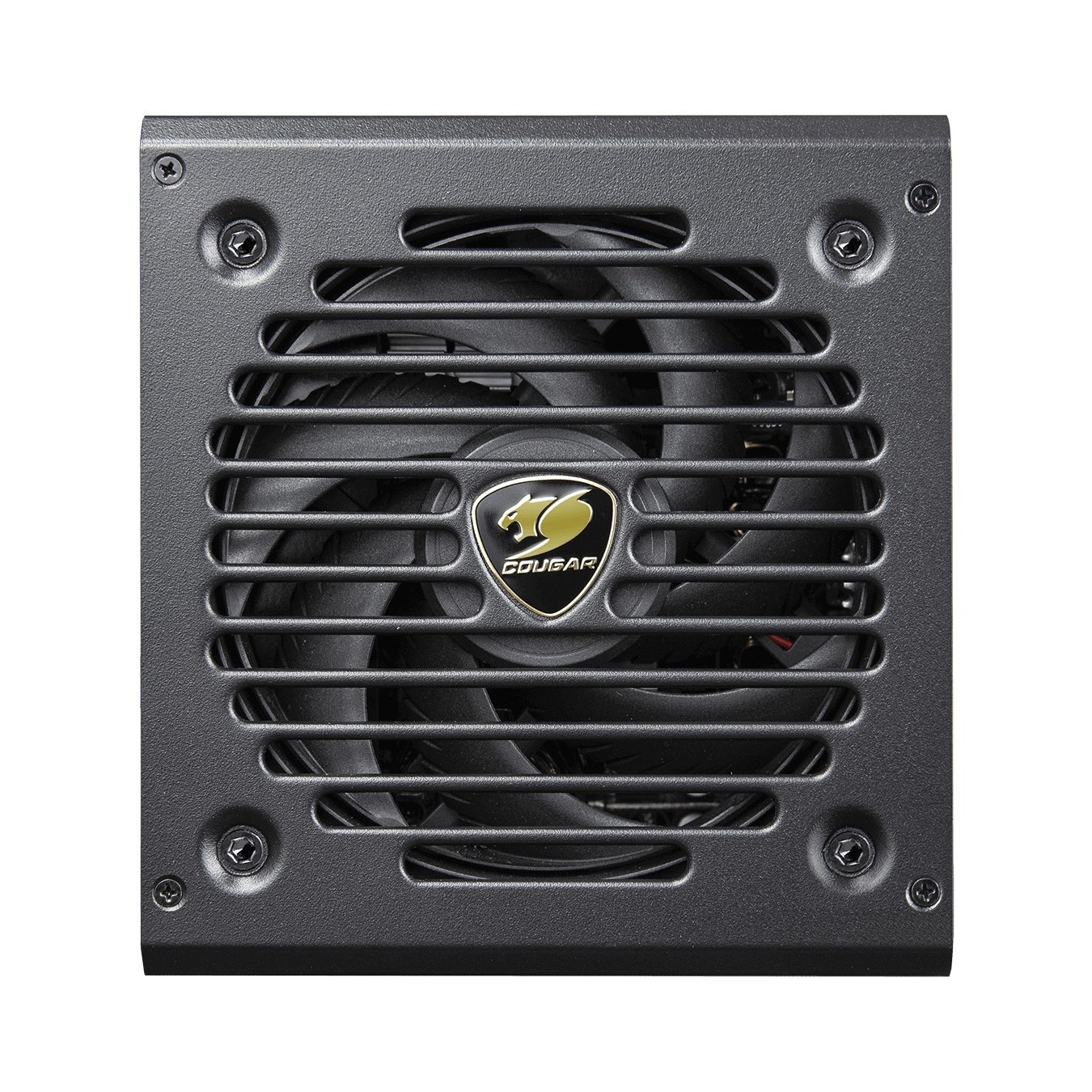

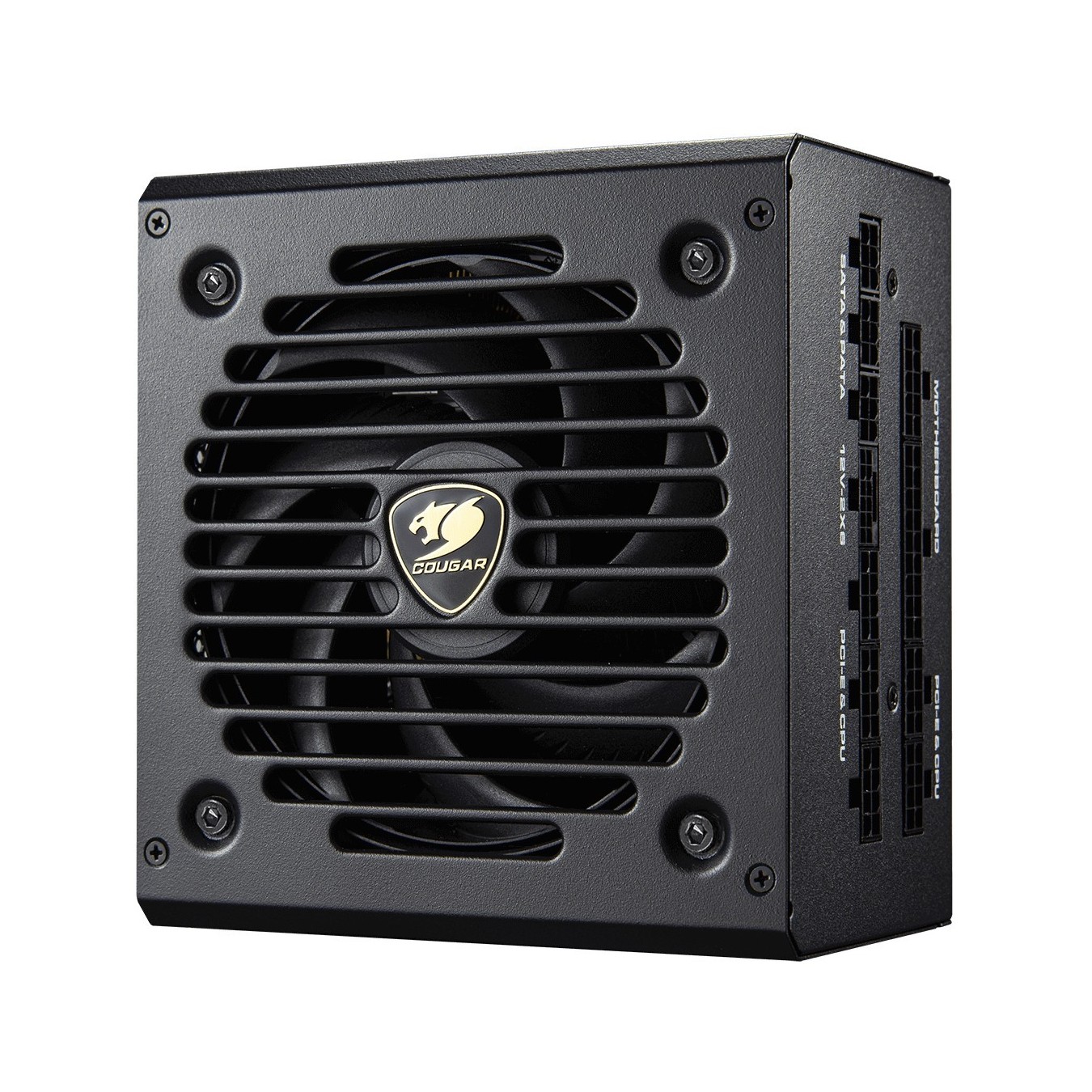

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Compliance certificates | CE. EAC. Federal Communications Commission (FCC). RoHS. UKCA |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 56 mm |
| Weight | 2.05 kg |
| Package width | 215 mm |
| Package depth | 330 mm |
| Package height | 107 mm |
| Package weight | 2.07 kg |

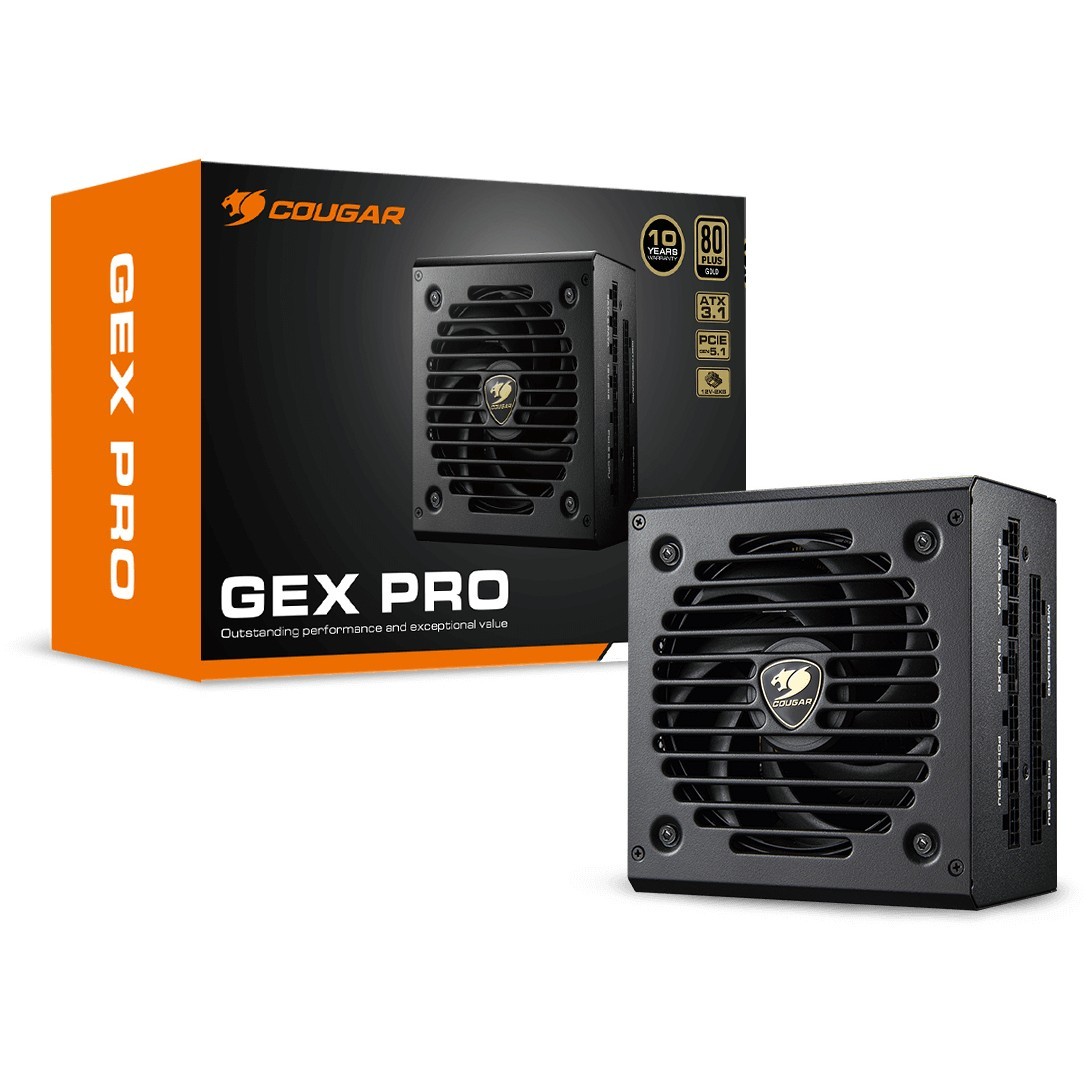

| Package type | Box |
