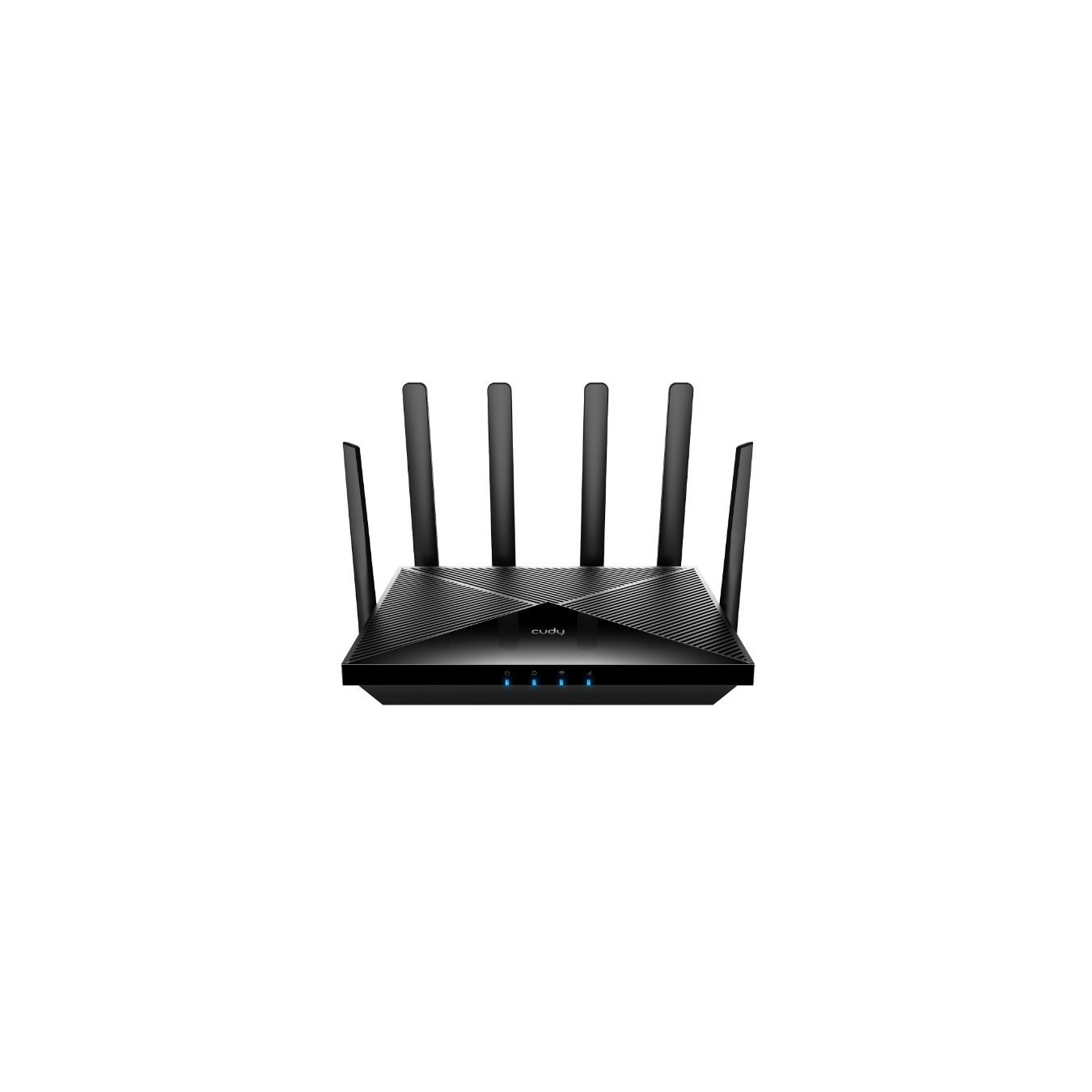

Cudy LT700 AC1200 Wi-Fi 5 4G LTE Cat 6 Gigabit Router (Boxed)
Cudy LT700 dual-band Wi-Fi 5 router with 4G LTE Cat 6 (300 Mbps), dual nano SIM slots, 4 Gigabit Ethernet ports, 4x4 MIMO, and advanced VPN/Mesh capabilities.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Mobile 4G/5G Router Wireless Router |
|---|---|
| Routers - Special Features | App Control Cloud Managed Dual SIM Failover Support Firewall Guest Network MU-MIMO VPN Support WPA3 Security |
| Routers - LAN Ports | 4 |
| Routers - Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| Routers - Bands | Dual-band (2.4+5 GHz) |
The Cudy LT700 is a high-performance 4G LTE-Advanced Wi-Fi 5 router designed for home, office, and mobile applications. Featuring dual nano SIM slots and LTE Cat 6 technology with 2-Carrier Aggregation, it delivers responsive download speeds up to 300 Mbps (LTE-FDD) and 226 Mbps (LTE-TDD). The router combines 4x4 MIMO antenna technology with dual-band Wi-Fi 5 (867 Mbps on 5 GHz + 300 Mbps on 2.4 GHz) to provide stable, high-speed connectivity across 128 connected devices with a recommended upper limit of 50 clients.
Connectivity options include 4 Gigabit Ethernet ports for wired devices, detachable cellular antennas with SMA connectors for flexible installation, and comprehensive security features including WPA/WPA2/WPA3 encryption, firewall protection (MAC/IP/Domain filters), and NAT functionality (Port Forwarding, Port Triggering, UPnP, DMZ). The device supports advanced networking capabilities such as Cudy Mesh for seamless multi-router coverage, VPN Server and Client modes (OpenVPN, WireGuard), cloud-based management via Cudy App, and WAN failover for redundancy.
Built on a MediaTek processor running at 880 MHz with 128 MB DDR3 RAM and 16 MB Flash storage, the LT700 operates reliably in temperatures from 0-45°C. Its tabletop form factor (161 x 252.5 x 48.2 mm) makes it suitable for various deployment scenarios including surveillance systems, RVs, and temporary installations.
- Dual nano SIM slots with automatic failover support
- 4G LTE Cat 6 with 2-Carrier Aggregation technology
- Wi-Fi 5 dual-band: 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
- 4x4 MIMO antennas with detachable cellular antenna interface
- 4 Gigabit Ethernet ports for wired connectivity
- VPN support (OpenVPN, WireGuard) and Mesh networking
- WPA3 security, firewall, and cloud management
- Supports up to 128 devices with 50 recommended clients
| WAN Connection Type | RJ-45 |
| Wi-Fi Band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi Standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps |
| 5 GHz Wi-Fi Streams | 2T2R (2x2 MIMO) |
| 2.4 GHz Wi-Fi Streams | 2T2R (2x2 MIMO) |
| Ethernet LAN Interface Type | Gigabit Ethernet |
| Ethernet LAN Data Rates | 100, 1000 Mbit/s |
| Ethernet LAN (RJ-45) Ports | 4 |
| Mobile Network Generation | 4G |
| 4G Standard | LTE-TDD & LTE-FDD |
| 4G LTE Category | 6 |
| Max DL Speed (LTE-FDD) | 300 Mbps |
| Max DL Speed (LTE-TDD) | 226 Mbps |
| Max UL Speed (LTE-FDD) | 50 Mbps |
| Max UL Speed (LTE-TDD) | 28 Mbps |
| Advanced Cellular Features | DL 2-Carrier Aggregation, DL 4x4 MIMO |
| Cellular Bands | LTE-FDD: B2/4/5/7/12/13/14/25/26/29/30/66/71; LTE-TDD: B41/48 |
| SIM Card Type | Nano SIM |
| SIM Card Slots | 2 |
| Antenna Design | Detachable cellular antennas with SMA connectors |
| Max Wi-Fi Channel Width | 80 MHz |
| Wi-Fi Security | WPA/WPA2/WPA3 |
| Guest Network | 2.4 GHz, 5 GHz |
| Wi-Fi Efficiency | MU-MIMO (5 GHz) |
| Max Capacity | 128 devices |
| Recommended Client Upper Limit | 50 |
| Firewall Security | MAC Filter, IP Filter, Domain Filter |
| NAT Functionality | Port Forwarding, Port Triggering, UPnP, DMZ |
| VPN Support | VPN Server and Client (OpenVPN, WireGuard) |
| Mesh Networking | Cudy Mesh supported |
| Cloud Management | Cudy App, Cloud Control |
| Processor Manufacturer | MediaTek |
| Processor Frequency | 880 MHz |
| Processor Cores | 2 |
| Internal Memory | 128 MB |
| Internal Memory Type | DDR3 |
| Flash Memory | 16 MB |
| Power Source Type | AC, DC |
| Output Voltage | 12 V |
| Output Current | 1.5 A |
| Operating Temperature | 0 - 45 °C |
| Storage Temperature | -40 - 70 °C |
| Operating Relative Humidity | 5 - 95% |
| Product Color | Black |
| Product Type | Tabletop router |
| LED Indicators | LTE, Power, Status, WAN, WLAN |
| Device Width | 161 mm |
| Device Depth | 252.5 mm |
| Device Height | 48.2 mm |
| Cables Included | LAN (RJ-45) |
