DeepCool CH690 DIGITAL Mid Tower PC Case - Black Tempered Glass ATX - R-CH690-BKDA00 (Boxed)
DeepCool CH690 DIGITAL Black Mid Tower PC case. Supports ATX/mATX/Mini-ITX, up to 420mm radiators, 450mm GPUs, 182mm CPU coolers. LCD display for real-time CPU/GPU/PSU monitoring. Tempered glass front/side/rear, no fans included, magnetic dust filters.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | Audio Combo Jack USB A USB C Gen2 |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 450+ mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |

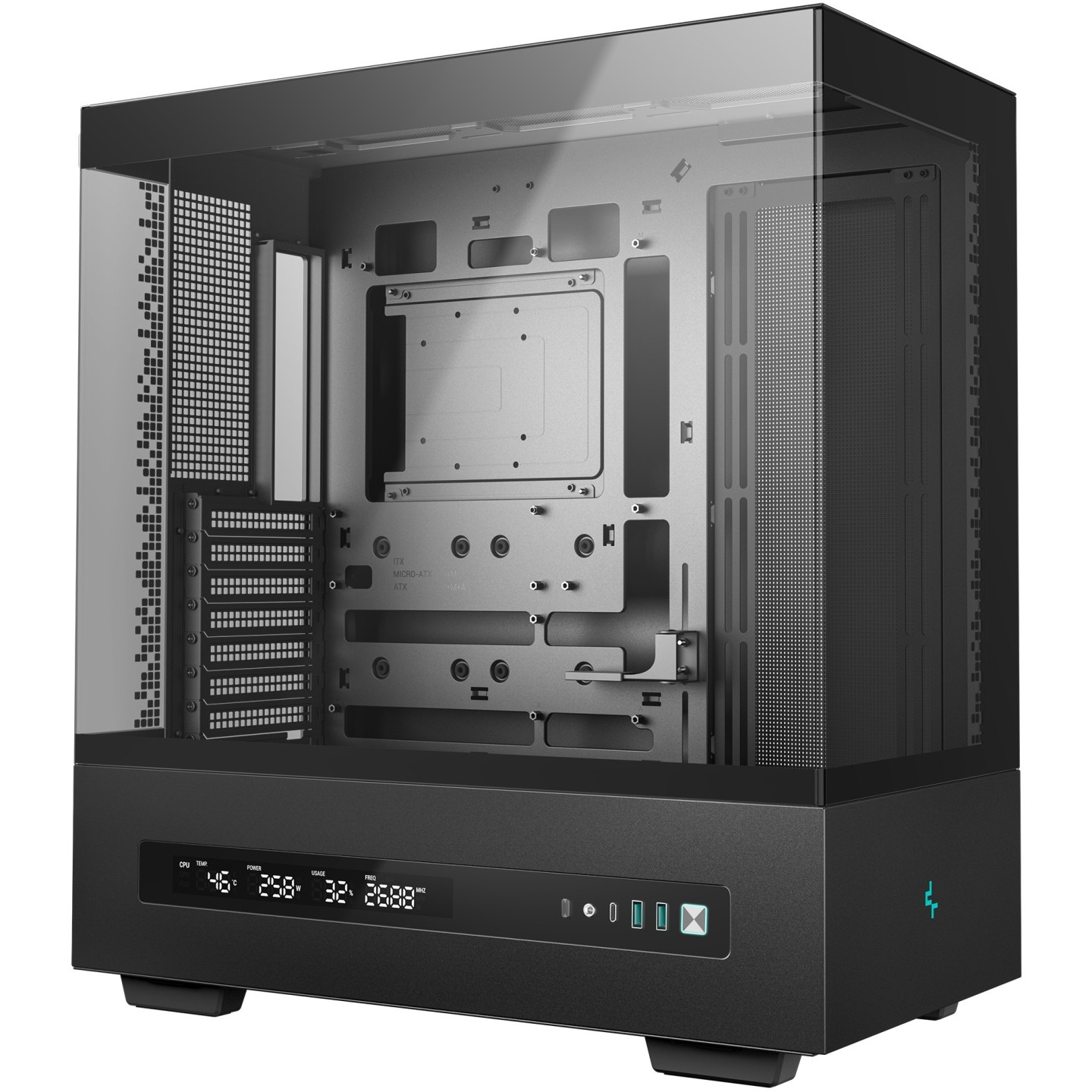

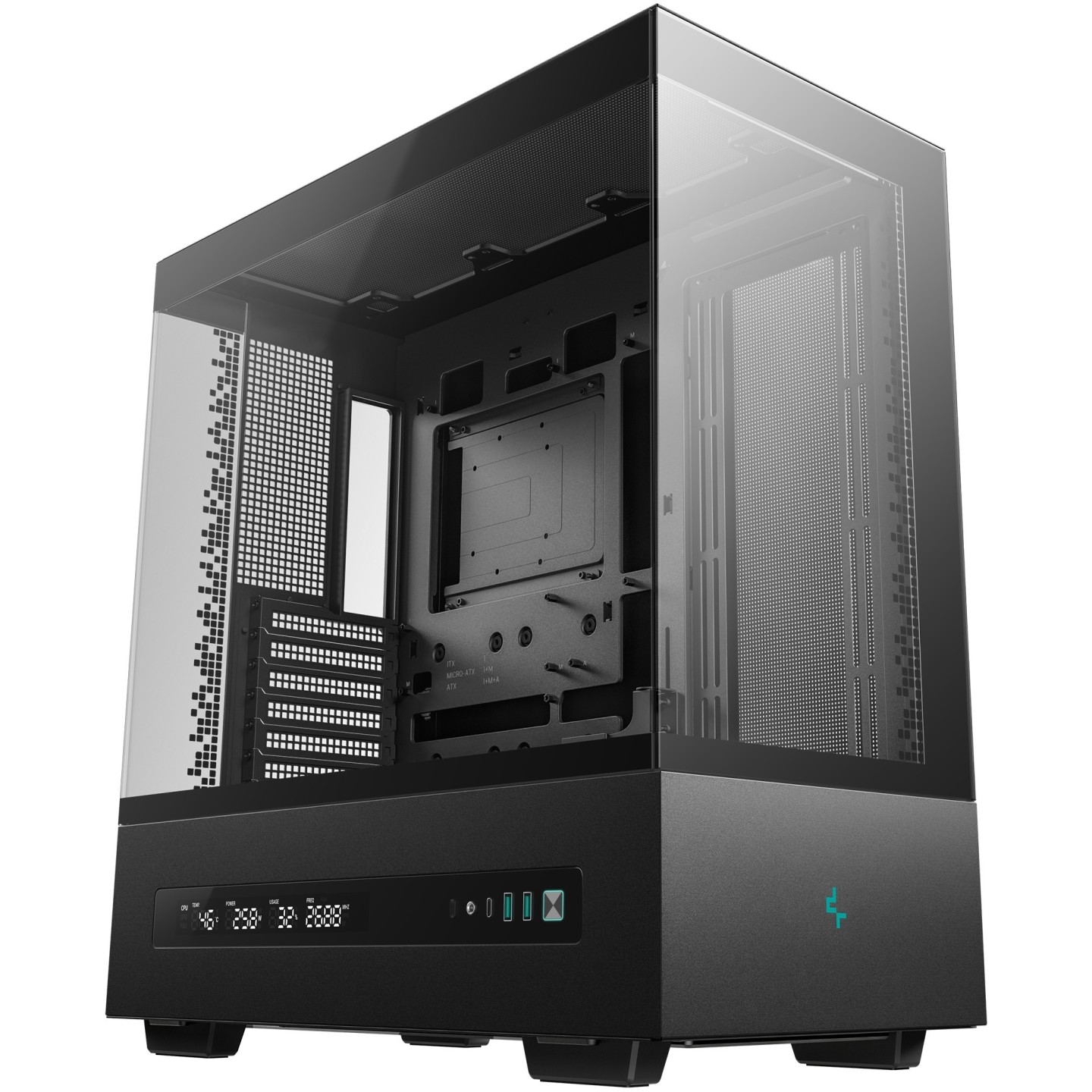

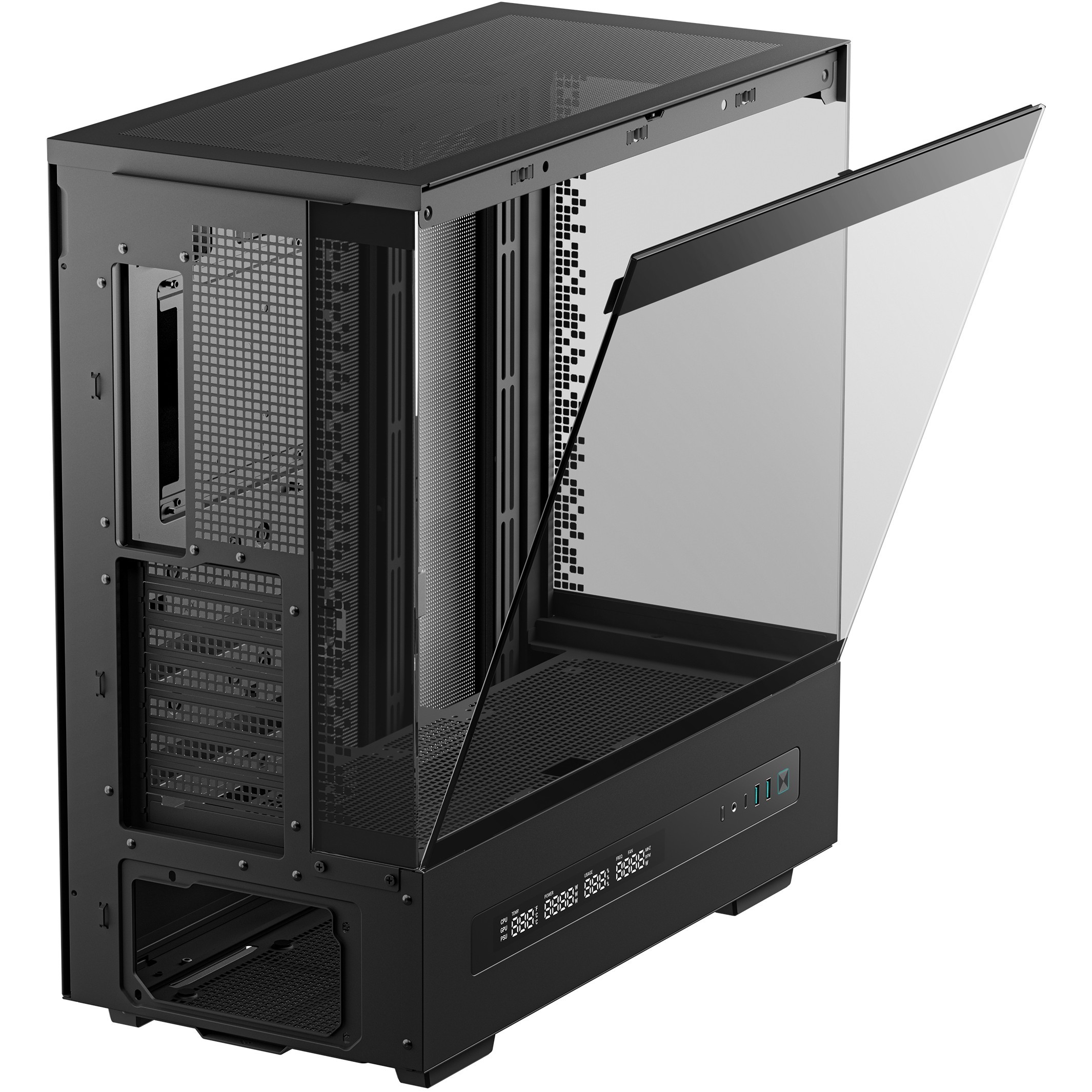

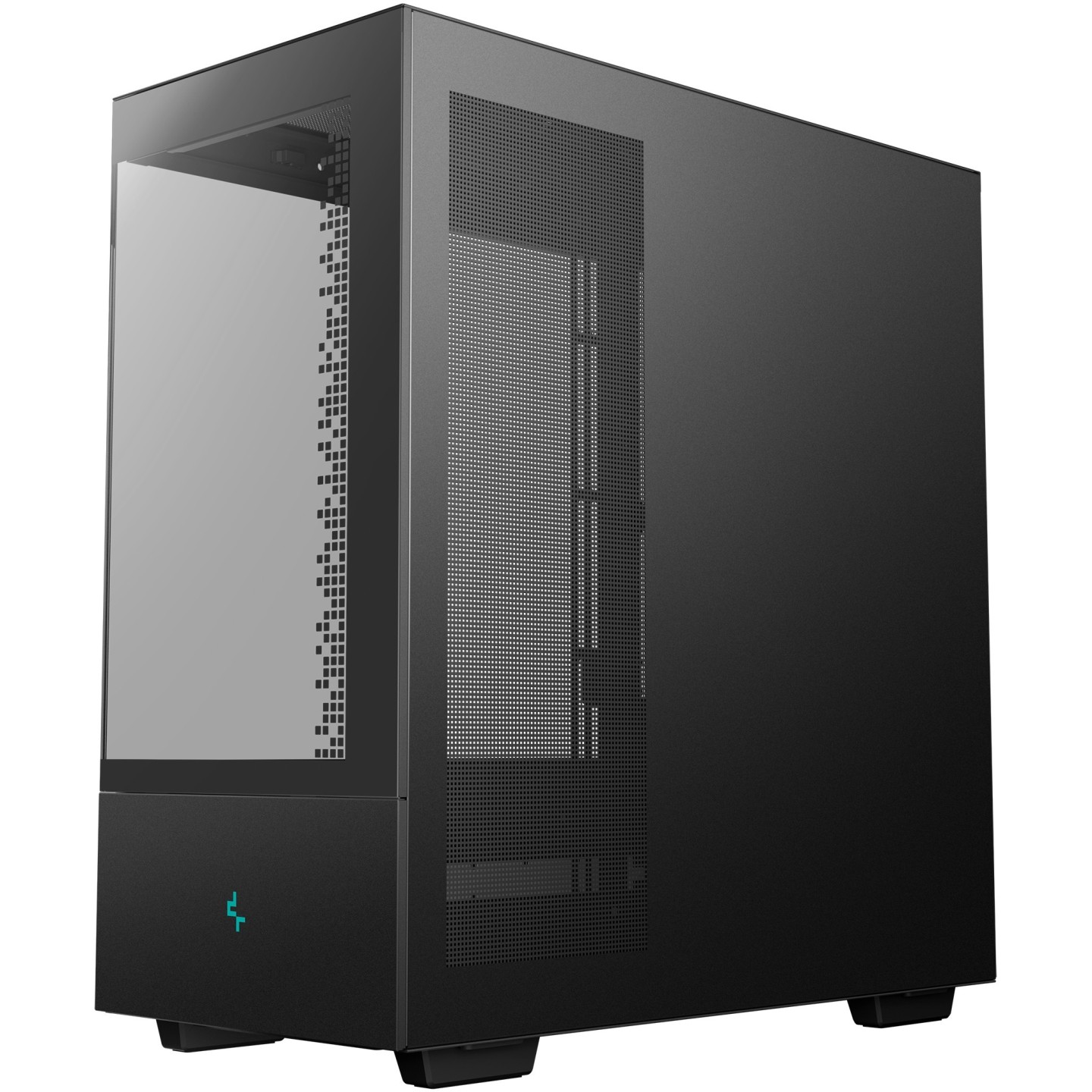

The DeepCool CH690 DIGITAL is a stylish mid-tower PC case designed for gamers and builders seeking a showcase for high-end components. Featuring panoramic tempered glass on the front, side, and rear panels, it provides a stunning 2.5-sided view of your RGB-lit build. A built-in LCD digital display on the front offers real-time monitoring of CPU, GPU, and PSU data with switchable modes for at-a-glance performance insights.

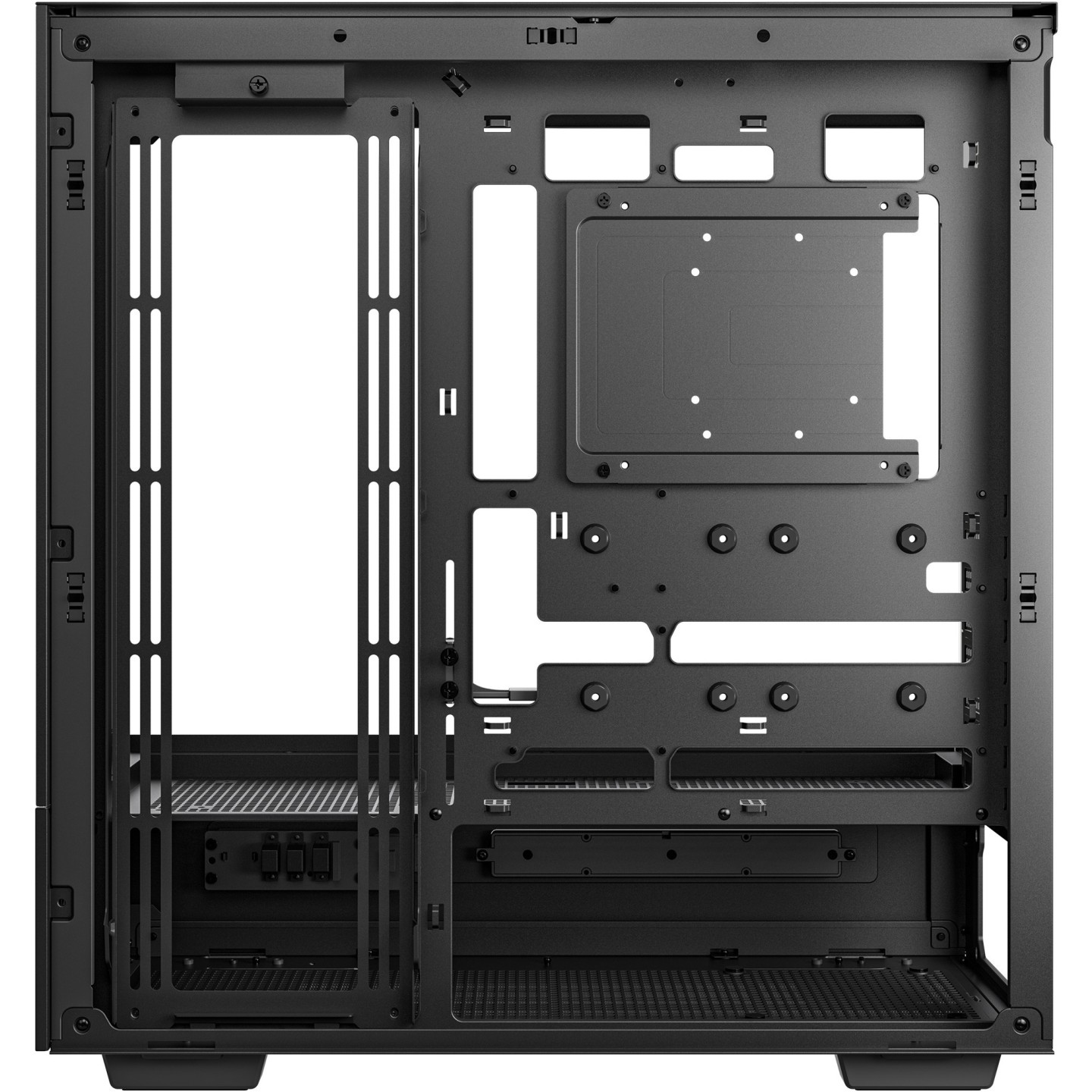

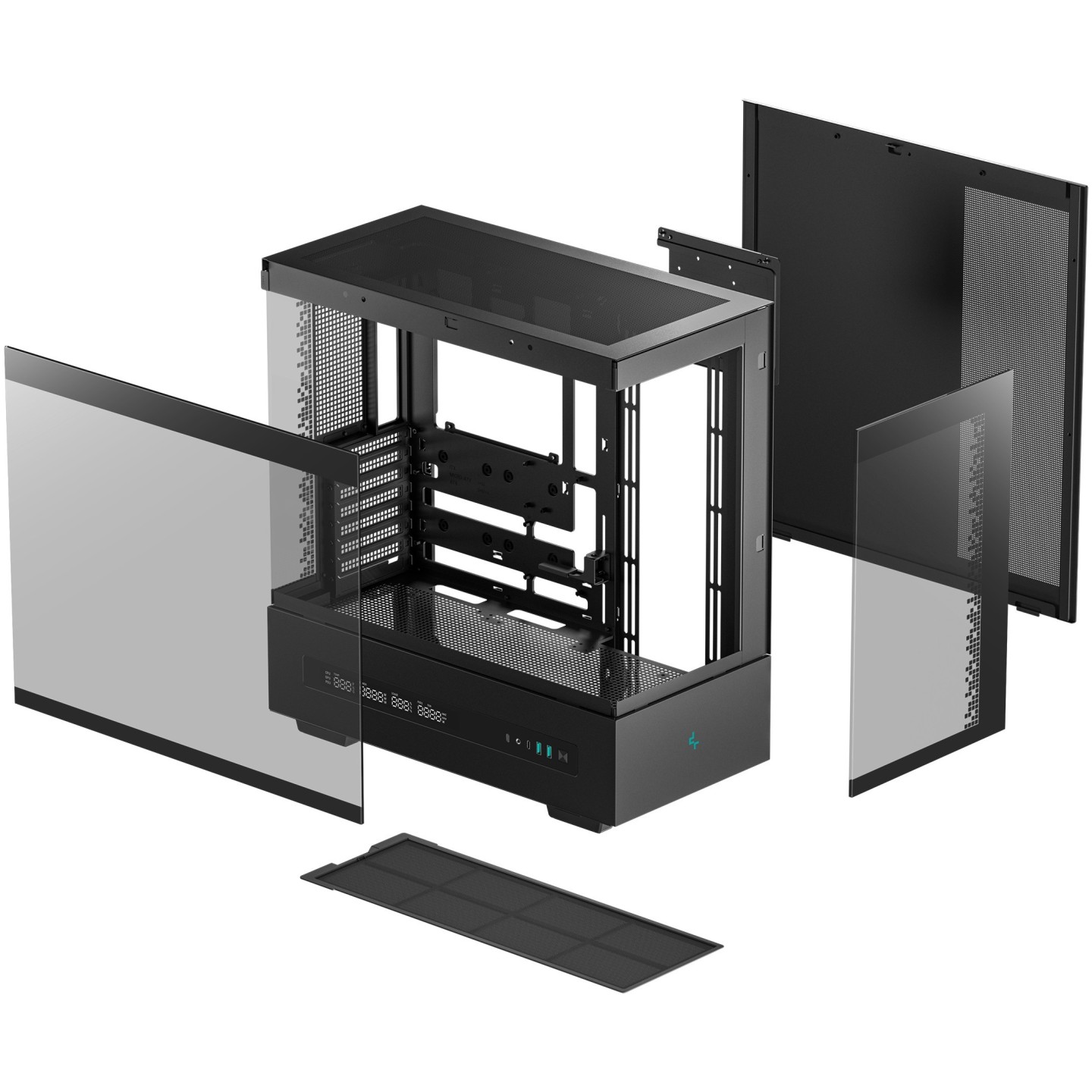

Built for flexibility, it supports ATX, micro ATX, and Mini-ITX motherboards, with generous clearances: 450mm GPU length, 182mm CPU cooler height, and 180mm PSU. Cooling options are extensive, including up to 420mm top radiators, 360mm bottom, 280mm side, plus fan mounts for 3x top/side/bottom, 1x rear. Quality features include magnetic dust filters, adjustable GPU holder, 36.5mm cable management space, and tool-less panels. Front I/O: 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-C, audio combo jack.
- Motherboard: ATX / mATX / Mini-ITX
- Cooling: 420mm radiator support, multiple fan positions
- Dimensions: 240 x 481 x 516 mm (9.8 kg net)
- Included: No fans, modular rear airflow panel

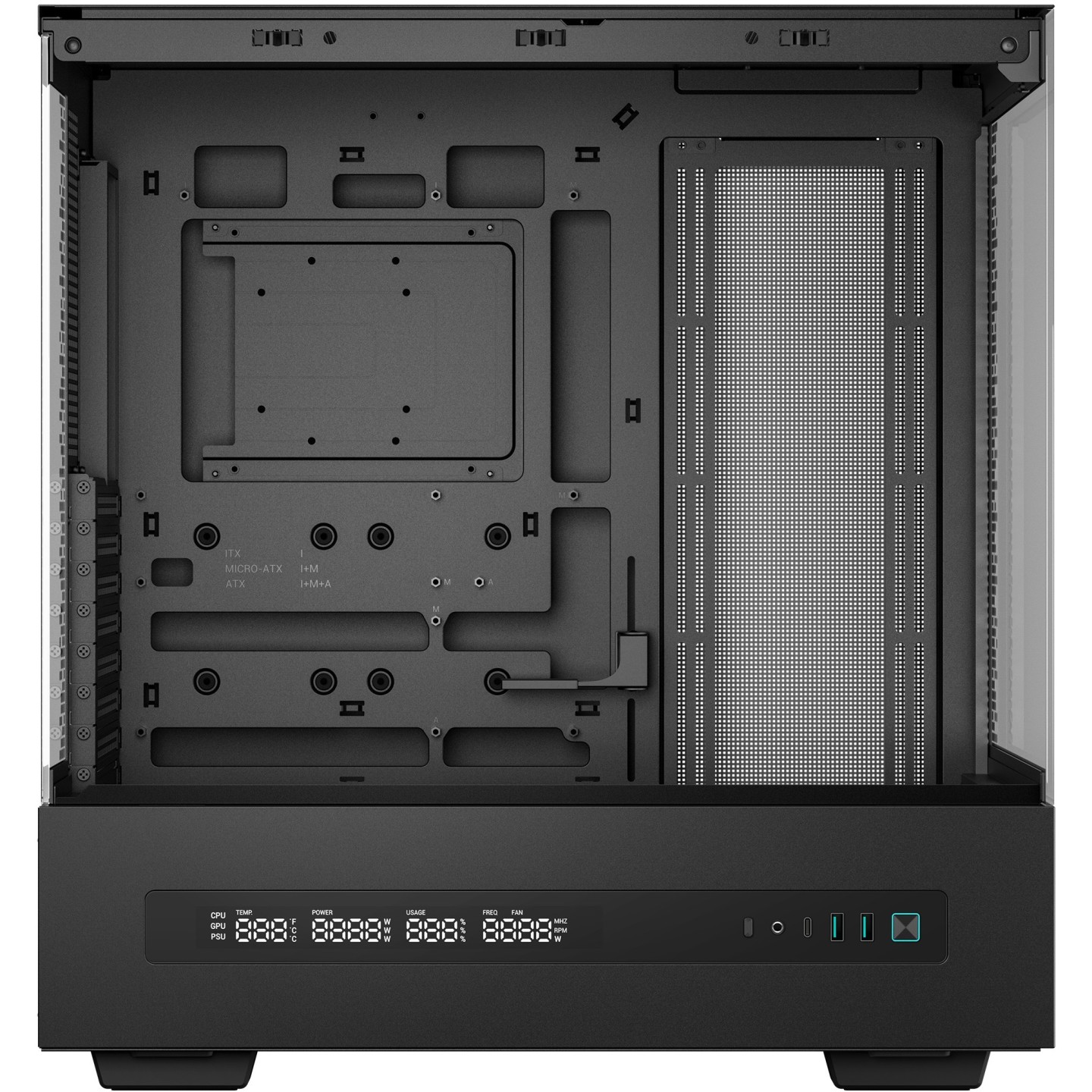

- Display: LCD real-time monitoring
| Material | Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass |
| Form factor | Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5 | 1 |
| Number of 2.5 | 3 |
| Number of expansion slots | 8 |
| Maximum CPU cooler height | 18.2 cm |
| Maximum graphics card length | 45 cm |
| Maximum PSU length | 18 cm |
| Power supply location | Bottom |
| Supported power supply form factors | ATX, PS2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Display type | LCD |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 140 mm |
| Side radiator sizes supported | 120,140,240,280 mm |
| Bottom radiator sizes supported | 120,240,360 mm |
| Top radiator sizes supported | 120,140,240,280,360,420 mm |
| Supported HDD sizes | 2.5,3.5 |
| SSD form factor | 2.5 |
| Width | 240 mm |
| Depth | 481 mm |
| Height | 516 mm |
| Weight | 9.8 kg |
| Included Fans | 0 |
| Cable management space | 36.5 mm |
| Front panel material | Tempered glass |
| Side panel material | Tempered glass |
| Rear panel | Tempered glass (modular mesh option) |
