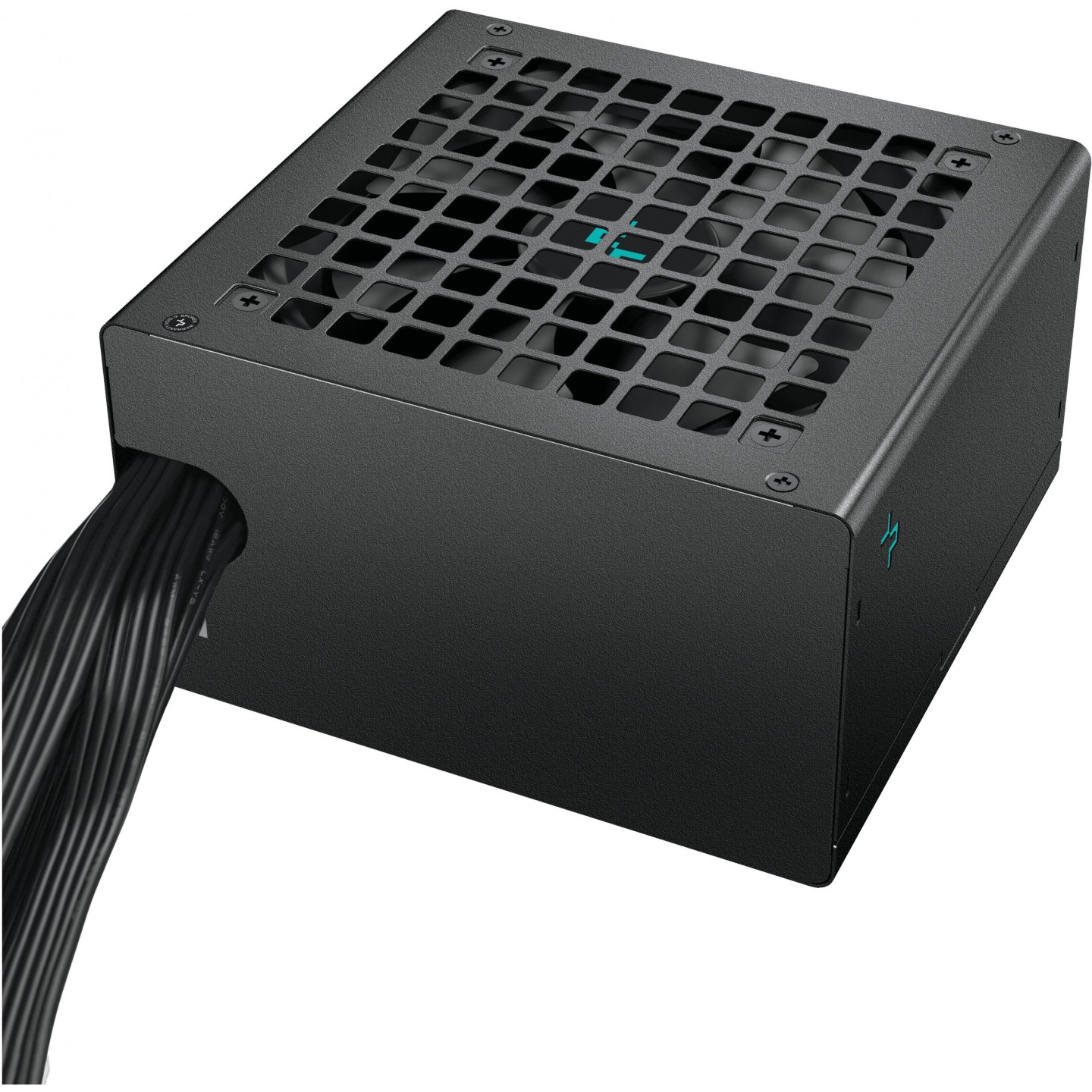

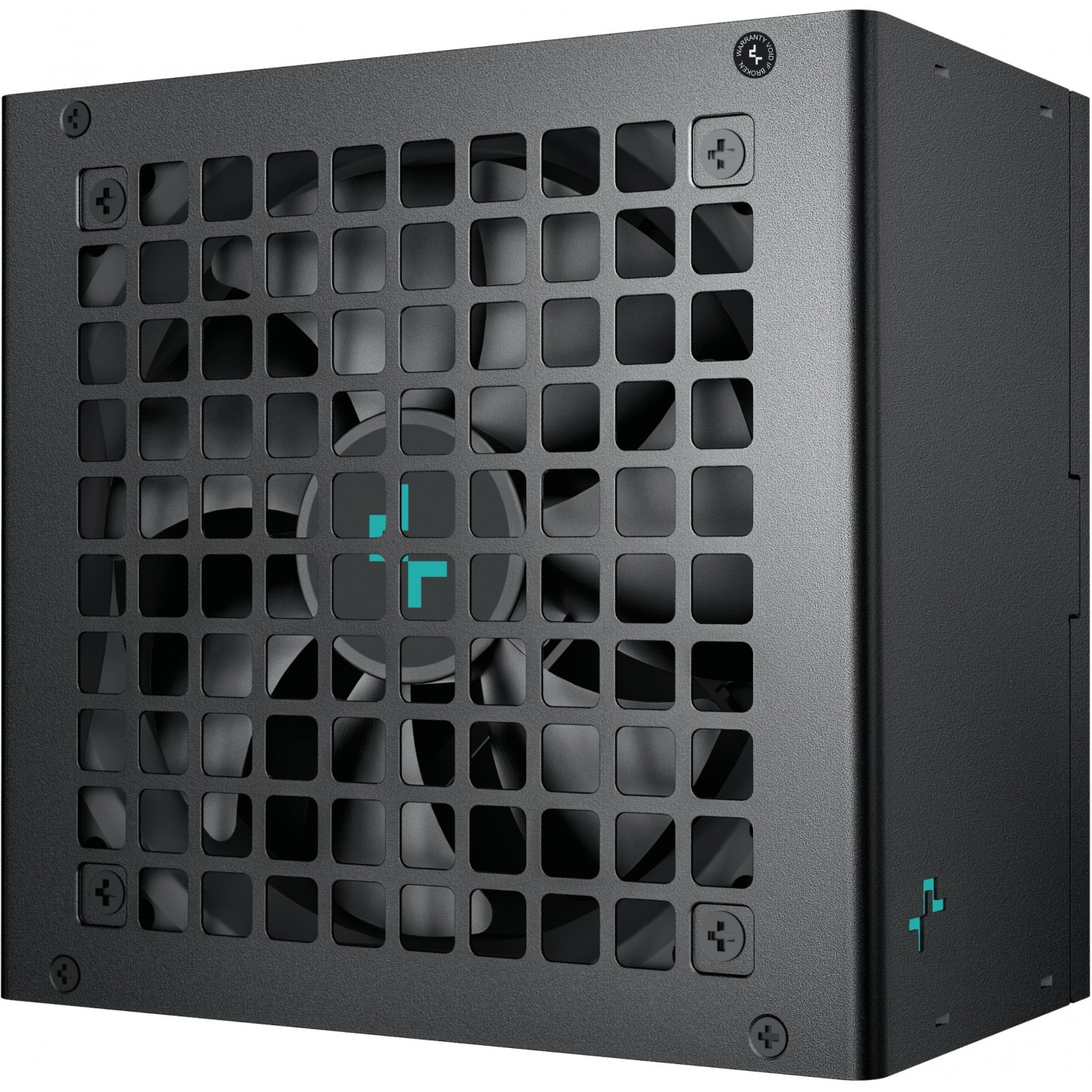

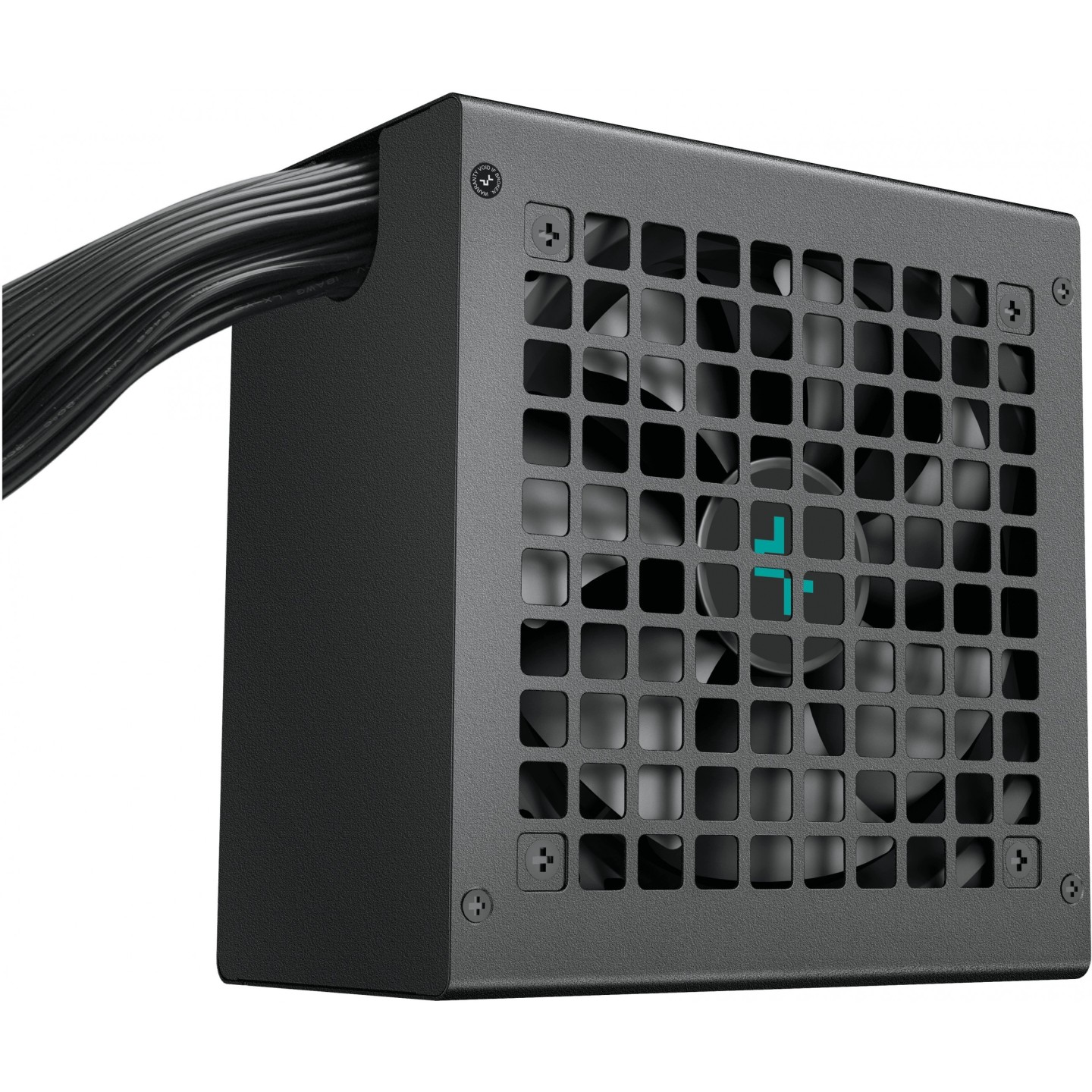

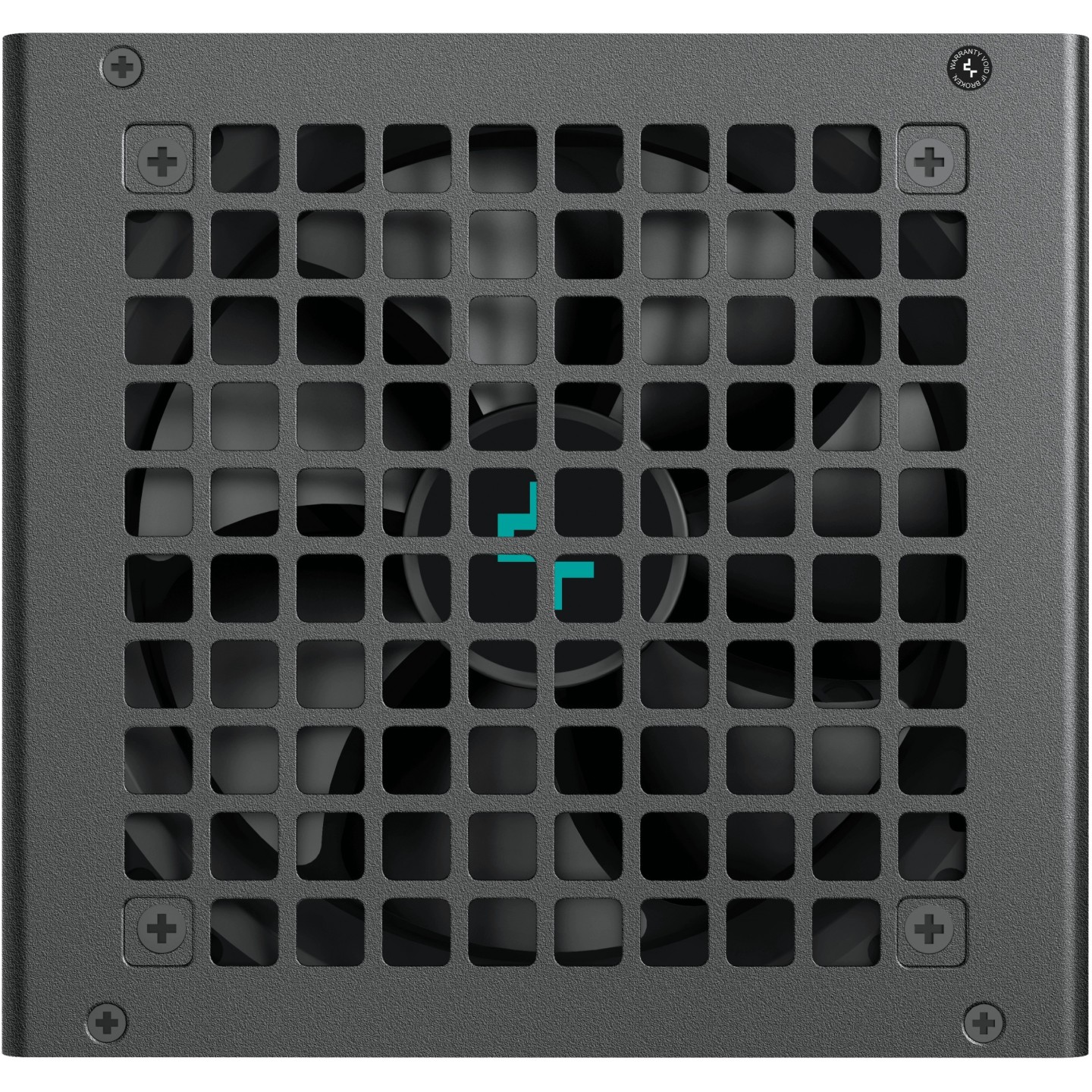

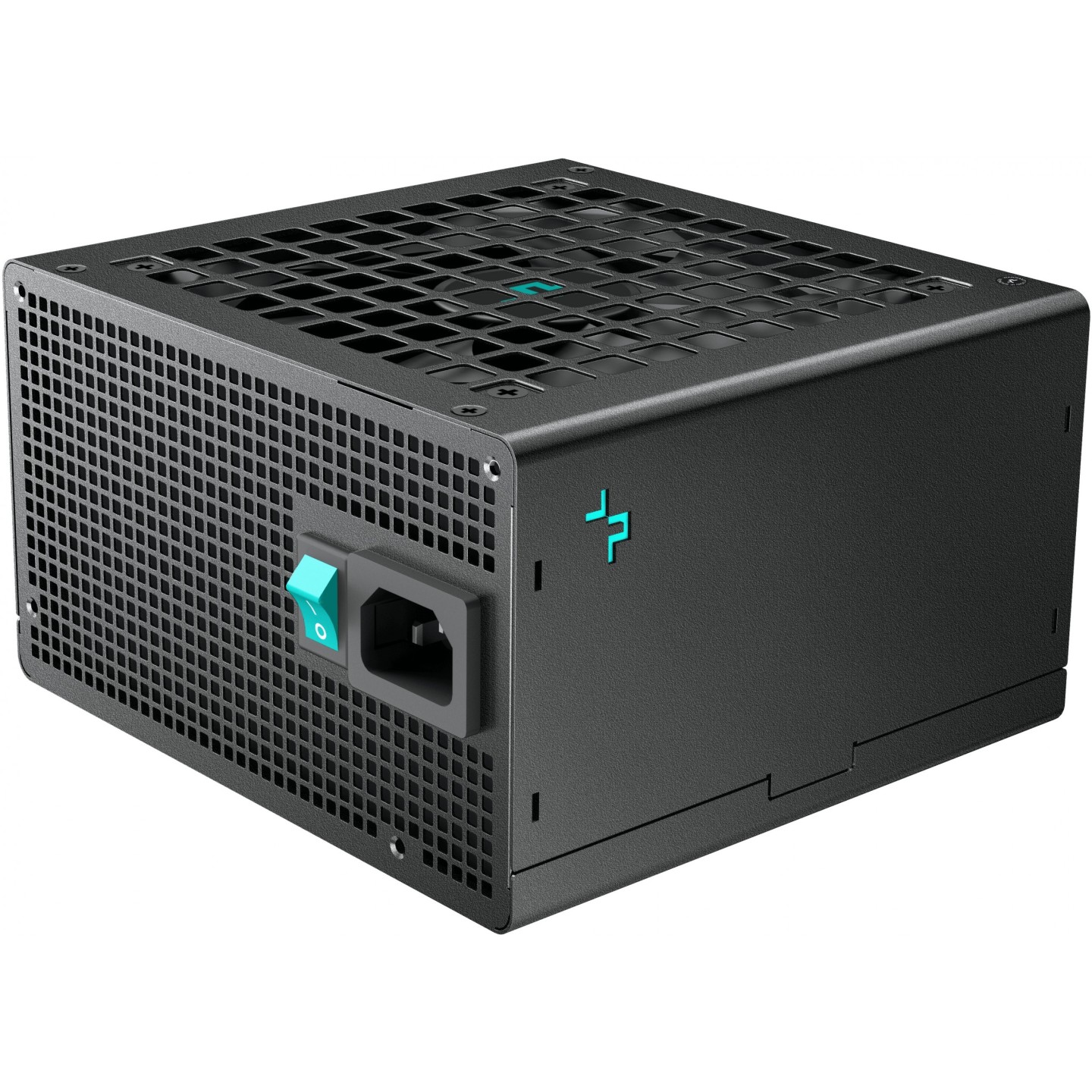

DeepCool PL750D 750W ATX v3.1 Power Supply - Cybenetics Silver (Boxed)
DeepCool PL750D 750W ATX v3.1 power supply with Cybenetics Silver efficiency (85-87%), 120mm fan, non-modular design, and comprehensive protection features for mainstream PC builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | Cybenetics Silver |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12VHPWR 16-pin 3x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The DeepCool PL750D is a 750W ATX v3.1 compliant power supply designed for mainstream and gaming PC builds. Featuring a Cybenetics Silver efficiency rating (85-87% at 115V), this unit delivers reliable power with an average noise output of 33.59dBA. The non-modular design keeps costs low while maintaining full compatibility with modern motherboards and graphics cards.
Built with a single 120mm Hydraulic Dynamic Bearing fan and equipped with comprehensive protection features including over-current, over-voltage, over-power, and short-circuit protection, the PL750D ensures stable operation across a wide temperature range (0-40°C). The power supply provides 750W on the 12V rail, 100W combined on 3.3V and 5V rails, and includes a 100,000-hour MTBF rating for extended reliability.
This unit is ideal for systems with mid-range to high-end graphics cards, offering the new PCIe 12+2 pin connector (600W capacity) alongside traditional 6+2 pin connectors. With Active Power Factor Correction and universal 100-240V input, it supports global power standards.
- Cybenetics Silver efficiency certification (85-87% @ 115V)
- ATX v3.1 and EPS 2.92 compliant
- 1x PCIe 12+2 pin (600W) + 3x PCIe 6+2 pin connectors
- 2x EPS 4+4 pin CPU connectors
- 8x SATA + 2x 4-pin Molex connectors
- Non-modular cabling design
- 120mm hydraulic bearing fan with semi-passive operation support
- 100,000-hour MTBF rating
| Total Power Output | 750 W |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Input Current | 10 - 5 A |
| Power Factor Correction | Active PFC |
| Efficiency Rating | Cybenetics Silver (85-87% @ 115V, 87-89% @ 230V) |
| Noise Level | Cybenetics Standard++ (30-35 dB[A]) |
| 12V Rail Power | 750 W (single rail) |
| 3.3V + 5V Combined Power | 100 W |
| 5VSB Power | 15 W |
| -12V Power | 3.6 W |
| Max Output Current 12V | 62.5 A |
| Max Output Current 5V | 20 A |
| Max Output Current 3.3V | 20 A |
| Max Output Current 5VSB | 3 A |
| Max Output Current -12V | 0.3 A |
| ATX Version | ATX v3.1 |
| EPS Compliance | EPS 2.92 |
| Motherboard Connector | 20+4 pin ATX |
| CPU Power Connectors | 2x 4+4 pin EPS (2x cables) |
| PCIe Power Connectors | 1x 12+2 pin (600W) + 3x 6+2 pin (2x cables) |
| SATA Power Connectors | 8x SATA (2x cables) |
| Molex Connectors | 2x 4-pin (2x cables) |
| Cabling Type | Non-modular |
| Cooling Fan | 1x 120mm Hydraulic Dynamic Bearing Fan (W12025HZ12SEMA) |
| Fan Location | Top |
| Semi-Passive Operation | Yes |
| Operating Temperature | 0 - 40 °C (continuous full load) |
| Hold-up Time | 16 ms |
| Power Good Signal Delay | 100 - 150 ms |
| Standby Power Consumption | 0.0936 W |
| 12V Ripple (Full Load) | 35.70 mV |
| MTBF | 100,000 hours |
| Protection Features | Over-current, Over-power, Over-voltage, Overheating, Short-circuit, Surge & inrush protection (SIP), Under-voltage, No-load operation |
| Dimensions (Unit) | 150 x 140 x 86 mm (W x D x H) |
| Color | Black |
| Form Factor | ATX |
| Certifications | CE, FCC, CCC, RCM, EAC, CAN ICES-003(B), NMB-003(B), TUV-RH, RoHS, WEEE, ErP, Triman |
| OEM Manufacturer | Helly Technology |
| Country of Origin | China |
